UVVJ60S2LNFREQ datasheet, PDF - EEWORLD Datasheet

UVVJ60S2LNFREQ: DescriptionLVDS Output Clock Oscillator, 0.75MHz Min, 800MHz Max,; CategoryPassive components oscillator; File Size82KB，2 Pages; ManufacturerMtronPTI; Websitehttp://www.mtronpti.com; Environmental Compliance

Download Datasheet Parametric View All

UVVJ60S2LNFREQ Overview

LVDS Output Clock Oscillator, 0.75MHz Min, 800MHz Max,

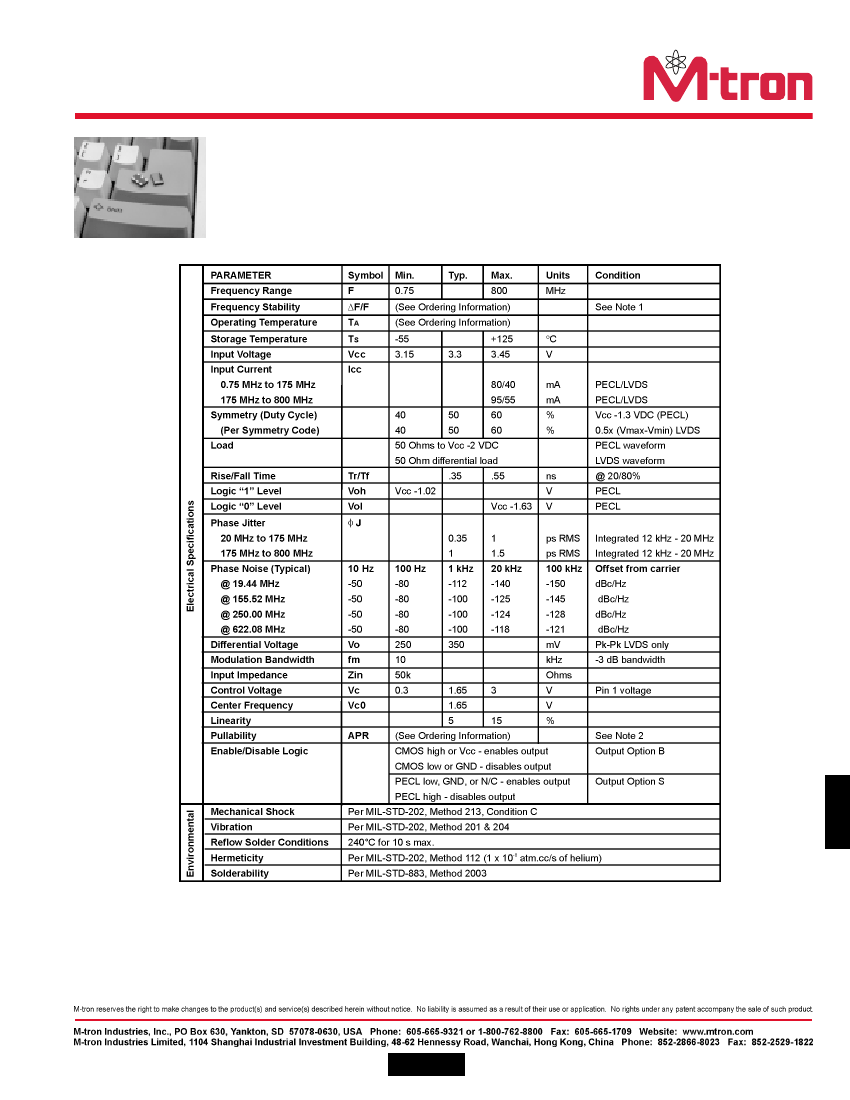

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MtronPTI
Reach Compliance Code	unknown
Maximum control voltage	3 V
Minimum control voltage	0.3 V
maximum descent time	0.55 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	100 ppm
frequency stability	20%
JESD-609 code	e4
linearity	5%
Installation features	SURFACE MOUNT
Maximum operating frequency	800 MHz
Minimum operating frequency	0.75 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	LVDS
Output load	50 OHM
physical size	7mm x 5mm x 1.9mm
longest rise time	0.55 ns
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

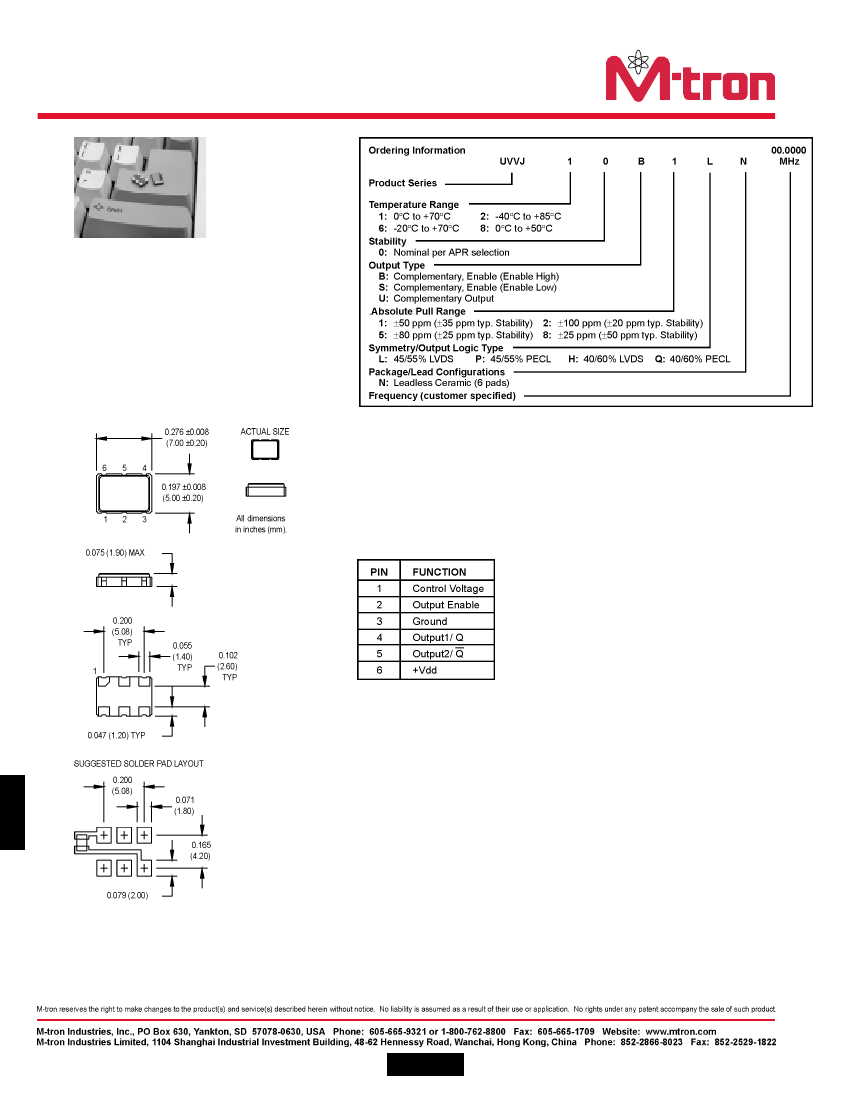

UVVJ Series 5.0 x 7.0 x 1.9 mm 3.3 Volt Surface

Mount LVPECL/LVDS Compatible Low Jitter VCXO

•

Integrated phase jitter of less than 1

ps from 12 kHz to 20 MHz achieved

with non-PLL technology

• Ideal for 10 and 40 Gigabit Ethernet

and Optical Carrier applications
