TC-37SS datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> TC-37SS

TC-37SS: DescriptionD Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Socket; CategoryThe connector The connector; File Size31KB，1 Pages; ManufacturerCinch Connectivity Solutions

Download Datasheet Parametric Compare View All

TC-37SS Overview

D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Socket

TC-37SS Parametric

Parameter Name	Attribute value
Maker	Cinch Connectivity Solutions
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	PANEL MOUNTABLE
body width	0.494 inch
subject depth	0.198 inch
body length	2.729 inch
Body/casing type	SOCKET
Connector type	D SUBMINIATURE CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU ON CU
Contact completed and terminated	GOLD FLASH
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	2.7 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	1100VAC V
empty shell	NO
Filter function	NO
IEC compliance	NO
maximum insertion force	3.336 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYESTER
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	TC
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	HOLE .112-.124
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	MIL-C-24308
Shell surface	ZINC
Shell material	STEEL
Housing size	4/C
Terminal length	0.234 inch
Termination type	SOLDER
Total number of contacts	37
UL Flammability Code	94V-0
Evacuation force-minimum value	.1946 N
Base Number Matches	1

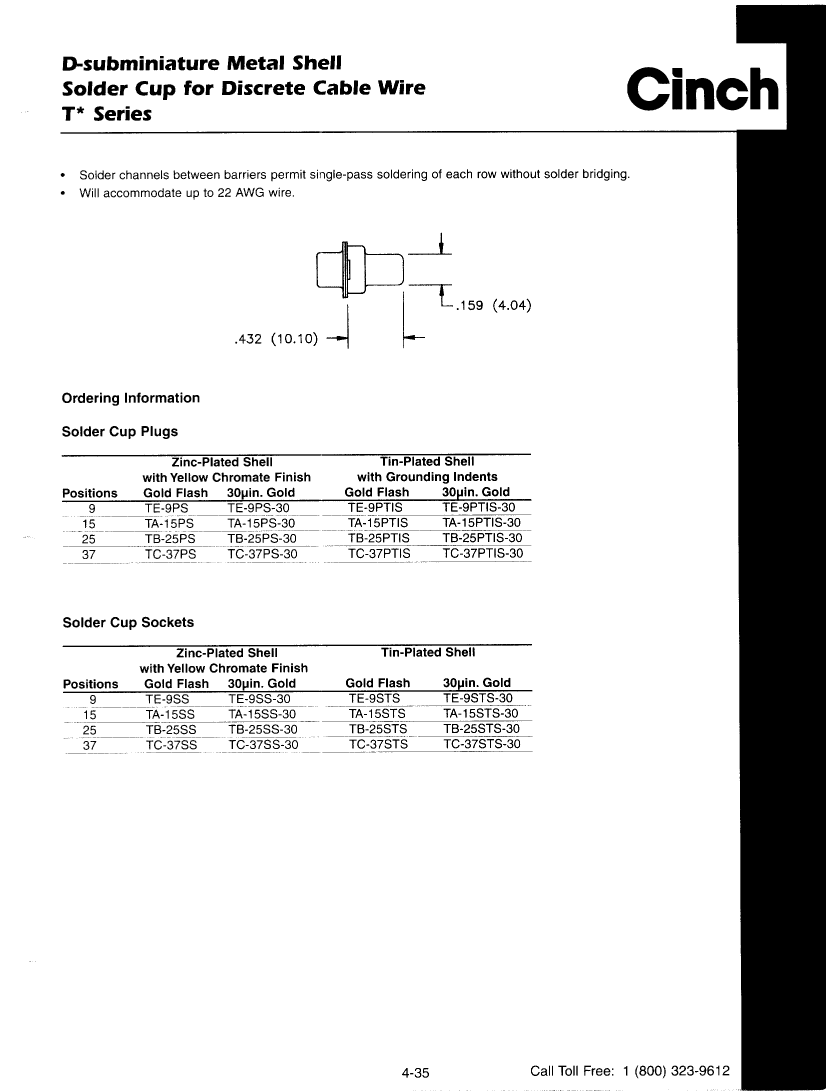

Preview

Download Datasheet

View All

TC-37SS Related Products

	TC-37SS	TA-15STS	TB-25PTIS-30	TE-9STS-30
Description	D Subminiature Connector, 37 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Socket	D Subminiature Connector, 15 Contact(s), Female, 0.109 inch Pitch, Solder Terminal, Hole .112-.124, Socket	D Subminiature Connector, 25 Contact(s), Male, Solder Terminal, Plug,	D Subminiature Connector, 9 Contact(s), Female, Solder Terminal, Socket,
Maker	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions	Cinch Connectivity Solutions
Reach Compliance Code	unknown	unknown	compliant	compliant
Other features	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE	PANEL MOUNTABLE
Body/casing type	SOCKET	SOCKET	PLUG	SOCKET
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	AU ON CU	AU ON CU	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	MALE	FEMALE
Contact material	PHOSPHOR BRONZE	PHOSPHOR BRONZE	NOT SPECIFIED	NOT SPECIFIED
DIN compliance	NO	NO	NO	NO
empty shell	NO	NO	NO	NO
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
insulator material	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER	GLASS FILLED POLYESTER
MIL compliance	NO	NO	NO	NO
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation type	CABLE	CABLE	CABLE	CABLE
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	ZINC	TIN	TIN	TIN
Shell material	STEEL	STEEL	STEEL	STEEL
Housing size	4/C	2/A	3/B	1/E
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	37	15	25	9
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1
Manufacturer's serial number	TC	TA	TB	-
