SN74LS165JD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> SN74LS165JD

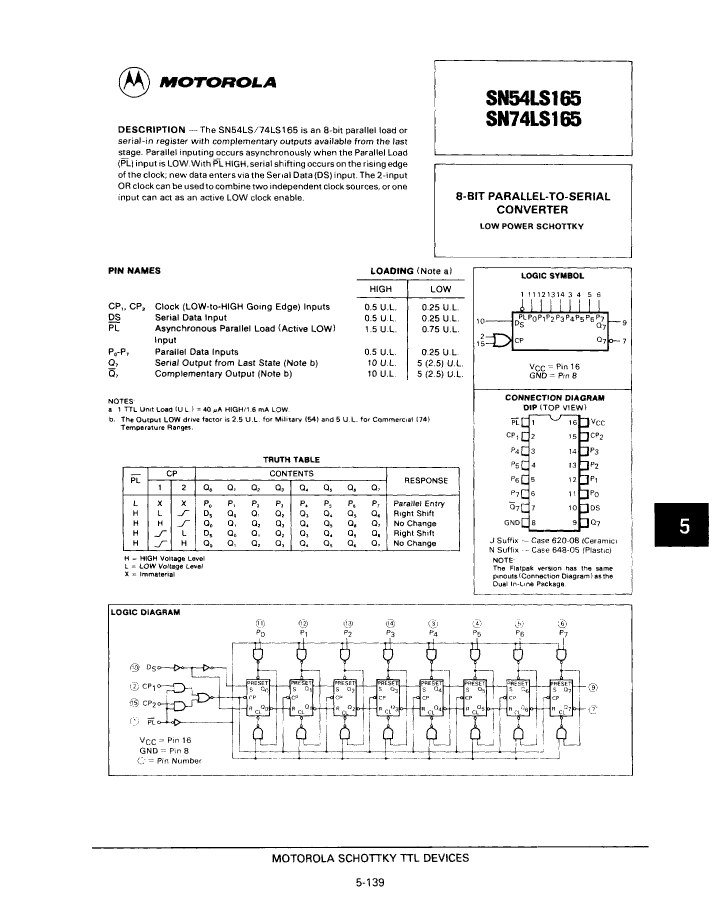

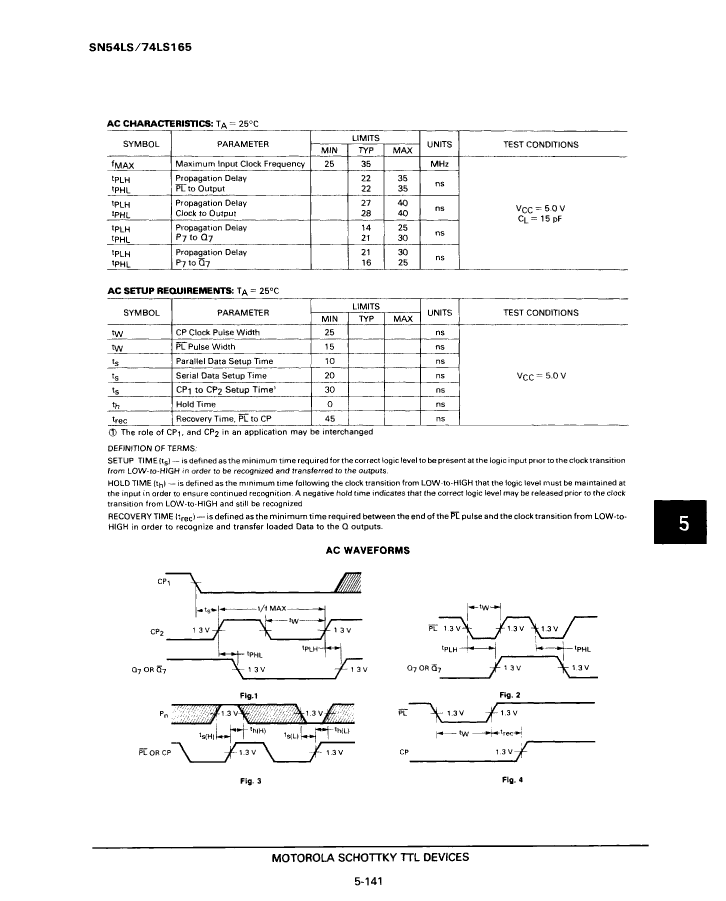

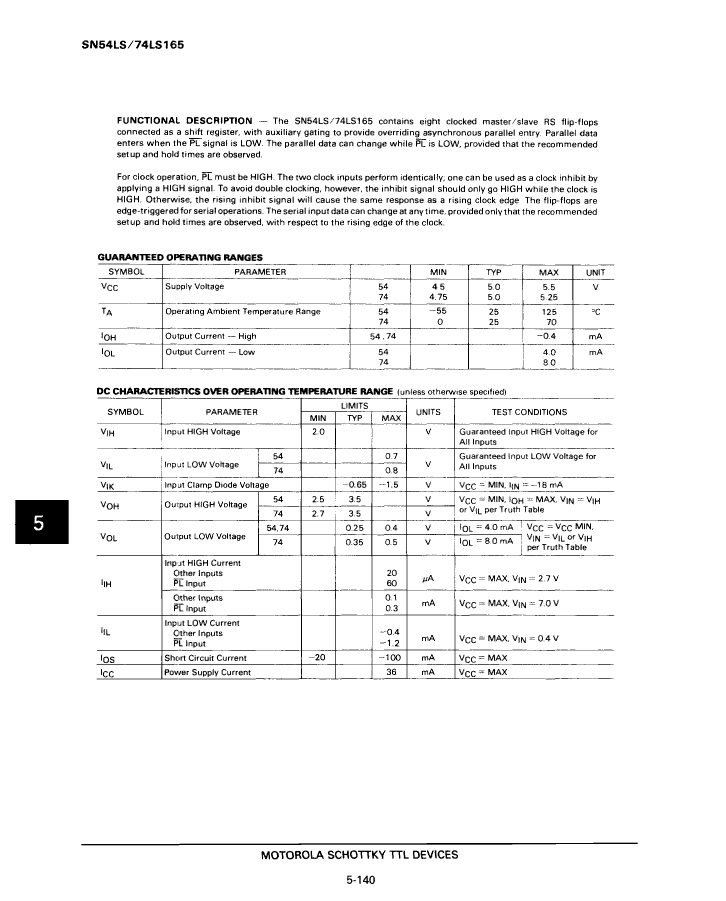

SN74LS165JD: DescriptionLS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, CDIP16, CERAMIC, DIP-16; Categorylogic logic; File Size107KB，3 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

SN74LS165JD Overview

LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, CDIP16, CERAMIC, DIP-16

SN74LS165JD Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	CERAMIC, DIP-16
Reach Compliance Code	unknown
Counting direction	RIGHT
series	LS
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.495 mm
Logic integrated circuit type	PARALLEL IN SERIAL OUT
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
propagation delay (tpd)	40 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	POSITIVE EDGE
width	7.62 mm
minfmax	35 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

SN74LS165JD Related Products

	SN74LS165JD	SN74LS165NDS
Description	LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, CDIP16, CERAMIC, DIP-16	LS SERIES, 8-BIT RIGHT PARALLEL IN SERIAL OUT SHIFT REGISTER, COMPLEMENTARY OUTPUT, PDIP16, 648-05
Is it Rohs certified?	incompatible	incompatible
package instruction	CERAMIC, DIP-16	DIP, DIP16,.3
Reach Compliance Code	unknown	unknown
Counting direction	RIGHT	RIGHT
series	LS	LS
JESD-30 code	R-GDIP-T16	R-PDIP-T16
JESD-609 code	e0	e0
length	19.495 mm	20.07 mm
Logic integrated circuit type	PARALLEL IN SERIAL OUT	PARALLEL IN SERIAL OUT
Number of digits	8	8
Number of functions	1	1
Number of terminals	16	16
Maximum operating temperature	70 °C	70 °C
Output polarity	COMPLEMENTARY	COMPLEMENTARY
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
propagation delay (tpd)	40 ns	40 ns
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.08 mm
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	NO	NO
technology	TTL	TTL
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
Trigger type	POSITIVE EDGE	POSITIVE EDGE
width	7.62 mm	7.62 mm
minfmax	35 MHz	35 MHz
Base Number Matches	1	1
