BI4U-M12-AP6X-V1131 datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> BI4U-M12-AP6X-V1131

BI4U-M12-AP6X-V1131: DescriptionInductive Sensor,; CategoryThe sensor Sensor/transducer; File Size418KB，4 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI4U-M12-AP6X-V1131 Overview

Inductive Sensor,

BI4U-M12-AP6X-V1131 Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknown
Other features	IP68; REVERSE POLARITY PROTECTION; SHORT-CIRCUIT PROTECTION
body height	52 mm
Body length or diameter	12 mm
shell	METAL
Installation features	FLUSH MOUNTING
Maximum working current	200 mA
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Output interface type	3-WIRE INTERFACE
Output type	PNP
Package Shape/Form	BARREL
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	30 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

Inductive sensor

BI4U-M12-AP6X-V1131

■

M12 × 1 threaded barrel

■

Chrome-plated brass

■

Factor 1 for all metals

■

Protection class IP68

■

Resistant to magnetic fields

■

Large switching distance

■

Recessed mountable

■

DC 3-wire, 10…30 VDC

■

NO contact, PNP output

■

M8 x 1 male connector

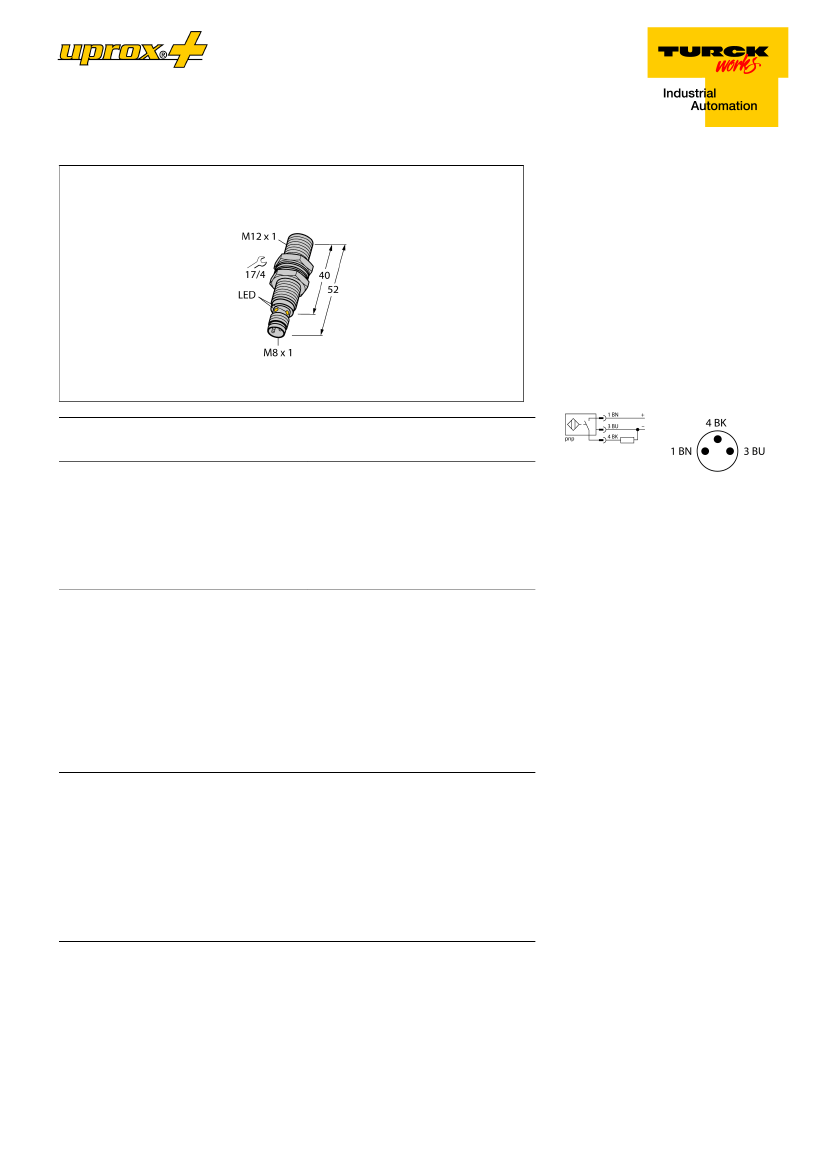

Wiring Diagram

Type designation

Ident-No.

Rated switching distance Sn

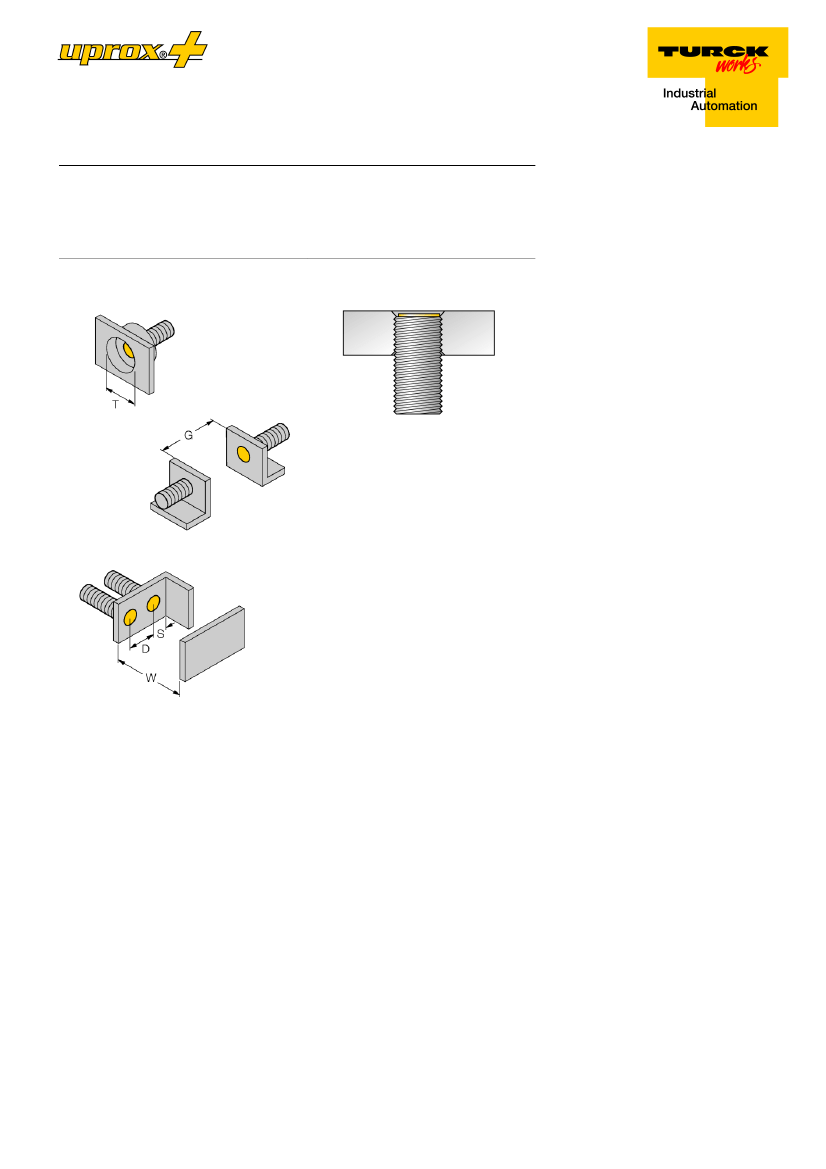

Mounting conditions

Secured operating distance

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

No-load current I

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at I

Wire breakage/Reverse polarity protection

Output function

Protection class

Switching frequency

Design

Dimensions

Housing material

Active area material

Max. tightening torque housing nut

Electrical connection

Vibration resistance

Shock resistance

Protection class

MTTF

Packaging unit

Switching state

BI4U-M12-AP6X-V1131

1634780

4 mm

Flush

(0,81 x Sn) mm

2 % of full scale

± 10 %

± 15 %,

-25 °C v

+70 °C

3…15 %

-30…+85 °C

10…30 VDC

10 % U

200 mA

15 mA

0.1 mA

0.5 kV

yes/ Cyclic

1.8 V

yes/ Complete

3-wire, NO contact, PNP

2 kHz

Threaded barrel,M12 × 1

52 mm

Metal, CuZn, Chrome-plated

Plastic, LCP

10 Nm

Connectors, M8 × 1

55 Hz (1 mm)

30 g (11 ms)

IP68

874 years acc. to SN 29500 (Ed. 99) 40 °C

LED,Yellow

Functional principle

Inductive sensors detect metal objects con-

tactless and wear-free. Due to the patented

multi-coil system,

uprox®+

sensors have dis-

tinct advantages over conventional sensors.

They excel in largest switching distances,

maximum flexibility and operational reliability

as well as efficient standardization.

Edition • 2018-05-21T18:15:15+02:00

1/4

TURCK Inc.

3000 Campus Drive Minneapolis, MN 55441-2656

Phone: 763-553-7300

Application Support: 1-800-544-7769

Fax 763-553-0708

www.turck.com
