Inductive sensor
With extended temperature range
BI15-CP40-VN4X2/S97

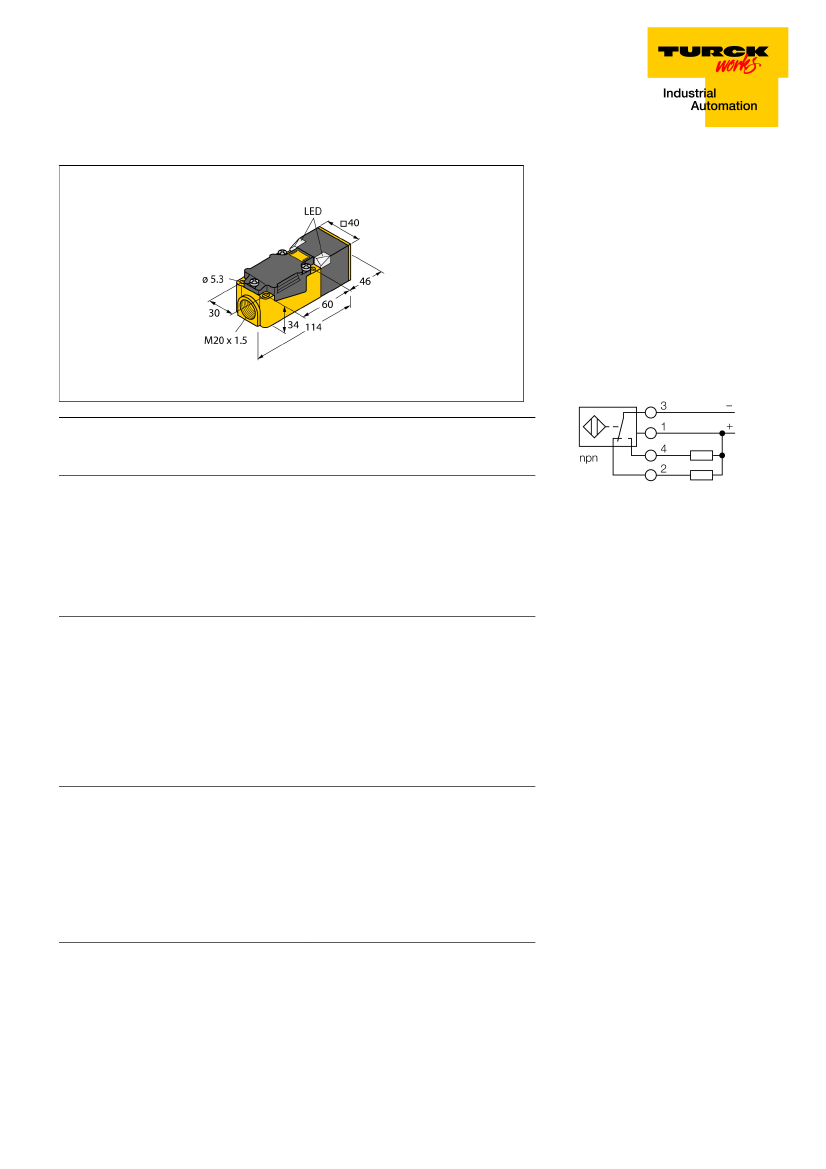

Rectangular, height 40 mm
Variable orientation of active face in 9 di-
rections
Plastic, PBT-GF30-V0
High luminance corner LEDs
Optimum view on supply voltage and
switching state from any position
■
Temperatures up to -40 °C
■
DC 4-wire, 10…65 VDC
■
Changeover contact, NPN output
■
Terminal chamber
Wiring Diagram
Type designation
Ident-No.
Ident-No (TUSA)
Rated switching distance Sn
Mounting conditions
Secured operating distance
Correction factors
Repeat accuracy
Temperature drift
Hysteresis
Ambient temperature
Operating voltage
Residual ripple
DC rated operational current
No-load current I
0
Residual current
Isolation test voltage
Short-circuit protection
Voltage drop at I
e
Wire breakage/Reverse polarity protection
Output function
Switching frequency
Design
Dimensions
Housing material
Active area material
Electrical connection
Clamping ability
Vibration resistance
Shock resistance
Protection class
MTTF
Power-on indication
Switching state
Edition • 2017-09-15T04:24:32+02:00
BI15-CP40-VN4X2/S97
1579001
M1579001
15 mm
Flush
ð
(0,81 x Sn) mm
St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
ð
2 % of full scale
ð
± 10 %
ð
± 20 %,
ð
-25 °C
3…15 %
-40…+70 °C
10…65 VDC
ð
10 % U
ss
ð
200 mA
ð
15 mA
ð
0.1 mA
ð
0.5 kV
yes/ Cyclic
ð
1.8 V
yes/ Complete
4-wire, Complementary contact, NPN
0.15 kHz
Rectangular, CP40
114 x 40 x 40 mm
Plastic, PBT-GF30-V0, Black
Plastic, PBT-GF30-V0, yellow
Terminal chamber
ð
2.5 mm
55 Hz (1 mm)
30 g (11 ms)
IP67
2283 years acc. to SN 29500 (Ed. 99) 40 °C
2
Functional principle
Inductive sensors detect metal objects con-
tactless and wear-free. For this purpose they
use a high-frequency electromagnetic AC
field that interacts with the target. The sensors
hosting a ferrite core coil generate the AC field
through an LC resonant circuit.
Special versions are available for ambient
temperatures between -60°C and +250°C.
2 × LEDs green
LED yellow
1/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
Inductive sensor
With extended temperature range
BI15-CP40-VN4X2/S97

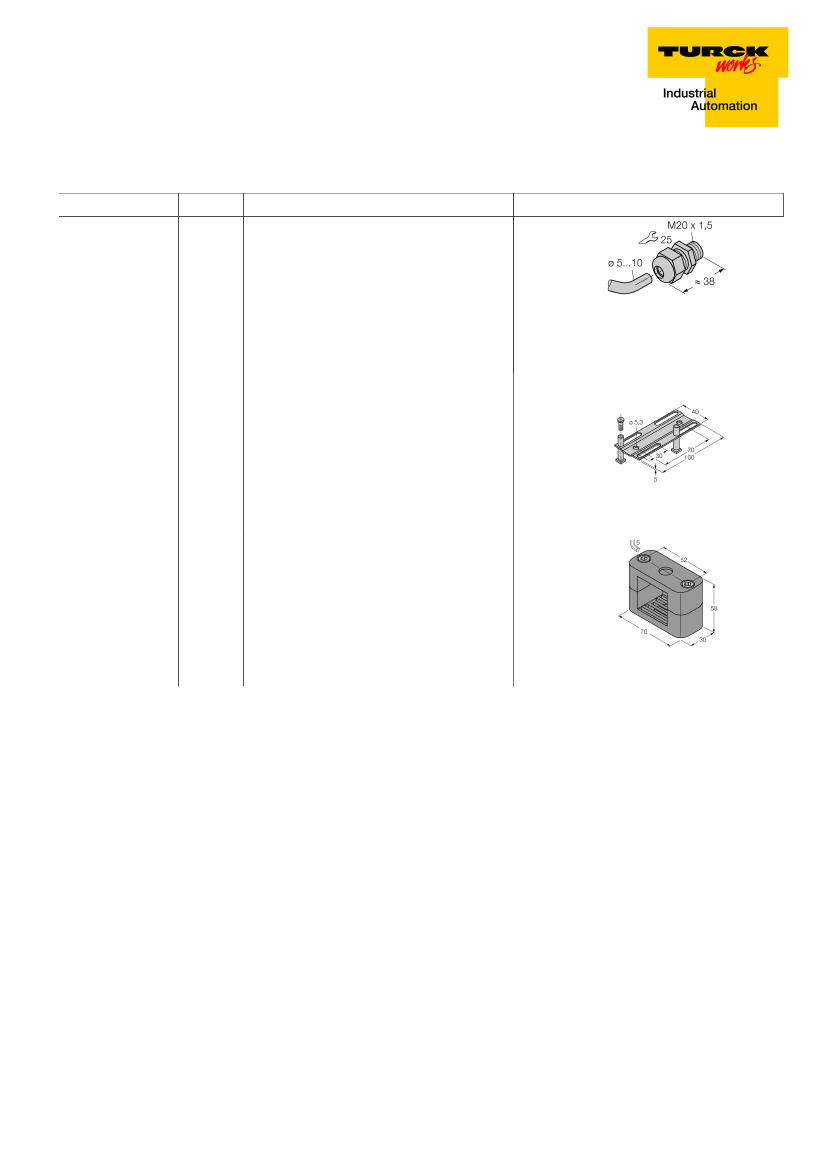

Accessories
Type code
STRM M20X1,5 BLACK
Ident-No.
6965902
Description
Cable glands M20 x 1.5
Adjusting bar JS 025/037
69429
Adjusting bar for rectangular housings CK/CP40; material: VA
1.4301
BSS-CP40
6901318
Mounting bracket for rectangular devices; material:
Polypropylene
Edition • 2017-09-15T04:24:32+02:00
3/3
TURCK Inc.
ñ
3000 Campus Drive Minneapolis, MN 55441-2656
ñ
Phone: 763-553-7300
ñ
Application Support: 1-800-544-7769
ñ
Fax 763-553-0708
ñ
www.turck.com
