BI15U-CP40-VP4X2/S10 datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> BI15U-CP40-VP4X2/S10

BI15U-CP40-VP4X2/S10: DescriptionInductive Sensor,; CategoryThe sensor Sensor/transducer; File Size311KB，3 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI15U-CP40-VP4X2/S10 Overview

Inductive Sensor,

BI15U-CP40-VP4X2/S10 Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknown
Other features	IP67, IP68; REVERSE POLARITY PROTECTION; SHORT-CIRCUIT PROTECTION
body width	40 mm
body height	40 mm
Body length or diameter	114 mm
shell	PLASTIC
Installation features	FLUSH MOUNTING
Maximum working current	200 mA
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Output interface type	4-WIRE INTERFACE
Output type	PNP
Package Shape/Form	RECTANGULAR
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Maximum supply voltage	65 V
Minimum supply voltage	10 V
surface mount	NO
Termination type	TERMINAL CHAMBER
Base Number Matches	1

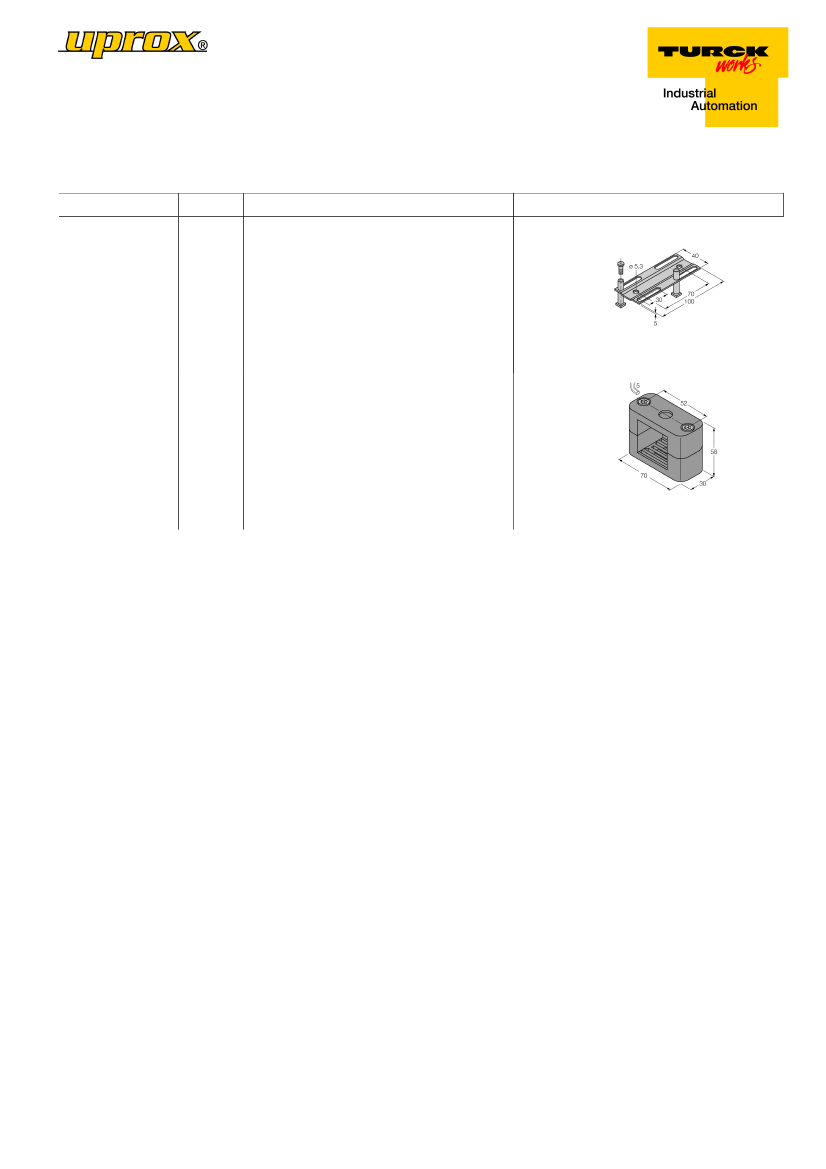

Preview

Download Datasheet

View All

Inductive sensor

BI15U-CP40-VP4X2/S10

■

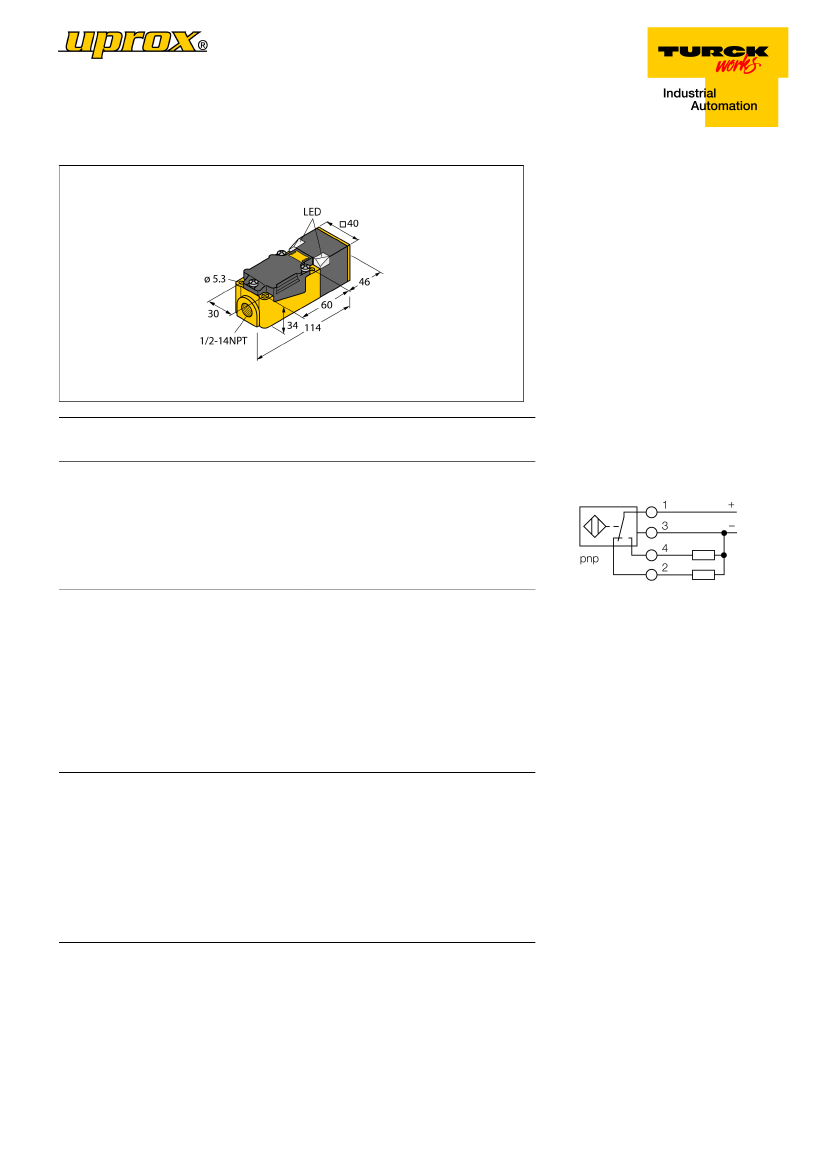

Rectangular, height 40 mm

■

Variable orientation of active face in 9

directions

■

Plastic, PBT-GF30-V0

■

High luminance corner LEDs

■

Optimum view on supply voltage and

switching state from any position

■

Factor 1 for all metals

■

Protection class IP68

■

Resistant to magnetic fields

■

Extended temperature range

■

High switching frequency

■

DC 4-wire, 10…65 VDC

Type designation

Ident-No.

Rated switching distance Sn

Mounting conditions

Secured operating distance

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

No-load current I

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at I

Wire breakage/Reverse polarity protection

Output function

Protection class

Switching frequency

Design

Dimensions

Housing material

Active area material

Electrical connection

Clamping ability

Vibration resistance

Shock resistance

Protection class

MTTF

Packaging unit

Power-on indication

Switching state

Edition • 2018-05-20T01:21:07+02:00

BI15U-CP40-VP4X2/S10

1540501

15 mm

Flush

(0,81 x Sn) mm

2 % of full scale

± 10 %

± 15 %,

-25 °C v

+70 °C

3…15 %

-30…+85 °C

10…65 VDC

10 % U

200 mA

15 mA

0.1 mA

0.5 kV

yes

1.8 V

yes/ Complete

4-wire, Complementary contact, PNP

0.25 kHz

Rectangular,CP40

114 x 40 x 40 mm

Plastic, PBT-GF30-V0, Black

Plastic, PA6-GF30-X, yellow

Terminal chamber

2.5 mm

55 Hz (1 mm)

30 g (11 ms)

IP68

874 years acc. to SN 29500 (Ed. 99) 40 °C

■

Changeover contact, PNP output

■

Terminal chamber

Wiring Diagram

Functional principle

Inductive sensors detect metal objects con-

tactless and wear-free.

uprox®

Factor 1 sen-

sors have significant advantages due to their

patented ferrite-coreless multicoil system.

They detect all metals at the same large

switching distance and are resistant to mag-

netic fields.

2 × LEDs,Green

2 × LEDs,Yellow

1/3

TURCK Inc.

3000 Campus Drive Minneapolis, MN 55441-2656

Phone: 763-553-7300

Application Support: 1-800-544-7769

Fax 763-553-0708

www.turck.com
