BI8U-MT18-AP6X-H1141/S1589 datasheet, PDF

Datasheet> All Categories > The sensor> Sensor/transducer> BI8U-MT18-AP6X-H1141/S1589

BI8U-MT18-AP6X-H1141/S1589: DescriptionInductive Sensor,; CategoryThe sensor Sensor/transducer; File Size315KB，3 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BI8U-MT18-AP6X-H1141/S1589 Overview

Inductive Sensor,

BI8U-MT18-AP6X-H1141/S1589 Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknown
Sensor/Transducer Type	PROXIMITY SENSOR,INDUCTIVE
Base Number Matches	1

Preview

Download Datasheet

View All

Inductive sensor

With weldguard® coating

BI8U-MT18-AP6X-H1141/S1589

■

Threaded barrel, M18 x 1

■

Brass with special coating

■

Front cap with special coating, very re-

sistant to thermal and mechanical load

■

Factor 1 for all metals

■

Protection class IP68

■

Resistant to magnetic fields

■

Extended temperature range

■

High switching frequency

■

DC 3-wire, 10…30 VDC

■

NO contact, PNP output

■

M12 x 1 male connector

Type designation

Ident-No.

Ident-No (TUSA)

Rated switching distance Sn

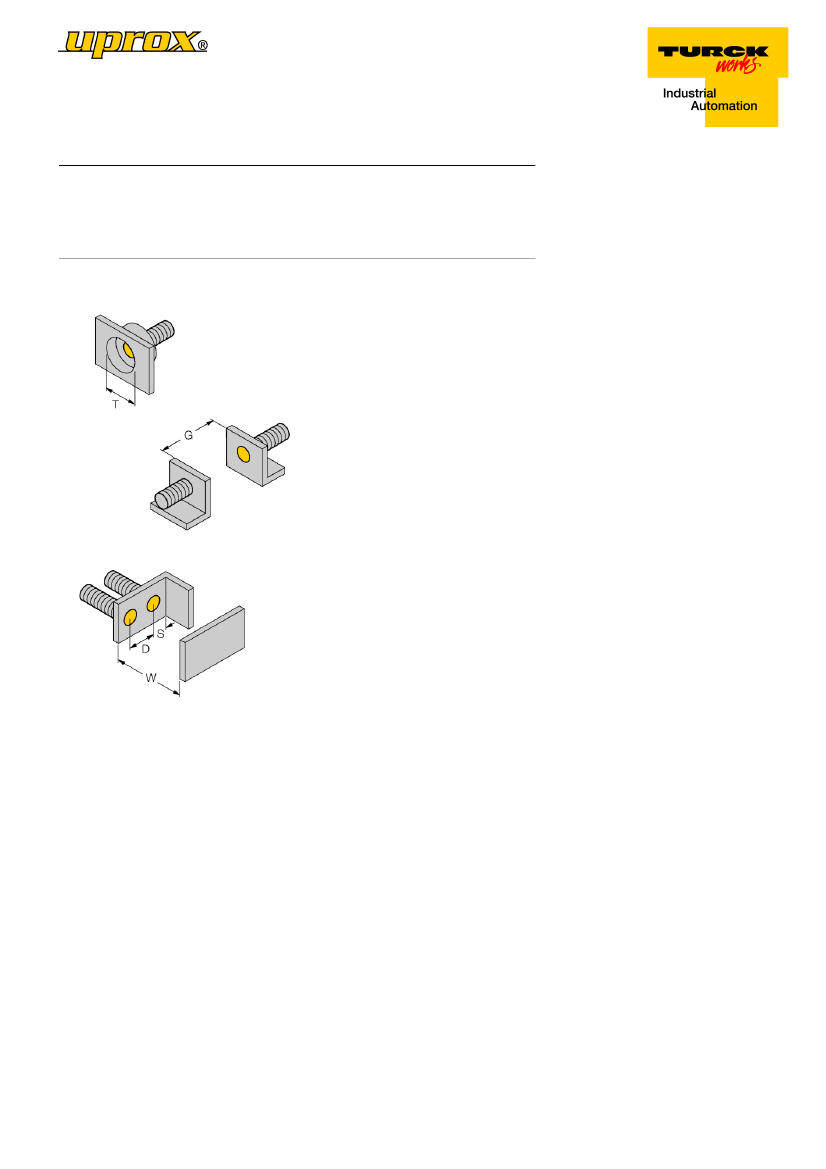

Mounting conditions

Secured operating distance

Repeat accuracy

Temperature drift

Hysteresis

Ambient temperature

Operating voltage

Residual ripple

DC rated operational current

No-load current I

Residual current

Isolation test voltage

Short-circuit protection

Voltage drop at I

Wire breakage/Reverse polarity protection

Output function

Protection class

Switching frequency

Design

Dimensions

Housing material

Active area material

Max. tightening torque housing nut

Electrical connection

Vibration resistance

Shock resistance

Protection class

MTTF

Switching state

BI8U-MT18-AP6X-H1141/S1589

1644789

M1644789

8 mm

Flush

(0,81 x Sn) mm

2 % of full scale

± 10 %

± 15 %,

-25 °C v

+70 °C

3…15 %

-30…+85 °C

10…30 VDC

10 % U

200 mA

20 mA

0.1 mA

0.5 kV

yes/ Cyclic

1.8 V

yes/ Complete

3-wire, NO contact, PNP

1.5 kHz

Threaded barrel, M18 × 1

52 mm

Metal, CuZn, PTFE-coated

Plastic, LCP + WeldGuard™, grey

15 Nm

Connector, M12 × 1

55 Hz (1 mm)

30 g (11 ms)

IP68

874 years acc. to SN 29500 (Ed. 99) 40 °C

LED yellow

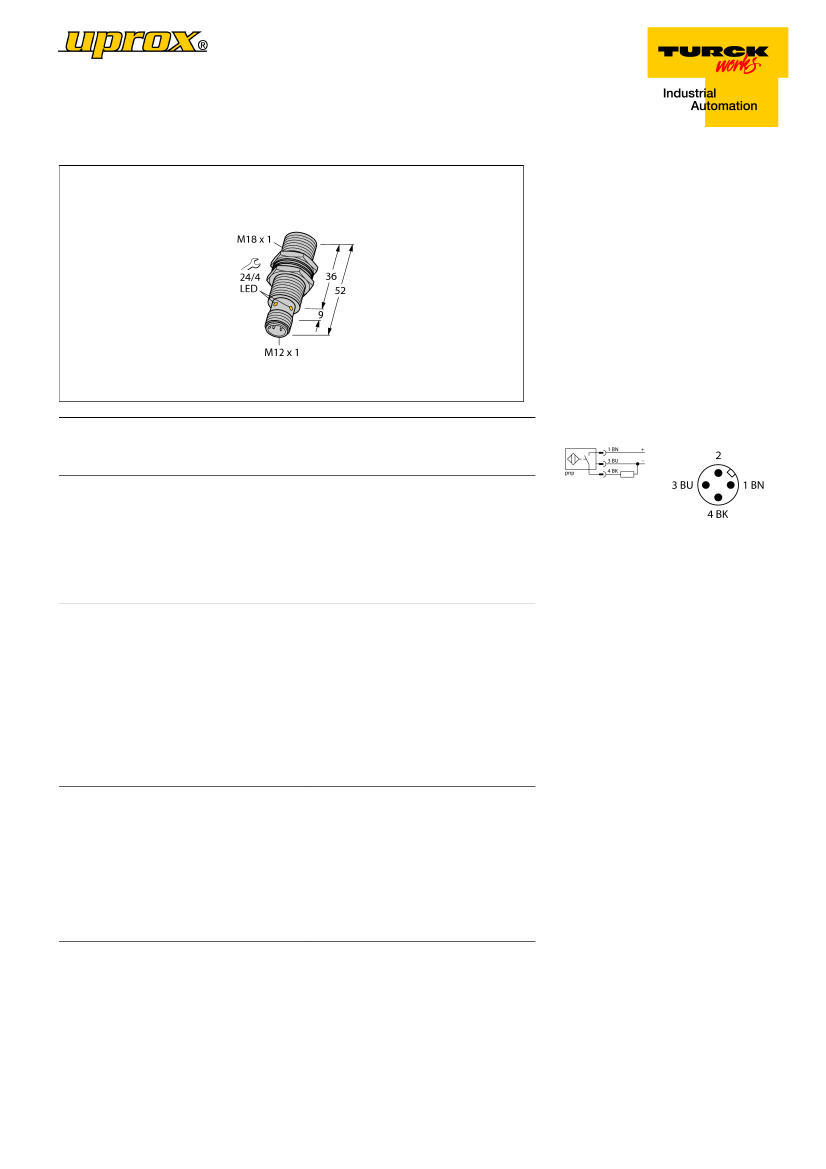

Wiring Diagram

Functional principle

Inductive sensors detect metal objects con-

tactless and wear-free. Due to the patented

ferrite-less 3-coil system, uprox® factor 1 sen-

sors have distinct advantages compared to

conventional sensors. They detect all metals

at the same switching distance, are magnetic

field immune and feature large switching dis-

tances.

Turck WeldGuard sensors for use in weld-

ing systems are equipped with a thin coating

made of thermosetting plastic. This high-tech

coating is resistant to abrasion and withstands

mechanical stress.

Edition • 2017-09-15T05:40:34+02:00

1/3

TURCK Inc.

3000 Campus Drive Minneapolis, MN 55441-2656

Phone: 763-553-7300

Application Support: 1-800-544-7769

Fax 763-553-0708

www.turck.com
