BS5131-0 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> BS5131-0

BS5131-0: DescriptionMains Power Connector, 4A, 60VAC/75VDC, Male, Solder Terminal,; CategoryThe connector The connector; File Size271KB，1 Pages; ManufacturerTURCK Inc.; Websitehttps://www.turck.us/

Download Datasheet Parametric View All

BS5131-0 Overview

Mains Power Connector, 4A, 60VAC/75VDC, Male, Solder Terminal,

BS5131-0 Parametric

Parameter Name	Attribute value
Maker	TURCK Inc.
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	MAINS POWER CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Coupling type	THREADED
DIN compliance	NO
IEC compliance	NO
MIL compliance	NO
Power Connector Ratings	4A, 60VAC/75VDC
Installation type	CABLE
Options	GENERAL PURPOSE
Shell material	POLYBUTYLENE TEREPHTHALATE
Termination type	SOLDER
Total number of contacts	3
Base Number Matches	1

Preview

Download Datasheet

View All

Industrial

Automation

3 and 4-Wire

picofast

Field Wireable Connectors, Standard

•

Male Connectors

•

IEC IP 67 Protection

Field Wireables

Part Number

Specifications

PBT, Black

Accepts 3-5 mm cable diameter

Solder terminals,

accepts up to 24 AWG conductors

85°C

60 VAC/ 75 VDC, 4 A

PBT, Black

Accepts 3-5 mm cable diameter

Solder terminals,

accepts up to 24 AWG conductors

85°C

30 VAC/ 36 VDC, 3.0 A

PBT, Black

Accepts 3-5 mm cable diameter

Screw terminals,

accepts up to 22 AWG conductors

85°C

60 VAC/ 75 VDC, 4 A

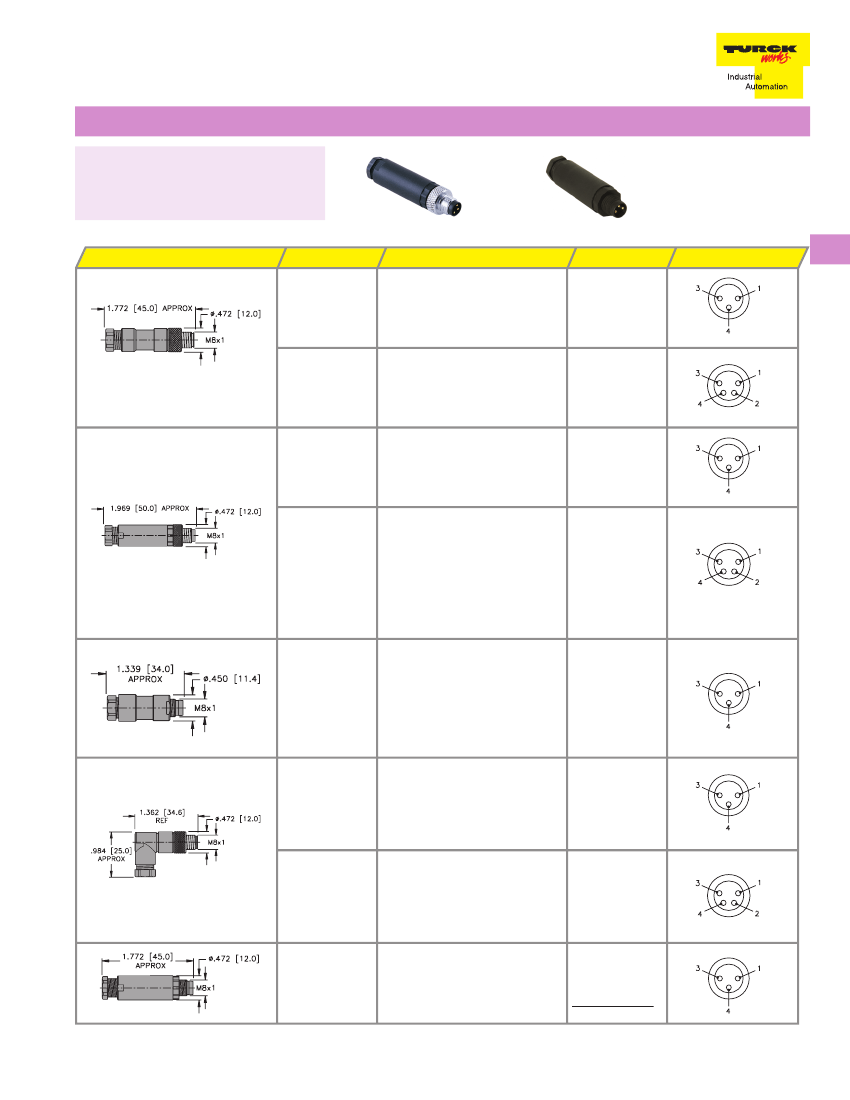

Drawing

Application

Mates with 3-pin

threaded cordsets

and receptacles

Pinout

BS 5131-0

BS 5141-0

Mates with 4-pin

threaded cordsets

and receptacles

BS 5133-0

Mates with 3-pin

threaded cordsets

and receptacles

BS 5143-0

PBT, Black

Accepts 3-5 mm cable diameter

Screw terminals,

accepts up to 22 AWG conductors

85°C

60 VAC/ 75 VDC, 4 A

Mates with 4-pin

threaded cordsets

and receptacles

BS 5132-0

PBT, Black

Accepts 3-5 mm cable diameter

Solder terminals,

accepts up to 26 AWG conductors

85°C 60 VAC/ 75 VDC, 4 A

Mates with 3-pin

female snap-lock

cordsets, receptacles

and junction boxes

and threaded

cordsets

BS 5231-0

PBT, Black

Accepts 3-5 mm cable diameter

Solder terminals, accepts up to 24 AWG

conductors

85°C

60 VAC/ 75 VDC,

PBT, Black

Accepts 3-5 mm cable diameter

Solder terminals, accepts up to 24 AWG

conductors

85°C

30 VAC/ 36 VDC,

3.0 A

PBT, Black

Accepts 3-5 mm cable diameter

Screw terminals,

accepts up to 20 AWG conductors

85°C

60 VAC/ 75 VDC, 4 A

Mates with 3-pin

threaded cordsets

and receptacles

BS 5241-0

Mates with 4-pin

threaded cordsets

and receptacles

BS 5130-0

Mates with 3-pin

threaded cordsets

and receptacles,

fixed nylon threads

TURCK Inc. 3000 Campus Drive Minneapolis, MN 55441 Application Support: 1-800-544-7769 Fax: (763) 553-0708

www.turck.com

C52
