PSDB1005NT561 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PSDB1005NT561

PSDB1005NT561: DescriptionGeneral Purpose Inductor, 560uH, 30%, 1 Element, Ferrite-Core, SMD,; CategoryPassive components inductor; File Size258KB，4 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/

Download Datasheet Parametric View All

PSDB1005NT561 Overview

General Purpose Inductor, 560uH, 30%, 1 Element, Ferrite-Core, SMD,

PSDB1005NT561 Parametric

Parameter Name	Attribute value
Maker	SEI(Stackpole Electronics Inc.)
Reach Compliance Code	compliant
ECCN code	EAR99
core material	FERRITE
DC Resistance	1.3524 Ω
Nominal inductance(L)	560 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	PSDB
Number of functions	1
Number of terminals	2
Maximum rated current	0.47 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	MATTE TIN
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	30%
Base Number Matches	1

Preview

Download Datasheet

View All

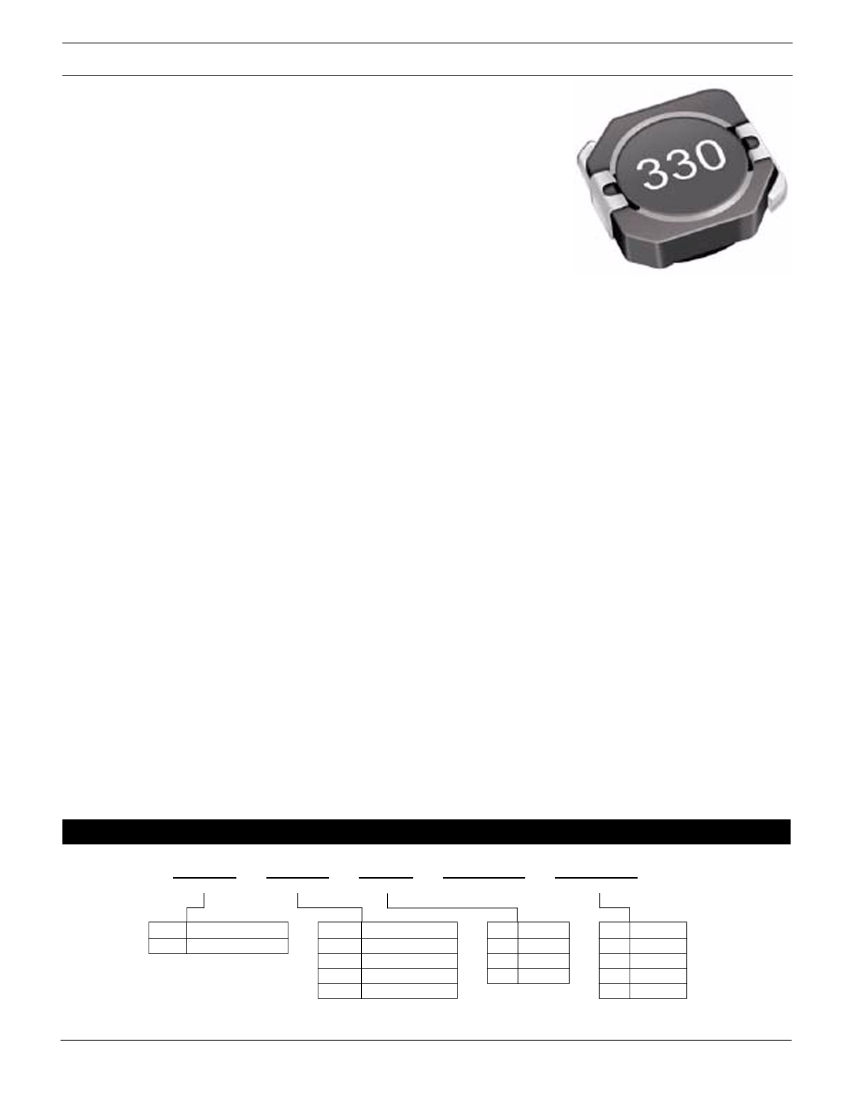

PSDB Series — SMD Shielded Power Inductor

Features

• Directly connected electrode on ferrite core

• Provides magnetic shielding against radiation

• Provides high power and high saturation

• For Inductance values outside those listed in the datasheet contact factory

• Find Environmental information and Packaging specs in related supplimental

Applications

• Power Supply for VTRs

• Personal Computers

• DC/DC converters

• LCD televisions

• Handheld communication

Inductance and Current ranges

• PSDB5D28

• PSDB1003

• PSDB1004

• PSDB1005

2.5 ~ 10 µH

10 ~ 150 µH

1.0 ~ 330 µH

10 ~ 1000 µH

2.60 ~ 0.40 A

2.70 ~ 0.70 A

10.0 ~ 0.70 A

3.45 ~ 0.35 A

How to Order

PSDB

SEI Type

5D28

Dimensions

Tolerance

Packaging Style

101

Inductance

Type

Description

Code

5D28

1003

1004

1005

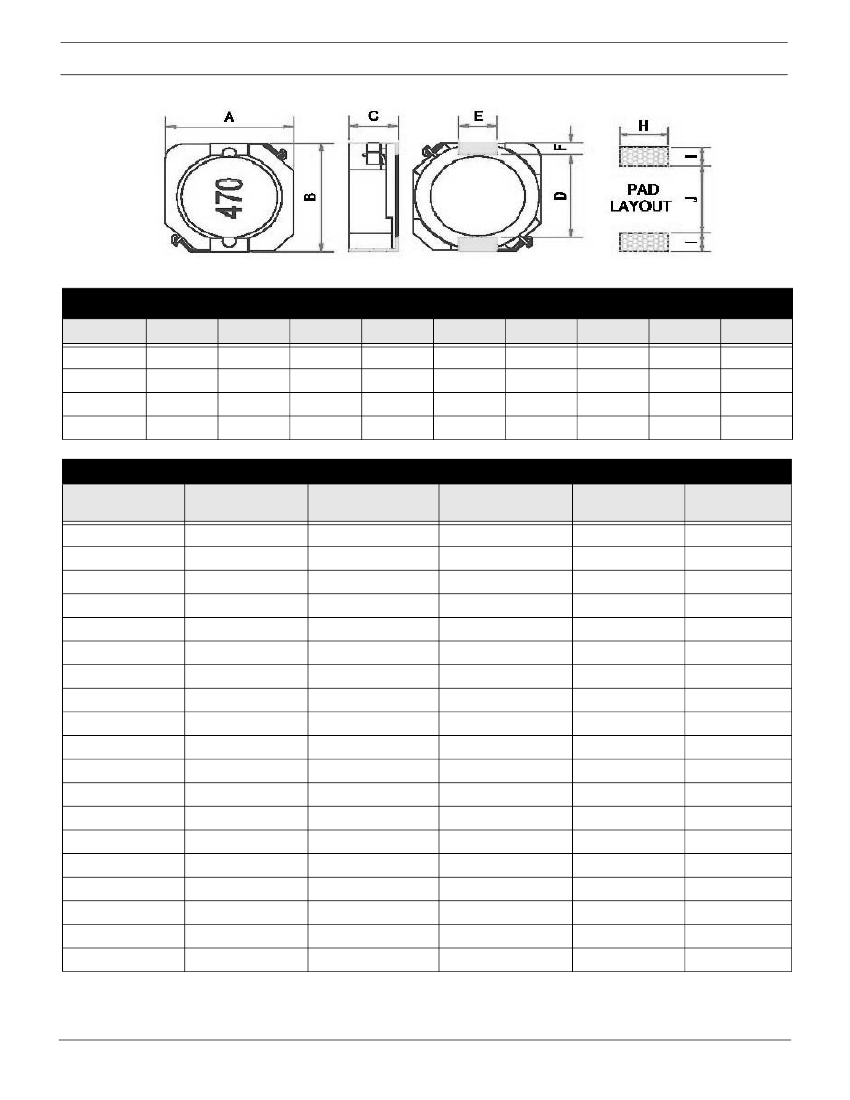

Dimensions (mm)

6.2x6.3x3.0

10.3x10.4x3.0

10.3x10.4x4.0

10.3x10.4x5.0

Code Tolerance

20%

30%

+40/-20%

Code Inductance

1R0

470

101

102

1.0 µH

47 µH

100 µH

1000 µH

PSDB SMD Power Inductors

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

email: marketing@seielect.com

Rev 07/07
