IPC1Z1AD5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> IPC1Z1AD5

IPC1Z1AD5: DescriptionPushbutton Switch, SPST, Latched, 0.1A, 24VDC, Quick Connect Terminal, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size193KB，4 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric View All

IPC1Z1AD5 Overview

Pushbutton Switch, SPST, Latched, 0.1A, 24VDC, Quick Connect Terminal, Panel Mount-threaded

IPC1Z1AD5 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator type	PLUNGER
body height	17.2 mm
Body length or diameter	12 mm
Contact (AC) maximum rated R load	2A@125VAC
Maximum contact current (AC)	2 A
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@24VDC
Maximum contact voltage (AC)	125 V
Maximum contact voltage (DC)	24 V
Electrical life	10000 Cycle(s)
Manufacturer's serial number	IP
Installation features	PANEL MOUNT-THREADED
Maximum operating force	6.5 N
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
method of packing	BULK
seal	EPOXY TERMINAL SEALED; IP67
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	PUSHBUTTON SWITCH
Termination type	QUICK CONNECT
Base Number Matches	1

Preview

Download Datasheet

View All

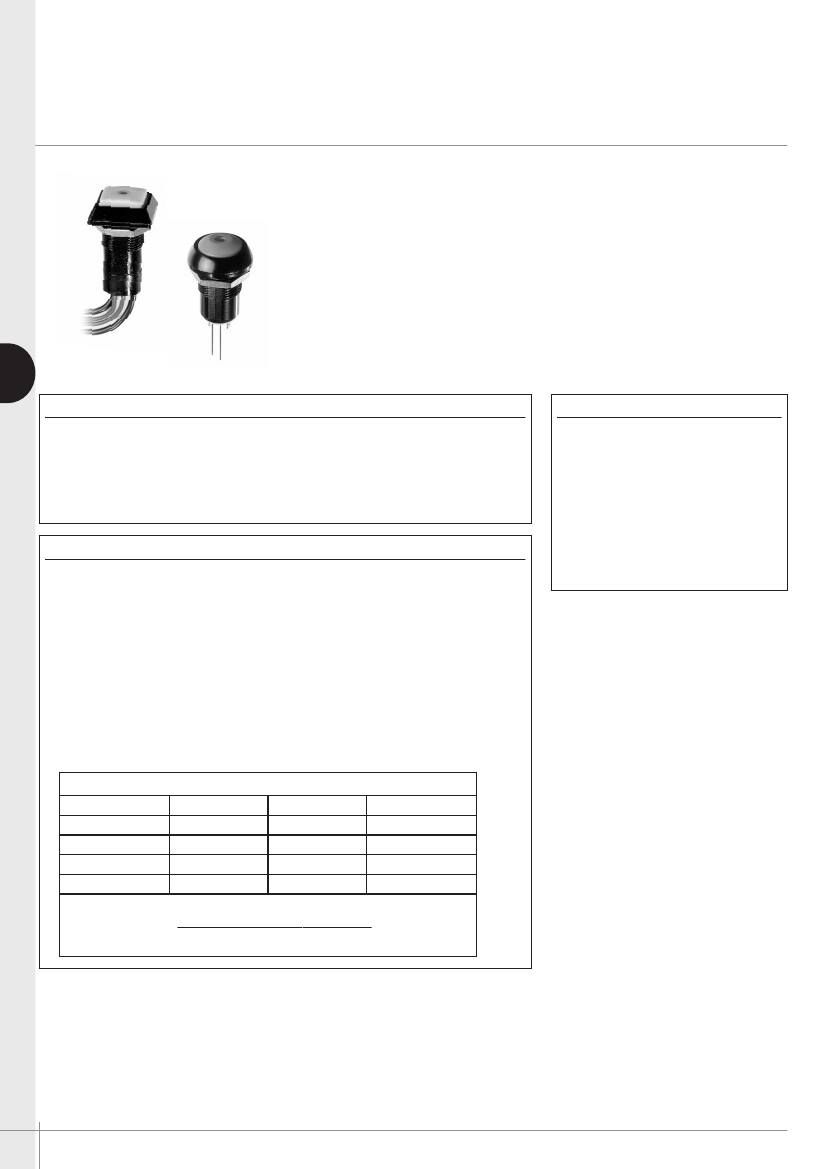

IP series

Latching action pushbutton switches for harsh environments

Distinctive features and specifications

❑

Latching action

Actuator remains in the low position when “ON”.

❑

Illuminated and non-illuminated

❑

Compact

Behind-panel depth less than 20 mm (.787)

❑

Variety of terminal options

❑

Sealed to IP 67

ENVIRONMENTAL SPECIFICATIONS

MATERIALS

• Degree of protection : IP 67

• Shock resistance : 100 g according to IEC 512-4, test 6c

• Vibration resistance : 10-500Hz - 10 g according to IEC 512-4, test 6d

• Salt spray : IEC 512-6, test 11f

• Robustness (non-illuminated sw.) : IK06 according to EN 50102 (1 joule)

• Operating temperature : -40°C to +85°C

ELECTRICAL AND GENERAL SPECIFICATIONS

• Max. current/voltage rating with resistive load :

100mA 24VDC - life expectancy 200 000 cycles

2A 125VAC - life expectancy 10 000 cycles (tested according to UL 1054)

• Initial contact resistance : 50 mΩ max.

• Insulation resistance : 1 GΩ min. at 500VDC

• Dielectric strength : 1.500 VAC rms between terminals

1.000 VAC rms between terminals and frame

• Panel thickness : 1,5 mm (.059) min. - 5,5 mm (.217) max.

• Total travel : 2,5 mm (.098)

• Operating force : 5,5 N

+/- 1N

• Contact bounce : 10 ms

• Torque : 1,5 Nm applied to nut

• Soldering : 320°C max. for 3 seconds

LED COMPONENT SPECIFICATIONS

• Case : PA-6T, UL 94-V0

• Plunger : polyamide 6/6

• Bushing/bezel : zinc die-cast

(zamak), black painted

• Contacts : silver, gold plated

• Multi-wire lead AWG20,

section 0,6 mm

, UL approved

• LED wire : AWG26

• Lens : polycarbonate

• Terminal seal : epoxy

LED colour

Super red (L0S)

Yellow (L0Y)

Green (L0G)

Blue (L0B)

Forward current

20mA

10mA

Forward Voltage Max. lumin. intensity

3,5V

180 mcd

280 mcd

28 mcd

22 mcd

A resistor must be series-connected by the user.

Resistor value = supply voltage - LED forward voltage

LED forward current

B-26

www.apem.com

APEM
