PRELIMINARY
CY7C024V/025V/026V
CY7C0241V/0251V/036V
3.3V 4K/8K/16K x 16/18
Dual-Port Static RAM
Features
• True Dual-Ported memory cells which allow simulta-
neous access of the same memory location
• 4/8/16K x 16 organization (CY7C024V/025V/026V)
• 4/8K x 18 organization (CY7C0241V/0251V)
• 16K x 18 organization (CY7C036V)
• 0.35-micron CMOS for optimum speed/power
• High-speed access: 15/25 ns
• Low operating power
—
Active: I
CC
= 115 mA (typical)
— Standby: I
SB3
= 10
µA
(typical)
• Fully asynchronous operation
• Automatic power-down
• Expandable data bus to 32/36 bits or more using Mas-
ter/Slave chip select when using more than one device
• On-chip arbitration logic
• Semaphores included to permit software handshaking
between ports
• INT flag for port-to-port communication
• Separate upper-byte and lower-byte control
• Pin select for Master or Slave
• Commercial and industrial temperature ranges
• Available in 100-pin TQFP
• Pin-compatible and functionally equivalent to
IDT70V24, 70V25, and 7V0261.

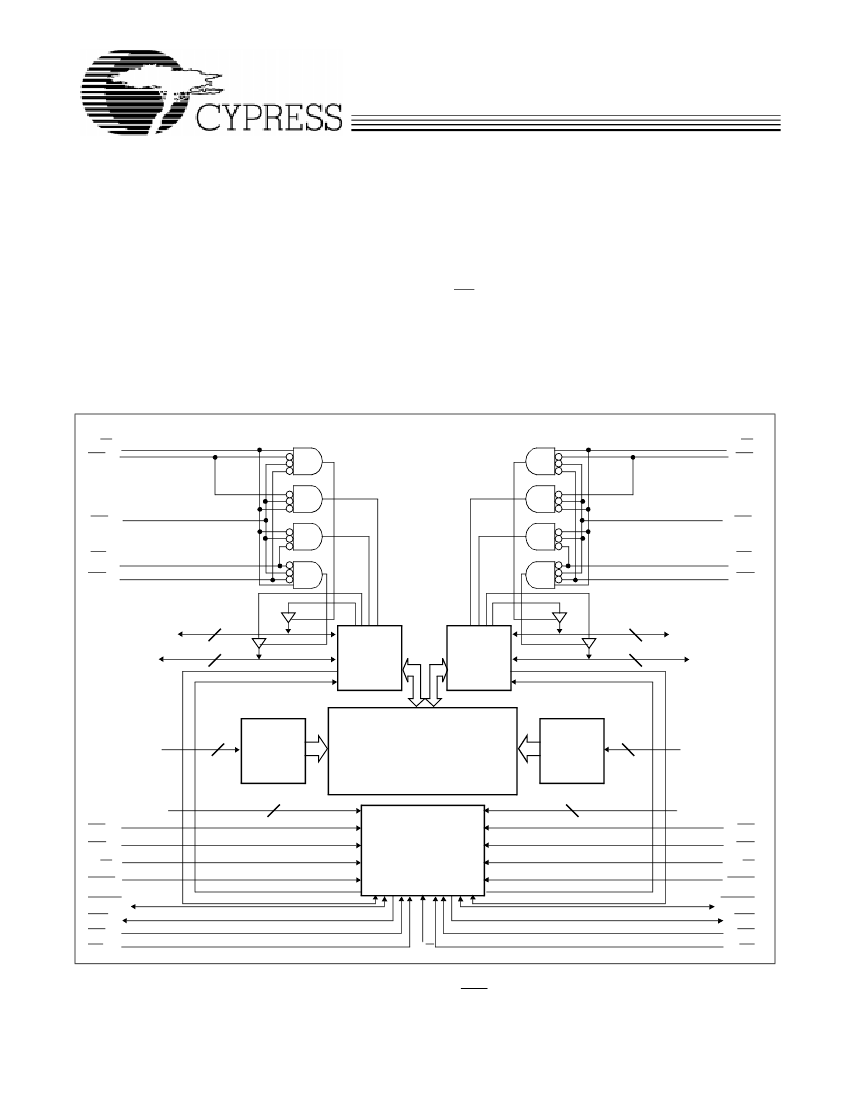

Logic Block Diagram
R/W
L
UB
L
R/W
R
UB
R
CE
L
LB
L
OE
L
CE
R
LB
R
OE
R
[1]
8/9
8/9
8/9
[1]
I/O
8/9L
–I/O
15/17L
[2]
I/O
0L
–I/O
7/8L
I/O
Control
I/O
Control
8/9
I/O
8/9L
–I/O
15/17R
[2]
I/O
0L
–I/O
7/8R
[3]
12/13/14
A
0L
–A
11/1213L
Address
Decode
12/13/14
True Dual-Ported
RAM Array
Address
Decode
12/13/14
12/13/14
[3]
A
0R
–A
11/12/13R
A
0L
–A
11/12/13L
CE
L
OE
L
R/W
L
SEM
L
[4]
[3]
Interrupt
Semaphore
Arbitration
A
0R
–A
11/12/13R
CE
R
OE
R
R/W
R
SEM
R
[4]
[3]
BUSY
L
INT
L
UB
L
LB
L
Notes:
1. I/O
8
–I/O
15
for x16 devices; I/O
9
–I/O
17
for x18 devices
2. I/O
0
–I/O
7
for x16 devices; I/O
0
–I/O
8
for x18 devices.
M/S
3.
4.
BUSY
R
INT
R
UB
R
LB
R
A
0
–A
11
for 4K devices; A
0
–A
12
for 8K devices; A
0
–A
13
for 16K devices.
BUSY is an output in master mode and an input in slave mode.
For the most recent information, visit the Cypress web site at www.cypress.com
Cypress Semiconductor Corporation
•
3901 North First Street
•
San Jose
•
CA 95134 •
408-943-2600
November 7, 1997- Revised March 2, 1998
PRELIMINARY
Functional Description
The CY7C024V/025V/026V and CY70241V/0251V/036V are
low-power CMOS 4K, 8K, and 16K x16/18 dual-port static
RAMs. Various arbitration schemes are included on the devic-
es to handle situations when multiple processors access the
same piece of data. Two ports are provided, permitting inde-
pendent, asynchronous access for reads and writes to any
location in memory. The devices can be utilized as standalone
16/18-bit dual-port static RAMs or multiple devices can be
combined in order to function as a 32/36-bit or wider mas-
ter/slave dual-port static RAM. An M/S pin is provided for im-
plementing 32/36-bit or wider memory applications without the
need for separate master and slave devices or additional dis-
crete logic. Application areas include interprocessor/multipro-
CY7C024V/025V/026V
CY7C0241V/0251V/036V
cessor designs, communications status buffering, and du-
al-port video/graphics memory.
Each port has independent control pins: chip enable (CE),
read or write enable (R/W), and output enable (OE). Two flags are
provided on each port (BUSY and INT). BUSY signals that the port
is trying to access the same location currently being accessed by the
other port. The interrupt flag (INT) permits communication between
ports or systems by means of a mail box. The semaphores are used
to pass a flag, or token, from one port to the other to indicate that a
shared resource is in use. The semaphore logic is comprised of eight
shared latches. Only one side can control the latch (semaphore) at
any time. Control of a semaphore indicates that a shared resource is
in use. An automatic power-down feature is controlled independently
on each port by a chip select (CE) pin.
The CY7C024V/025V/026V and CY70241V/0251V/036V are
available in 100-pin Thin Quad Plastic Flatpacks (TQFP).
