.085 in. (2.16mm)
Density
Miniature Ribbon
IDC
Metal Shell
■
■
■
■
■
■
■
■
■
■
Patented contact terminates Discrete Wire (loose or jacketed cable) without stripping or
soldering. Solid and stranded wire versions available.
Metal shell provides grounding and shielding capability.
Available in plug and socket styles in 14, 24, 36, and 50 position sizes.
Designed for panel mount, 180° (Top-Entry), or 90° (Standard) / 270° (Reverse) End-Entry
cable applications.
Available as overmold kit in 36 and 50 position sizes.
All Plugs lock with InstaLatch passive latch feature for automatic latching.
Sockets available with InstaLatches where indicated.
I
ndustry-standard bail latch feature available for locking/unlocking without tools in applications
such as SCSI-1 and Centronics.
Full range of application tooling available for termination, unlatching, etc. See page 6-54
for details.
UL Recognized - Files E170218 (UL1977), E130965 (UL1863).
CSA Approved - File LR31996-7
.
F
EATURES
M
ATERIALS
E
NVIRONMENTAL
Insulator:
Blue UL94V-0 rated glass-filled polyester
Contact:
Copper alloy
Contact Plating:
Select gold over 50µin. select nickel standard;
30µin. select gold over 50µin. select nickel available
where indicated
Shell:
Steel
Shell Plating:
Zinc with clear chromate coating standard
Tin available where indicated
Operating Temperature:
-40°C to +105°C
Shock:
50G Peak, per EIA Std. RS364, TP27, Condition A
Vibration:
3 cycles @ 10-55Hz in each of 3 axes per EIA Std. 364, TP28,
Condition A
Moisture Resistance:
Per EIA Std. RS364, TP31, Condition B, with Step
7B excluded
Voltage Rating:
Withstanding Voltage:
Contact Rating:
500 VAC @ sea level; 125 VAC @ 70,000 ft.
1200 VAC RMS @ sea level, per EIA Std.
RS364, TP20
5 Amps (4 Amps per CSA)
6 milliohms maximum, per EIA Std. RS364, TP6
Contact Resistance:
E
LECTRICAL
Contact Resistance Change During Life Conditioning:
Resistance Change
Wire Size
(milliohms, max.)
24 AWG Solid
0.5
26 AWG Solid
0.5
26 AWG Stranded
2.0
28 AWG Stranded
5.0
Insulation Resistance:
5000 Megohms minimum initial;
1000 Megohms minimum after moisture
Call Toll Free: 1 (800) 323-9612
6-14

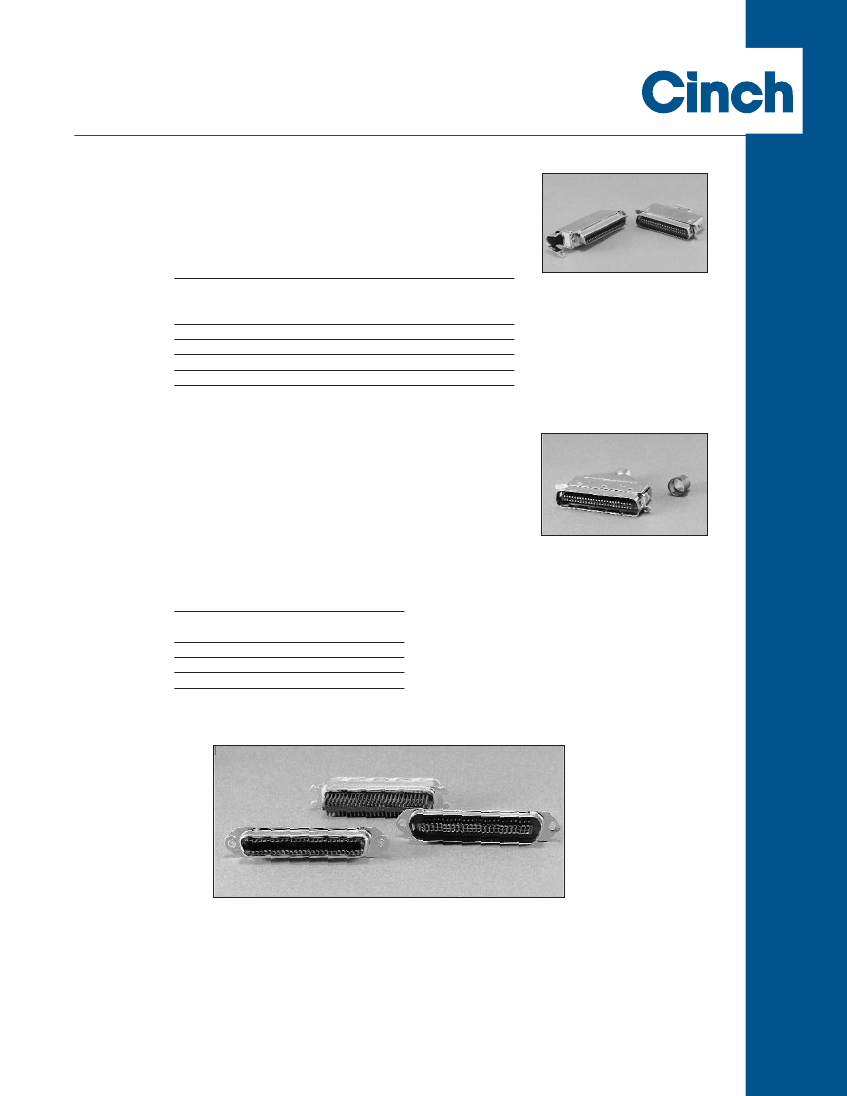

.085 in. (2.16mm)
Density
Miniature Ribbon
Mechanical Characteristics
Durability:
200 mating/unmating cycles
Mating / Unmating Forces:
IDC
Metal Shell
Size
14
24
36
50
Mating Force (max.)
with InstaLatches
Lb.
Kg
12
5.44
17
7.71
23
10.43
32
14.52
Unmating Force (min.)
without InstaLatches
Lb.
Kg
2
0.91
4
1.81
6
2.72
7
3.18
Termination:
Solid IDC versions terminate 22 AWG - 26 AWG solid wire;
Stranded IDC versions terminate 24 AWG - 28 AWG stranded
wire; Recommended Wire Insulation: soft PVC, .040"
(1.02mm) max. OD
Wire Grip Strength (using recommended wire type):
Min. Force
Lb.
Kg
7
3.42
5
2.44
5
2.44
Wire Size
24 AWG Solid
26 AWG Solid
26 AWG Stranded
6-15
Call Toll Free: 1 (800) 323-9612
.085 in. (2.16mm)
Density
Miniature Ribbon
Panel Mount
IDC
Metal Shell
“Panel mount” products are connectors without hoods. They are typically used to provide signal I/O from a system panel or
cabinet, where strain relief to a cable jacket is not required.
•
Standard versions have .103" mounting holes (sockets have .103" with float bushings) for use with #3 hardware,
or with .185" mounting holes for use with #8 hardware.
Select sizes are available with .120" or .113" mounting holes for use with #4 hardware, or with integral panel
clips, which allow snap-in front mounting on .093" thick panels for more cost-effective assembly.
Bail latching sockets are available, as are bail latching plugs. While the plugs would not be panel-mounted,
they are available for premold/solder overmolding applications.
SuperShield products include modified shells that assure interference fit between mated connectors
for improved shielding performance.
•
•
•
See page 6-4 for recommended standard panel cutout dimensions.
See pages 6-51 thru 6-52 for accessories such as wire restraints, mounting screws, and dust covers, which make the use of
Cinch Miniature Ribbon connectors even more cost-effective in panel-mount applications.
See the appropriate cable connector section that follows for products that include hoods for exposed-cable applications.

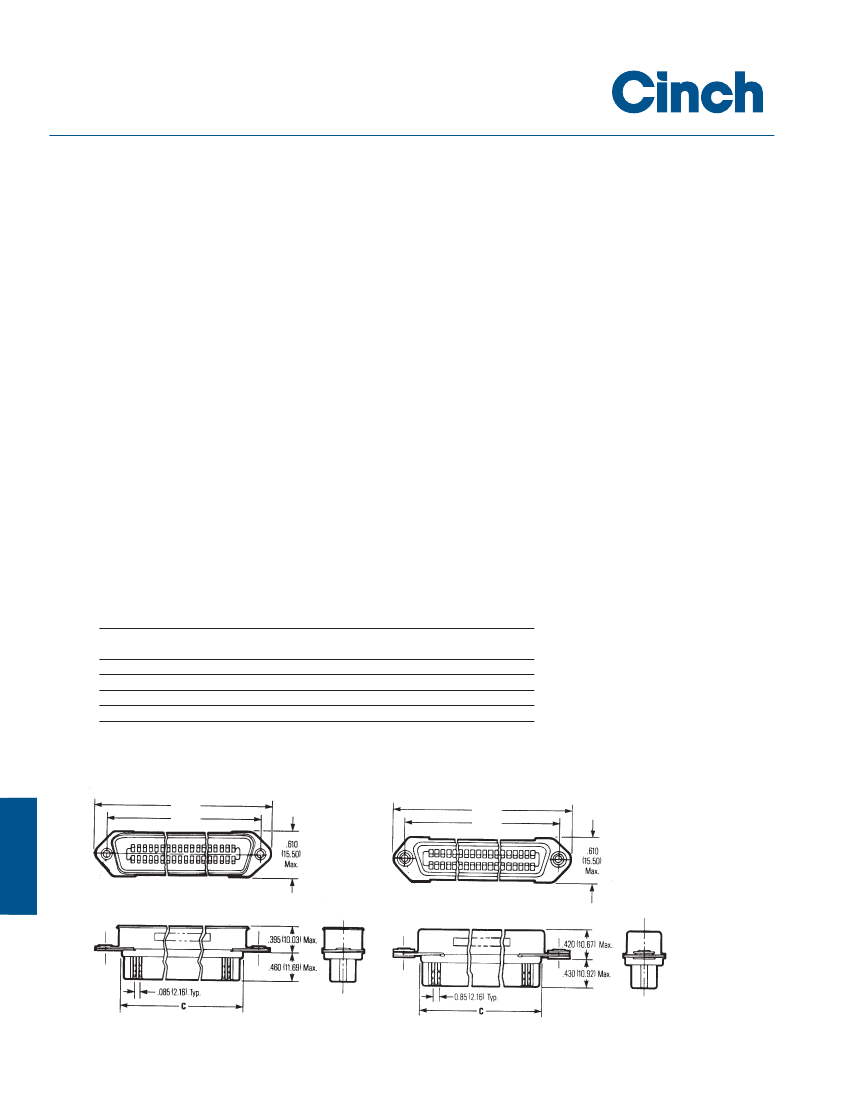

Dimensions
Size
14
24
36
50
in
1.750
2.175
2.685
3.280
A
mm
44.45
55.25
68.20
83.31
B
in
1.417
1.842
2.352
2.947
mm
35.99
46.79
59.74
74.85
in
0.910
1.335
1.845
2.440
C
mm
23.11
33.91
46.86
61.98
D
in
mm
-
-
-
-
2.426 61.62
3.020 76.71
Plug
A
Max.
B
Max.
Socket
A
Max.
B
Max.
6
Call Toll Free: 1 (800) 323-9612
6-16
.085 in. (2.16mm)
Density
Miniature Ribbon
Ordering Information, Panel Mount
Plug, InstaLatching
IDC
Metal Shell
Mount
.103 Hole
.103 Hole
Tin-Plated Shells
.185 Hole
.185 Hole
Tin-Plated Shells
.120 Hole
.120 Hole, Tin-Plated Shells
SuperShield, .133 Hole
Bail Latching
Tin-Plated Shells
.103 Hole
Fixed 4-40 Screwlock
SuperShield, .103 Hole
Size
14
24
36
50
24
36
50
14
24
36
50
24
36
50
50
50
50
36
50
50
50
50
Solid Wire
Commercial
30Au/Ni
77-12140
77-12140A
77-12240
77-12240A
77-12360
77-12360A
77-12500
77-12500A
77-12240-32
77-12240-32A
77-12360-32
77-12360-32A
77-12500-32
77-12500-32A
77-12140-185
77-12140-185A
77-12240-185
77-12240-185A
77-12360-185
77-12360-185A
77-12500-185
77-12500-185A
77-12240-186
77-12240-186A
77-12360-186
77-12360-186A
77-12500-186
77-12500-186A
77-12500-120
77-12500-120A
77-12500-121
77-12500-121A
77-12500-SH
77-12500-SHA
77-12360-5
77-12360-5A
77-12500-10
77-12500-10A
77-12500-41
77-12500-41A
77-12500-43
77-12500-43A
77-12500-SC
77-12500-SCA
* Integral
Panel
Clips
*Integral Panel Clips, for front-mount only, require modified panel cutout. See page 6-52 for details.
Through Hole
Bail Latching
“D” Ref.
“C” Max.
Integral Panel Clip
6
6-17
Call Toll Free: 1 (800) 323-9612
.085 in. (2.16mm)
Density
Miniature Ribbon
IDC
Metal Shell
Ordering Information, Panel Mount (Cont’d)
Socket
Mount
Float Mounts with
.103 Hole
.103 Hole
Tin-Plated Shells
Size
14
24
36
50
24
36
50
14
24
36
50
24
36
50
50
50
50
14
24
36
50
36
50
50
50
50
Solid Wire
Commercial
30Au/Ni
77-22140
77-22140A
77-22240
77-22240A
77-22360
77-22360A
77-22500
77-22500A
77-22240-34
77-22240-34A
77-22360-34
77-22360-34A
77-22500-34
77-22500-34A
77-22140-185
77-22140-185A
77-22240-185
77-22240-185A
77-22360-185
77-22360-185A
77-22500-185
77-22500-185A
77-22240-186
77-22240-186A
77-22360-186
77-22360-186A
77-22500-186
77-22500-186A
77-22500-120
77-22500-120A
77-22500-41
77-22500-41A
77-22500-43
77-42140
77-42240
77-42360
77-42500
77-42360-5
77-42500-5
77- 22500-36
77-22500-38
77-22500-SC
77-22500-43A
77-42140A
77-42240A
77-42360A
77-42500A
77-42360-5A
77-42500-5A
77- 22500-36A
77-22500-38A
77-22500-SCA
No Latches
.185 Hole
.185 Hole
Tin-Plated Shells
.120 Hole
Integral Panel Clips*, .103 Hole
Integral Panel Clips*
Fixed 4-40 Screwlocks
Bail Latches
.116 Hole
InstaLatches
.116 Hole with
Tin-Plated Shell
.103 Hole
Tin-Plated Shell
.113 Hole
Tin-Plated Shell
SuperShield, .103 Hole with
Integral Panel Clips*
*
Integral Panel Clips, for front-mount only, require modified panel cutout.
See page 6-52 for details.
Bail Latching
Through Hole
6
Float Mount
Call Toll Free: 1 (800) 323-9612
6-18
