STV5702A datasheet, PDF - EEWORLD Datasheet

STV5702A: Description2 CHANNEL, VIDEO PREAMPLIFIER, PDIP20, PLASTIC, DIP-20; CategoryAnalog mixed-signal IC Consumption circuit; File Size465KB，8 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

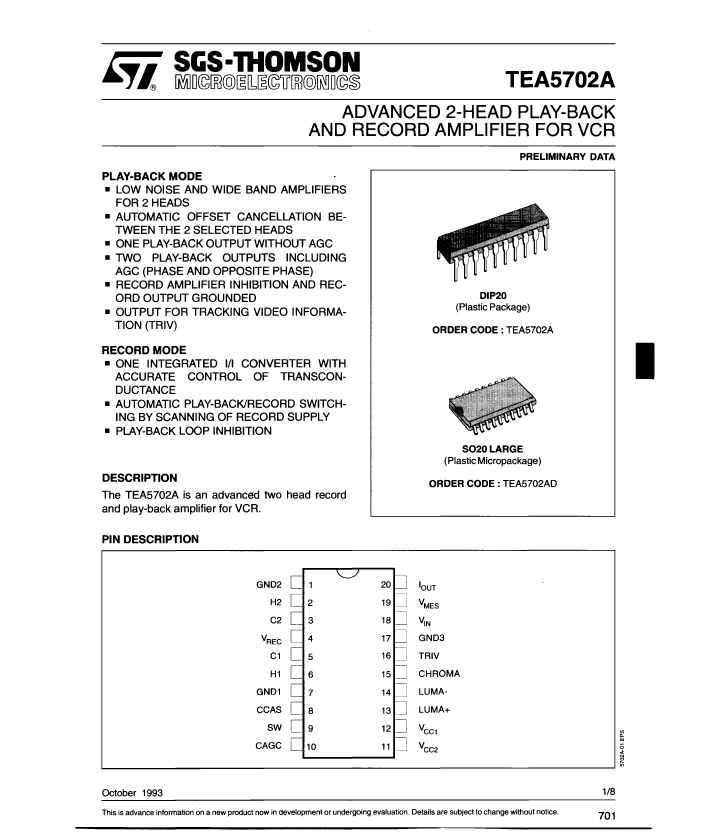

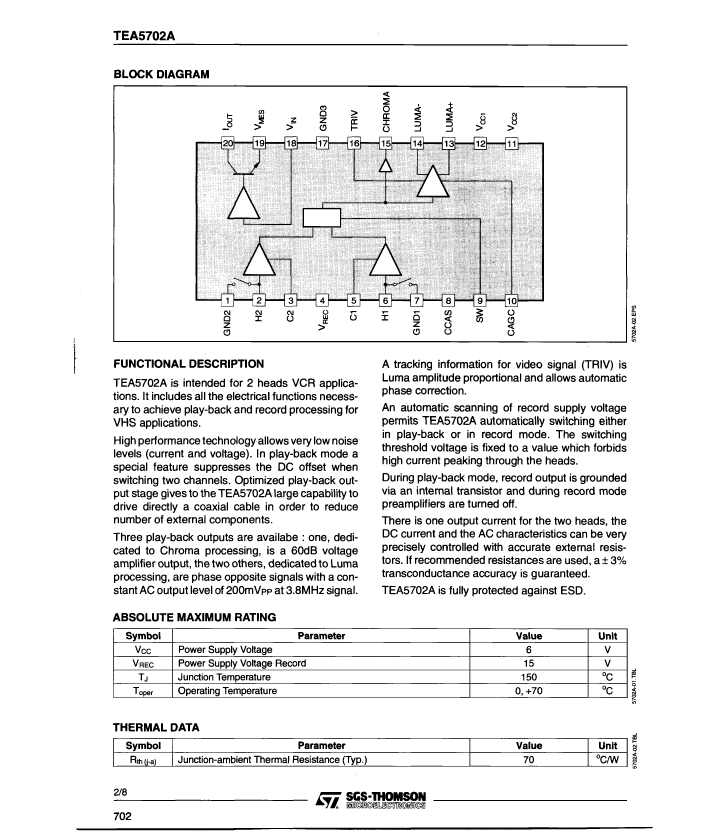

STV5702A Overview

2 CHANNEL, VIDEO PREAMPLIFIER, PDIP20, PLASTIC, DIP-20

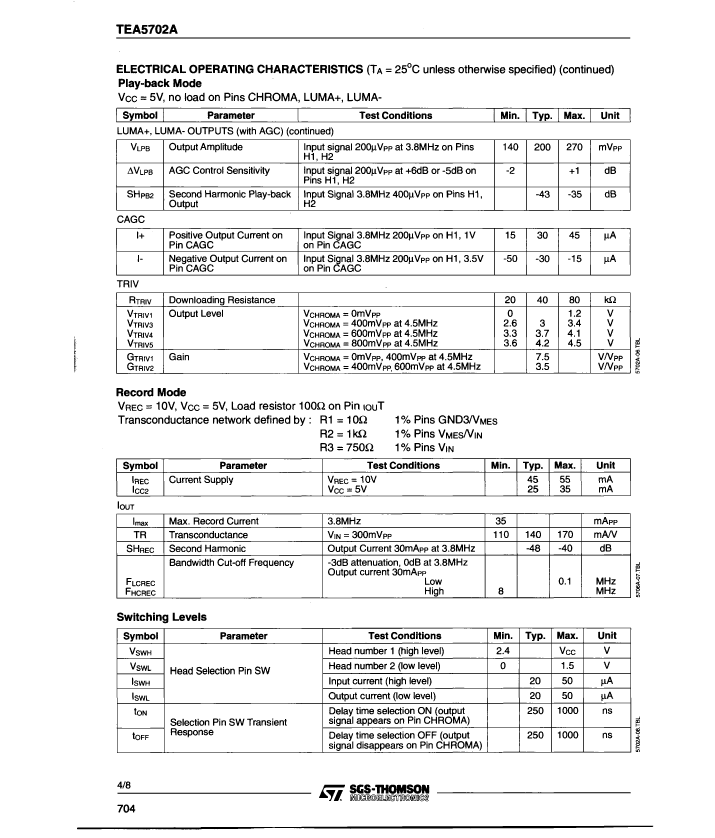

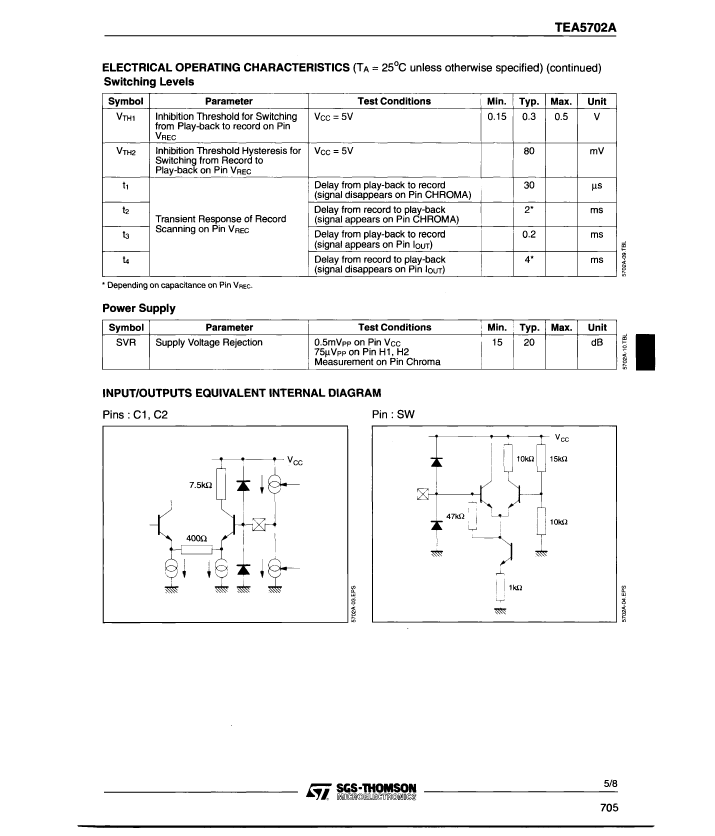

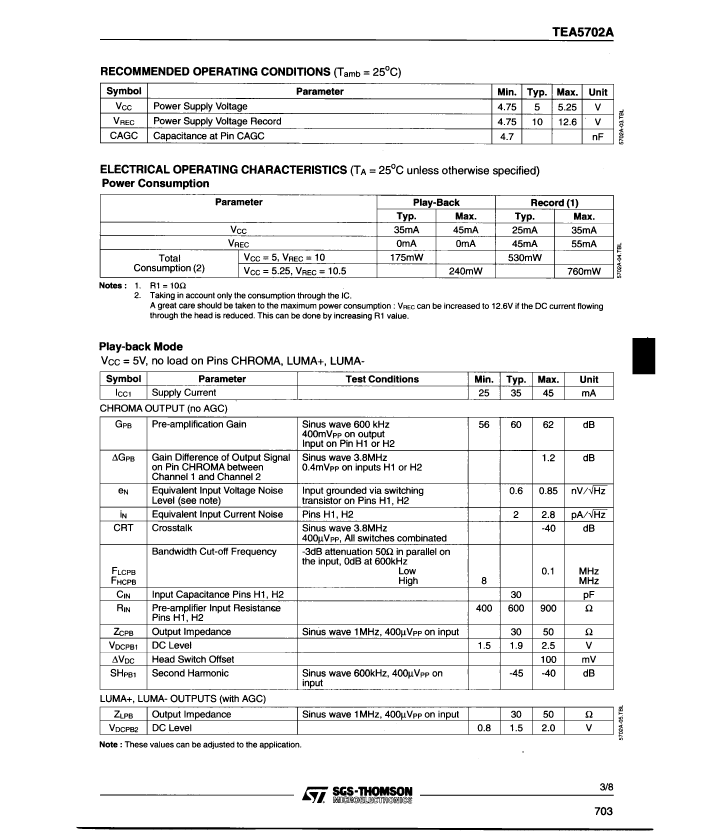

Parameter Name	Attribute value
Maker	STMicroelectronics
Parts packaging code	DIP
package instruction	DIP,
Contacts	20
Reach Compliance Code	unknown
ECCN code	EAR99
Commercial integrated circuit types	VIDEO PREAMPLIFIER
Gain	60 dB
JESD-30 code	R-PDIP-T20
length	25.15 mm
Number of channels	2
Number of functions	1
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum seat height	3.93 mm
Maximum slew rate	55 mA
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
surface mount	NO
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	7.62 mm
Base Number Matches	1

	STV5702A	STV5702AD
Description	2 CHANNEL, VIDEO PREAMPLIFIER, PDIP20, PLASTIC, DIP-20	2 CHANNEL, VIDEO PREAMPLIFIER, PDSO20, MICRO, PLASTIC, SO-20
Maker	STMicroelectronics	STMicroelectronics
Parts packaging code	DIP	SOIC
package instruction	DIP,	SOP,
Contacts	20	20
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Commercial integrated circuit types	VIDEO PREAMPLIFIER	VIDEO PREAMPLIFIER
Gain	60 dB	60 dB
JESD-30 code	R-PDIP-T20	R-PDSO-G20
length	25.15 mm	12.8 mm
Number of channels	2	2
Number of functions	1	1
Number of terminals	20	20
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified
Maximum seat height	3.93 mm	2.65 mm
Maximum slew rate	55 mA	55 mA
Maximum supply voltage (Vsup)	5.25 V	5.25 V
Minimum supply voltage (Vsup)	4.75 V	4.75 V
surface mount	NO	YES
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL
width	7.62 mm	7.5 mm
Base Number Matches	1	1
