ULTRA MINIATURE PLASTIC PACKAGE
PURE SILICON CLOCK OSCILLATOR
TM
ASEM
Life Size
3.2 x 2.5 x 0.85mm
| | | | | | | | | | | | | | |
ASEM
Pb
RoHS
Compliant
FEATURES:
• Ultra Miniature Pure Silicon
TM
Clock Oscillator
• MEMS Technology by Discera
• Low Power Consumption <10mA
• Exceptional Stability Over Temp. at -40 to +85
°
C.
• Available over Extended Operating Temperature
• Available in 30kG Shock Resistance Configuration
• Low Cost-Compact QFN Plastic Packaging
• Compact Package design
APPLICATIONS:
• CCD Clock for VTR Camera
• Equipment Connected to PCs
• Low Profile Equipment
AVAILABLE NOW!
• Lower Cost Crystal Oscillator Replacement
• Computers and Peripherals
• Portable Electronics (MP3 Players, Games)
• Consumer Electronics such as TV’s, DVR’s, etc.
• Vibrant, Shock-Prone & Humid Environments for Industrial Equipment
• Demanding Military & Automotive Electronics
TM
STANDARD SPECIFICATIONS:
PARAMETERS
ABRACON P/N:
Frequency range:
Operating temperature:
Storage temperature:
Overall Frequency Stablilty:
Supply Voltage (Vdd):
Supply Current
(No Load)
Supply Current:
(Full Load)
ASEM Series
1.000 MHz - 150 MHz
0°C to + 70°C (see options)
-40°C to +155°C
± 100 ppm max. (see options)
3.3 V ± 0.3 V (see options)
6.0mA max (1.0 to 39.9999MHz)
7.0mA max (40.0 to 79.9999MHz)
9.0mA max (80.0 to 125MHz)
˚
(T=-40 to +85˚C, Vdd=3.3 ± 0.3V, 2.5 ± 0.2V, 1.8 ± 0.15V )
9.0mA max (1.0 to 39.9999MHz)
10.0mA max (40.0 to 79.9999MHz)
16.0mA max (80.0 to 125MHz)
(T=-40 to +85°C, Vdd=3.3 ± 0.3V, 2.5 ± 0.2V, 1.8 ± 0.15V CL=15pF, RL=10kΩ)
Symmetry
45/55 % max.@ 1/2Vdd
Rise and fall time (Tr/Tf)
5ns max. (+25°C, 15pF output load, 10/90% Vdd.)
Output load
15 pF max., 10kohms min.
Output voltage
VOH = 0.9* Vdd min. ; VOL = 0.1* Vdd max.
VIH = 0.9* Vdd min. ; VIL = 0.1* Vdd max.
Input voltage
Start-up time
10ms max.
Enable time
10ms max.
Disable time
100ns max.
Tri-State function (Stand-by) "1" or open: Oscillation; "0" : No oscillation/Hi Z
Stand-by Current
1uA max. (T= +25°C, Vdd=3.0 ± 0.3V, 2.5 ± 0.2V, 1.8 ± 0.2V)
Aging at +25°C/year
± 5ppm max.
Jitter (reference only)
1MHz: 176ps
(Left blank if standard)
ps typ.(RMS Jitter); 1.7ns typ.(Pk-Pk Jitter)
26MHz: 19ps typ.(RMS Jitter); 147ps typ.(Pk-Pk Jitter)
100MHz: 8ps typ.(RMS Jitter); 77ps typ.(Pk-Pk Jitter)
150MHz: 10ps typ.(RMS Jitter); 82ps typ.(Pk-Pk Jitter)
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 11.20.08
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
ULTRA MINIATURE PLASTIC PACKAGE
PURE SILICON CLOCK OSCILLATOR
TM
ASEM
Life Size
3.2 x 2.5 x 0.85mm
| | | | | | | | | | | | | | |
ASEM
Pb
RoHS
Compliant
OPTIONS AND PART IDENTIFICATION:
ASEM
Programmable
Blank
B**
Programmed
Unprogrammed
1
3
- Frequency -
-
-
Freq. Stability
Blank
C
± 100 ppm
± 50 ppm
Supply
Voltage
3.3 ± 0.3V (std)
2.5 ± 0.2V
1.8 ± 0.15V
Frequency
XXX.XXX MHz
Operating Temp.
Blank
M
L*
0°C to +70°C
-20°C to +85°C
-40°C to +85°C
Packaging
Blank
T
Tube
(114pcs/tube)
Tape and Reel
(1000pcs/reel)
* Please contact Abracon for
Temperature Option Availability.
** Blank un-programmed oscillators and our low
cost portable programmer is available for quick
turn engineering requirements. Please call or
visit www.abracon.com for more information.
Please contact Abracon for order assistance
for high shock application.
TM
Our new MEMSpeed Pro Clock Oscillator
Programmer allows you to program parts to
any frequency between 1 and 150 Mhz in 1
second! Order online now at www.abracon.com.

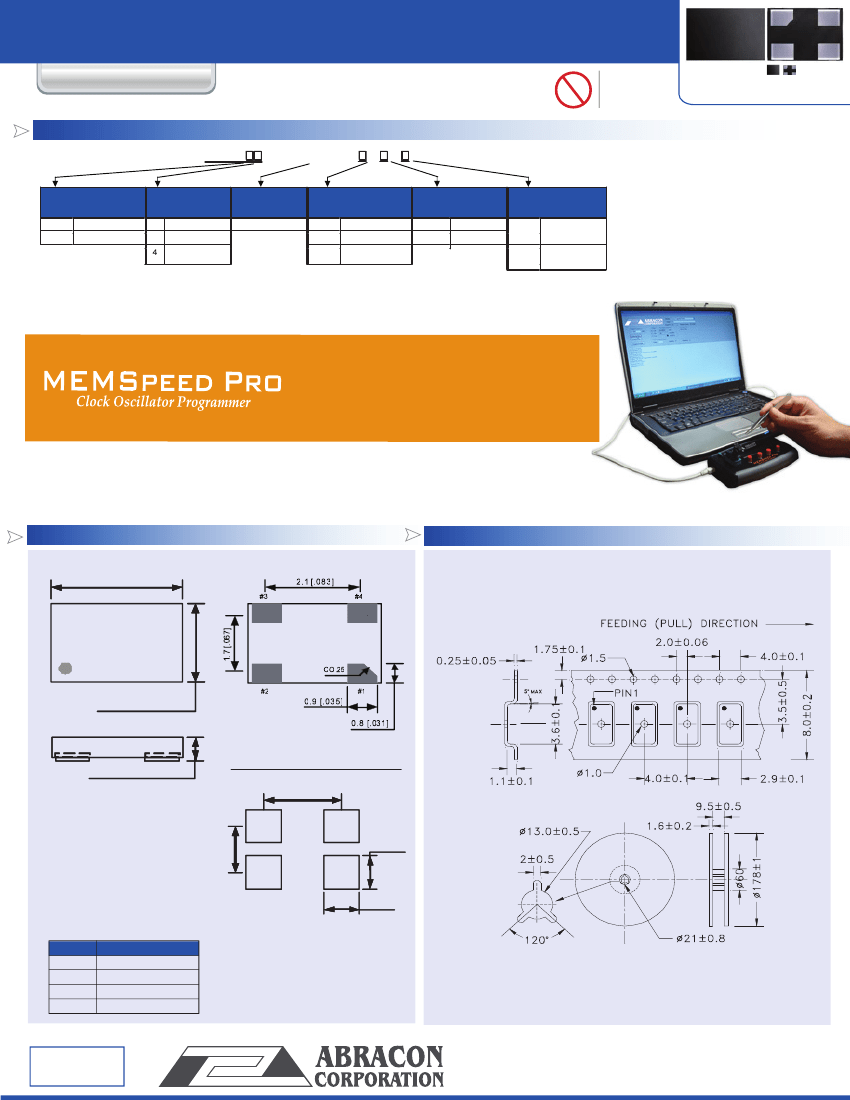

OUTLINE DRAWING:
3.2±0.10 [.126±0.004]
#4
#3
TAPE & REEL:
Tape and reel 1,000pcs/reel
2 . 1 [. 0 8 3 ]
#3
#4
1. 7 [.067]
CO .25
#1
#2
#2
2.5±0.10 [.098±0.004]
0 .9 [.0 3 5 ]
.03
#1
0 .8 [.03 1 ]
[.0
0. 85±0.05 [.033±0.002]
Recomm end ed L and Pa ttern
2.2 [.087]
1.75 [.069]
0.95 [.037]
Note: Recommend using an
approximately 0.01uF bypass
capacitor between PIN 2 and 4.
1.2 [.047]
No.
1
2
3
4
Pin terminal
Tri-state
Gnd
Output
V
DD
Dimensions: Inches (mm)
Visit www.abracon.com for Terms & Conditions of Sale
Dimensions: mm
ABRACON IS
ISO 9001 / QS 9000
CERTIFIED
Revised: 11.19.08
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
