TS83006CE1B/C datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> converter> TS83006CE1B/C

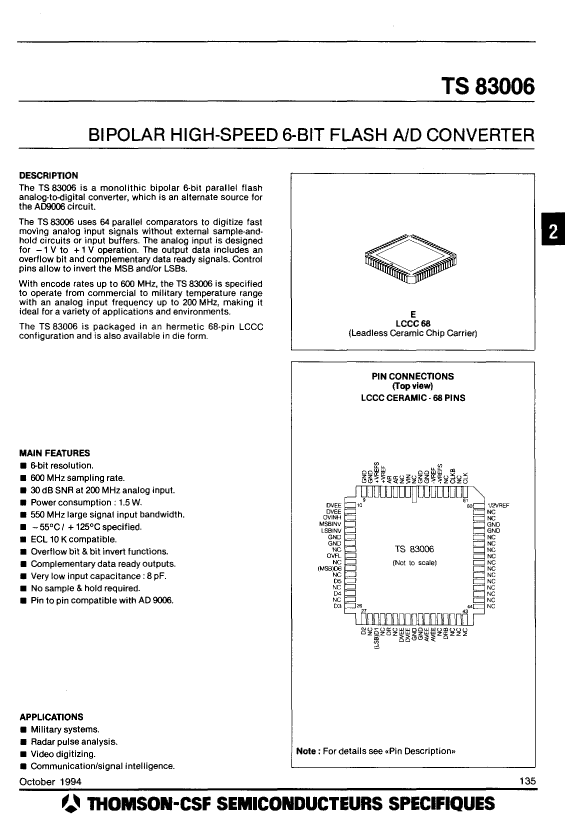

TS83006CE1B/C: DescriptionADC, Flash Method, 6-Bit, 1 Func, 1 Channel, Parallel, Word Access, Bipolar, CQCC68, CERAMIC, LCC-68; CategoryAnalog mixed-signal IC converter; File Size487KB，15 Pages; ManufacturerThales Group

Download Datasheet Parametric Compare View All

TS83006CE1B/C Overview

ADC, Flash Method, 6-Bit, 1 Func, 1 Channel, Parallel, Word Access, Bipolar, CQCC68, CERAMIC, LCC-68

TS83006CE1B/C Parametric

Parameter Name	Attribute value
Maker	Thales Group
Parts packaging code	LCC
package instruction	,
Contacts	68
Reach Compliance Code	unknown
ECCN code	EAR99
Maximum analog input voltage	1 V
Minimum analog input voltage	-1 V
Converter type	ADC, FLASH METHOD
JESD-30 code	S-CQCC-N68
Maximum linear error (EL)	0.7812%
Nominal negative supply voltage	-5.2 V
Number of analog input channels	1
Number of digits	6
Number of functions	1
Number of terminals	68
Maximum operating temperature	70 °C
Minimum operating temperature
Output bit code	BINARY, 2'S COMPLEMENT BINARY
Output format	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
Sampling rate	600 MHz
Filter level	MIL-STD-883 Class B
Nominal supply voltage	3 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal form	NO LEAD
Terminal location	QUAD
Base Number Matches	1

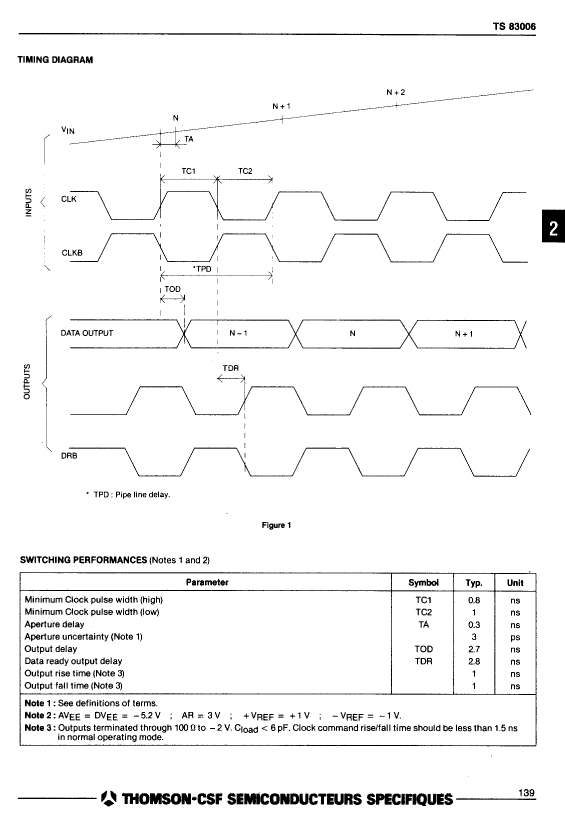

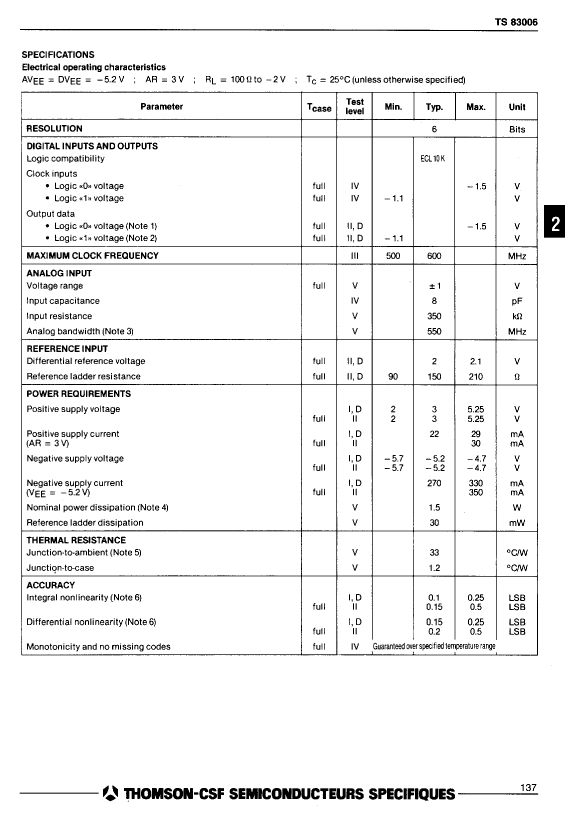

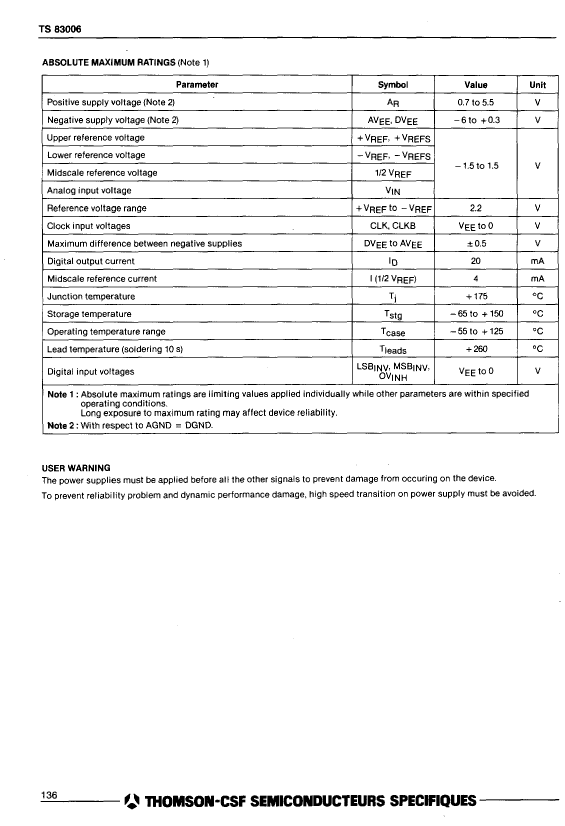

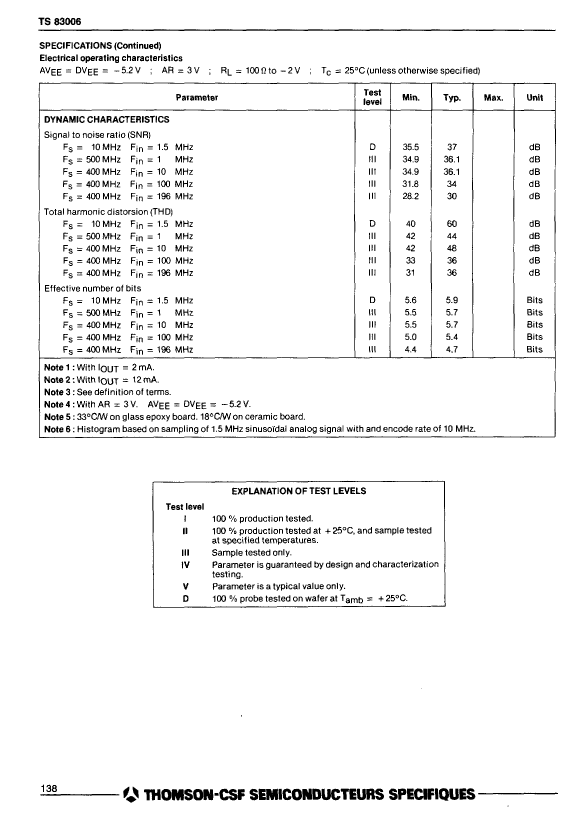

Preview

Download Datasheet

View All

TS83006CE1B/C Related Products

	TS83006CE1B/C	TS83006ME8	TS83006CE8	JTS83006-1VA	TS83006VE8
Description	ADC, Flash Method, 6-Bit, 1 Func, 1 Channel, Parallel, Word Access, Bipolar, CQCC68, CERAMIC, LCC-68	ADC, Flash Method, 6-Bit, 1 Func, 1 Channel, Parallel, Word Access, Bipolar, CQCC68, CERAMIC, LCC-68	ADC, Flash Method, 6-Bit, 1 Func, 1 Channel, Parallel, Word Access, Bipolar, CQCC68, CERAMIC, LCC-68	ADC, Flash Method, 6-Bit, 1 Func, 1 Channel, Parallel, Word Access, Bipolar, DIE	ADC, Flash Method, 6-Bit, 1 Func, 1 Channel, Parallel, Word Access, Bipolar, CQCC68, CERAMIC, LCC-68
Parts packaging code	LCC	LCC	LCC	DIE	LCC
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	3A001.A.2.C	EAR99	EAR99	EAR99
Maximum analog input voltage	1 V	1 V	1 V	1 V	1 V
Minimum analog input voltage	-1 V	-1 V	-1 V	-1 V	-1 V
Converter type	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD	ADC, FLASH METHOD
JESD-30 code	S-CQCC-N68	S-CQCC-N68	S-CQCC-N68	X-XUUC-N	S-CQCC-N68
Maximum linear error (EL)	0.7812%	0.7812%	0.7812%	0.3906%	0.7812%
Nominal negative supply voltage	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Number of analog input channels	1	1	1	1	1
Number of digits	6	6	6	6	6
Number of functions	1	1	1	1	1
Maximum operating temperature	70 °C	125 °C	70 °C	25 °C	85 °C
Minimum operating temperature	-	-55 °C	-	25 °C	-40 °C
Output bit code	BINARY, 2'S COMPLEMENT BINARY	BINARY, 2'S COMPLEMENT BINARY	BINARY, 2'S COMPLEMENT BINARY	BINARY, 2\'S COMPLEMENT BINARY	BINARY, 2\'S COMPLEMENT BINARY
Output format	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD	PARALLEL, WORD
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	UNSPECIFIED	CERAMIC, METAL-SEALED COFIRED
Package shape	SQUARE	SQUARE	SQUARE	UNSPECIFIED	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	UNCASED CHIP	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Sampling rate	600 MHz	600 MHz	600 MHz	600 MHz	600 MHz
Nominal supply voltage	3 V	3 V	3 V	3 V	3 V
surface mount	YES	YES	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	MILITARY	COMMERCIAL	OTHER	INDUSTRIAL
Terminal form	NO LEAD	NO LEAD	NO LEAD	NO LEAD	NO LEAD
Terminal location	QUAD	QUAD	QUAD	UPPER	QUAD
Maker	Thales Group	-	-	Thales Group	Thales Group
Contacts	68	68	68	-	68
Number of terminals	68	68	68	-	68
Base Number Matches	1	1	1	-	-
