107HSM063M: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10 V, 2200 uF, THROUGH HOLE MOUNT; CategoryPassive components capacitor; File Size298KB，2 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/; Environmental Compliance; Related ProductsFound3parts with similar functions to 107HSM063M

Download Datasheet Parametric View All

107HSM063M Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10 V, 2200 uF, THROUGH HOLE MOUNT

107HSM063M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Illinois Capacitor
package instruction	,
Reach Compliance Code	compli
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
ESR	1658 mΩ
JESD-609 code	e3
leakage current	0.189 mA
Manufacturer's serial number	HSM
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	63 V
ripple current	200 mA
surface mount	NO
Delta tangent	0.1
Terminal surface	Matte Tin (Sn)
Terminal shape	WIRE

Preview

Download Datasheet

View All

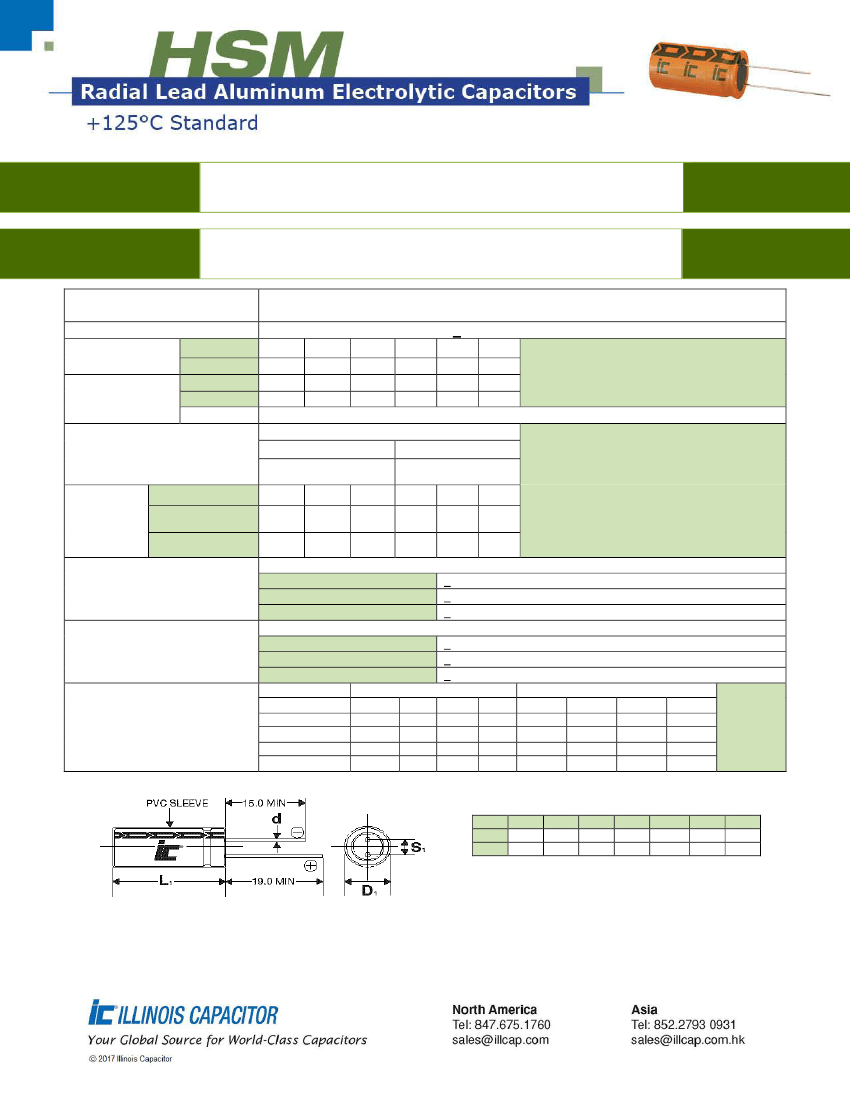

FEATURES

APPLICATIONS

Operating Temperature

Range

Capacitance Tolerance

WVDC

Surge Voltage

SVDC

WVDC

Dissipation

Tan δ

Factor

Leakage Current

Low

Temperature

Stability

Impedance

Ratio

(120 Hz)

Small Size

-

High Voltage

-

General Purpose

Inverters

–

DC Link

–

AC/DC Motor Controls

–

Solar Inverters

-40°C to +125°C

+20% at 120 Hz, 20°C

10

13

10

.2

16

20

16

.16

25

32

25

.14

35

44

35

.12

50

63

50

.1

63

79

63

.1

Add .02 for every 1000uF above 1000uF

10 to 63 WVDC

1 Minutes

2 Minutes

.03CV or 4uA,

Whichever is greater

.01CV or 3uA,

Whichever is greater

WVDC

-25°C to +20°C

-40°C to +20°C

10

3

4

16

2

4

25

2

4

35

2

4

50

2

4

63

2

4

Load Life

Shelf Life

Ripple Current Multipliers

2000 hours at 125°C with rated WVDC and ripple current applied

Capacitance Change

<20% of initial measured value

Dissipation Factor

<200% of maximum specified value

Leakage Current

<100% of maximum specified value

1000 hours at 125°C with no voltage applied

Capacitance Change

<20% of initial measured value

Dissipation Factor

<200% of maximum specified value

Leakage Current

<100% of maximum specified value

Frequency (Hz)

Temperature (°C)

WVDC

50

120

1k

10k

+105

+85

+70

+60

6.3 to 25V

.85

1.0

1.10

1.20

1.0

1.4

1.75

35 to 100V

.8

1.0

1.15

1.25

1.0

1.4

1.75

160 to 250V

.75

1.0

1.25

1.40

1.0

1.4

1.75

350 to 450V

.7

1.0

1.30

1.80

1.0

1.4

1.75

D

5

6.3

S

2.0

2.5

d

0.5

L

1

=L+1.5mm Max.

D

1

=D+0.5mm Max.

S

1

=S+0.5 mm

8

3.5

0.6

10

5.0

0.6

12.5

5.0

0.6

16

7.5

0.8

18

7.5

0.8

mm

Feb-17

Recommended Resources

Cadmium-nickel battery automatic charging and discharging circuit composed of TL082

Yile SC300-1 multifunctional food processor circuit diagram

IC card reading circuit

5V regulated power supply with expanded current overvoltage protection

Time delay switching relay circuit using thyristor

6L6A class tube push-pull amplifier

107HSM063M Similar Products

Part Number	Manufacturer	Description
KMQ63VB101M8X11LL	NIPPON CHEMI-CON(贵弥功)	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED
107CKE063MJM	CDE [ CORNELL DUBILIER ELECTRONICS ]	Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 63V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, RADIAL LEADED
107CKE063MJM	Illinois Capacitor	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63 V, 22 uF, THROUGH HOLE MOUNT
