107AXZ050M datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> 107AXZ050M

107AXZ050M: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50 V, 100 uF, SURFACE MOUNT, 2626; CategoryPassive components; File Size221KB，2 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/

Download Datasheet Parametric View All

107AXZ050M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	107AXZ050M	-	-	View	Buy Now

107AXZ050M Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50 V, 100 uF, SURFACE MOUNT, 2626

107AXZ050M Parametric

Parameter Name	Attribute value
negative deviation	20 %
Minimum operating temperature	-55 Cel
Maximum operating temperature	105 Cel
positive deviation	20 %
Rated DC voltage urdc	50 V
Processing package description	LEAD FREE
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
capacitance	100 µF
dielectric materials	ALUMINUM
esr__mohm_	1989
jesd_609_code	e3
leakage_current__ma_	.05
Manufacturer Series	AXZ
Installation features	SURFACE MOUNT
packaging shape	CYLINDRICAL PACKAGE
Package Size	SMT
cking_method	TR
polarity	POLARIZED
ipple_current__ma_	210
series	AXZ(50 V)
size code	2626
tangent angle	0.12
terminal coating	MATTE TIN
Terminal shape	FLAT
heigh	10.2 mm
length	9 mm
width	8.3 mm

Preview

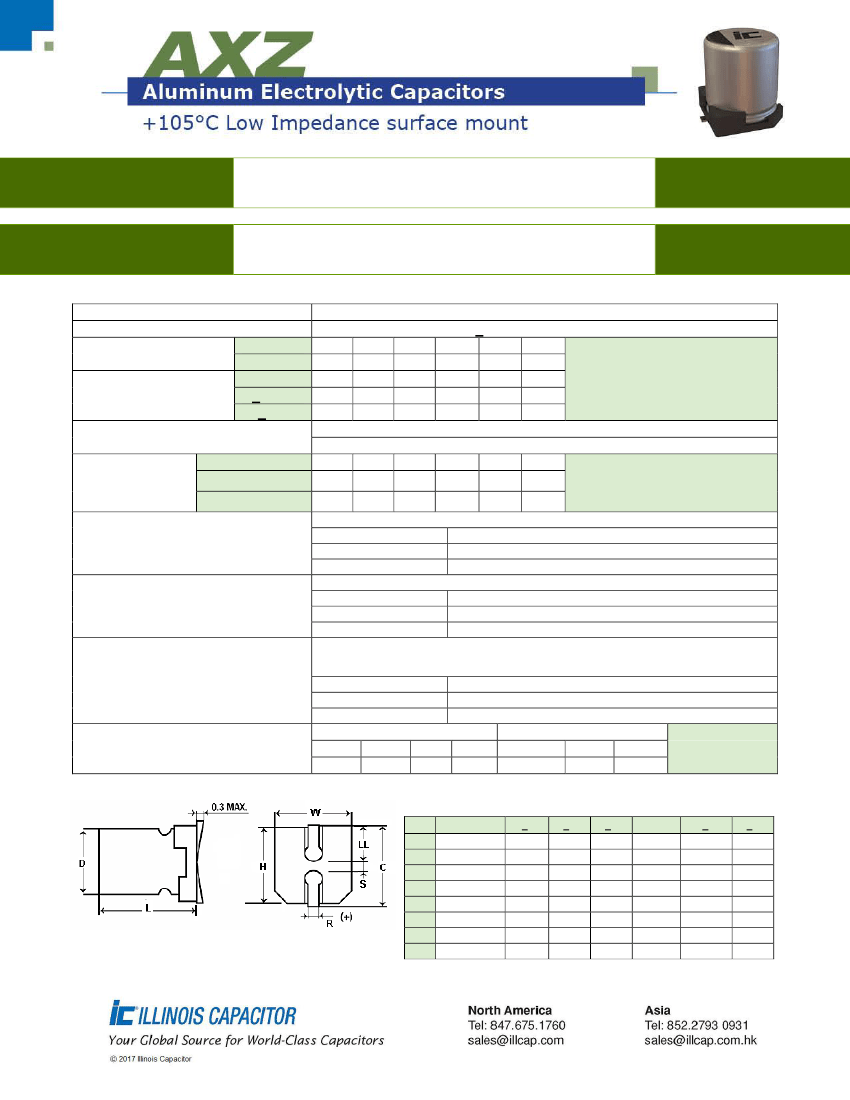

Download Datasheet

View All

FEATURES

APPLICATIONS

Small Size

–

Long Life

–

Very Low Impedance

Filtering

–

Bypass/ Coupling

–

De-Coupling

Operating Temperature Range

Capacitance Tolerance

WVDC

Surge Voltage

SVDC

WVDC

Dissipation Factor

D<6.3mm

D>8mm

Leakage Current

Low Temperature

Stability

Impedance Ratio

(120 Hz)

6.3

7.9

6.3

.24

.28

.24

Rated WVDC

-25°C to +20°C

-40°C to +20°C

6.3

-55°C to +105°C

+20% at 120 Hz, 20°C

.16

.14

.12

.16

.14

2 Minutes

.01CV or 3uA,Whichever is greater

Load Life

Shelf Life

Resistance to Soldering Heat

2000 hours at 105°C with rated WVDC

Capacitance Change

<30% of initial measured value

Dissipation Factor

<300% of maximum specified value

Leakage Current

>100% of maximum specified value

1000 hours at 105°C with no voltage applied

Capacitance Change

<30% of initial measured value

Dissipation Factor

<300% of maximum specified value

Leakage Current

>100% of maximum specified value

Capacitors placed on a 250°C hot plate for 30 seconds with their electrode

terminations facing downward will fulfill the following conditions after being cooled

to room temperature

Capacitance Change

<10% of initial measured value

Dissipation Factor

<100% of maximum specified value

Leakage Current

>100% of maximum specified value

Ripple Current Multipliers

Frequency (Hz)

120

100k

.45

.83

1.0

Temperature (°C)

105

1.0

1.7

1.45

6.3

5.4

+0.1/-0.2

5.4

+0.1/-0.2

5.4

+0.1/-0.2

5.8

+0.1/-0.2

7.7 +0.1/-0.2

W+0.2

4.3

5.3

6.6

8.3

H+0.2

4.3

5.3

6.6

8.3

C+0.2

5.0

6.0

7.3

9.0

11.0

0.5~0.8

0.7~1.0

LL+0.2

1.8

2.1

2.4

2.9

3.12

S+0.2

1.0

1.4

2.2

3.2

4.6

6.2

+0.1/-0.2

10.2

+0.1/-0.2

10.2

+0.1/-0.2

Aug-17
