LBT673-P1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LBT673-P1

LBT673-P1: DescriptionSINGLE COLOR LED, BLUE, 2.4 mm, PLCC-2; CategoryLED optoelectronic/LED photoelectric; File Size123KB，12 Pages; ManufacturerOsram Opto Semiconductor; Websitehttps://www.osram.com/index-2.jsp

Download Datasheet Parametric Compare View All

LBT673-P1 Overview

SINGLE COLOR LED, BLUE, 2.4 mm, PLCC-2

LBT673-P1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Osram Opto Semiconductor
package instruction	PLCC-2
Reach Compliance Code	compliant
color	BLUE
color@wavelength	Blue
Configuration	SINGLE
Maximum forward current	0.02 A
Maximum forward voltage	4.2 V
JESD-609 code	e0
Lens type	COLORLESS CLEAR
Nominal luminous intensity	50.5 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	100 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.9 mm
method of packing	TAPE AND REEL
peak wavelength	465 nm
Maximum reverse voltage	5 V
shape	RECTANGULAR
size	2.4 mm
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)
perspective	120 deg
Base Number Matches	1

Preview

Download Datasheet

View All

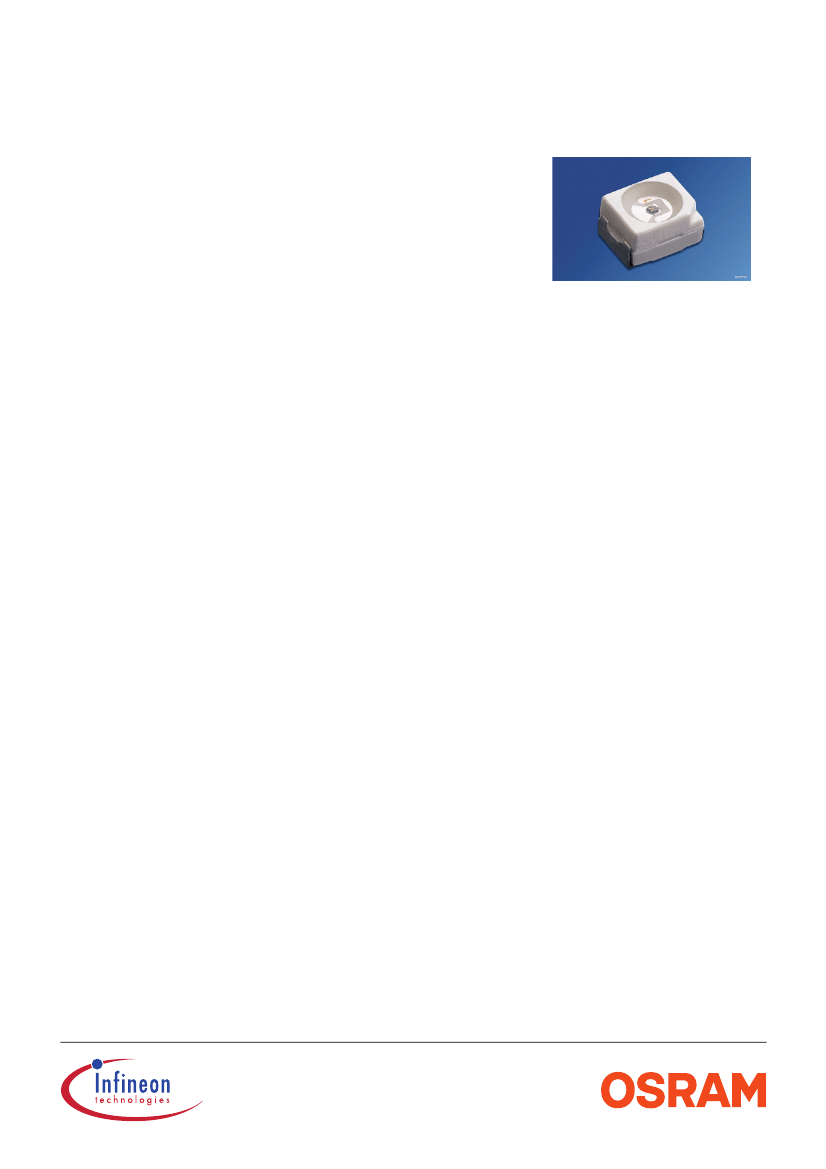

Hyper TOPLED

Hyper-Bright LED

LB T673, LV T673, LT T673

Besondere Merkmale

•

Gehäusetyp:

weißes P-LCC-2 Gehäuse

•

Besonderheit des Bauteils:

extrem breite Ab-

strahlcharakteristik; ideal für Hinterleuchtungen

und Einkopplungen in Lichtleiter

•

Wellenlänge:

470 nm (blau), 505 nm (verde),

528 nm (true green)

•

Abstrahlwinkel:

Lambertscher Strahler (120°)

•

Technologie:

InGaN

•

optischer Wirkungsgrad:

2 lm/W (blau),

6 lm/W (verde), 8 lm/W (true green)

•

Gruppierungsparameter:

Lichtstärke,

Wellenlänge

•

Verarbeitungsmethode:

für alle

SMT-Bestücktechniken geeignet

•

Lötmethode:

IR Reflow Löten und

Wellenlöten (TTW)

•

Vorbehandlung:

nach JEDEC Level 2

•

Gurtung:

8 mm Gurt mit 2000/Rolle, ø180 mm

oder 8000/Rolle, ø330 mm

Anwendungen

• Ampelanwendung

• Informationsanzeigen im Außenbereich

• optischer Indikator

• Hinterleuchtung (LCD, Schalter, Tasten,

Displays, Werbebeleuchtung,

Allgemeinbeleuchtung)

• Innenbeleuchtung im Automobilbereich

(z.B. Instrumentenbeleuchtung, u. ä.)

• Markierungsbeleuchtung (z.B. Stufen,

Fluchtwege, u.ä.)

• Signal- und Symbolleuchten

• Scanner

Features

•

package:

white P-LCC-2 package

•

feature of the device:

extremely wide viewing

angle; ideal for backlighting and coupling in

light guides

•

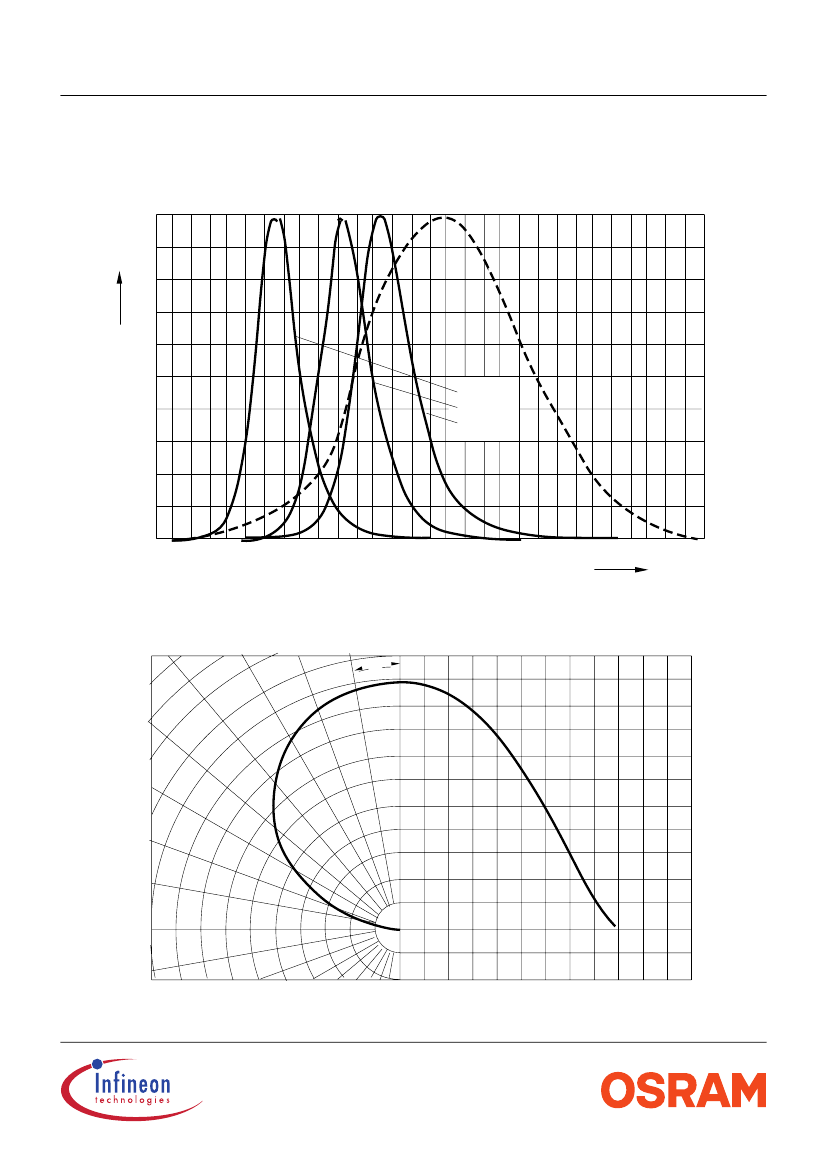

wavelength:

470 nm (blue), 505 nm (verde),

528 nm (true green)

•

viewing angle:

Lambertian Emitter (120°)

•

technology:

InGaN

•

optical efficiency:

2 lm/W (blue),

6 lm/W (verde), 8 lm/W (true green)

•

grouping parameter:

luminous intensity,

wavelength

•

assembly methods:

suitable for all

SMT assembly methods

•

soldering methods:

IR reflow soldering and

TTW soldering

•

preconditioning:

acc. to JEDEC Level 2

•

taping:

8 mm tape with 2000/reel, ø180 mm or

8000/reel, ø330 mm

Applications

• traffic lights

• outdoor displays

• optical indicators

• backlighting (LCD, switches, keys, displays,

illuminated advertising, general lighting)

• interior automotive lighting (e.g. dashboard

backlighting, etc.)

• marker lights (e.g. steps, exit ways, etc.)

• signal and symbol luminaire

• scanners

2000-06-06

OPTO SEMICONDUCTORS

LBT673-P1 Related Products

	LBT673-P1	LBT673-N2	LBT673-M2	LTT673-S2	LTT673-R1	LTT673-Q2
Description	SINGLE COLOR LED, BLUE, 2.4 mm, PLCC-2	SINGLE COLOR LED, BLUE, 2.4 mm, PLCC-2	SINGLE COLOR LED, BLUE, 2.4 mm, PLCC-2	SINGLE COLOR LED, GREEN, 2.4 mm, PLCC-2	SINGLE COLOR LED, GREEN, 2.4 mm, PLCC-2	SINGLE COLOR LED, GREEN, 2.4 mm, PLCC-2
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	PLCC-2	PLCC-2	PLCC-2	PLCC-2	PLCC-2	PLCC-2
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
color	BLUE	BLUE	BLUE	GREEN	GREEN	GREEN
color@wavelength	Blue	Blue	Blue	Green	Green	Green
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A	0.02 A
Maximum forward voltage	4.2 V	4.2 V	4.2 V	4.2 V	4.2 V	4.2 V
JESD-609 code	e0	e0	e0	e0	e0	e0
Lens type	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR	COLORLESS CLEAR
Nominal luminous intensity	50.5 mcd	40.25 mcd	25.2 mcd	252 mcd	126 mcd	101 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2
Maximum operating temperature	100 °C	100 °C	100 °C	100 °C	100 °C	100 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm	1.9 mm
method of packing	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL	TAPE AND REEL
peak wavelength	465 nm	465 nm	465 nm	523 nm	523 nm	523 nm
Maximum reverse voltage	5 V	5 V	5 V	5 V	5 V	5 V
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm	2.4 mm
surface mount	YES	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
perspective	120 deg	120 deg	120 deg	120 deg	120 deg	120 deg
Maker	Osram Opto Semiconductor	Osram Opto Semiconductor	-	Osram Opto Semiconductor	-	Osram Opto Semiconductor
Base Number Matches	1	1	1	-	1	1
