LA-421-MLA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> LA-421-MLA

LA-421-MLA: Description7 SEG NUMERIC DISPLAY, RED/GREEN, 11 mm; CategoryLED optoelectronic/LED photoelectric; File Size39KB，2 Pages; ManufacturerROHM Semiconductor; Websitehttps://www.rohm.com/

Download Datasheet Parametric Compare View All

LA-421-MLA Overview

7 SEG NUMERIC DISPLAY, RED/GREEN, 11 mm

LA-421-MLA Parametric

Parameter Name	Attribute value
Maker	ROHM Semiconductor
Reach Compliance Code	unknown
color	RED/GREEN
Configuration	COMMON ANODE, MULTIPLEXED, 1 DIGIT WITH DECIMAL POINT
Display height	11 mm
Maximum forward current	0.03 A
Number of functions	1
Maximum operating temperature	75 °C
Minimum operating temperature	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

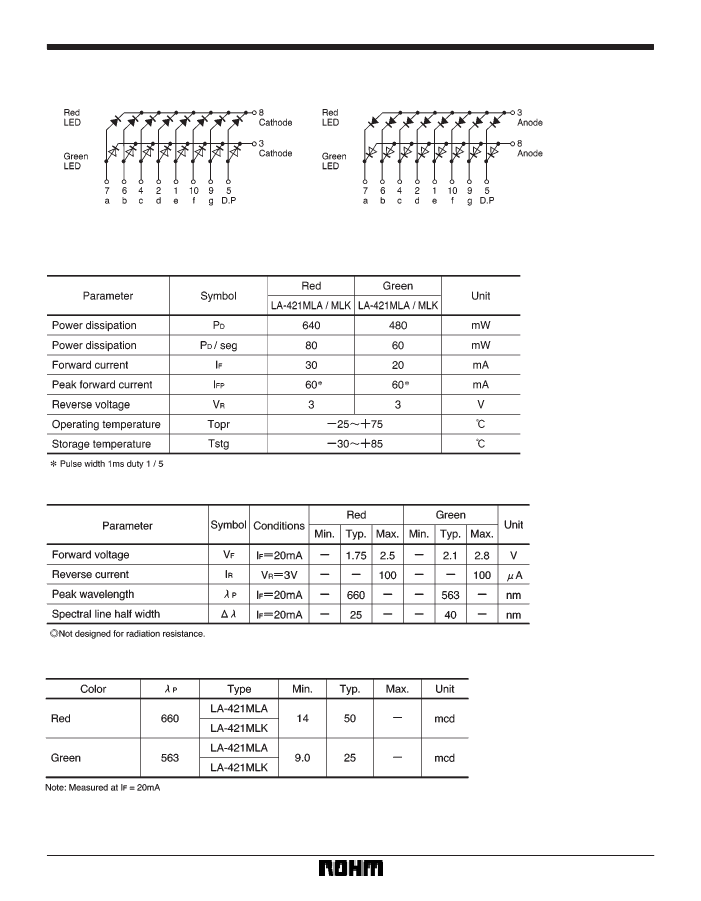

Preview

Download Datasheet

View All

LED displays

Two-color, high luminance numeric

displays

LA-421 AK Series

The LA-421 AK series are two-color,

high luminance numeric displays de-

signed to be used in bright locations.

Red, green and orange displays are

possible.

FFeatures

1) Height of display : 11 mm.

2) Dimensions : 12.5

17.5

7 mm.

3) Common anode and common cath-

ode configurations are available.

4) The package surface is painted

black and the segments are milky

white.

5) High luminance, clear display.

6) Red, green and orange displays are

possible.

FExternal

dimensions (Units: mm)

FSelection

guide

FPin

assignments

188

LA-421-MLA Related Products

	LA-421-MLA	LA-421MLK	LA-421-MLK
Description	7 SEG NUMERIC DISPLAY, RED/GREEN, 11 mm	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red/green, 11mm	7 SEG NUMERIC DISPLAY, RED/GREEN, 11 mm
Maker	ROHM Semiconductor	ROHM Semiconductor	ROHM Semiconductor
Reach Compliance Code	unknown	compliant	unknown
color	RED/GREEN	RED/GREEN	RED/GREEN
Configuration	COMMON ANODE, MULTIPLEXED, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, MULTIPLEXED, 1 DIGIT WITH DECIMAL POINT
Display height	11 mm	11 mm	11 mm
Maximum forward current	0.03 A	0.03 A	0.03 A
Number of functions	1	1	1
Maximum operating temperature	75 °C	75 °C	75 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Objectid	-	1483280640	1437927482
compound_id	-	11375275	11354395
color@wavelength	-	Green/Red	Green/Red
Number of characters	-	1	1
peak wavelength	-	660 nm	660 nm
