BYV541V-50 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> BYV541V-50

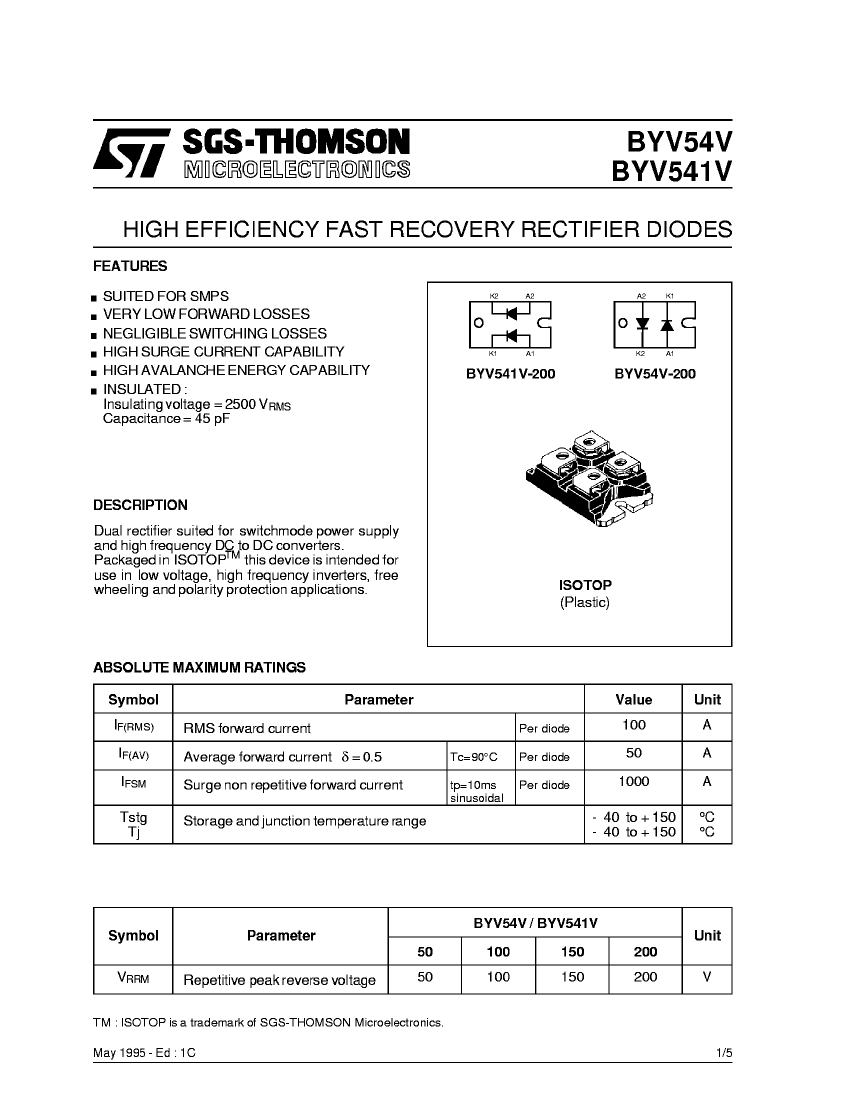

Preview

BYV541V-50: Description50A, 50V, SILICON, RECTIFIER DIODE, PLASTIC, ISOTOP-4; CategoryDiscrete semiconductor diode; File Size100KB，5 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

BYV541V-50 Overview

50A, 50V, SILICON, RECTIFIER DIODE, PLASTIC, ISOTOP-4

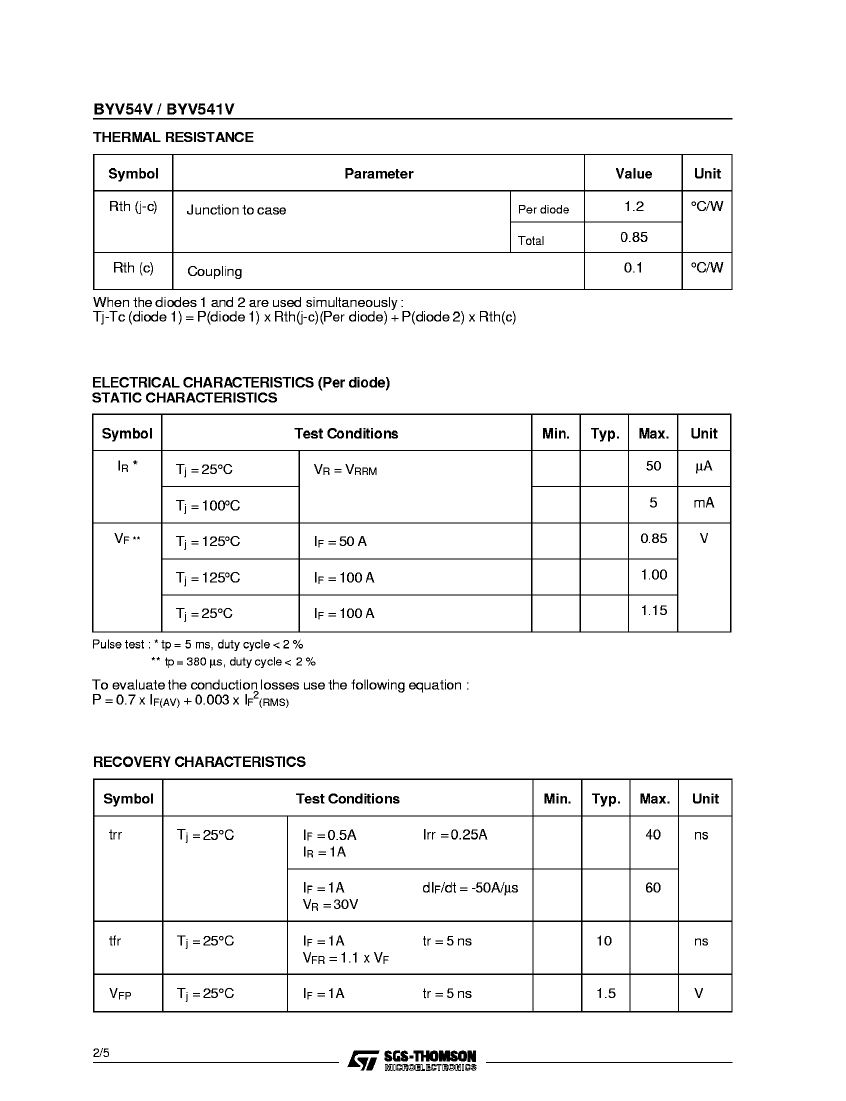

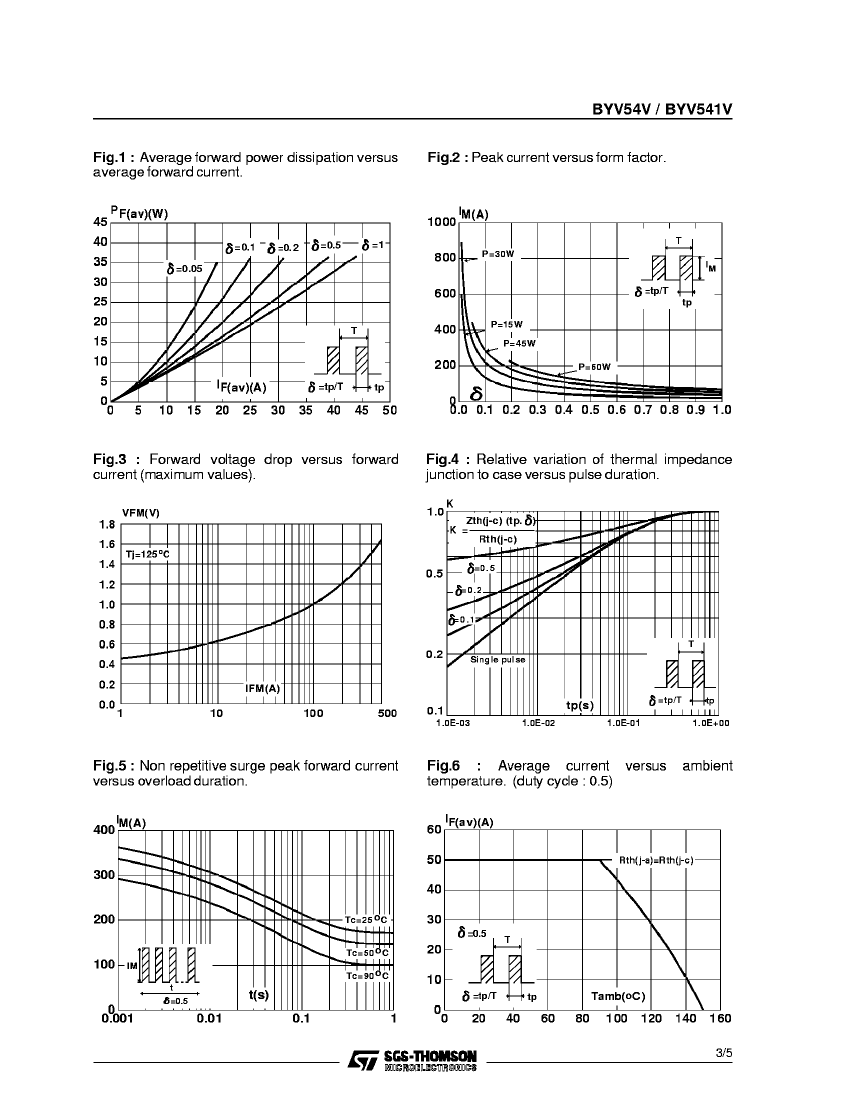

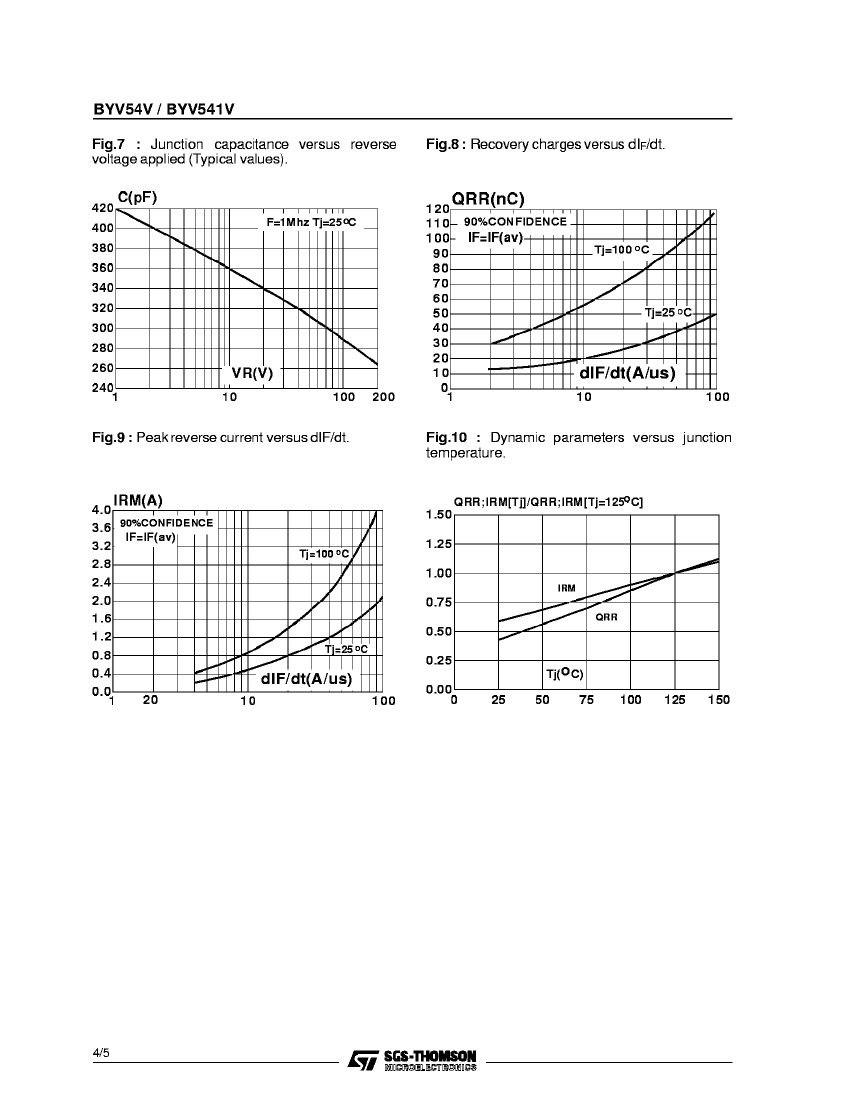

BYV541V-50 Parametric

Parameter Name	Attribute value
Maker	STMicroelectronics

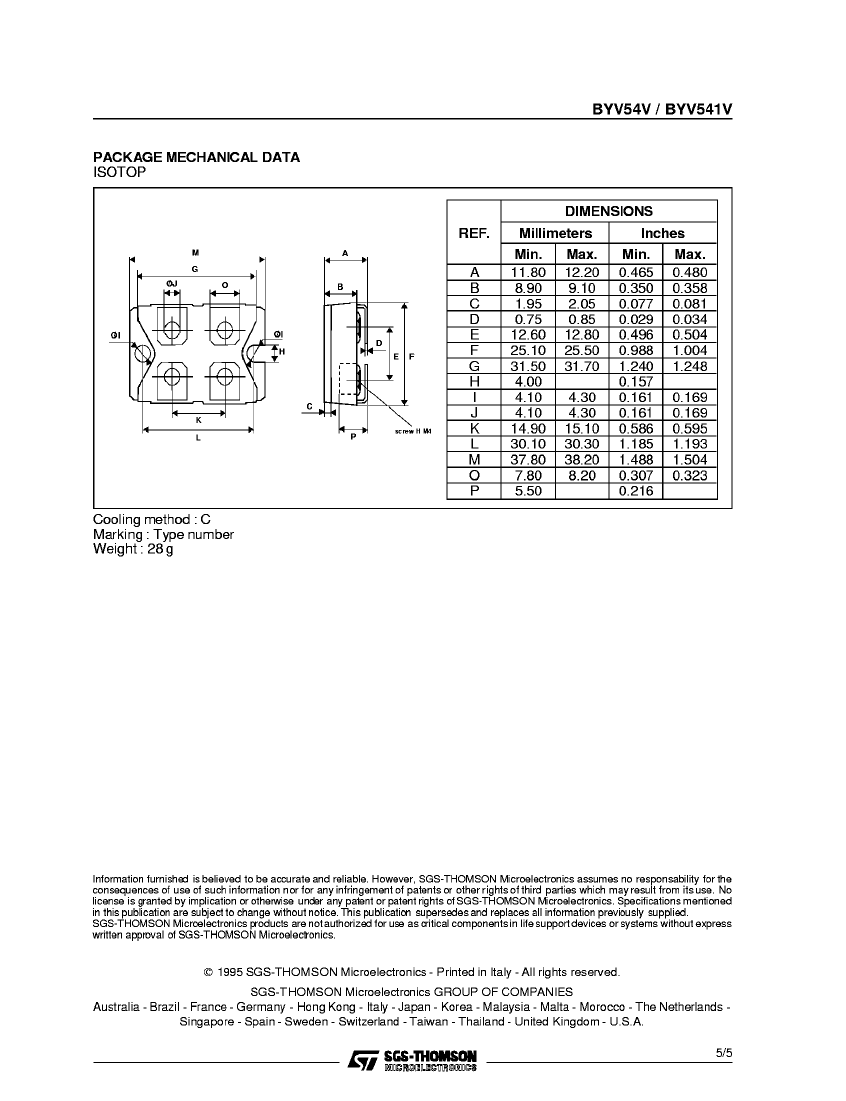

Parts packaging code	ISOTOP
package instruction	R-PUFM-D4
Contacts	4
Manufacturer packaging code	ISOTOP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH SURGE CAPABILITY, FREE WHEELING DIODE
application	EFFICIENCY
Configuration	2 BANKS, SEPARATE, 1 ELEMENT
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JESD-30 code	R-PUFM-D4
Maximum non-repetitive peak forward current	1000 A
Number of components	2
Phase	1
Number of terminals	4
Maximum operating temperature	150 °C
Minimum operating temperature	-40 °C
Maximum output current	50 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	50 V
Maximum reverse recovery time	0.06 µs
surface mount	NO
technology	AVALANCHE
Terminal form	SOLDER LUG
Terminal location	UPPER
Base Number Matches	1

Preview

Download Datasheet

View All

BYV541V-50 Related Products

	BYV541V-50	BYV541V-150	BYV541V-100
Description	50A, 50V, SILICON, RECTIFIER DIODE, PLASTIC, ISOTOP-4	50A, 150V, SILICON, RECTIFIER DIODE, PLASTIC, ISOTOP-4	50A, 100V, SILICON, RECTIFIER DIODE, PLASTIC, ISOTOP-4
Parts packaging code	ISOTOP	ISOTOP	ISOTOP
package instruction	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4
Contacts	4	4	4
Manufacturer packaging code	ISOTOP	ISOTOP	ISOTOP
Reach Compliance Code	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99
Other features	HIGH SURGE CAPABILITY, FREE WHEELING DIODE	HIGH SURGE CAPABILITY, FREE WHEELING DIODE	HIGH SURGE CAPABILITY, FREE WHEELING DIODE
application	EFFICIENCY	EFFICIENCY	EFFICIENCY
Configuration	2 BANKS, SEPARATE, 1 ELEMENT	2 BANKS, SEPARATE, 1 ELEMENT	2 BANKS, SEPARATE, 1 ELEMENT
Diode component materials	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JESD-30 code	R-PUFM-D4	R-PUFM-D4	R-PUFM-D4
Maximum non-repetitive peak forward current	1000 A	1000 A	1000 A
Number of components	2	2	2
Phase	1	1	1
Number of terminals	4	4	4
Maximum operating temperature	150 °C	150 °C	150 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Maximum output current	50 A	50 A	50 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	50 V	150 V	100 V
Maximum reverse recovery time	0.06 µs	0.06 µs	0.06 µs
surface mount	NO	NO	NO
technology	AVALANCHE	AVALANCHE	AVALANCHE
Terminal form	SOLDER LUG	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER	UPPER
Base Number Matches	1	1	1
Maker	STMicroelectronics	-	STMicroelectronics
Is it Rohs certified?	-	conform to	conform to
Maximum forward voltage (VF)	-	1.2 V	1.2 V
Maximum reverse current	-	50 µA	50 µA
Reverse test voltage	-	150 V	100 V
