DIODE 30 A, 300 V, SILICON, RECTIFIER DIODE, Rectifier Diode

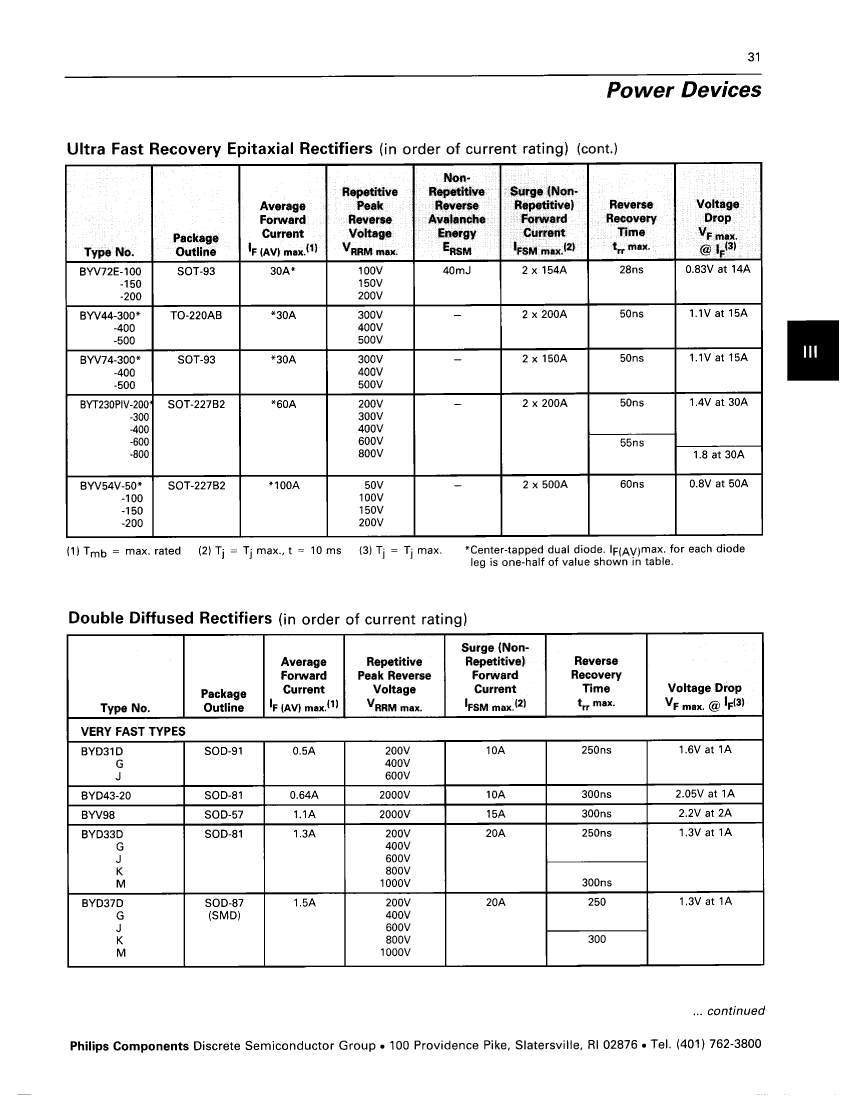

| Parameter Name | Attribute value |
| Maker | NXP |
| package instruction | R-PUFM-D3 |
| Reach Compliance Code | unknown |
| application | ULTRA FAST RECOVERY POWER |
| Diode component materials | SILICON |
| Diode type | RECTIFIER DIODE |
| JESD-30 code | R-PUFM-D3 |
| Maximum non-repetitive peak forward current | 200 A |
| Number of components | 2 |
| Phase | 1 |
| Number of terminals | 3 |
| Maximum output current | 30 A |
| Package body material | PLASTIC/EPOXY |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Certification status | Not Qualified |
| Maximum repetitive peak reverse voltage | 300 V |
| Maximum reverse recovery time | 0.05 µs |
| surface mount | NO |
| Terminal form | SOLDER LUG |
| Terminal location | UPPER |
| Base Number Matches | 1 |
| BYT230PIV-300 | BYV54V-150 | BYT230PIV-600 | BYV54V-200 | BYT230PIV-400 | BYV54V-50 | BYV54V-100 | BYT230PIV-800 | |
|---|---|---|---|---|---|---|---|---|
| Description | DIODE 30 A, 300 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 50 A, 150 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 30 A, 600 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 50 A, 200 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 30 A, 400 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 50 A, 50 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 50 A, 100 V, SILICON, RECTIFIER DIODE, Rectifier Diode | DIODE 30 A, 800 V, SILICON, RECTIFIER DIODE, Rectifier Diode |
| package instruction | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown |
| application | ULTRA FAST RECOVERY POWER | ULTRA FAST RECOVERY POWER | ULTRA FAST RECOVERY POWER | ULTRA FAST RECOVERY POWER | ULTRA FAST RECOVERY POWER | ULTRA FAST RECOVERY POWER | ULTRA FAST RECOVERY POWER | ULTRA FAST RECOVERY POWER |
| Diode component materials | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON | SILICON |
| Diode type | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE | RECTIFIER DIODE |
| JESD-30 code | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 | R-PUFM-D3 |
| Maximum non-repetitive peak forward current | 200 A | 500 A | 200 A | 500 A | 200 A | 500 A | 500 A | 200 A |
| Number of components | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Phase | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 |
| Maximum output current | 30 A | 50 A | 30 A | 50 A | 30 A | 50 A | 50 A | 30 A |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT | FLANGE MOUNT |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Maximum repetitive peak reverse voltage | 300 V | 150 V | 600 V | 200 V | 400 V | 50 V | 100 V | 800 V |
| Maximum reverse recovery time | 0.05 µs | 0.06 µs | 0.055 µs | 0.06 µs | 0.05 µs | 0.06 µs | 0.06 µs | 0.055 µs |
| surface mount | NO | NO | NO | NO | NO | NO | NO | NO |
| Terminal form | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG | SOLDER LUG |
| Terminal location | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER | UPPER |
| Maker | NXP | - | - | NXP | NXP | NXP | NXP | NXP |
