ECCM9LA10-45.1584M datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> ECCM9LA10-45.1584M

ECCM9LA10-45.1584M: DescriptionQUARTZ CRYSTAL RESONATOR, 45.1584MHz, ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size164KB，2 Pages; ManufacturerECLIPTEK; Websitehttp://www.ecliptek.com; Environmental Compliance

Download Datasheet Parametric View All

ECCM9LA10-45.1584M Overview

QUARTZ CRYSTAL RESONATOR, 45.1584MHz, ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4

ECCM9LA10-45.1584M Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	ECLIPTEK
package instruction	ROHS COMPLIANT, MINIATURE, CERAMIC PACKAGE-4
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; BULK
Ageing	3 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.002%
frequency tolerance	15 ppm
JESD-609 code	e4
load capacitance	10 pF
Manufacturer's serial number	ECCM9
Installation features	SURFACE MOUNT
Nominal operating frequency	45.1584 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L5.0XB3.2XH1.0 (mm)/L0.197XB0.126XH0.039 (inch)
Series resistance	40 Ω
surface mount	YES
Terminal surface	Nickel/Gold (Ni/Au)
Base Number Matches	1

Preview

Download Datasheet

View All

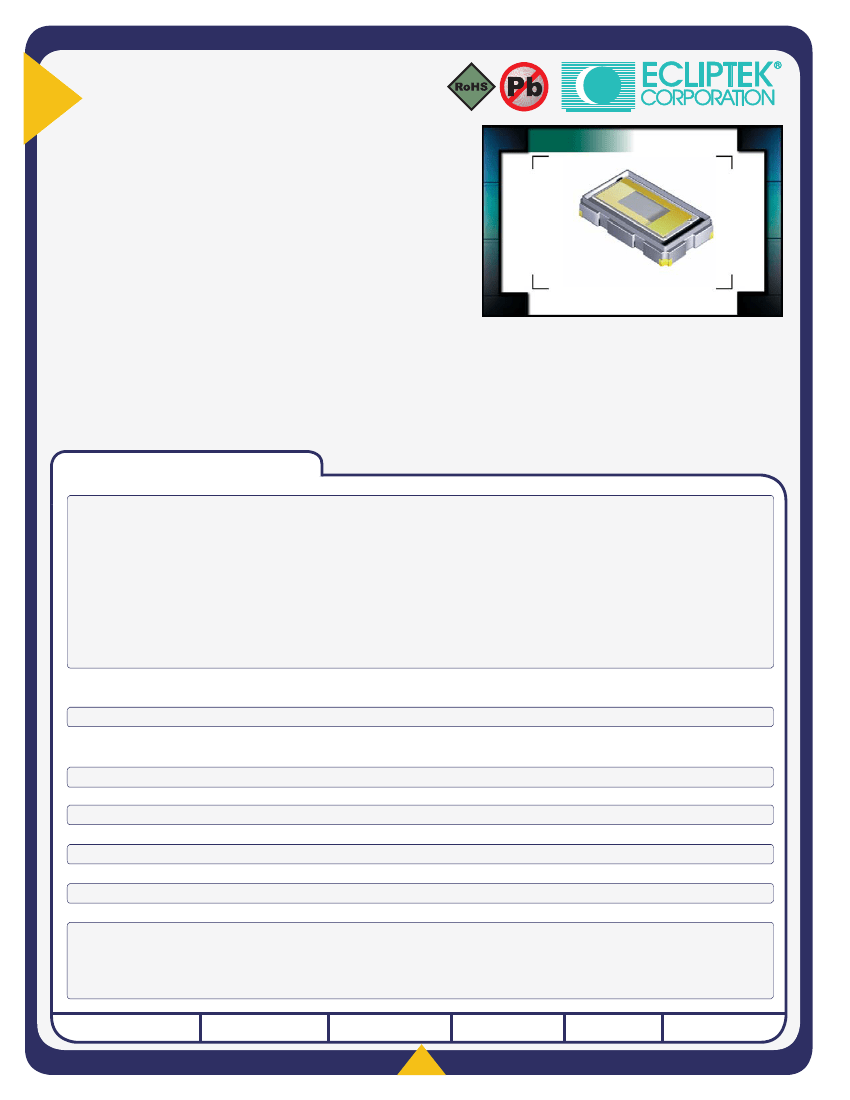

ECCM9

Series

• RoHS Compliant (Pb-Free)

• Miniature four pad ceramic

surface mount package

• Standard frequencies up to 53.125MHz

• AT Cut

• Tape and reel available

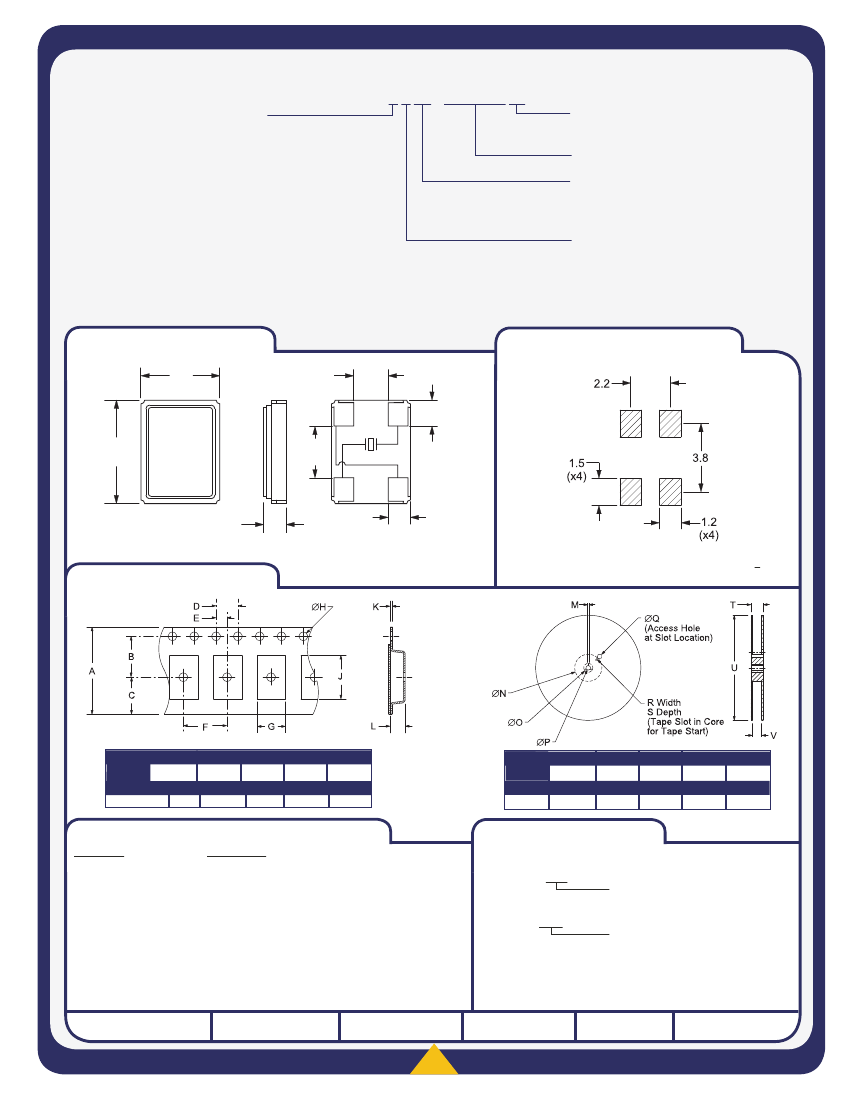

NOTES

ECCM9

1.0

5.0

3.2

CRYSTAL

_____________________________________________________________________________________________________________________________________________________________________________________________

ELECTRICAL SPECIFICATIONS

Nominal Frequency (MHz)

10.000, 11.059, 11.0592, 11.2896, 11.700, 12.000, 12.1875, 12.272715, 12.288, 12.800,

13.000, 13.125, 13.225, 13.2256, 13.400, 13.480, 13.500, 13.560, 13.5652, 13.568, 13.5705,

13.57375, 13.589, 13.824, 14.000, 14.318, 14.31818, 14.3228, 14.400, 14.478, 14.47826,

14.484, 14.4844, 14.660, 14.745, 14.7456, 15.360, 16.000, 16.367, 16.368, 16.384, 16.800,

16.934, 16.9344, 17.000, 18.432, 19.200, 19.3125, 19.440, 19.500, 19.660, 19.6608, 19.680,

19.800, 20.000, 20.480, 21.250, 22.000, 23.104, 24.000, 24.545, 24.545451, 24.553, 24.576,

25.000, 25.140, 26.000, 27.000, 27.134, 28.375, 28.636, 28.6363, 28.63636, 29.491, 30.000,

32.000, 32.110, 33.000, 35.328, 36.000, 38.400, 39.062, 40.000, 40.283, 44.000, 45.000,

45.1584, 48.000, 48.600, 53.125MHz

Frequency Tolerance / Stability

Over Operating Temperature Range

Operating Temperature Range

Load Capacitance (C

)

Shunt Capacitance

Mode of Operation

Crystal Cut

Aging (at 25°C)

Drive Level

Storage Temperature Range

Insulation Resistance

Spurious Response

Equivalent Series Resistance

±50ppm / ±100ppm, ±30ppm / ±50ppm, ±15ppm / ±30ppm, ±15ppm / ±20ppm, or

±10ppm / ±15ppm

0°C to +70°C, -20°C to +70°C, or -40°C to +85°C

Series Resonant

10pF Parallel Resonant to 50pF Parallel Resonant

7pF Maximum

Fundamental

AT-Cut

±3ppm / year Maximum

100µWatts Maximum, 10µWatts Correlation

-40°C to +125°C

500 Megaohms Minimum at 100V

-3dB Minimum; F

to F

+5000ppm

70 Ohms Maximum from 10.000MHz to 14.999MHz

60 Ohms Maximum from 15.000MHz to 19.999MHz

50 Ohms Maximum from 20.000MHz to 34.999MHz

40 Ohms Maximum from 35.000MHz to 53.125MHz
