MV18-10R/LK

Description
RING TERMINAL
CategoryThe connector    terminals
File Size235KB,1 Pages
Manufacturer3M
Websitehttp://3M.com/esd
Download Datasheet Parametric Compare View All

MV18-10R/LK Overview

RING TERMINAL

MV18-10R/LK Parametric

Parameter NameAttribute value
Maker3M
Reach Compliance Codeunknown
ECCN codeEAR99
Manufacturer's serial numberMV18
Terminal and terminal strip typesRING TERMINAL
Base Number Matches1

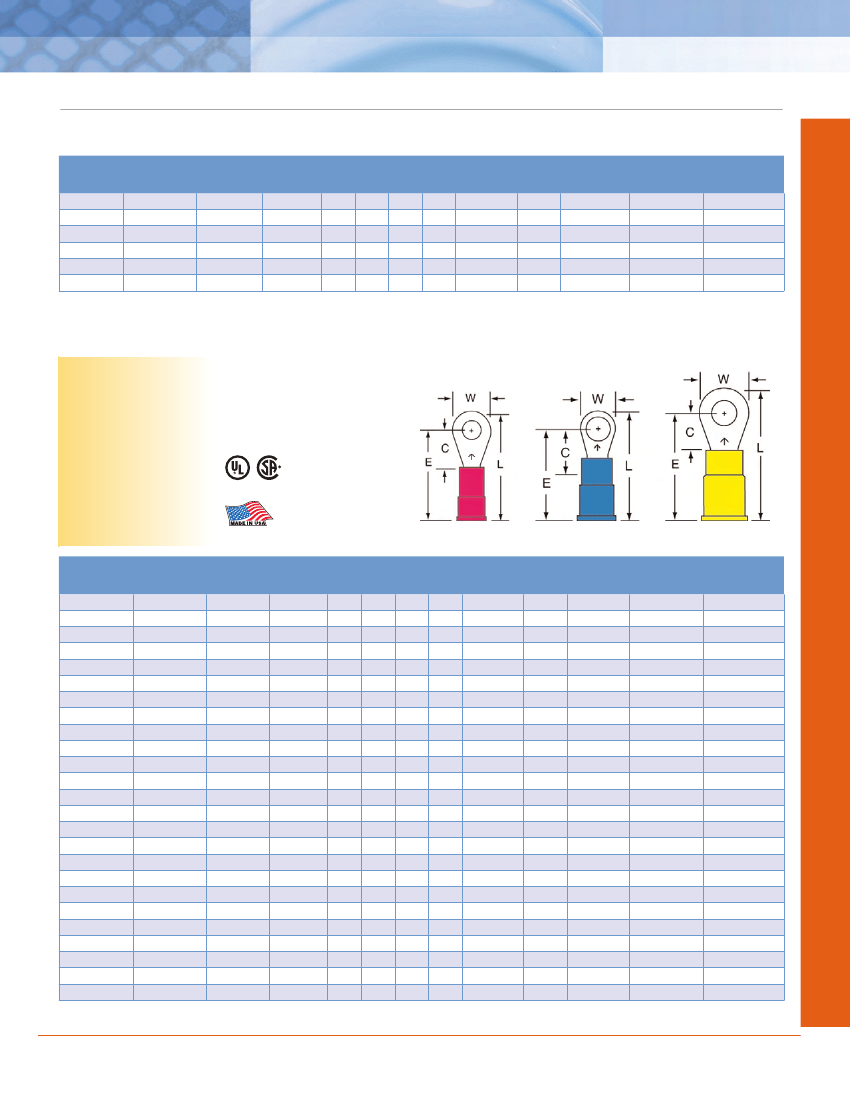

3M™ Scotchlok™ Ring Tongues
Nylon Insulated Brazed Seam Ring Tongues (continued)
Order No.
MN8-38RK
MN8-12R/SK
MN24-2RK
MN24-4RK
MN24-6RK
MN24-8RK
UPC
054007-08270
054007-08271
054007-95136
054007-95142
054007-95146
054007-95161
Conductor
Size
8 AWG
8 AWG
26–24 AWG
26–24 AWG
26–24 AWG
26–24 AWG
Stud Size
3/8"
1/2"
2
4
6
8
(W)
0.59"
0.81"
0.14"
0.20"
0.20"
0.25"
(C)
0.45"
0.69"
0.12"
0.21"
0.21"
0.28"
(L)
1.38"
1.72"
0.47"
0.60"
0.60"
0.69"
(E)
1.08"
1.32"
0.40"
0.49"
0.49"
0.56"
Thickness
0.050"
0.050"
0.020"
0.020"
0.020"
0.020"
Barrel
I.D.
0.175"
0.175"
0.030"
0.030"
0.030"
0.030"
Max. Insul.
Dia.
0.340"
0.340"
0.093"
0.093"
0.093"
0.093"
Terminals
per Carton
-
-
1000
-
-
-
Terminals
per Case
200
200
5000
1000
1000
1000
Terminals, Kits and Tools
Vinyl Insulated Brazed Seam Ring Tongues
Terminal Type
Terminal Style
Insulation Material
Barrel Style
RoHS 2011/65/EU
Agency Approval
Ring
Standard
Vinyl
Brazed
Yes
Manufacturing Origin
Order No.
MV18-4R/SX
MV18-4R/SK
MV18-6R/SX
MV18-6R/SK
MV18-8R/LX
MV18-8R/LK
MV18-10R/LX
MV18-10R/LK
MV18-14R/SX
MV18-14R/SK
MV18-516R/SX
MV18-38RX
MV14-4R/SX
MV14-4R/SK
MV14-6R/SX
MV14-6R/SK
MV14-8R/SK
MV14-8R/LX
MV14-8R/LK
MV14-10RK
MV14-10R/LX
MV14-10R/LK
MV14-14R/SX
MV14-14R/SK
MV14-516R/SX
UPC
051128-58729
054007-01046
051128-58730
054007-01048
051128-58731
054007-01053
051128-58732
054007-01055
051128-58733
054007-01056
051128-58942
051128-58734
051128-58752
054007-01412
051128-58753
054007-01414
054007-01417
051128-58755
054007-01419
054007-01420
051128-58749
054007-01421
051128-58750
054007-01422
051128-58961
Conductor
Size
22 - 18 AWG
22 - 18 AWG
22 - 18 AWG
22 - 18 AWG
22 - 18 AWG
22 - 18 AWG
22 - 18 AWG
22 - 18 AWG
22 - 18 AWG
22 - 18 AWG
22 - 18 AWG
22 - 18 AWG
16 - 14 AWG
16 - 14 AWG
16 - 14 AWG
16 - 14 AWG
16 - 14 AWG
16 - 14 AWG
16 - 14 AWG
16 - 14 AWG
16 - 14 AWG
16 - 14 AWG
16 - 14 AWG
16 - 14 AWG
16 - 14 AWG
Stud Size
4
4
6
6
8
8
10
10
1/4"
1/4"
5/16"
3/8"
4
4
6
6
8
8
8
10
10
10
1/4"
1/4"
5/16"
(W)
0.25"
0.25"
0.25"
0.25"
0.31"
0.31"
0.31"
0.31"
0.47"
0.47"
0.47"
0.56"
0.25"
0.25"
0.25"
0.25"
0.25"
0.31"
0.31"
0.33"
0.31"
0.31"
0.47"
0.47"
0.47"
(C)
0.22"
0.22"
0.22"
0.22"
0.33"
0.33"
0.33"
0.33"
0.40"
0.40"
0.40"
0.40"
0.22"
0.22"
0.22"
0.22"
0.22"
0.33"
0.33"
0.29"
0.33"
0.33"
0.40"
0.40"
0.40"
(L)
0.80"
0.80"
0.80"
0.80"
0.93"
0.93"
0.93"
0.93"
1.08"
1.08"
1.08"
1.13"
0.80"
0.80"
0.80"
0.80"
0.80"
0.93"
0.93"
0.90"
0.93"
0.93"
1.08"
1.08"
1.08"
(E)
0.67"
0.67"
0.67"
0.67"
0.78"
0.78"
0.78"
0.78"
0.85"
0.85"
0.85"
0.85"
0.67"
0.67"
0.67"
0.67"
0.67"
0.78"
0.78"
0.74"
0.78"
0.78"
0.85"
0.85"
0.85"
Thickness
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
0.030"
Barrel
I.D.
0.070"
0.070"
0.070"
0.070"
0.070"
0.070"
0.070"
0.070"
0.070"
0.070"
0.070"
0.070"
0.090"
0.090"
0.090"
0.090"
0.090"
0.090"
0.090"
0.090"
0.090"
0.090"
0.090"
0.090"
0.090"
Max. Insul.
Dia.
0.145"
0.145"
0.145"
0.145"
0.145"
0.145"
0.145"
0.145"
0.145"
0.145"
0.145"
0.145"
0.170"
0.170"
0.170"
0.170"
0.170"
0.170"
0.170"
0.170"
0.170"
0.170"
0.170"
0.170"
0.170"
Terminals
per Carton
100
-
100
-
100
-
100
-
100
-
100
100
100
-
100
-
-
100
-
-
100
-
100
-
100
Terminals
per Case
500
1000
500
1000
500
1000
500
1000
500
1000
500
500
500
1000
500
1000
1000
500
1000
1000
500
1000
500
1000
500
PHONE: 800-245-3573
www.3M.com/Electrical
