DSC-20R1.960G: Description3 Port Circulator, 1930MHz Min, 1990MHz Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size47KB，2 Pages; ManufacturerHitachi Metals; Websitehttp://www.hitachi-metals.co.jp/e/

Download Datasheet Parametric Compare View All

DSC-20R1.960G Overview

3 Port Circulator, 1930MHz Min, 1990MHz Max,

DSC-20R1.960G Parametric

Parameter Name	Attribute value
Maker	Hitachi Metals
Reach Compliance Code	unknown
Maximum input power (CW)	49.03 dBm
Maximum insertion loss	0.3 dB
Maximum operating frequency	1990 MHz
Minimum operating frequency	1930 MHz
Maximum operating temperature	80 °C
Minimum operating temperature	-20 °C
RF/Microwave Device Types	3 PORT CIRCULATOR
Maximum voltage standing wave ratio	1.2
Base Number Matches	1

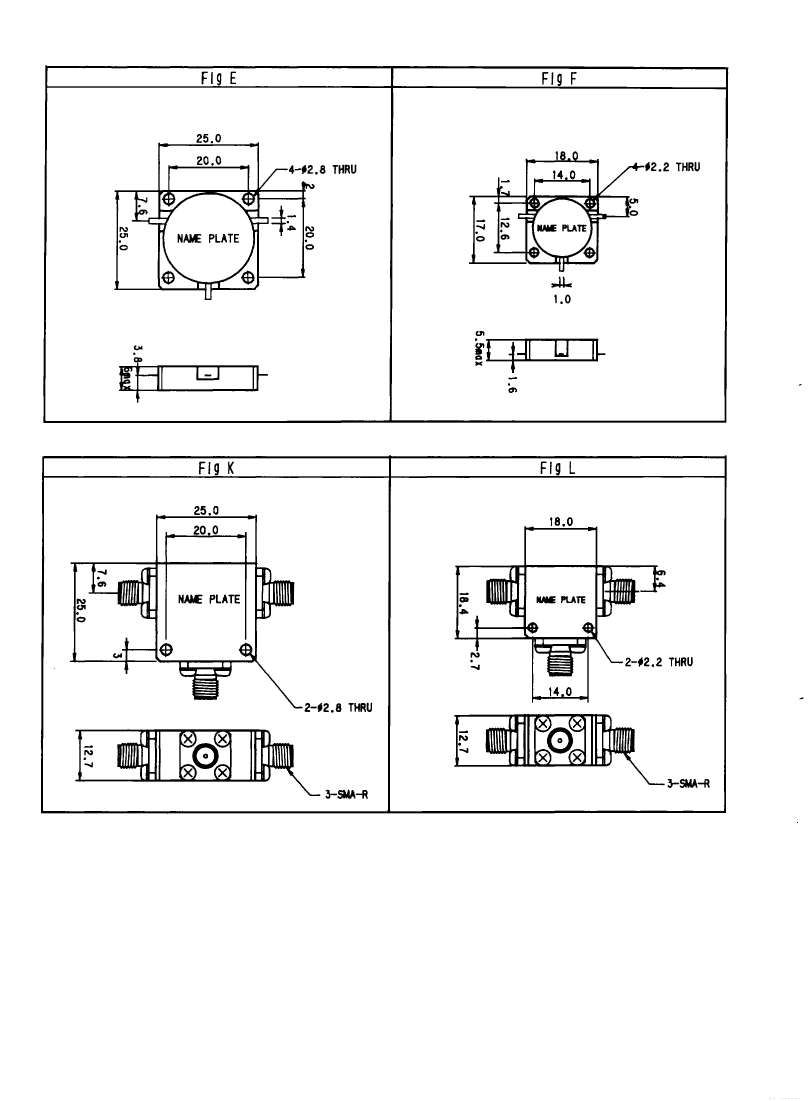

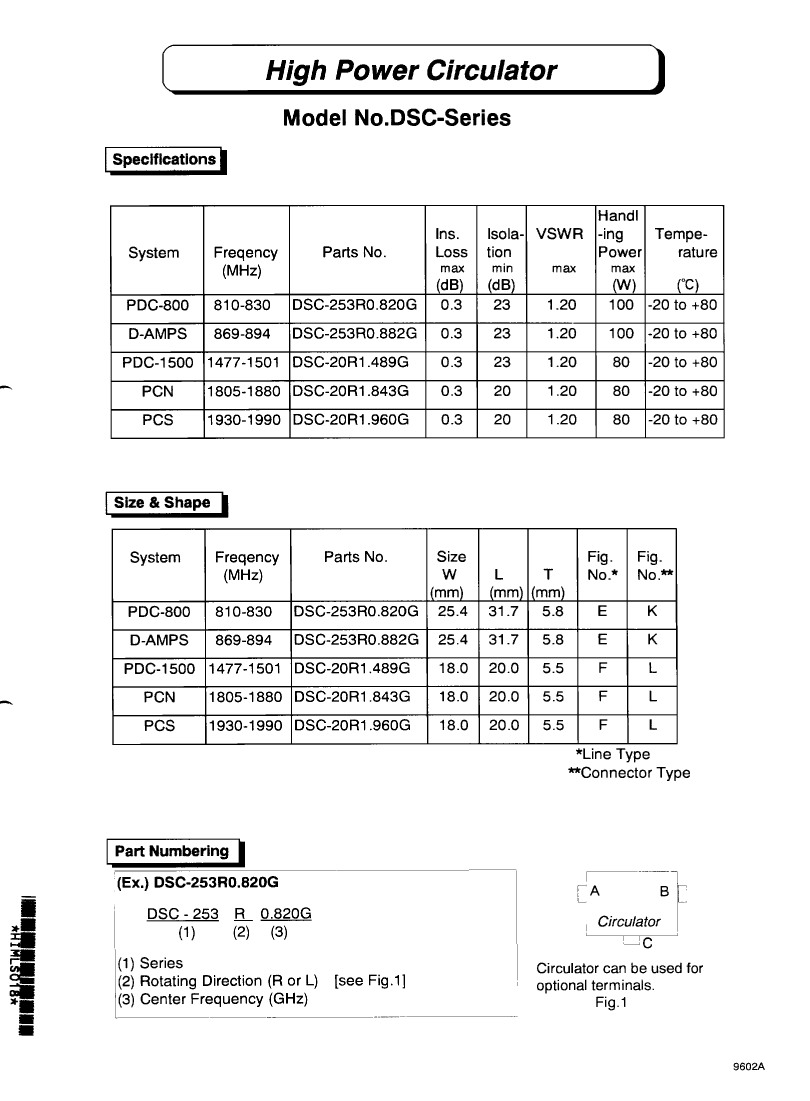

Preview

Download Datasheet

View All

DSC-20R1.960G Related Products

	DSC-20R1.960G	DSC-20L1.843G	DSC-20L1.489G	DSC-20L1.960G	DSC-253R0.882G	DSC-253R0.820G	DSC-20R1.843G	DSC-253L0.820G	DSC-253L0.882G	DSC-20R1.489G
Description	3 Port Circulator, 1930MHz Min, 1990MHz Max,	3 Port Circulator, 1805MHz Min, 1880MHz Max,	3 Port Circulator, 1477MHz Min, 1501MHz Max,	3 Port Circulator, 1930MHz Min, 1990MHz Max,	3 Port Circulator, 869MHz Min, 894MHz Max	3 Port Circulator, 810MHz Min, 830MHz Max	3 Port Circulator, 1805MHz Min, 1880MHz Max,	3 Port Circulator, 810MHz Min, 830MHz Max	3 Port Circulator, 869MHz Min, 894MHz Max	3 Port Circulator, 1477MHz Min, 1501MHz Max,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Maximum input power (CW)	49.03 dBm	49.03 dBm	49.03 dBm	49.03 dBm	50 dBm	50 dBm	49.03 dBm	50 dBm	50 dBm	49.03 dBm
Maximum insertion loss	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB	0.3 dB
Maximum operating frequency	1990 MHz	1880 MHz	1501 MHz	1990 MHz	894 MHz	830 MHz	1880 MHz	830 MHz	894 MHz	1501 MHz
Minimum operating frequency	1930 MHz	1805 MHz	1477 MHz	1930 MHz	869 MHz	810 MHz	1805 MHz	810 MHz	869 MHz	1477 MHz
Maximum operating temperature	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C	80 °C
Minimum operating temperature	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C	-20 °C
RF/Microwave Device Types	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR	3 PORT CIRCULATOR
Maximum voltage standing wave ratio	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2	1.2
Maker	Hitachi Metals	Hitachi Metals	Hitachi Metals	Hitachi Metals	-	-	-	-	Hitachi Metals	Hitachi Metals
Base Number Matches	1	1	1	1	1	1	1	1	-	-
