SMD Wire Wound Ferrite Chip Inductors--
1008F series
A.
Electrical specifications:
Part
No.
1008F-47N
1008F-68N
1008F-82N
1008F-R10
1008F-R18
1008F-R20
1008F-R24
1008F-R56
1008F-R68
1008F-1R0
1008F-1R2
1008F-1R5
1008F-1R8
1008F-2R2
1008F-2R7
1008F-3R3
1008F-3R9
1008F-4R7
1008F-5R6
1008F-6R8
1008F-8R2
1008F-100
1008F-120
1008F-150
1008F-220
L
(uH)
0.047@50MHZ
0.068@50MHZ
0.082@50MHZ
0.100@50MHZ
0.180@50MHZ
0.200@50MHZ
0.240@50MHZ
0.560@7.9MHZ
0.680@7.9MHZ
1.0@50MHZ
1.20@7.9MHz
1.50@7.9MHz
1.80@7.9MHz
2.20@7.9MHz
2.70@7.9MHz
3.30@7.9MHz
3.90@7.9MHz
4.70@7.9MHz
5.60@7.9MHz
6.80@7.9MHz
8.20@7.9MHz
10.0@7.9MHz
12.0@7.9MHZ
15.0@7.9MHZ
22.0@2.52MHZ
Tol.
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
K, J
Q
(min.)
50@50MHZ
50@50MHZ
50@50MHZ
50@50MHZ
50@50MHZ
50@50MHZ
50@50MHZ
40@50MHZ
27@50MHZ
50@50MHZ
48@50MHz
41@50MHz
39@50MHz
34@50MHz
34@50MHz
32@50MHz
32@7.9MHz
31@7.9MHz
31@7.9MHz
31@7.9MHz
23@7.9MHz
31@7.9MHz
30@7.9MHZ
38@7.9MHZ
10@2.52MHZ
SRF
(min.)
(MHz)
1800
1800
1800
1800
1000
900
900
460
400
380
210
190
170
150
135
120
105
90
80
70
65
60
50
50
10
DCR
(Ω)
(Max)
0.045
0.045
0.035
0.196
0.290
0.285
0.135
0.300
0.320
0.260
0.680
0.760
0.840
1.10
1.28
1.46
1.56
1.68
1.82
2.00
2.65
2.95
3.35
3.04
2.80
I rms.
(mA)
650
650
1000
700
700
700
700
700
700
650
650
630
600
520
490
450
420
400
380
360
330
300
270
250
125
Color Code
1st
YELLOW
BLUE
GRAY
BROWN
BROWN
RED
RED
GREEN
BLUE
BROWN
BROWN
BROWN
BROWN
RED
RED
2nd
VIOLET
GRAY
RED
BLACK
GRAY
BLACK
YELLOW
BLUE
GRAY
BLACK
RED
GREEN
GRAY
RED
VIOLET
3rd
BLACK
BLACK
BLACK
BROWN
BROWN
BROWN
BROWN
BROWN
BROWN
RED
RED
RED
RED
RED
RED
RED
RED
RED
RED
RED
RED
ORANGE
ORANGE
ORANGE
ORANGE
ORANGE ORANGE
ORANGE
YELLOW
GREEN
BLUE
GRAY
BROWN
BROWN
BROWN
RED
WHITE
VIOLET
BLUE
GRAY
RED
BLACK
RED
GREEN
RED
SMD wire wound Ferrite Chip Inductor: P/N 1008F-series
Rev. A
Jan. 01, 2006. Page: 1 of 3
Frontier Electronics Corp.
667 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998
FAX: (805) 522-9989
E-mail: frontiersales@frontierusa.com
Web:
http://www.frontierusa.com
SMD Wire Wound Ferrite Chip Inductors
--
1008F series

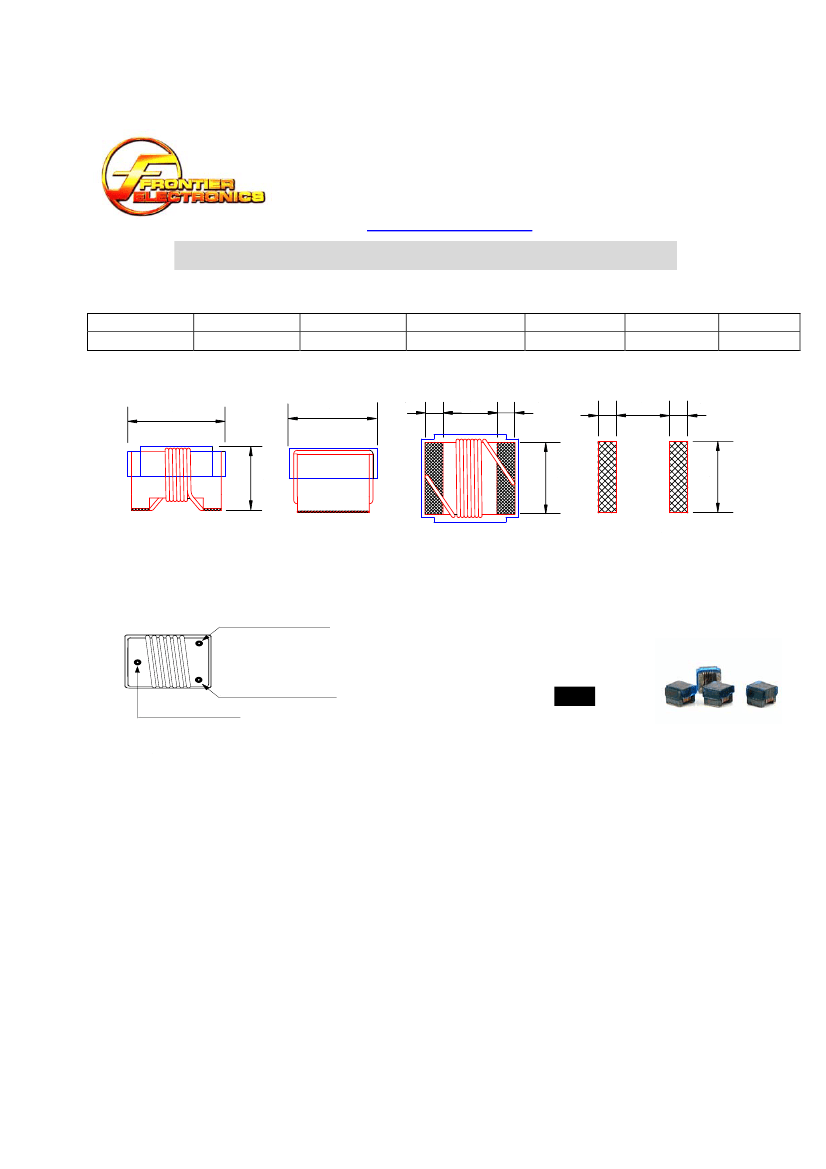

B. Dimensions: (Unit: mm.)
SERIES
1008F
A (Max.)
2.92
B (Max.)
2.79
C (Max.)
2.03
D (Max.)
1.27
E
1.02
F
2.54
C. Mechanical Drawing:
A
B
0.51
1.52
0.51
E
D
E
2.54
C
F
D. Color coding:
Land Pattern
1. These parts are marked with 3 color dots. The table at below shows the significance of each color.
2. Dots 1 and 2 indicate the inductance in nH.
3. Dots 3 indicate number of zeroes to be added.
2nd: inductance
1st : Inductance
3rd Multiplier
0 = Black
1 =
Brown
2 =
Red
3 =
Orange
4 =
Yellow
5=Green
6=Blue
7 =
Violet
8 =
Gray
9 =
White
Top view
E. Feature:
1.
2.
3.
4.
5.
6.
7.
8.
9.
Color code table
Tolerance: M: ± 20%, K: ± 10%, J: ± 5%, G: ± 2%, F: ± 1%.
High Q at high frequency.
High self-resonance frequency.
For 15ºC Temperature Rise.
Inductance & Q measured using the HP4291B
SRF measured using the HP8720D or HP8753E.
DCR measured using the 502BC.
Operating temperature: -40ºC TO +125ºC.
Inductance Range:
•
1008F (Ferrite) Series: 0.047uH(650mA)∼10.0uH(300mA). SRF from 1800MHz to 60MHz.
10.
RoHS
compliant.
F. Application:
Pagers.
Mobile communication units.
Portable telephone.
Hybrid.
Special specifications are available for customer’s requirement.
SMD wire wound Ferrite Chip Inductor: P/N 1008F-series
Rev. A
Jan. 01, 2006. Page: 2 of 3
Frontier Electronics Corp.
667 E. COCHRAN STREET, SIMI VALLEY, CA 93065
TEL: (805) 522-9998
FAX: (805) 522-9989
E-mail: frontiersales@frontierusa.com
Web:
http://www.frontierusa.com
SMD Wire Wound Ferrite Chip Inductors
--
1008F series

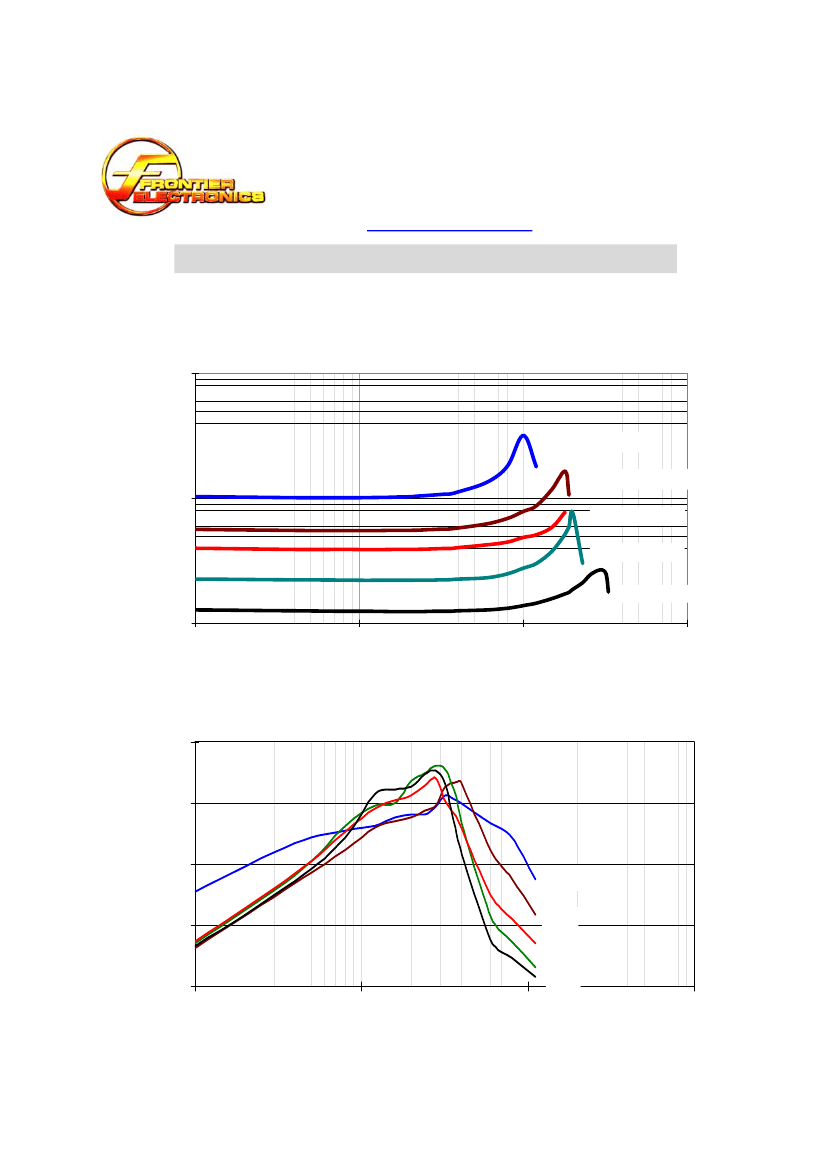

F. Characteristic curve:
