TX14-140R-8ST-MN3E datasheet, PDF

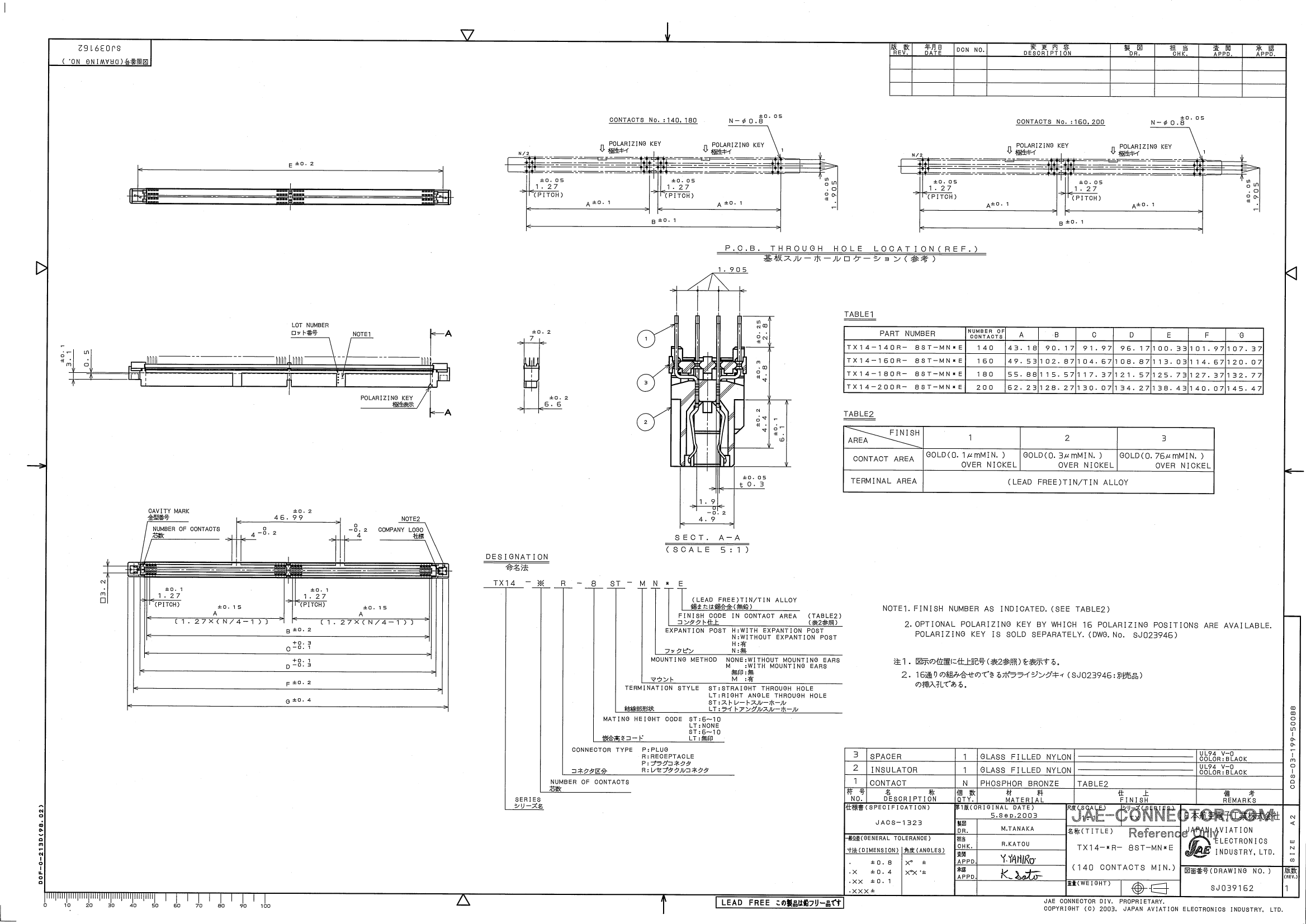

TX14-140R-8ST-MN3E: DescriptionBoard Stacking Connector, 140 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE; CategoryThe connector The connector; File Size152KB，1 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric View All

TX14-140R-8ST-MN3E Overview

Board Stacking Connector, 140 Contact(s), 2 Row(s), Female, Straight, Solder Terminal, Receptacle, LEAD FREE

Parameter Name	Attribute value
Maker	Japan Aviation Electronics Industry Limited
package instruction	LEAD FREE
Reach Compliance Code	unknown
Other features	POLARIZED
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact point gender	FEMALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	TX14
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	140
UL Flammability Code	94V-0
Base Number Matches	1
