1.5SMC9.1A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> 1.5SMC9.1A

1.5SMC9.1A: Description1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB; CategoryDiscrete semiconductor diode; File Size160KB，4 Pages; ManufacturerMDE Semiconductor; Websitehttp://www.mdesemiconductor.com; Environmental Compliance

Download Datasheet Parametric View All

1.5SMC9.1A Overview

1500 W, UNIDIRECTIONAL, SILICON, TVS DIODE, DO-214AB

1.5SMC9.1A Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MDE Semiconductor
Parts packaging code	DO-214AB
package instruction	R-PDSO-J2
Contacts	2
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	UL RECOGNIZED, EXCELLENT CLAMPING CAPABILITY
Maximum breakdown voltage	9.5 V
Minimum breakdown voltage	8.65 V
Configuration	SINGLE
Diode component materials	SILICON
Diode type	TRANS VOLTAGE SUPPRESSOR DIODE
JEDEC-95 code	DO-214AB
JESD-30 code	R-PDSO-J2
JESD-609 code	e3
Maximum non-repetitive peak reverse power dissipation	1500 W
Number of components	1
Number of terminals	2
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
polarity	UNIDIRECTIONAL
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	7.78 V
surface mount	YES
technology	AVALANCHE
Terminal surface	Tin (Sn)
Terminal form	J BEND
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

Preview

Download Datasheet

View All

MDE Semiconductor, Inc.

78-150 Calle Tampico, Unit 210, La Quinta, CA., USA 92253 Tel : 760-564-8656 • Fax : 760-564-2414

1-800-831-4881 Email: sales@mdesemiconductor.com Web: www.mdesemiconductor.com

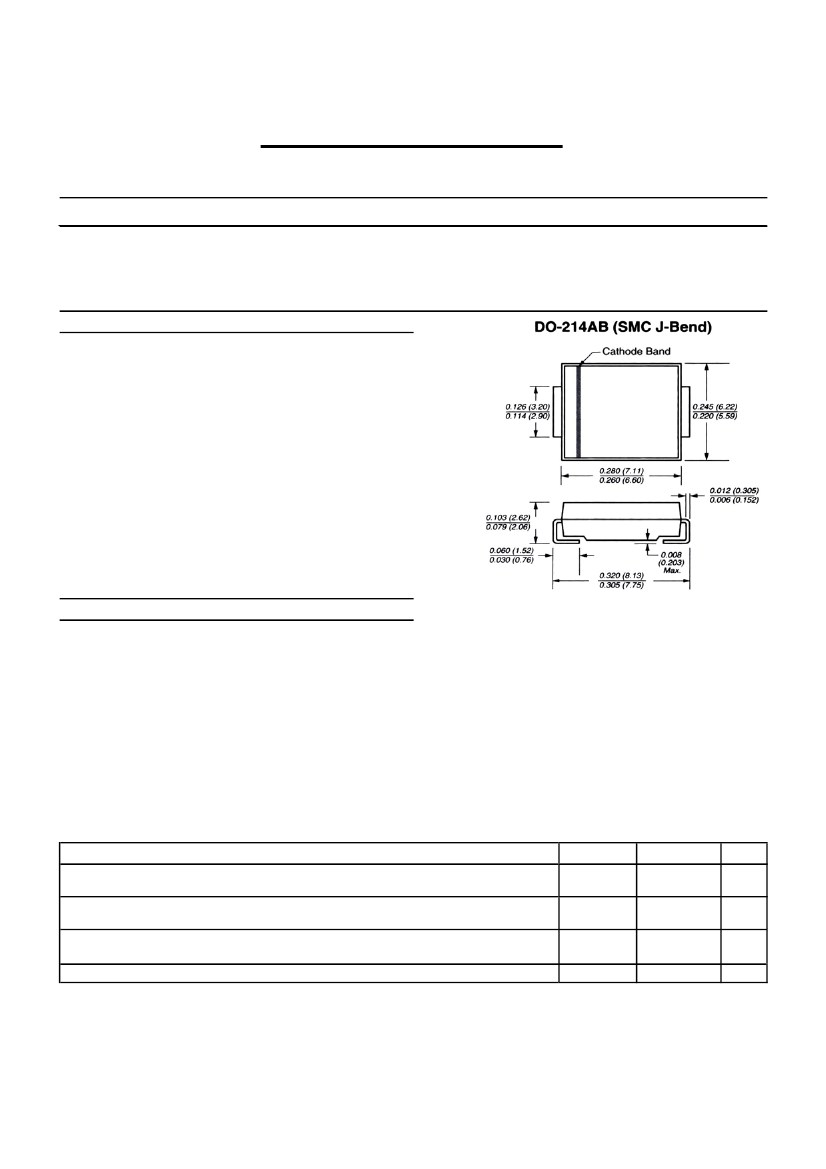

1.5SMC SERIES

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

VOLTAGE - 6.8 TO 550 Volts

1500 Watt Peak Pulse Power

FEATURES

• For surface mounted applications in order to

optimize board space

• Low profile package

• Built-in strain relief

• Glass passivated junction

• Low inductance

• Excellent clamping capability

• Repetition Rate(duty cycle):0.05%

• Fast response time: typically less than 1.0ps from 0

Volts to BV min.

• Typical IR less than 1mA above 10V

• High temperature soldering: 250°C/10 seconds at terminals

MECHANICAL DATA

Terminal:

Solder plated, solderable per MIL-STD-750, Method 2026

Dimensions in inches and (millimeters)

Case:

JEDEC DO214AB. Molded plastic over glass passivated junction

Polarity:

Color band denotes positive end (cathode) except Bidirectional

Standard Packaging:

16mm tape(EIA STD RS-481)

Weight:

0.007ounce, 0.21gram

DEVICES FOR BIPOLAR APPLICATION

For Bidirectional use Suffix CA for types 1.5SMC6.8CA thru types 1.5SMC550CA

Electrical characteristics apply in both directions

MAXIMUM RATINGS AND CHARACTERISTICS

Ratings at 25℃ ambient temperature unless otherwise specified.

RATING

Peak Pulse Power Dissipation on 10/1000µs waveform (Note 1,FIG.1)

Peak Pulse Current of on 10/1000µs waveform (Note 1,FIG.3)

Peak Forward Surge Current,8.3ms Single Half Sine-Wave

Superimposed on Rated Load,(JEDEC Method) (Note 3)

Operating junction and Storage Temperature Range

Notes :

1.Non-repetitive current pulse , per Fig. 3 and derated above

T= 25℃ per Fig. 2 .

2.Mounted on 8.0mm Copper Pads to each terminal

SYMBOL

PPM

FSM

, T

STG

VALUE

Minimum

1500

UNITS

Watts

SEE TABLE 1 Amps

200

-55 to + 150

Amps

℃

3.8.3ms single half sine-wave , or equivalent square wave, Duty cycle = 4 pulses per minutes maximum.

Certified RoHS Compliant

UL File # E223026
