1500W Surface Mount
Transient Voltage Suppressor
1.5SMC6.8A - 1.5SMC250CA
1500W Surface Mount Transient Voltage Suppressor
Features
•
•
•
•
Low inductance, excellent clamping capability
Repetition rate(duty cycle): 0.05%
Fast response time: typically less than 1.0ps from 0V to BV min.
Typical I
R
less than 1 µA above 10V
SMC
•
High temperature soldering guaranteed 250°C/10 seconds at terminals
•
This series is UL recognized under component index. File number E315008
•
RoHS Compliant
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Mounting position:
Weight:
JEDEC DO-214AB (SMC) molded plastic over glass passivated junction
Meets UL 94V-0 flammability rating
Solder plated, solderable per MIL-STD-750, Method 2026
Color band denoted positive end (cathode) except Bi-directional
Any
0.007 Ounce, 0.21 gram
Maximum Ratings
(T
Ambient
=25ºC unless noted otherwise)
Symbol
P
PPM
I
PPM
I
FSM
Description
Peak Pulse Power Dissipation
on 10/1000μs Waveform
Peak Pulse Current
on 10/1000μs Waveform
Peak Forward Surge Current
Operating Junction and Storage
Value
Minimum 1500
See Table
200
-55 to 150
Unit
W
A
A
°C
Conditions
Non-repetitive current pulse, per FIG.3 and
derated above T
A
=25° C per FIG.2
Non-repetitive current pulse
8.3ms single half sine-wave superimposed
on rated load, (JEDEC Method) (Note 1,2)
T
J,
T
STG
Temperature Range
Note: 1.
Mounted on 8.0mm x 8.0mm copper pads to each terminal
2.
8.3ms single half sine-wave, or equivalent square wave, Duty cycle= 4 pulses per minutes maximum.
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON
Fax: (800)-TAITFAX
(800)-824-8766
(800)-824-8329
(661)-257-6060
(661)-257-6415
Rev. D/AH 2008-02-25
Page 1 of 5
1500W Surface Mount Transient Voltage Suppressor
1.5SMC6.8A - 1.5SMC250CA
Electrical Characteristics
(T
Ambient
=25ºC unless noted otherwise)
Device Marking
Code
Reverse
Stand-off
Voltage
Breakdown Voltage
@ Test Current.
Max.
Clamping
Voltage
@
I
PPM
Max.
Peak
Pulse
Current
Max.
Reverse
Leakage
Current
@
V
WM
Part NO.
V
BR
Uni-Polar
1.5SMC6.8A
1.5SMC7.5A
1.5SMC8.2A
1.5SMC9.1A
1.5SMC10A
1.5SMC11A
1.5SMC12A
1.5SMC13A
1.5SMC15A
1.5SMC16A
1.5SMC18A
1.5SMC20A
1.5SMC22A
1.5SMC24A
1.5SMC27A
1.5SMC30A
1.5SMC33A
1.5SMC36A
1.5SMC39A
1.5SMC43A
1.5SMC47A
1.5SMC51A
1.5SMC56A
1.5SMC62A
1.5SMC68A
1.5SMC75A
1.5SMC82A
1.5SMC91A
1.5SMC100A
1.5SMC110A
1.5SMC120A
1.5SMC130A
Bi-Polar
1.5SMC6.8CA
1.5SMC7.5CA
1.5SMC8.2CA
1.5SMC9.1CA
1.5SMC10CA
1.5SMC11CA
1.5SMC12CA
1.5SMC13CA
1.5SMC15CA
1.5SMC16CA
1.5SMC18CA
1.5SMC20CA
1.5SMC22CA
1.5SMC24CA
1.5SMC27CA
1.5SMC30CA
1.5SMC33CA
1.5SMC36CA
1.5SMC39CA
1.5SMC43CA
1.5SMC47CA
1.5SMC51CA
1.5SMC56CA
1.5SMC62CA
1.5SMC68CA
1.5SMC75CA
1.5SMC82CA
1.5SMC91CA
1.5SMC100CA
1.5SMC110CA
1.5SMC120CA
1.5SMC130CA
Uni
6V8A
7V5A
8V2A
9V1A
10A
11A
12A
13A
15A
16A
18A
20A
22A
24A
27A
30A
33A
36A
39A
43A
47A
51A
56A
62A
68A
75A
82A
91A
100A
110A
120A
130A
Bi
6V8C
7V5C
8V2C
9V1C
10C
11C
12C
13C
15C
16C
18C
20C
22C
24C
27C
30C
33C
36C
39C
43C
47C
51C
56C
62C
68C
75C
82C
91C
100C
110C
120C
130C
V
WM
(V)
5.8
6.4
7.02
7.78
8.55
9.4
10.2
11.1
12.8
13.6
15.3
17.1
18.8
20.5
23.1
25.6
28.2
30.8
33.3
36.8
40.2
43.6
47.8
53
58.1
64.1
70.1
77.8
85.5
94
102
111
Min.
6.45
7.13
7.79
8.65
9.5
10.5
11.4
12.4
14.3
15.2
17.1
19
20.9
22.8
25.7
28.5
31.4
34.2
37.1
40.9
44.7
48.5
53.2
58.9
64.6
71.3
77.9
86.5
95
105
114
124
Max.
7.14
7.88
8.61
9.55
10.5
11.6
12.6
13.7
15.8
16.8
18.9
21
23.1
25.2
28.4
31.5
34.7
37.8
41
45.2
49.4
53.6
58.8
65.1
71.4
78.8
86.1
95.5
105
116
126
137
I
T
(mA)
10
V
C
(V)
10.5
11.3
12.1
13.4
14.5
15.6
16.7
18.2
21.2
22.5
25.2
27.7
30.6
33.2
37.5
41.4
45.7
49.9
53.9
59.3
64.8
70.1
77
85
92
103
113
125
137
152
165
179
I
PPM
(A)
144.8
134.5
125.6
113.4
104.8
97.4
91.0
83.5
71.7
67.6
60.3
54.9
49.7
45.8
40.5
36.7
33.3
30.5
28.2
25.6
23.5
21.7
19.7
17.9
16.5
14.8
13.5
12.2
11.1
10.0
9.2
8.5
I
D
(μA)
1000/2000
500/1000
200/400
50/100
10/20
5/10
5/10
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Rev. D/AH 2008-02-25
www.taitroncomponents.com
Page 2 of 5
1500W Surface Mount Transient Voltage Suppressor
1.5SMC6.8A - 1.5SMC250CA
Part NO.
Device Marking
Code
Reverse
Stand-off
Voltage
Breakdown Voltage
@ Test Current.
Max.
Clamping
Voltage
@
I
PPM
Max.
Peak
Pulse
Current
Max.
Reverse
Leakage
Current
@
V
WM
V
BR
Uni-Polar
1.5SMC150A
1.5SMC160A
1.5SMC170A
1.5SMC180A
1.5SMC200A
1.5SMC220A
1.5SMC250A
Bi-Polar
1.5SMC150CA
1.5SMC160CA
1.5SMC170CA
1.5SMC180CA
1.5SMC200CA
1.5SMC220CA
1.5SMC250CA
Uni
150A
160A
170A
180A
200A
220A
250A
Bi
150C
160C
170C
180C
200C
220C
250C
V
WM
(V)
128
136
145
154
171
185
214
Min.
143
152
162
171
190
209
237
Max.
158
168
179
189
210
231
263
I
T
(mA)
1
1
1
1
1
1
1
V
C
(V)
207
219
234
246
274
328
344
I
PPM
(A)
7.3
6.9
6.5
6.2
5.5
4.6
4.4
I
D
(μA)
1
1
1
1
1
1
1
Note:
For bi-directional type having V
WM
of 10V and less, the I
D
limit is double.
Typical Characteristics Curves
P
PPM -
Peak Pulse Power Dissipation
(
KW)

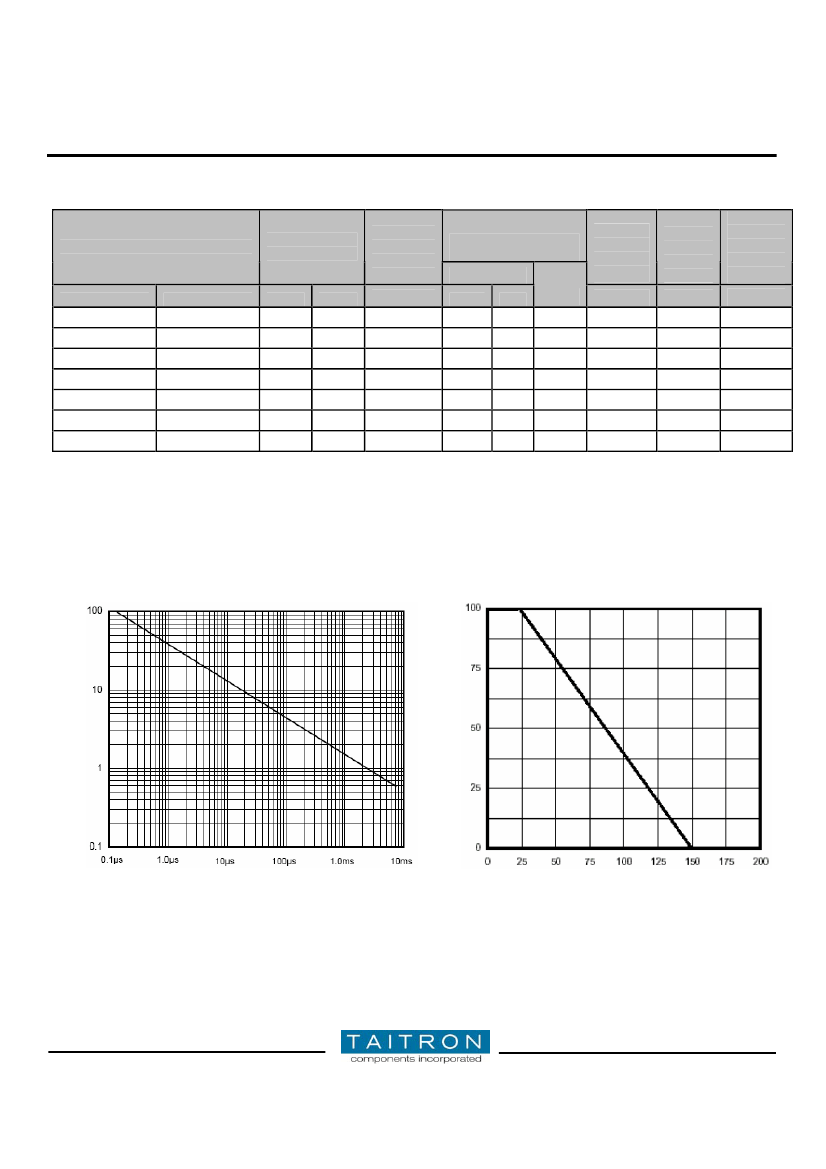

Fig.1- Peak Pulse Power Rating Curve
Fig.2- Pulse Derating Curve
T
d - Pulse Width (sec.)
P
PPM
or
I
PPM,
Derating in Percentage (%)
T
A -
Ambient Temperature (°C)
Rev. D/AH 2008-02-25
www.taitroncomponents.com
Page 3 of 5
1500W Surface Mount Transient Voltage Suppressor
1.5SMC6.8A - 1.5SMC250CA

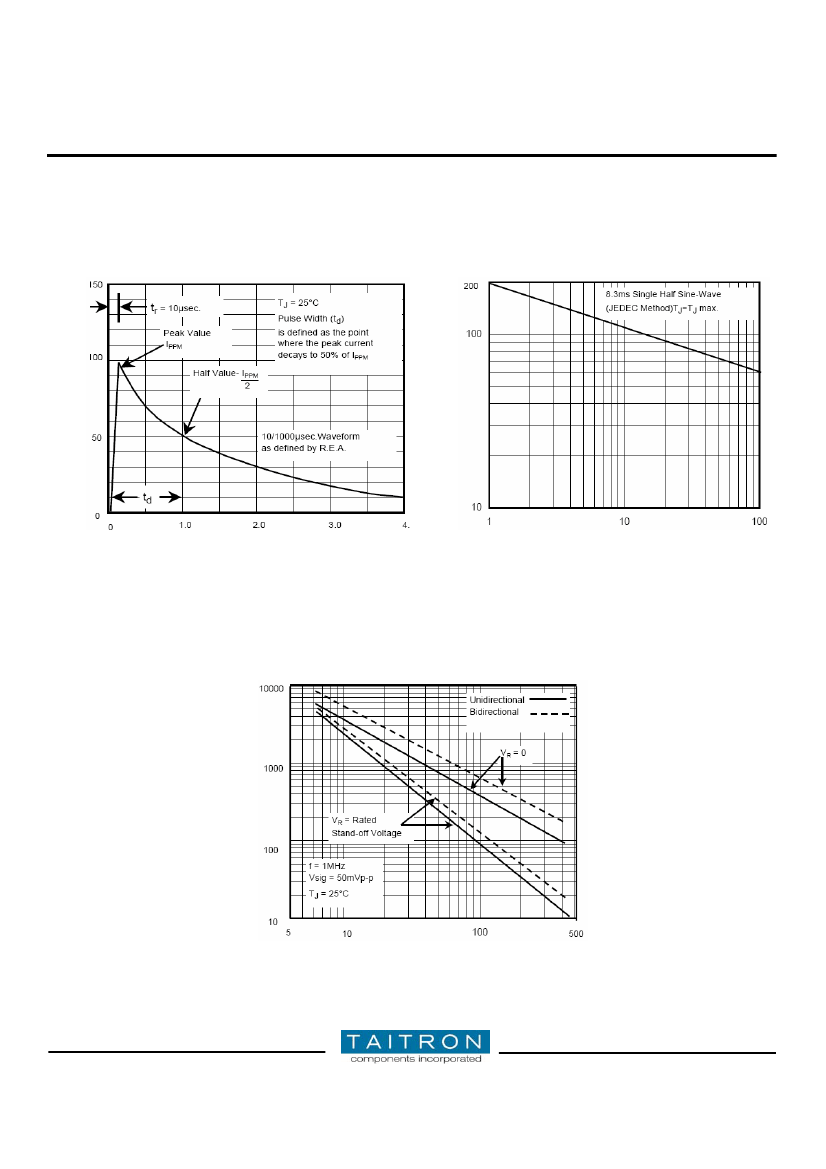

Fig.3- Pulse Waveform
Fig.4 - Max. Non-Repetitive Forward Surge Current
Uni-Directional Only
T - Time (ms)
I
FSM -
Peak Forward Surge Current
(A)
I
PPM -
Peak Pulse Current
(%)
Number of Cycles at 60Hz
Fig.5- Typical Junction Capacitance
C
J–
Junction Capacitance
V
WM
- Reverse Stand-Off Voltage (V)
Rev. D/AH 2008-02-25
www.taitroncomponents.com
Page 4 of 5
1500W Surface Mount Transient Voltage Suppressor
1.5SMC6.8A - 1.5SMC250CA

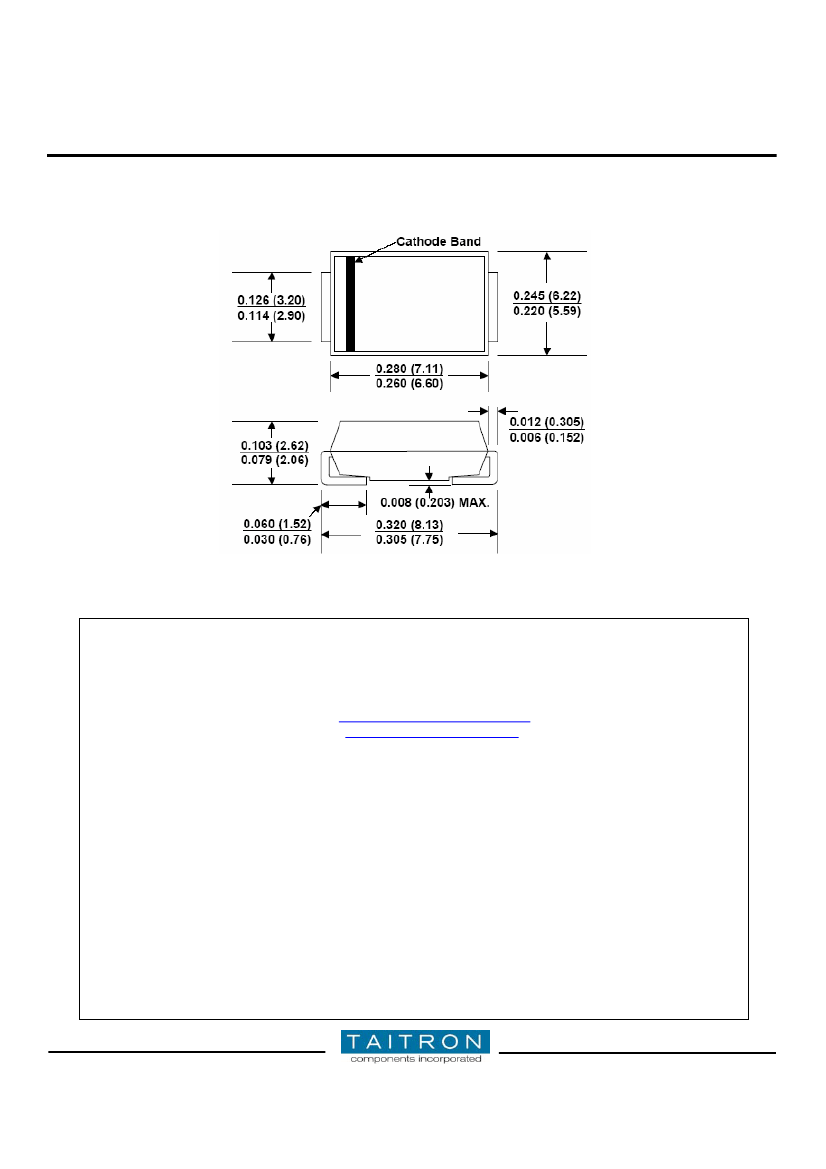

Dimensions in inches (mm)
How to contact us:
SMC
US HEADQUARTERS
28040 WEST HARRISON PARKAWAY, VALENCIA, CA 91355-4162
Tel: (800) TAITRON (800) 824-8766 (661) 257-6060
Fax: (800) TAITFAX (800) 824-8329 (661) 257-6415
Email:
taitron@taitroncomponents.com
Http://www.taitroncomponents.com
TAITRON COMPONENTS MEXICO, S.A .DE C.V.
BOULEVARD CENTRAL 5000 INTERIOR 5 PARQUE INDUSTRIAL ATITALAQUIA, HIDALGO C.P.
42970 MEXICO
Tel: +52-55-5560-1519
Fax: +52-55-5560-2190
TAITRON COMPONETS INCORPORATED E REPRESENTAÇÕES DO BRASIL LTDA
RUA DOMINGOS DE MORAIS, 2777, 2.ANDAR, SALA 24 SAÚDE - SÃO PAULO-SP 04035-001 BRAZIL
Tel: +55-11-5574-7949
Fax: +55-11-5572-0052
TAITRON COMPONETS INCORPORATED, SHANGHAI REPRESENTATIVE OFFICE
METROBANK PLAZA, 1160 WEST YAN’ AN ROAD, SUITE 1503, SHANGHAI, 200052, CHINA
Tel: +86-21-5424-9942
Fax: +86-21-5424-9931
Rev. D/AH 2008-02-25
www.taitroncomponents.com
Page 5 of 5
