B1212GD1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> The power supply circuit> B1212GD1

B1212GD1: DescriptionDC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, DIP-14/6; CategoryPower/power management The power supply circuit; File Size41KB，3 Pages; ManufacturerSENSITRON; Websitehttp://www.sensitron.com/

Download Datasheet Parametric Compare View All

B1212GD1 Overview

DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, DIP-14/6

B1212GD1 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	SENSITRON
Parts packaging code	DIP
package instruction	QIP,
Contacts	14/6
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ADDITIONAL OUTPUT OF -12V ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	12.6 V
Minimum input voltage	11.4 V
Nominal input voltage	12 V
JESD-30 code	R-XDIP-P6
JESD-609 code	e0
length	20.4 mm
Maximum load regulation	0.3%
Humidity sensitivity level	1
Number of functions	1
Output times	2
Number of terminals	6
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output voltage	12.12 V
Minimum output voltage	11.88 V
Nominal output voltage	12 V
Package body material	UNSPECIFIED
encapsulated code	QIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
surface mount	NO
technology	HYBRID
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	1 W
Fine-tuning/adjustable output	NO
width	7.62 mm
Base Number Matches	1

Preview

Download Datasheet

View All

SENSITRON

SEMICONDUCTOR

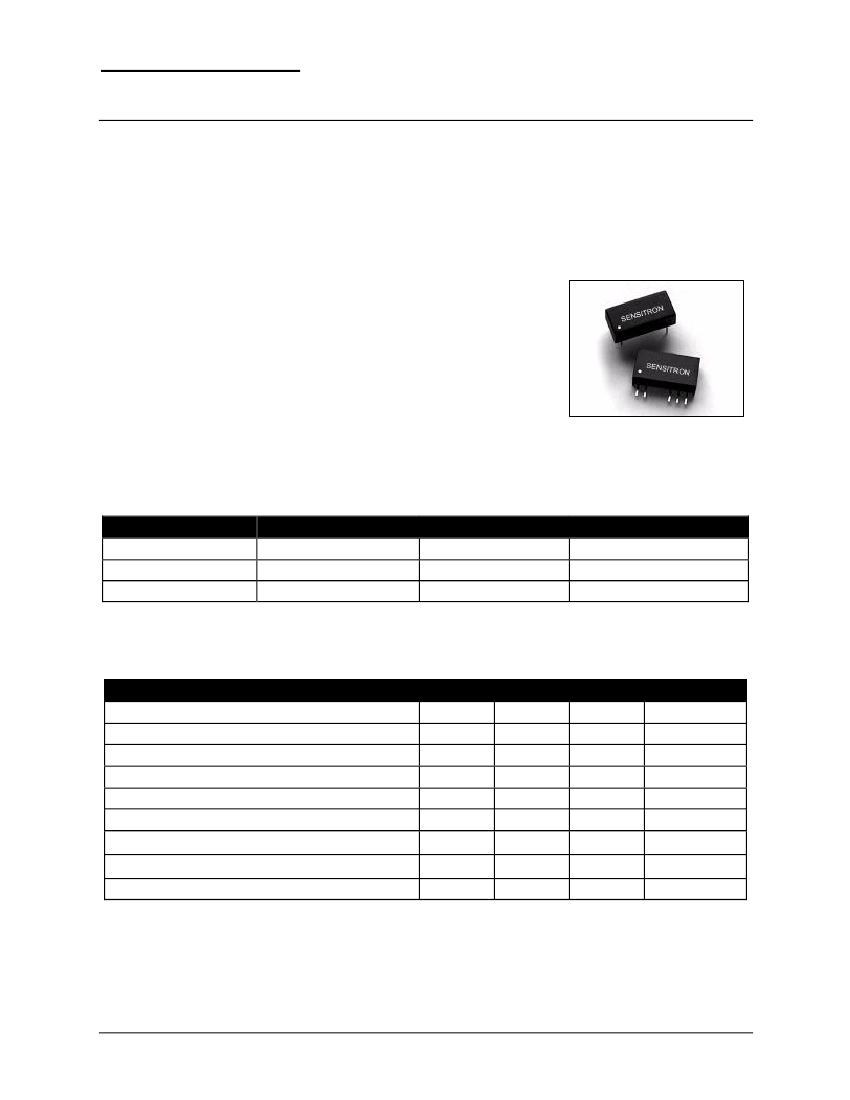

TECHNICAL DATA

DATA SHEET 1239, REV. -

B(R) - 1W Series

DC-DC Converters

Fixed Input, 3000V Isolation, Regulated, Dual Output

FEATURES:

•

Isolation Voltage:

Isolation Resistance (1):

Short-Circuit Duration:

Case Temperature Rise:

Cooling Method:

Standby Power Dissipation:

Operating Temp.:

Storage Temp.:

Humidity:

Soldering Temp. (2):

Case Material:

Mean Time Before Failure:

3000Vdc

1000MΩ

1 second

Max. 25°C, Typ. 15°C

Free-Air Cooling

1W (100mW)

-40°C ~ + 85°C

-55°C ~ + 125°C

≤

95%

300°C

Non-Flammable Material (UL94-V0)

> 1,000,000 hours (Operating Temp. 25°C)

B(R) Dual Output-1W Series Input Characteristics

Part Number

B05XXGS/D1

B12XXGS/D1

Nominal Input Voltage

5Vdc

12Vdc

Input Voltage Range

4.75~5.25Vdc

11.4~12.6Vdc

Maximum Input Voltage*

5.5Vdc

13.2Vdc

26.4Vdc

B24XXGS/D1

24Vdc

22.8~25.2Vdc

* Voltage above this value may cause permanent damage to the device.

B(R) Dual Output-1W Series Output Characteristics

Parameter

1W Output Power

Line Regulation

Load Regulation

Output Voltage Accuracy

Efficiency at 100% Load

Temperature Coefficient

1W Ripple

1W Noise

Switching Frequency

100

MIN

TYP

MAX

0.25

0.3

0.03

100

150

Units

%/°C

mVp-p

kHz

All specifications at TA=25°C, 75% of the humidity, Nominal input voltage, full output load unless otherwise

specified.

Soldering for 10 seconds at 1.5mm away from the edge.

•

221 West Industry Court

•

Deer Park, NY 11729-4681

•

Phone (631) 586-7600

•

Fax (631) 242-9798

•

World Wide Web Site - http://www.sensitron.com

•

E-Mail Address - sales@sensitron.com

•

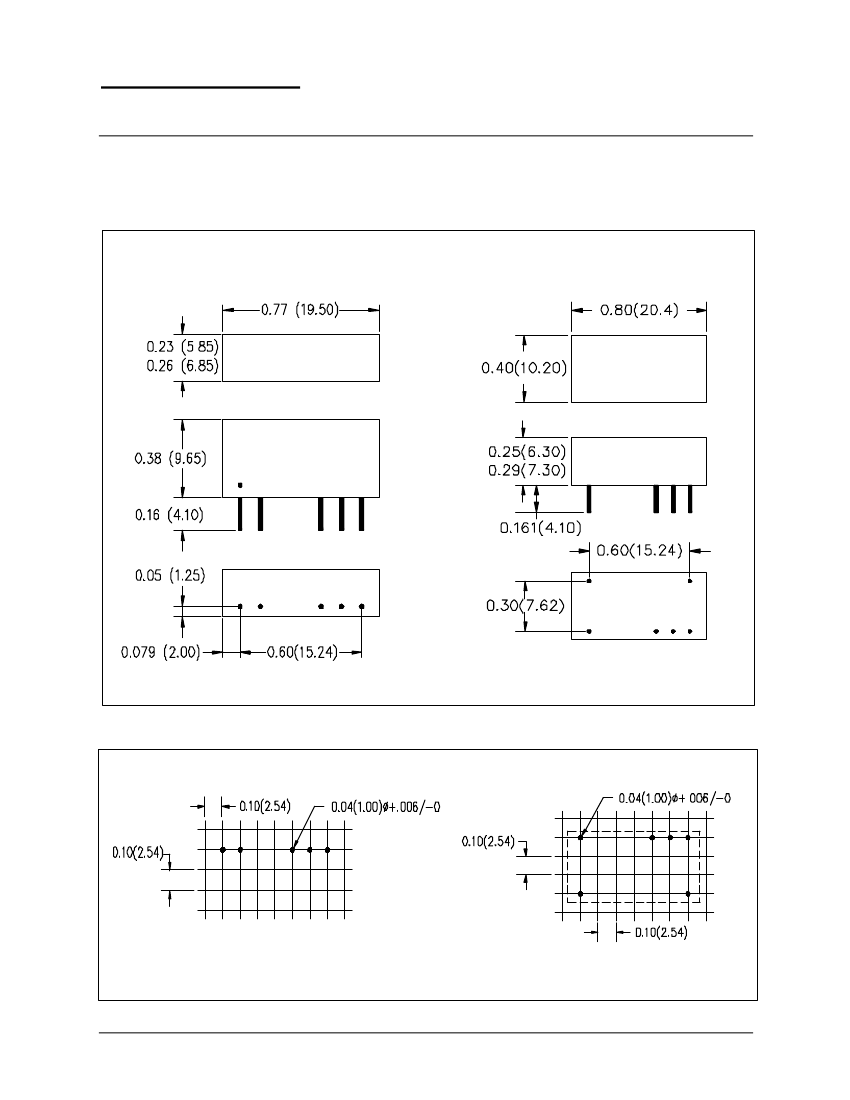

B1212GD1 Related Products

	B1212GD1	B1215GS1	B2415GS1	B2412GS1	B2412GD1	B1212GS1	B1215GD1	B2415GD1
Description	DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, DIP-14/6	DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, SIP-7/5	DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, SIP-7/5	DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, SIP-7/5	DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, DIP-14/6	DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, SIP-7/5	DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, DIP-14/6	DC-DC Regulated Power Supply Module, 2 Output, 1W, Hybrid, DIP-14/6
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	MODULE	MODULE	MODULE	DIP	MODULE	DIP	DIP
package instruction	QIP,	SIP,	SIP,	SIP,	QIP,	SIP,	QIP,	QIP,
Contacts	14/6	7/5	7/5	7/5	14/6	7/5	14/6	14/6
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	ADDITIONAL OUTPUT OF -12V ALSO AVAILABLE	ADDITIONAL OUTPUT OF -15V ALSO AVAILABLE	ADDITIONAL OUTPUT OF -15V ALSO AVAILABLE	ADDITIONAL OUTPUT OF -12V ALSO AVAILABLE	ADDITIONAL OUTPUT OF -12V ALSO AVAILABLE	ADDITIONAL OUTPUT OF -12V ALSO AVAILABLE	ADDITIONAL OUTPUT OF -15V ALSO AVAILABLE	ADDITIONAL OUTPUT OF -15V ALSO AVAILABLE
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	12.6 V	12.6 V	25.2 V	25.2 V	25.2 V	12.6 V	12.6 V	25.2 V
Minimum input voltage	11.4 V	11.4 V	22.8 V	22.8 V	22.8 V	11.4 V	11.4 V	22.8 V
Nominal input voltage	12 V	12 V	24 V	24 V	24 V	12 V	12 V	24 V
JESD-30 code	R-XDIP-P6	R-XSIP-P5	R-XSIP-P5	R-XSIP-P5	R-XDIP-P6	R-XSIP-P5	R-XDIP-P6	R-XDIP-P6
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
length	20.4 mm	19.5 mm	19.5 mm	19.5 mm	20.4 mm	19.5 mm	20.4 mm	20.4 mm
Maximum load regulation	0.3%	0.3%	0.3%	0.3%	0.3%	0.3%	0.3%	0.3%
Humidity sensitivity level	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1
Output times	2	2	2	2	2	2	2	2
Number of terminals	6	5	5	5	6	5	6	6
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Maximum output voltage	12.12 V	15.15 V	15.15 V	12.12 V	12.12 V	12.12 V	15.15 V	15.15 V
Minimum output voltage	11.88 V	14.85 V	14.85 V	11.88 V	11.88 V	11.88 V	14.85 V	14.85 V
Nominal output voltage	12 V	15 V	15 V	12 V	12 V	12 V	15 V	15 V
Package body material	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED	UNSPECIFIED
encapsulated code	QIP	SIP	SIP	SIP	QIP	SIP	QIP	QIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	DUAL	SINGLE	SINGLE	SINGLE	DUAL	SINGLE	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	1 W	1 W	1 W	1 W	1 W	1 W	1 W	1 W
Fine-tuning/adjustable output	NO	NO	NO	NO	NO	NO	NO	NO
Base Number Matches	1	1	1	1	1	1	1	-
