Extract from the online
catalog
BCVP-381W- 4 GN
Order No.: 5449843

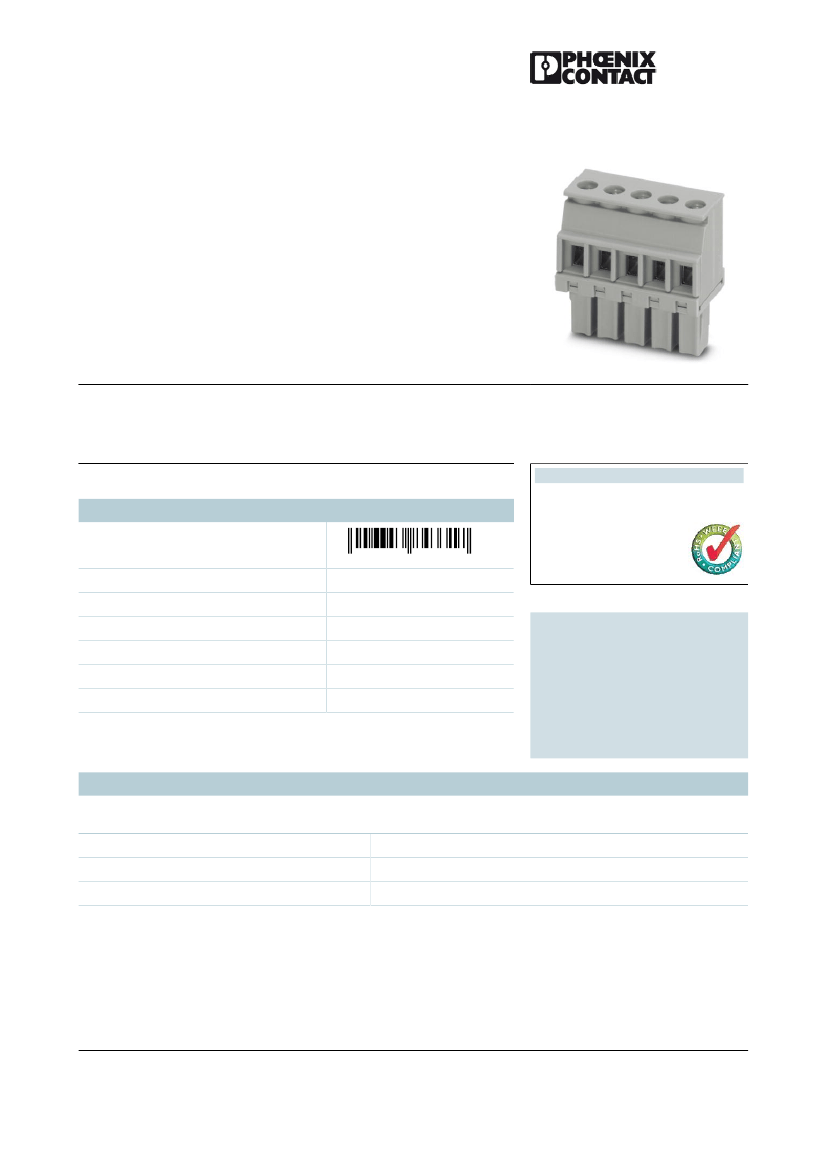

The figure shows a 5-pos. version of the product in gray
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=5449843
Plug component, Nominal current: 8 A, Rated voltage (III/2): 160 V,
Number of positions: 4, Pitch: 3.81 mm, Connection method: Screw
connection, Color: pastel green, Contact surface: Tin
Product notes
Commercial data
EAN
4
046356
843324
WEEE/RoHS-compliant since:
11/07/2012
Note
sales group
Pack
Customs tariff
Gross weight in pieces
Net weight per piece
Made-to-order
E621
50 Pcs.
85366990
0.003505 KG
0.003505 KG
http://
www.download.phoenixcontact.com
Please note that the data given
here has been taken from the
online catalog. For comprehensive
information and data, please refer
to the user documentation. The
General Terms and Conditions of
Use apply to Internet downloads.
Technical data
Dimensions
Height
Pitch
Dimension a
12.5 mm
3.81 mm
11.43 mm
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 1 / 5
Aug 13, 2014
BCVP-381W- 4 GN
Order No.: 5449843
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=5449843
General
Range of articles
Insulating material group
Rated surge voltage (III/3)
Rated surge voltage (III/2)
Rated surge voltage (II/2)
Rated voltage (III/3)
Rated voltage (III/2)
Rated voltage (II/2)
Connection in acc. with standard
Nominal current I
N
Nominal cross section
Maximum load current
Insulating material
Inflammability class according to UL 94
Number of positions
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section stranded min.
Conductor cross section stranded max.
Conductor cross section stranded, with ferrule
without plastic sleeve min.
Conductor cross section stranded, with ferrule
without plastic sleeve max.
Conductor cross section stranded, with ferrule
with plastic sleeve min.
Conductor cross section stranded, with ferrule
with plastic sleeve max.
Conductor cross section AWG/kcmil min.
Conductor cross section AWG/kcmil max
2 conductors with same cross section, solid min.
2 conductors with same cross section, solid max.
2 conductors with same cross section, stranded
min.
2 conductors with same cross section, stranded
max.
0.2 mm²
1.5 mm²
0.2 mm²
1.5 mm²
0.25 mm²
1.5 mm²
0.25 mm²
0.5 mm²
24
16
0.2 mm²
0.5 mm²
0.2 mm²
0.75 mm²
BCVP-W
I
2.5 kV
2.5 kV
2.5 kV
160 V
160 V
320 V
EN-VDE
8A
1.5 mm²
8 A (with 1.5 mm² conductor cross section)
PA
V0
4
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 2 / 5
Aug 13, 2014
BCVP-381W- 4 GN
Order No.: 5449843
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=5449843
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, min.
2 conductors with same cross section, stranded,
ferrules without plastic sleeve, max.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, min.
2 conductors with same cross section, stranded,
TWIN ferrules with plastic sleeve, max.
Certificates / Approvals
0.25 mm²
0.34 mm²
0.5 mm²
0.5 mm²
Certification
Certifications applied for:
Certification Ex:
cULus Recognized
Accessories
Item
Marking
1051993
0804073
B-STIFT
SK 3,5/2,8:FORTL.ZAHLEN
Marker pen, for manual labeling of unprinted Zack strips, smear-
proof and waterproof, line thickness 0.5 mm
Marker cards, Card, white, labeled, Horizontal: Consecutive
numbers 1 - 10, 11 - 20, etc. up to 91 - 99, Mounting type:
Adhesive, for terminal block width: 3.5 mm, Lettering field: 3.5 x
2.8 mm
Marker cards, Sheet, white, unlabeled, can be labeled with:
Plotter, Office printing systems, Mounting type: Adhesive,
Lettering field: 186 x 2.8 mm
Designation
Description
0803883
SK U/2,8 WH:UNBEDRUCKT
Tools
1205037
SZS 0,4X2,5 VDE
Screwdriver, slot-headed, VDE insulated, size: 0.4 x 2.5 x 80 mm,
2-component grip, with non-slip grip
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 3 / 5
Aug 13, 2014
BCVP-381W- 4 GN
Order No.: 5449843
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=5449843

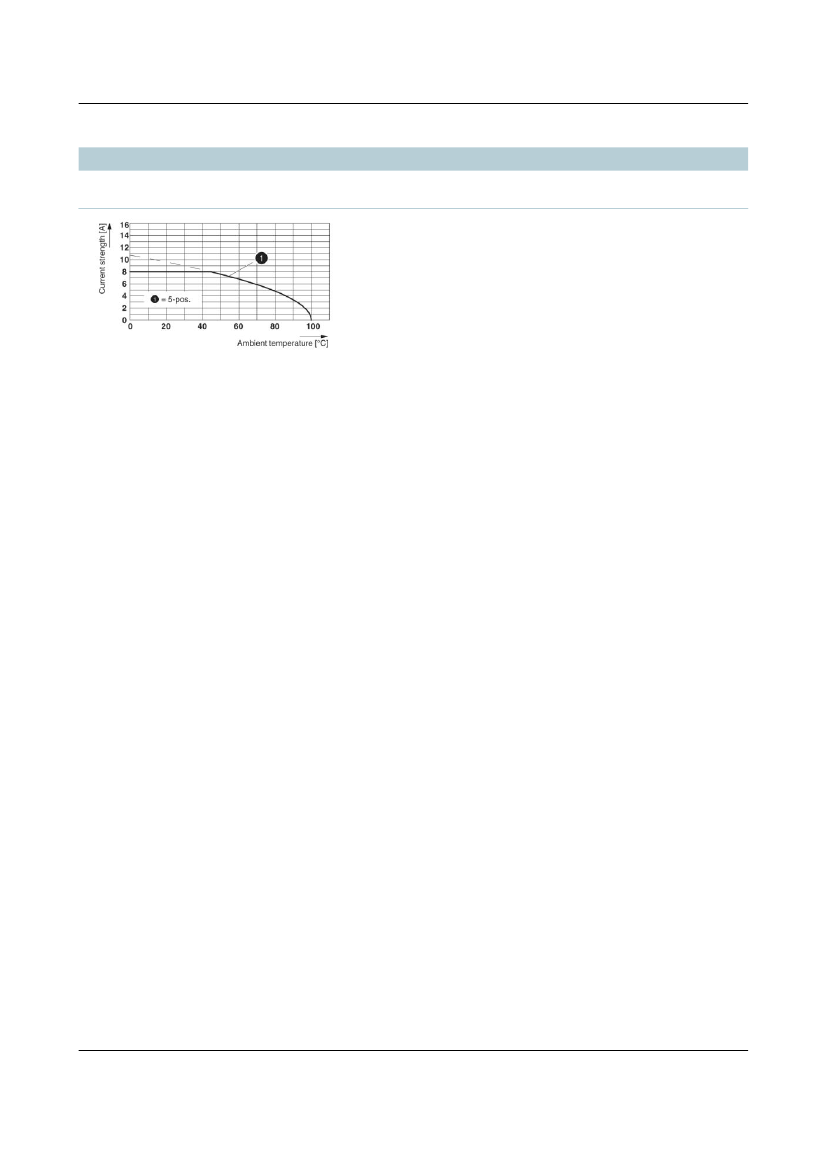

Drawings
Diagram
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 4 / 5
Aug 13, 2014
BCVP-381W- 4 GN
Order No.: 5449843
http://catalog.phoenixcontact.net/phoenix/treeViewClick.do?UID=5449843
Address
PHOENIX CONTACT Deutschland GmbH
Flachsmarktstr. 8
32825 Blomberg,Germany
Phone +49 5235 3 12000
Fax +49 5235 3 41200
http://www.phoenixcontact.com
© 2014 Phoenix Contact
Technical modifications reserved;
PHOENIX CONTACT Deutschland GmbH
http://www.phoenixcontact.com
Page 5 / 5
Aug 13, 2014
