533270-9 datasheet, PDF - EEWORLD Datasheet

533270-9: DescriptionHEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,#2-56,NATURAL; CategoryThe connector The connector; File Size234KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

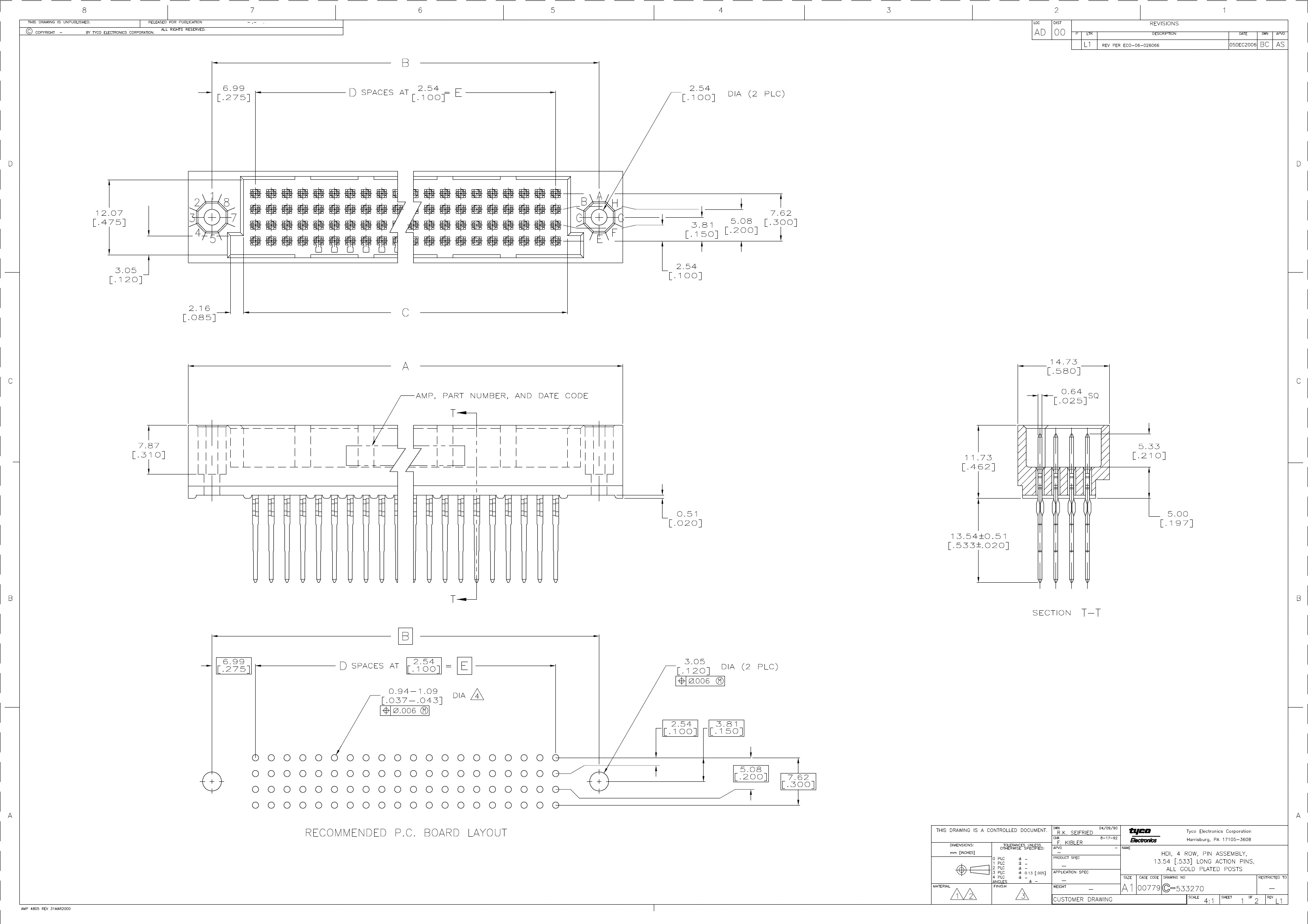

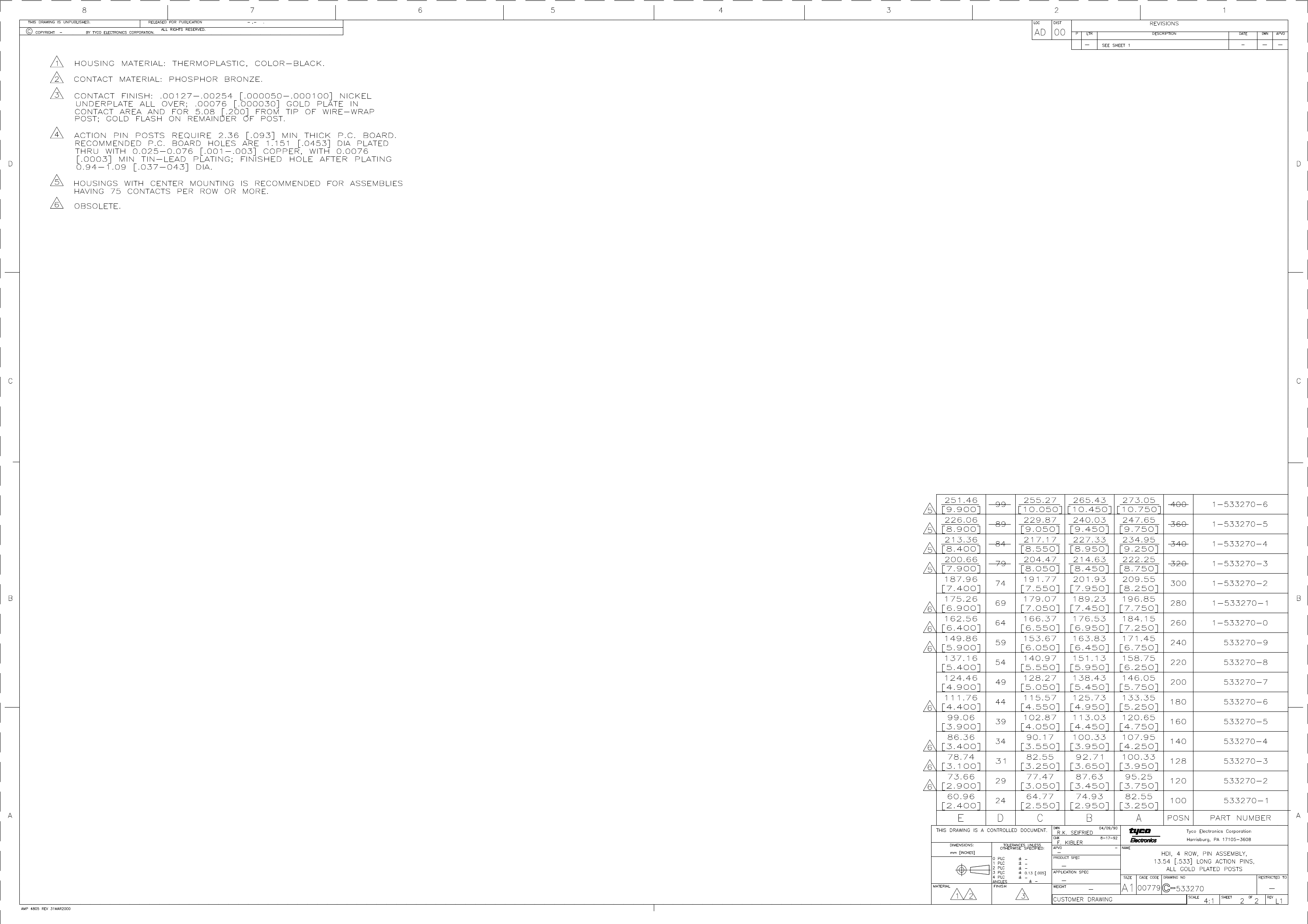

533270-9 Overview

HEADER CONNECTOR,PCB MNT,RECEPT,240 CONTACTS,PIN,0.1 PITCH,COMPLIANT FIT TERMINAL,#2-56,NATURAL

Parameter Name	Attribute value
Reach Compliance Code	unknow
Board mount options	#2-56 THD HOLE
body width	0.58 inch
subject depth	0.462 inch
body length	6.75 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Durability	250 Cycles
Insulator color	NATURAL
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
Manufacturer's serial number	533270
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	#2-56
Installation option 2	THREADED
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	4
Number of rows loaded	4
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED KEY
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.533 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	240
Base Number Matches	1
