7674-60818 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 7674-60818

7674-60818: DescriptionTelecom and Datacom Connector, 32+32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack; CategoryThe connector The connector; File Size182KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

7674-60818 Overview

Telecom and Datacom Connector, 32+32 Contact(s), Male, Right Angle, Solder Terminal, Locking, Jack

7674-60818 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Conexcon Group
Reach Compliance Code	unknown
Board mount options	SPLIT BOARD LOCK
body width	1 inch
subject depth	1.098 inch
body length	2.51 inch
Body/casing type	JACK
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	AG ON NI
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
Contact resistance	20 mΩ
Contact style	TELCOM, MODULAR
Dielectric withstand voltage	300VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	7674
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	8
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	STAGGERED
Plating thickness	30u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.1 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	64
Base Number Matches	1

Preview

Download Datasheet

View All

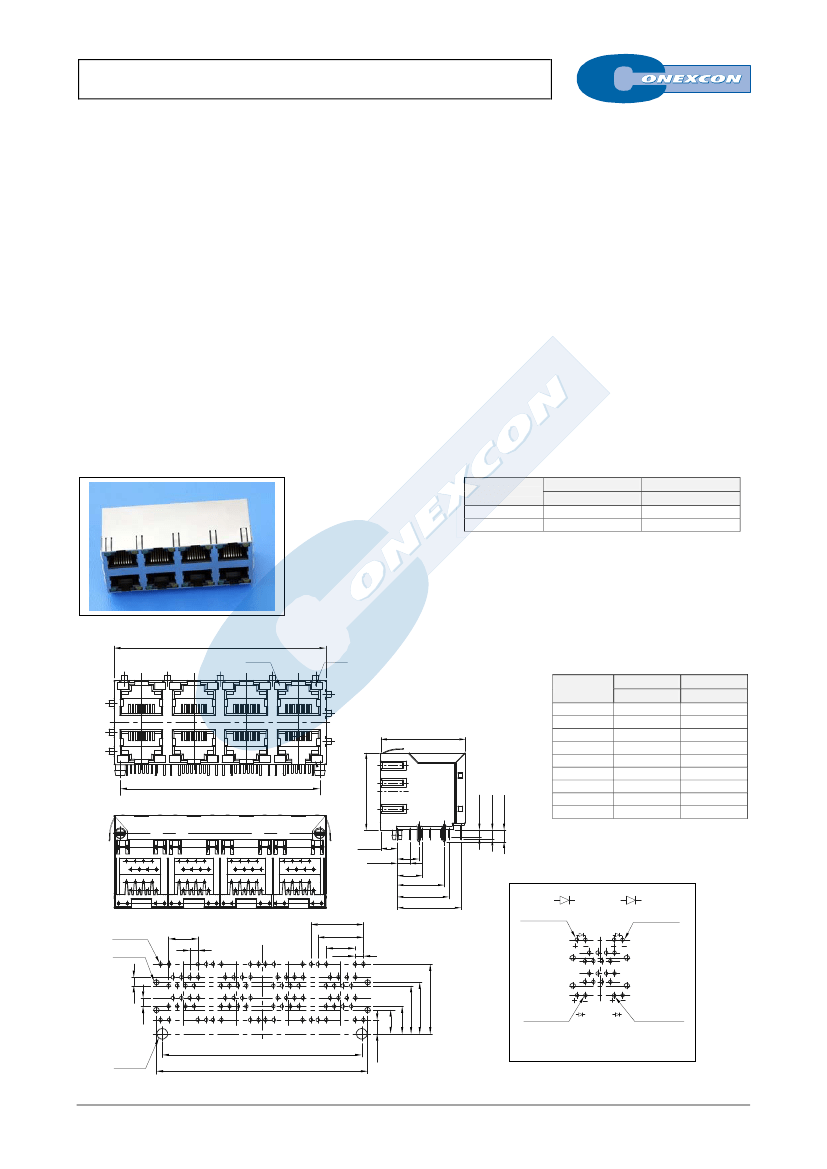

SIDE ENTRY MULTI PORT PCB JACK FCC-68

7674 SERIES.

With leds. Shielded multi port dual level.

General Features

Electrical Features



Available in 8/8 circuits

Standard telephone jack FCC-68

Available in 2 and 8 ports

27.25 mm. Height and 30.60 mm. depth

Accept standard plugs FCC-68

Selective gold plating with different plating

Bifurcated plastic foot print

With / without grounding tabs



Voltage rating: < 125V

Current rating: < 1.50 A

Contact resistance: < 20 mΩ

Dielectric withstanding voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Materials

Mechanical Features



Insulator: Thermoplastic UL 94V-0

Contact: 0.35 mm round in phosphor bronze

Operating temperature. -25ºC to + 85ºC

RoHS compliant



Durability: 1000 cycles

Dimensional Information

Ports

Part number

W/O grounding Tabs

7674 –

T021C

7674 –

T081C

With grounding Tabs

7674 –

T022C

7674 –

T082C

T = Plating Options

63.75

Led 2

Led 1



T =

10µ” gold over nickel

T =

15µ” gold over nickel

T =

30µ” gold over nickel

T =

50µ” gold over nickel

LED 1

RIGHT

W/O LED

GREEN

YELLOW

GREEN

YELLOW

YELL/GREEN

GRREN/RED

YELLOW

LED 2

LEFT

W/O LED

YELLOW

W/O LED

GREEN

YELLOW

YELL/GREEN

GREEN/RED

YELL/GREEN

OPTION C

27.90

2.54

59.94

25.40

3.18

3.90

5.46

7.11

4.19

8.25

15.49

17.02

20.95

15.75

96-ø1.02

4-ø1.60

8.89

2.54

13.72

8.64

2.54

LED 2

TOP

LED 1

TOP

8.25

14.48

15.49

20.95

2.54

7.11

LED 2

BOTTON

LED 1

BOTTON

2.54

59.94

4-ø3.25

63.50

E-XX

4.19

RECOMMENDED HOLE PATTERN

FOR LOOSE JACK
