41662-0033

Description
Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,
CategoryThe connector    The connector
File Size60KB,1 Pages
ManufacturerMolex
Websitehttps://www.molex.com/molex/home
Download Datasheet Parametric View All

41662-0033 Overview

Board Connector, 11 Contact(s), 1 Row(s), Male, Right Angle, Solder Terminal,

41662-0033 Parametric

Parameter NameAttribute value
MakerMolex
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresKK
Connector typeBOARD CONNECTOR
Contact point genderMALE
DIN complianceNO
Filter functionNO
IEC complianceNO
MIL complianceNO
Manufacturer's serial number41662
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodRIGHT ANGLE
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch3.96 mm
Termination typeSOLDER
Total number of contacts11
UL Flammability Code94V-0
Base Number Matches1
FEATURES AND SPECIFICATIONS
Features and Benefits
s
Sizes 2 to 24 circuits available
s
Optional voided circuits available
s
Various pin lengths available (contact Molex)
s
May be purchased in full 24 circuit sticks and broken into
required circuit sizes
Reference Information
Product Specification: PS-41186/08-50
Packaging: Bag
Tooling Information: See cutting tool section
UL File No.: E29179
CSA File No.: LR19980
TUV File No.: R75108
Mates With:
2139, 2145, 6442, 7674, 7675, 41695
and
41815
Designed In: Inches
Electrical
Voltage: 250V AC max.
Current: 7.0A max.*
Contact Resistance: 6m
max.
Dielectric Withstanding Voltage: 1500V
Insulation Resistance: 50K M
min.
Mechanical
Durability:
Tin—25 cycles max.
Gold—100 cycles max.
Physical
Housing: Black glass-filled polyester, UL 94V-0
Contact: Brass, 1.14mm (.045") pins
Plating: See Table
Operating Temperature: 0 to +75˚C
3.96mm (.156") Pitch
KK
®
Breakaway Header
41662
Right Angle
D
3.00 to 7.92mm (.118 to .312") Pitch
Order No.
Square Pin
15
µ
" Select 30
µ
" Select
Gold
Gold
41662-0013
41662-0036
41662-0014
41662-0037
41662-0015
41662-0038
41662-0016
41662-0039
41662-0017
41662-0040
41662-0018
41662-0041
41662-0019
41662-0042
41662-0020
41662-0043
41662-0021
41662-0044
41662-0022
41662-0045
41662-0023
41662-0046
Dimension
Overall Gold
26-48-2142
26-48-2152
26-48-2162
26-48-2172
26-48-2182
26-48-2192
26-48-2202
26-48-2212
26-48-2222
26-48-2232
26-48-2242
54.33
58.29
62.26
66.22
70.18
74.14
78.11
82.07
86.03
89.94
93.85
A
(2.139)
(2.295)
(2.451)
(2.607)
(2.763)
(2.919)
(3.075)
(3.231)
(3.387)
(3.541)
(3.695)
51.51
55.47
59.44
63.40
67.36
71.32
75.29
79.25
83.21
87.17
91.14
B
(2.028)
(2.184)
(2.340)
(2.496)
(2.652)
(2.808)
(2.964)
(3.120)
(3.276)
(3.432)
(3.588)

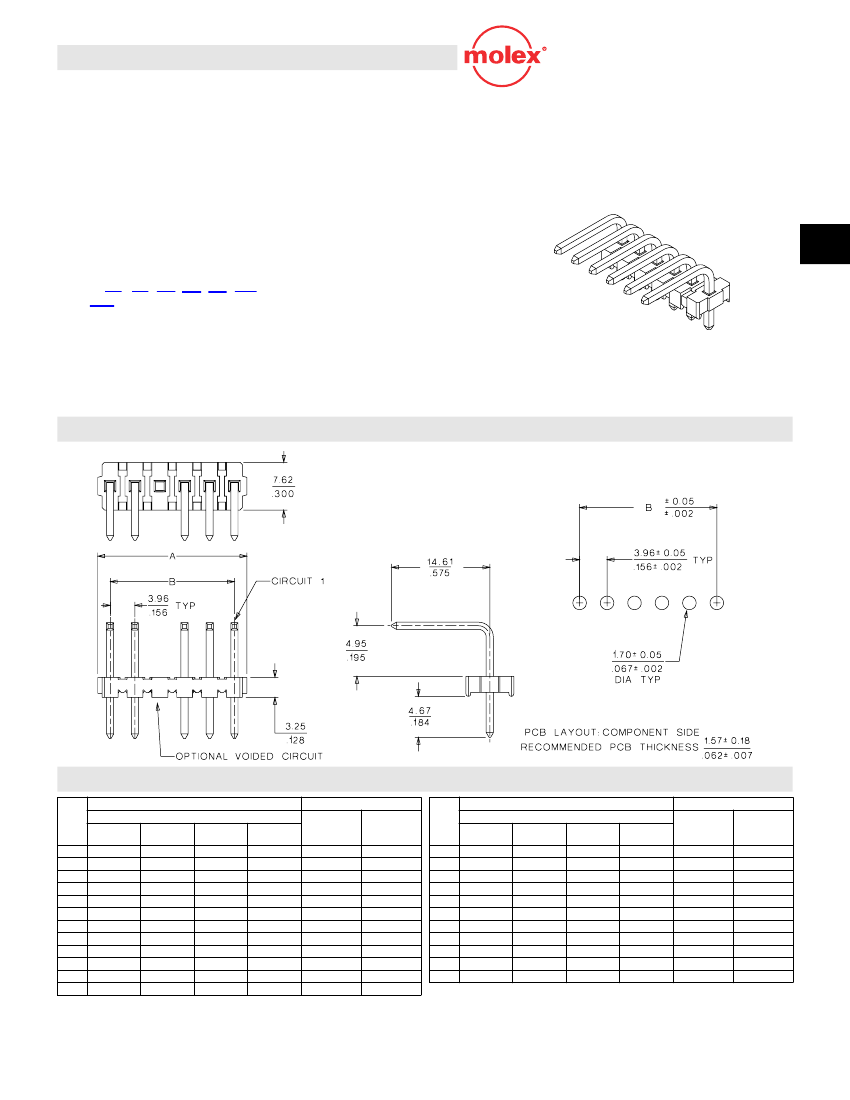

CATALOG DRAWING (FOR REFERENCE ONLY)
ORDERING INFORMATION AND DIMENSIONS
Circuits
Tin
2
3
4
5
6
7
8
9
10
11
12
13
26-48-1022
26-48-1032
26-48-1042
26-48-1052
26-48-1062
26-48-1072
26-48-1082
26-48-1092
26-48-1102
26-48-1112
26-48-1122
26-48-1132
Order No.
Square Pin
15
µ
" Select 30
µ
" Select
Gold
Gold
41662-0001
41662-0024
41662-0002
41662-0025
41662-0003
41662-0026
41662-0004
41662-0027
41662-0005
41662-0028
41662-0006
41662-0029
41662-0007
41662-0030
41662-0008
41662-0031
41662-0009
41662-0032
41662-0010
41662-0033
41662-0011
41662-0034
41662-0012
41662-0035
Dimension
Overall Gold
26-48-2022
26-48-2032
26-48-2042
26-48-2052
26-48-2062
26-48-2072
26-48-2082
26-48-2092
26-48-2102
26-48-2112
26-48-2122
26-48-2132
6.78
10.74
14.71
18.67
22.63
26.59
30.56
34.52
38.48
42.44
46.41
50.37
A
(.267)
(.423)
(.579)
(.735)
(.891)
(1.047)
(1.203)
(1.359)
(1.515)
(1.671)
(1.827)
(1.983)
3.96
7.92
11.89
15.85
19.81
23.77
27.74
31.71
35.66
39.62
43.59
47.55
B
(.156)
(.312)
(.468)
(.624)
(.780)
(.936)
(1.092)
(1.248)
(1.404)
(1.560)
(1.716)
(1.872)
Circuits
Tin
14
15
16
17
18
19
20
21
22
23
24
26-48-1142
26-48-1152
26-48-1162
26-48-1172
26-48-1182
26-48-1192
26-48-1202
26-48-1212
26-48-1222
26-48-1232
26-48-1242
* Dependent upon connector and PC board
Note: Circuit number designation is for ordering purposes only, check corresponding circuit designation on mating connector
MX01
D-15
