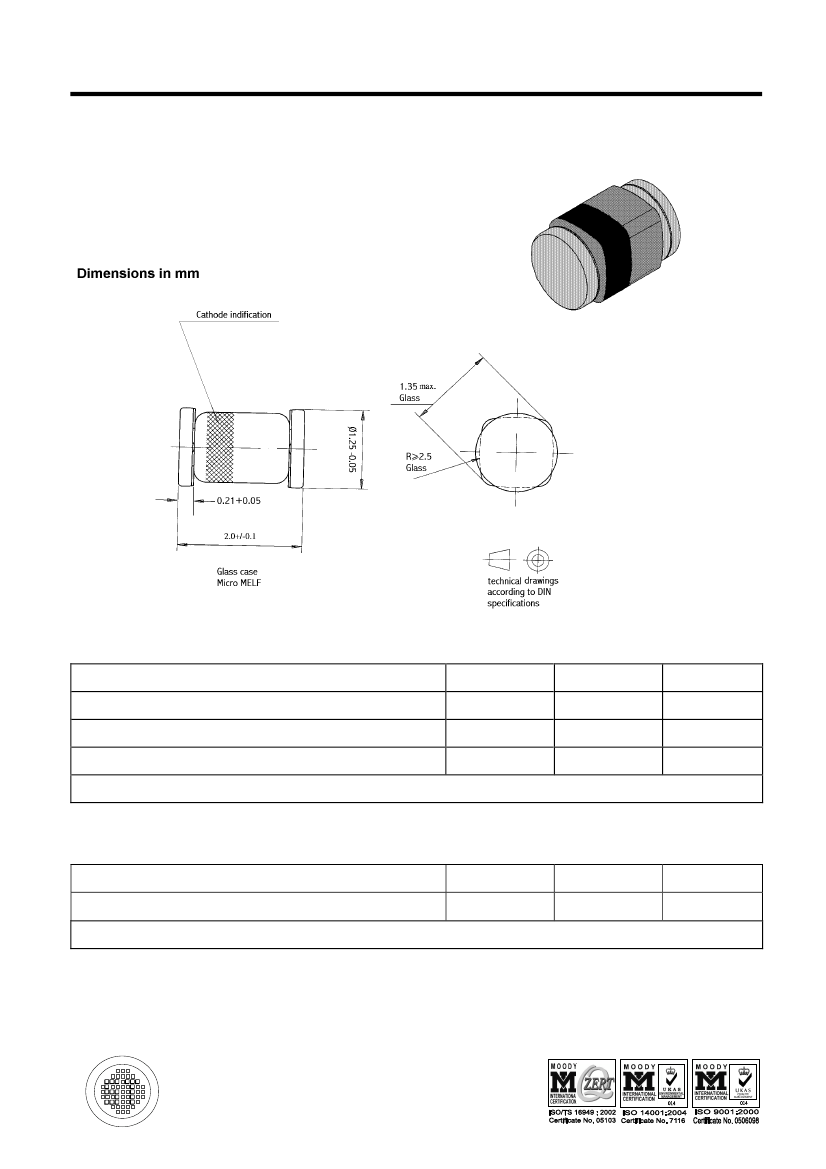

ZMC1 … ZMC200
SILICON PLANAR ZENER DIODES
Features
•
Fits onto SOD-323 / SOT-23 footprints
•
Micro Melf package
LS-31
Absolute Maximum Ratings (T
a
= 25
O
C)
Parameter
Power Dissipation
Junction Temperature
Storage Temperature Range
1)
Symbol
P
tot
T
j
T
S
Value
500
1)
Unit
mW
O
175
- 55 to + 175
C
C
O
Valid provided that electrodes are kept at ambient temperature.
Characteristics at T
amb
= 25
O
C
Parameter
Thermal Resistance Junction to Ambient Air
1)
Symbol
R
thA
Max.
0.3
1)
Unit
K/mW
Valid provided that electrodes are kept at ambient temperature.
SEMTECH ELECTRONICS LTD.
(Subsidiary
of Semtech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 08/05/2006
ZMC1 … ZMC200
Zener Voltage Range
1)
Type
Dynamic Resistance
Reverse Leakage Current
Temp. Coefficient
of Zener Voltage
2)
V
Znom
r
zjT
r
zjK
at I
ZK
l
ZT
for V
ZT
T
a
= 25
O
C T
a
= 125
O
C l
R
at V
R
TK
VZ
mA
V
V
Ω
Ω
mA
µA
µA
V
%/K
3)
ZMC1
0.75
5
0.7…0.8
<8
< 50
1
--
--
--
-0.26…-0.23
ZMC2V0
2.0
5
1.80…2.15
< 85
< 600
1
< 100
< 200
1
-0.09…-0.06
ZMC2V2
2.2
5
2.08…2.33
< 85
< 600
1
< 75
< 160
1
-0.09…-0.06
ZMC2V4
2.4
5
2.28…2.56
< 85
< 600
1
< 50
< 100
1
-0.09…-0.06
ZMC2V7
2.7
5
2.5…2.9
< 85
< 600
1
< 10
< 50
1
-0.09…-0.06
ZMC3V0
3.0
5
2.8…3.2
< 85
< 600
1
<4
< 40
1
-0.08…-0.05
ZMC3V3
3.3
5
3.1…3.5
< 85
< 600
1
<2
< 40
1
-0.08…-0.05
ZMC3V6
3.6
5
3.4…3.8
< 85
< 600
1
<2
< 40
1
-0.08…-0.05
ZMC3V9
3.9
5
3.7…4.1
< 85
< 600
1
<2
< 40
1
-0.08…-0.05
ZMC4V3
4.3
5
4.0…4.6
< 75
< 600
1
<1
< 20
1
-0.06…-0.03
ZMC4V7
4.7
5
4.4…5.0
< 60
< 600
1
< 0.5
< 10
1
-0.05…+0.02
ZMC5V1
5.1
5
4.8…5.4
< 35
< 550
1
< 0.1
<2
1
-0.02…+0.02
ZMC5V6
5.6
5
5.2…6.0
< 25
< 450
1
< 0.1
<2
1
-0.05…+0.05
ZMC6V2
6.2
5
5.8…6.6
< 10
< 200
1
< 0.1
<2
2
0.03…0.06
ZMC6V8
6.8
5
6.4…7.2
<8
< 150
1
< 0.1
<2
3
0.03…0.07
ZMC7V5
7.5
5
7.0…7.9
<7
< 50
1
< 0.1
<2
5
0.03…0.07
ZMC8V2
8.2
5
7.7…8.7
<7
< 50
1
< 0.1
<2
6.2
0.03…0.08
ZMC9V1
9.1
5
8.5…9.6
< 10
< 50
1
< 0.1
<2
6.8
0.03…0.09
ZMC10
10
5
9.4…10.6
< 15
< 70
1
< 0.1
<2
7.5
0.03…0.1
ZMC11
11
5
10.4…11.6
< 20
< 70
1
< 0.1
<2
8.2
0.03…0.11
ZMC12
12
5
11.4…12.7
< 20
< 90
1
< 0.1
<2
9.1
0.03…0.11
ZMC13
13
5
12.4…14.1
< 26
< 110
1
< 0.1
<2
10
0.03…0.11
ZMC15
15
5
13.8…15.6
< 30
< 110
1
< 0.1
<2
11
0.03…0.11
ZMC16
16
5
15.3…17.1
< 40
< 170
1
< 0.1
<2
12
0.03…0.11
ZMC18
18
5
16.8…19.1
< 50
< 170
1
< 0.1
<2
13
0.03…0.11
ZMC20
20
5
18.8…21.2
< 55
< 220
1
< 0.1
<2
15
0.03…0.11
ZMC22
22
5
20.8…23.3
< 55
< 220
1
< 0.1
<2
16
0.04…0.12
ZMC24
24
5
22.8…25.6
< 80
< 220
1
< 0.1
<2
18
0.04…0.12
ZMC27
27
5
25.1…28.9
< 80
< 220
1
< 0.1
<2
20
0.04…0.12
ZMC30
30
5
28…32
< 80
< 220
1
< 0.1
<2
22
0.04…0.12
ZMC33
33
5
31…35
< 80
< 220
1
< 0.1
<2
24
0.04…0.12
ZMC36
36
5
34…38
< 80
< 220
1
< 0.1
<2
27
0.04…0.12
ZMC39
39
2.5
37…41
< 90
< 500
0.5
< 0.1
<5
30
0.04…0.12
ZMC43
43
2.5
40…46
< 90
< 500
0.5
< 0.1
<5
33
0.04…0.12
ZMC47
47
2.5
44…50
< 110
< 600
0.5
< 0.1
<5
36
0.04…0.12
ZMC51
51
2.5
48…54
< 125
< 700
0.5
< 0.1
< 10
39
0.04…0.12
ZMC56
56
2.5
52…60
< 135
< 700
0.5
< 0.1
< 10
43
0.04…0.12
ZMC62
62
2.5
58…66
< 150
< 1000
0.5
< 0.1
< 10
47
0.04…0.12
ZMC68
68
2.5
64…72
< 200
< 1000
0.5
< 0.1
< 10
51
0.04…0.12
ZMC75
75
2.5
70…79
< 250
< 1000
0.5
< 0.1
< 10
56
0.04…0.12
ZMC82
82
2.5
77…87
< 300
< 1500
0.25
< 0.1
< 10
62
0.05…0.12
ZMC91
91
1
85…96
< 450
< 2000
0.1
< 0.1
< 10
68
0.05…0.12
ZMC100
100
1
94…106
< 450
< 5000
0.1
< 0.1
< 10
75
0.05…0.12
ZMC110
110
1
104…116
< 600
< 5000
0.1
< 0.1
< 10
82
0.05…0.12
ZMC120
120
1
114…127
< 800
< 5500
0.1
< 0.1
< 10
91
0.05…0.12
ZMC130
130
1
124…141
< 950
< 6000
0.1
< 0.1
< 10
100
0.05…0.12
ZMC150
150
1
138…156
< 1250
< 6500
0.1
< 0.1
< 10
110
0.05…0.12
ZMC160
160
1
153…171
< 1400
< 7000
0.1
< 0.1
< 10
120
0.05…0.12
ZMC180
180
1
168…191
< 1700
< 8500
0.1
< 0.1
< 10
130
0.05…0.12
ZMC200
200
1
188…212
< 2000
< 10000
0.1
< 0.1
< 10
150
0.05…0.12
1)
Tested with pulse t
p
= 20 ms.
2)
Valid provided that electrodes are kept at ambient temperature.
3)
The ZMC1 is a silicon diode with operation in forward direction. Hence, the index of all parameters should be "F" instead
of "Z". Connect the cathode electrode to the negative pole.
SEMTECH ELECTRONICS LTD.
(Subsidiary
of Semtech International Holdings Limited, a company
listed on the Hong Kong Stock Exchange, Stock Code: 724)
®
Dated : 08/05/2006
