DUG14A3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> DUG14A3

DUG14A3: DescriptionSmart/Normal 7 Seg Numeric LED Display, Green, 14.2mm, ROHS COMPLIANT PACKAGE-12; CategoryLED optoelectronic/LED photoelectric; File Size179KB，4 Pages; ManufacturerSUNLED; Websitehttp://www.sunled.com/; Environmental Compliance

Download Datasheet Parametric View All

DUG14A3 Overview

Smart/Normal 7 Seg Numeric LED Display, Green, 14.2mm, ROHS COMPLIANT PACKAGE-12

DUG14A3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUNLED
package instruction	ROHS COMPLIANT PACKAGE-12
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IC COMPATIBLE
color	GREEN
Configuration	COMMON ANODE, 3 DIGITS WITH DECIMAL POINT
Display height	14.2 mm
Maximum forward current	0.025 A
Number of functions	3
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
Base Number Matches	1

Preview

Download Datasheet

View All

Part Number:

DUG14A3

www.SunLED.com

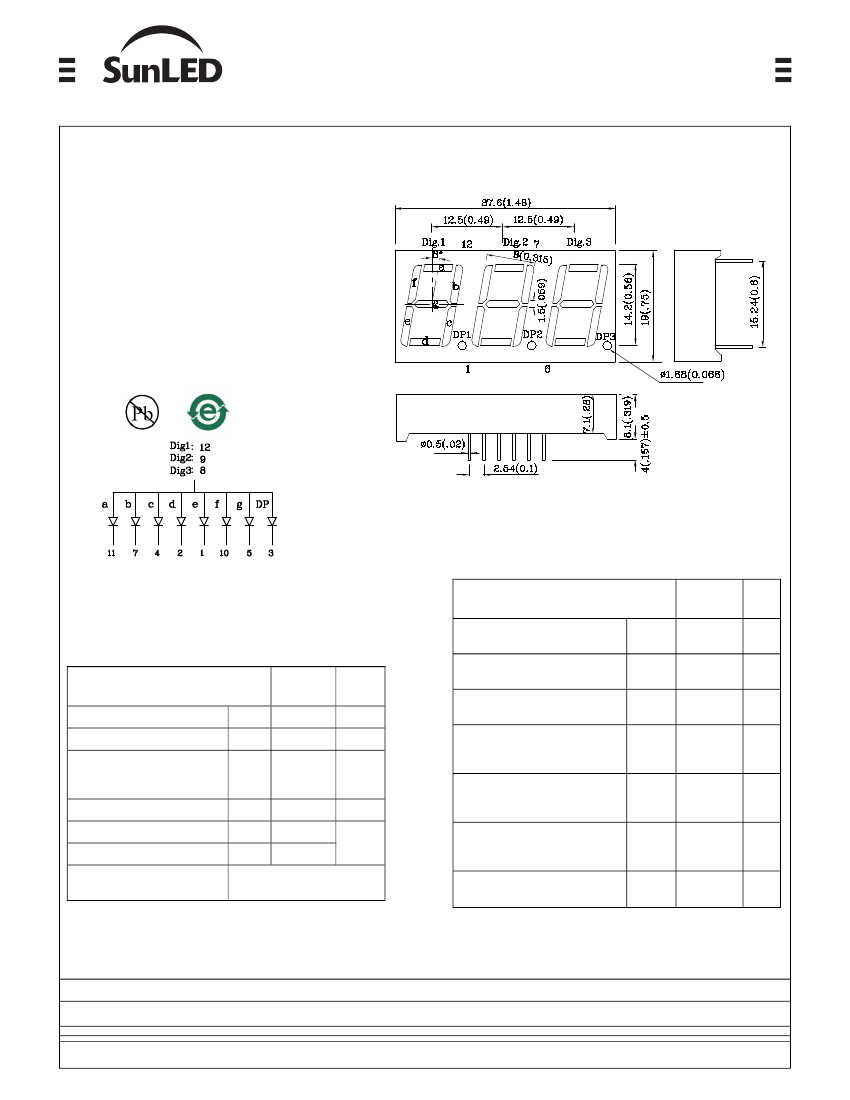

14.22mm (0.56") THREE DIGIT NUMERIC DISPLAY

Features

●

0.56 INCH DIGIT HEIGHT.

●

LOW CURRENT OPERATION.

●

EXCELLENT CHARACTER APPEARANCE.

●

EASY MOUNTING ON P.C. BOARDS OR SOCKETS.

●

I.C. COMPATIBLE.

●

MECHANICALLY RUGGED.

●

STANDARD: GRAY FACE, WHITE SEGMENT.

●

RoHS COMPLIANT.

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is ± 0.25(0.01") unless otherwise noted.

3.Specifications are subject to change without notice.

Absolute maximum ratings

(TA=25°C)

Reverse Voltage

Forward Current

Forward Current (Peak)

1/10 Duty Cycle

0.1ms Pulse Width

Power Dissipation

Operating Temperature

Storage Temperature

Lead Solder Temperature

[2mm Below Package Base]

Tstg

(GaP)

140

62.5

-40 ~ +85

Operating Characteristics

=25°C)

Forward Voltage (Typ.)

=10mA)

Forward Voltage (Max.)

=10mA)

Reverse Current (Max.)

=5V)

Wavelength Of Peak

Emission (Typ.)

=10mA)

Wavelength Of Dominant

Emission (Typ.)

=10mA)

Spectral Line Full Width At

Half-Maximum (Typ.)

=10mA)

Capacitance (Typ.)

=0V, f=1MHz)

Luminous

Intensity

(IF=10mA)

ucd

min.

typ.

15990

565

Wavelength

(GaP)

2.0

2.5

Unit

°C

565

568

Δλ

260°C For 3~5 Seconds

Part

Number

Emitting

Color

Emitting

Material

Description

DUG14A3

Green

GaP

3000

Common Anode, Rt. Hand Decimal

Checked : Shin Chi

P.1/4

Published Date : FEB 29,2008

Drawing No : SDSA2267
