DBML25P400 datasheet, PDF - EEWORLD Datasheet

DBML25P400: DescriptionD Subminiature Connector, 25 Contact(s), Male, Wire Wrap Terminal; CategoryThe connector The connector; File Size261KB，4 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

DBML25P400 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DBML25P400	-	-	View	Buy Now

D Subminiature Connector, 25 Contact(s), Male, Wire Wrap Terminal

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Factory Lead Time	14 weeks 3 days
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation type	BOARD
Options	GENERAL PURPOSE
Shell surface	CADMIUM
Shell material	STEEL
Housing size	3/B
Termination type	WIRE WRAP
Total number of contacts	25
UL Flammability Code	94V-0
Base Number Matches	1

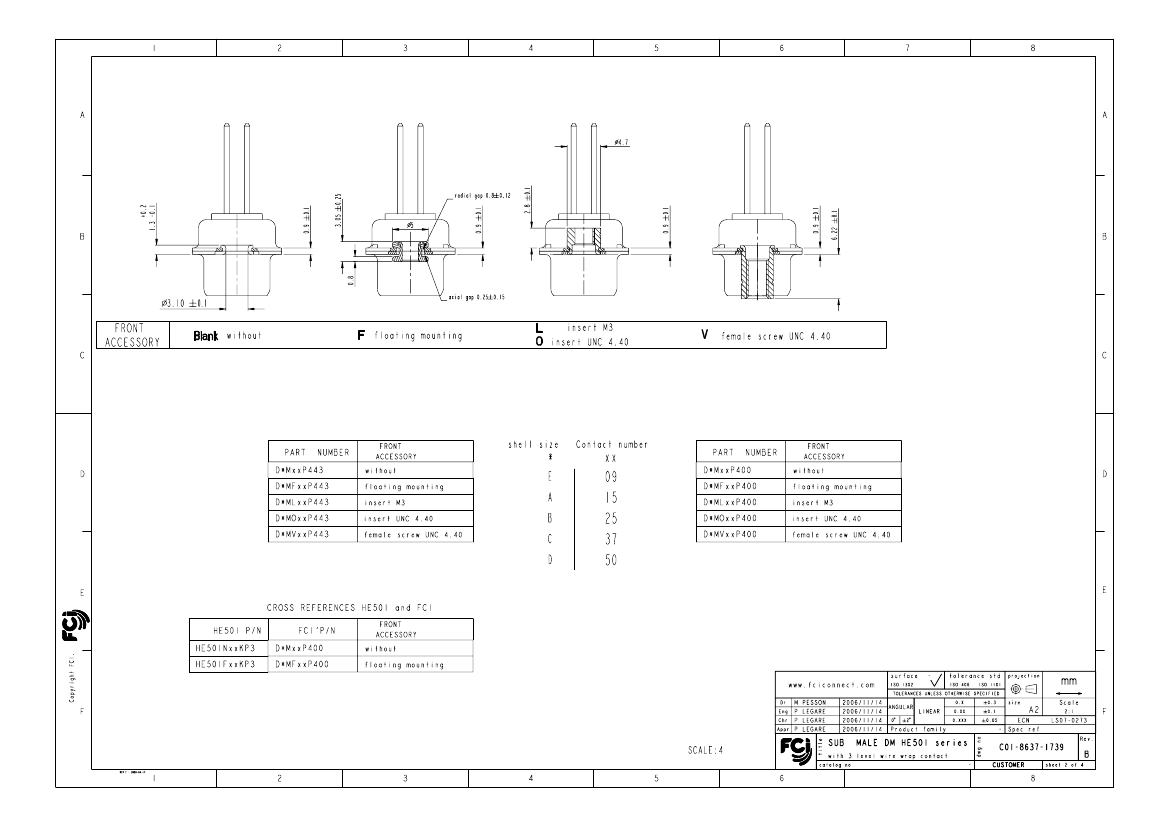

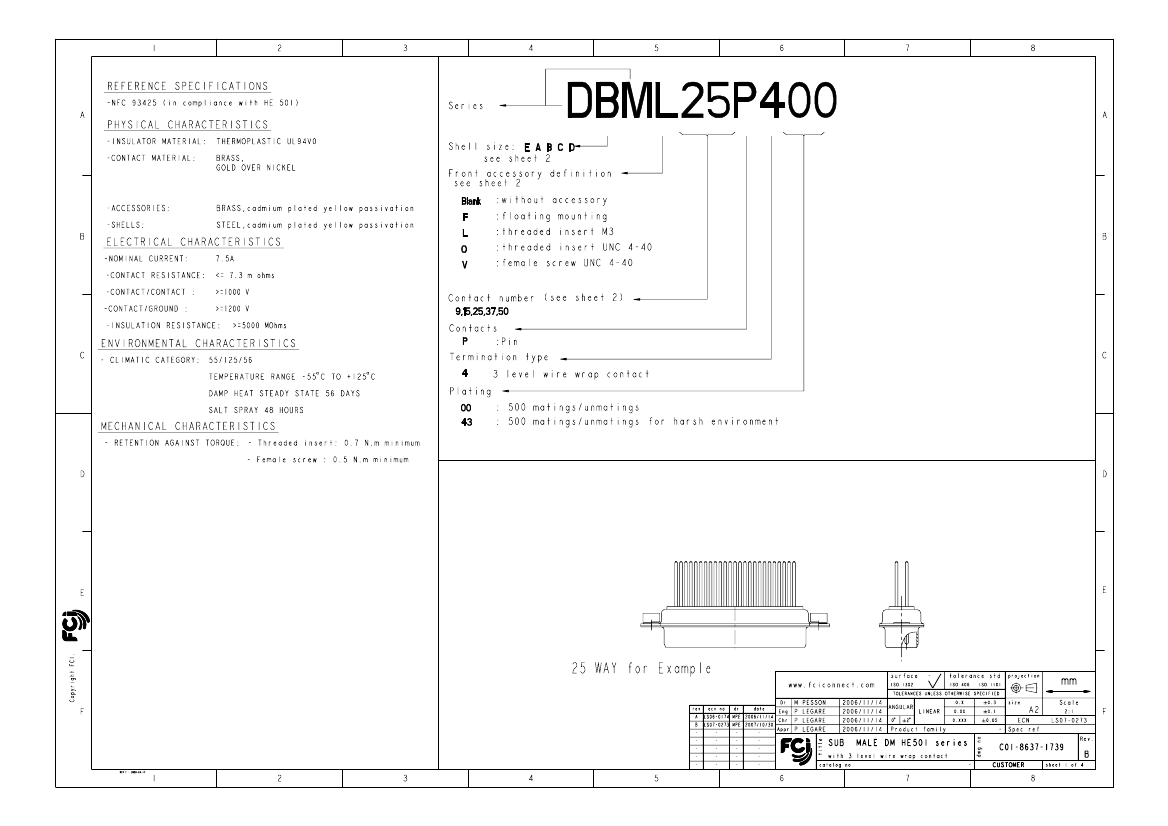

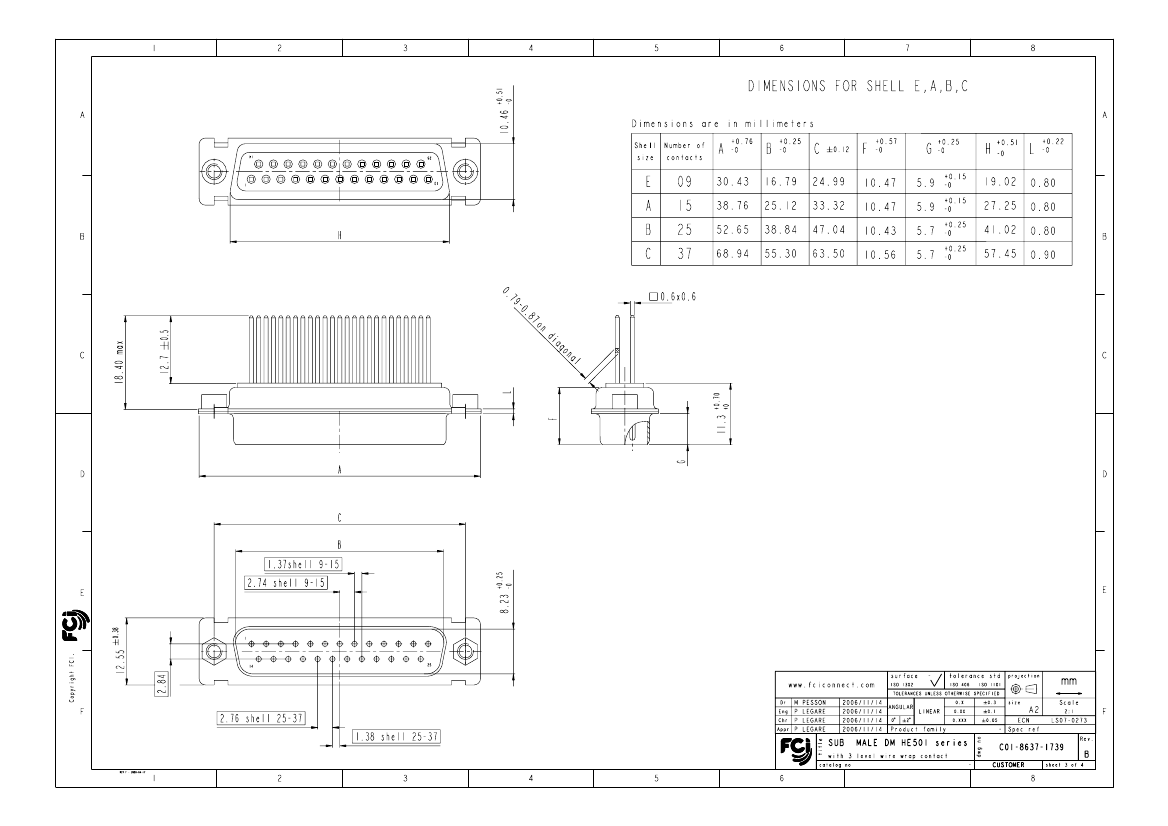

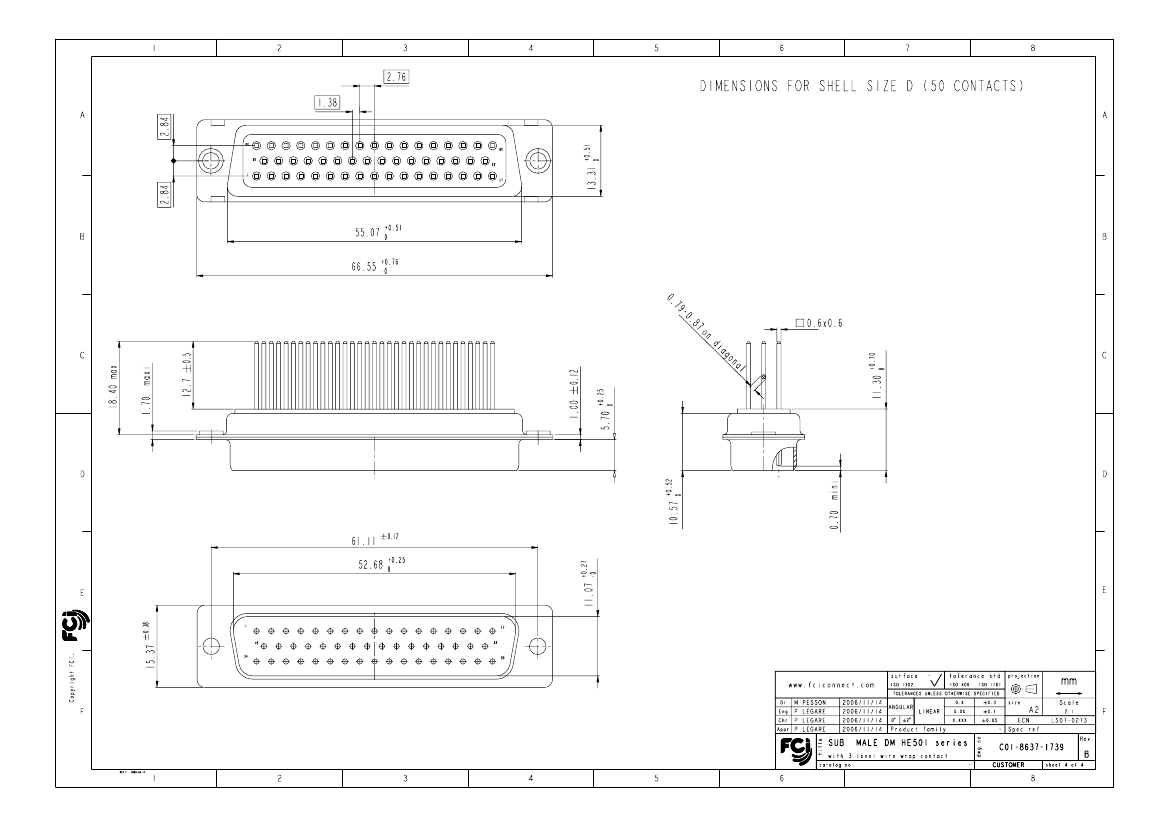

PDM:

PDS: Rev :B

Rev:B

STATUS:Released

Printed: Jun 17,

Jun 18, 2015

Printed:

2015

STATUS:

Released

.

	DBML25P400	DDMO50P400	DAM15P400
Description	D Subminiature Connector, 25 Contact(s), Male, Wire Wrap Terminal	CONN D-SUB PLUG 50POS PNL MNT WW	CONN D-SUB PLUG 15POS PNL MNT WW
Maker	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	NOT SPECIFIED
Contact completed and terminated	GOLD OVER NICKEL	GOLD OVER NICKEL	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE
DIN compliance	NO	NO	NO
empty shell	NO	NO	NO
Filter function	NO	NO	NO
IEC compliance	NO	NO	NO
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e4	e4	e4
MIL compliance	NO	NO	NO
Mixed contacts	NO	NO	NO
Installation type	BOARD	BOARD	BOARD
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell surface	CADMIUM	CADMIUM	CADMIUM
Shell material	STEEL	STEEL	STEEL
Housing size	3/B	5/D	2/A
Termination type	WIRE WRAP	WIRE WRAP	WIRE WRAP
Total number of contacts	25	50	15
UL Flammability Code	94V-0	94V-0	94V-0
Factory Lead Time	14 weeks 3 days	14 weeks 3 days	-
