Datasheet> All Categories > The connector> The connector> DAMO15P500M

Preview

DAMO15P500M: DescriptionD Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking; CategoryThe connector The connector; File Size783KB，9 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

DAMO15P500M Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DAMO15P500M	-	-	View	Buy Now

DAMO15P500M Overview

D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking

DAMO15P500M Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compliant
Factory Lead Time	14 weeks 3 days
Connector type	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	STAGGERED
Contact resistance	7.3 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Rated current (signal)	7.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	CADMIUM
Shell material	STEEL
Housing size	2/A
Terminal length	0.157 inch
Terminal pitch	2.7686 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0
Base Number Matches	1

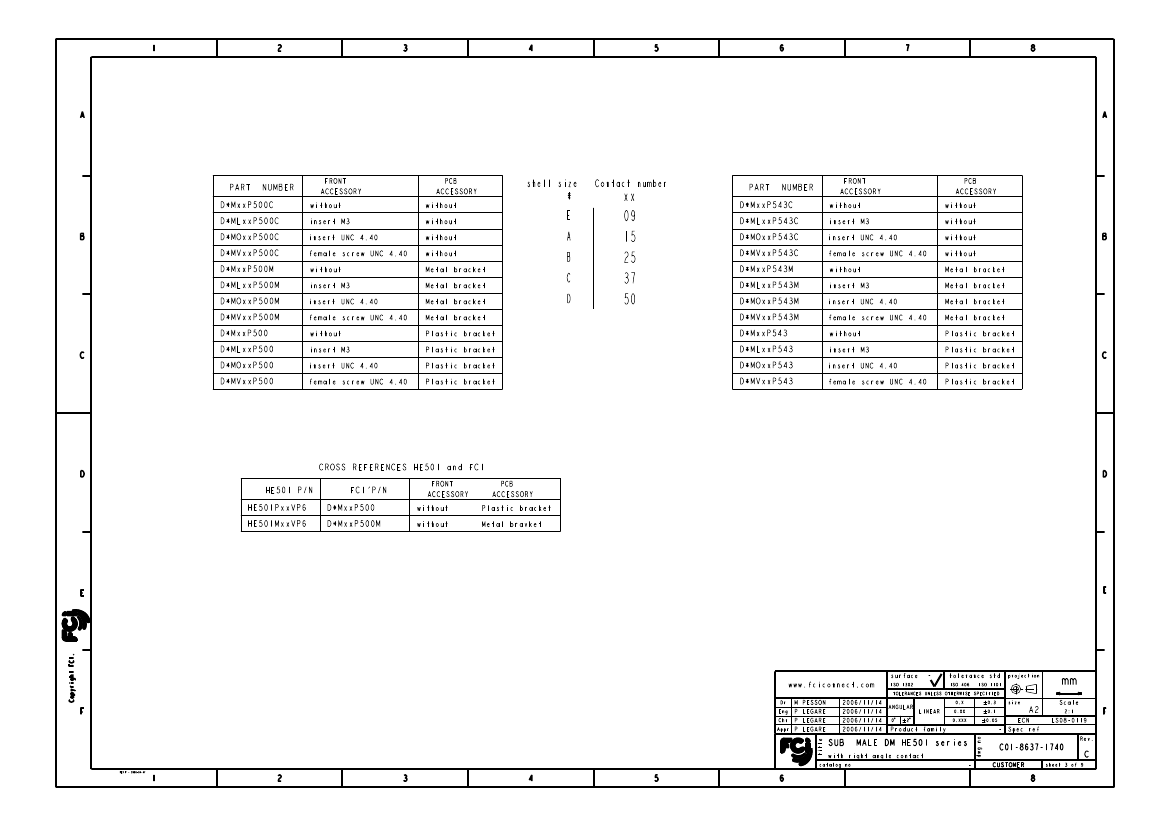

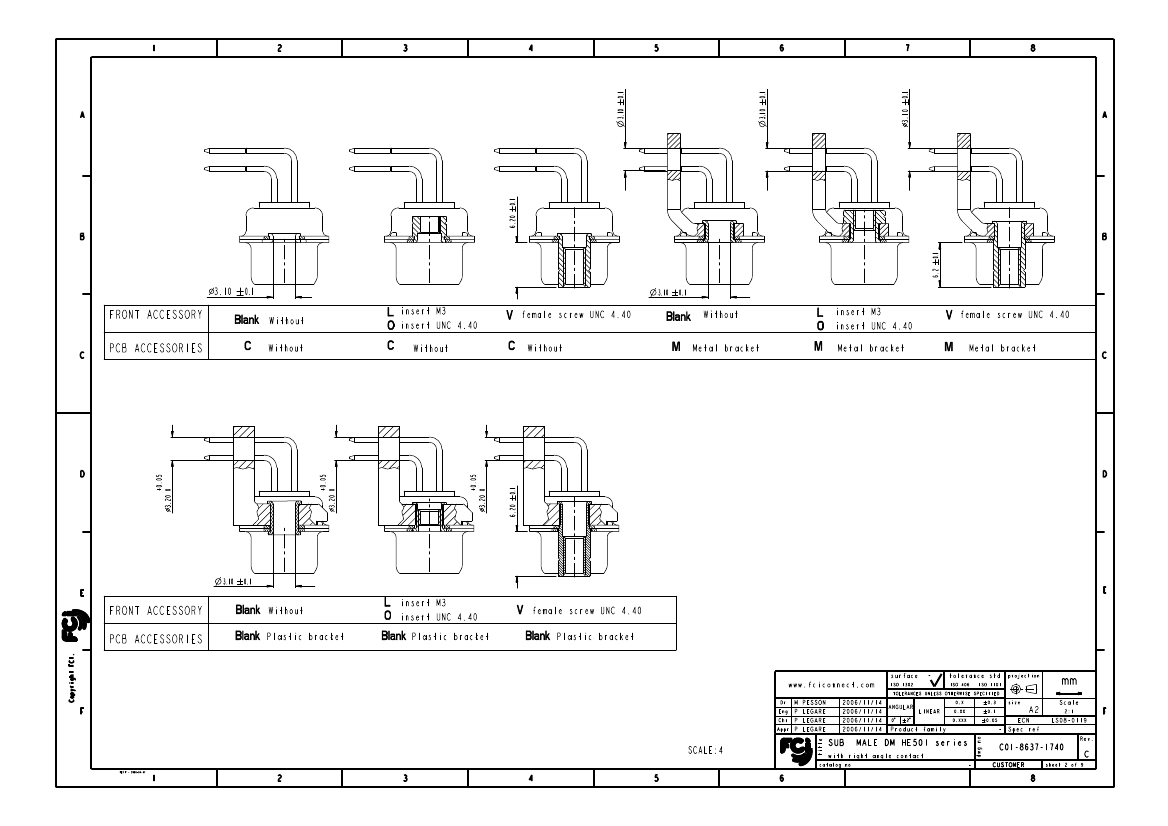

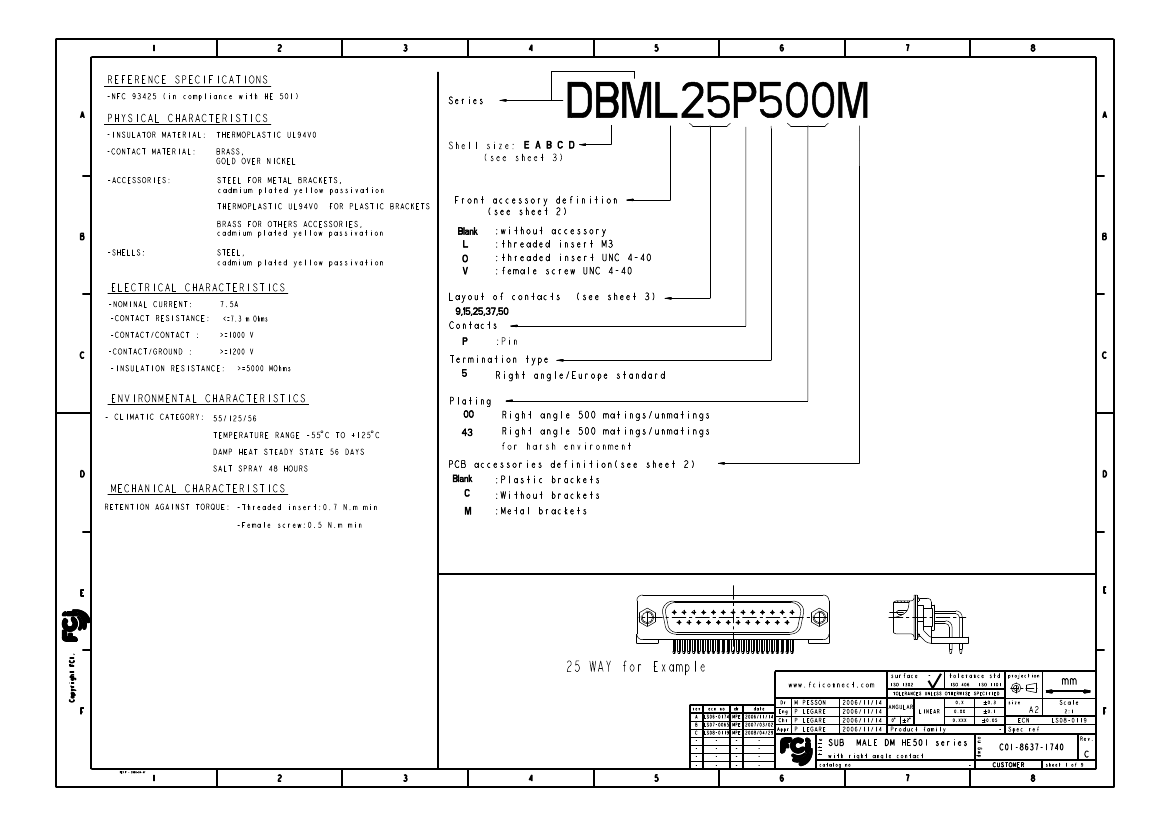

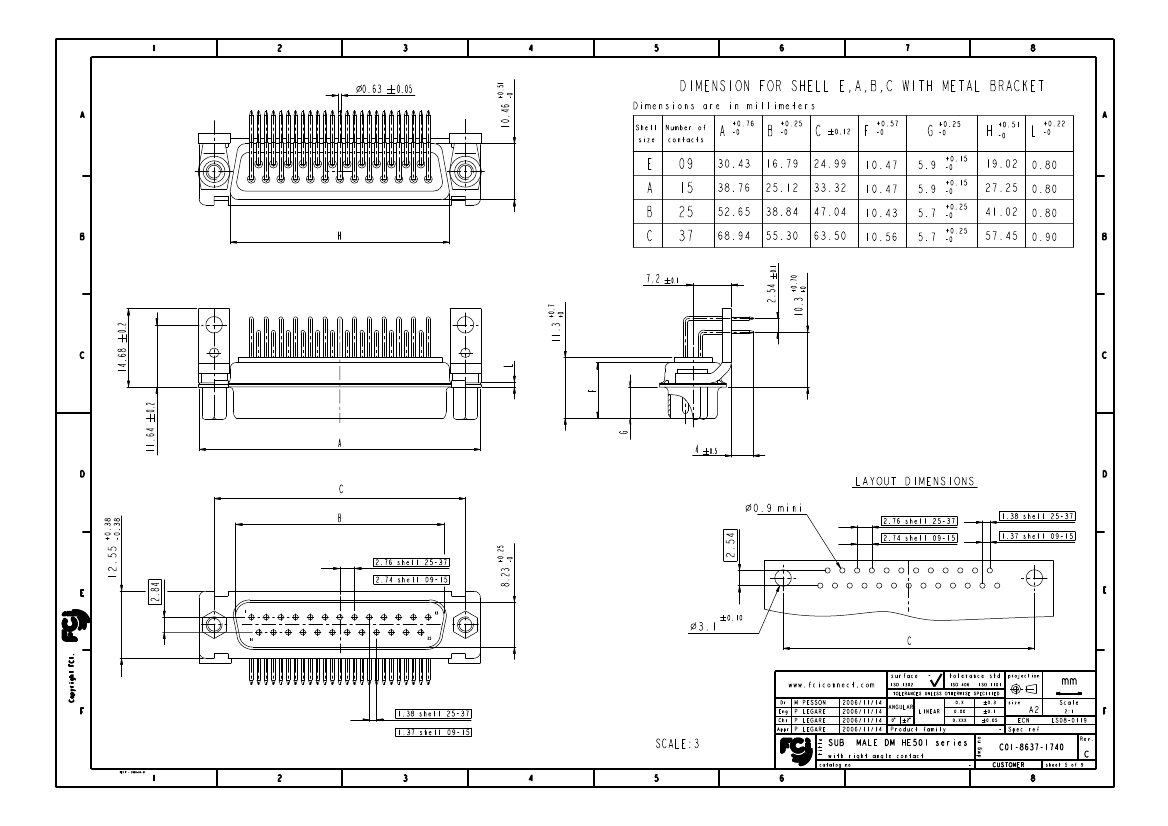

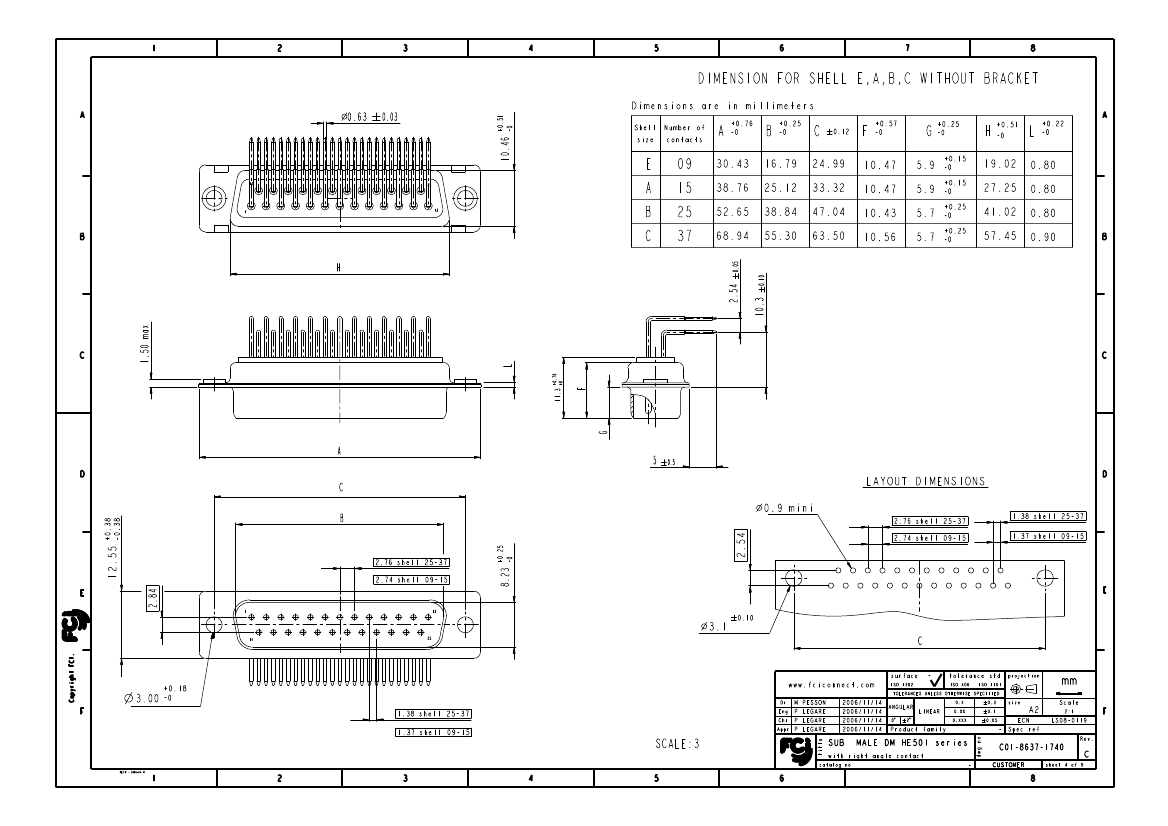

Preview

Download Datasheet

View All

PDM:

PDS: Rev :C

Rev:C

STATUS:Released

Printed: Jun 17,

Jun 18, 2015

Printed:

2015

STATUS:

Released

.

DAMO15P500M Related Products

	DAMO15P500M	DDM50P500M	DBML25P500	DBM25P500C	DBM25P500N	DBMV25P500	DCM37P500M
Description	D Subminiature Connector, 15 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking	D Subminiature Connector, 50 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking,	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking	D Subminiature Connector, 25 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking	D Subminiature Connector, 37 Contact(s), Male, 0.109 inch Pitch, Solder Terminal, Locking
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Connector type	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR	D SUBMINIATURE CONNECTOR
Contact to complete cooperation	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	GOLD OVER NICKEL	NOT SPECIFIED	GOLD OVER NICKEL	GOLD OVER NICKEL
Contact completed and terminated	GOLD OVER NICKEL	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier	Gold (Au) - with Nickel (Ni) barrier
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	PHOSPHOR BRONZE	BRASS	BRASS	BRASS	NOT SPECIFIED	BRASS	BRASS
contact mode	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
Contact resistance	7.3 mΩ	7.3 mΩ	7.3 mΩ	7.3 mΩ	7.3 mΩ	7.3 mΩ	7.3 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO
empty shell	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO
Insulation resistance	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω	5000000000 Ω
insulator material	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	POLYETHYLENE	THERMOSET	POLYETHYLENE	POLYETHYLENE
JESD-609 code	e4	e4	e4	e4	e4	e4	e4
MIL compliance	NO	NO	NO	NO	NO	NO	NO
Plug contact pitch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch	0.109 inch
Match contact row spacing	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch	0.112 inch
Mixed contacts	NO	NO	NO	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
PCB row number	2	3	2	2	2	2	2
Number of rows loaded	2	3	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	155 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED	STAGGERED
PCB contact row spacing	2.8448 mm	2.8448 mm	2.8448 mm	2.8448 mm	2.54 mm	2.8448 mm	2.8448 mm
Rated current (signal)	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A	7.5 A
Guideline	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Shell surface	CADMIUM	CADMIUM	CADMIUM	CADMIUM	CADMIUM	CADMIUM	CADMIUM
Shell material	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL	STEEL
Housing size	2/A	5/D	3/B	3/B	3/B	3/B	4/C
Terminal length	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch	0.157 inch
Terminal pitch	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm	2.7686 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	50	25	25	25	25	37
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
Base Number Matches	1	1	1	1	1	1	1
Maker	Amphenol	-	-	Amphenol	Amphenol	Amphenol	Amphenol
Factory Lead Time	14 weeks 3 days	19 weeks	-	19 weeks	19 weeks	19 weeks	19 weeks
Is it lead-free?	-	Contains lead	Contains lead	Contains lead	-	Contains lead	Contains lead
Is it Rohs certified?	-	incompatible	incompatible	incompatible	-	incompatible	incompatible
