Transient Voltage Suppressor SM
PART NUMBER:SJ6118US
PACKAGE STYLE:MELFTVS
CONFIGURATION:Transient Voltage Suppressor SM
-All ratings are @ Tc = 25 °C unless otherwise specified.
Disclaimer
MAXIMUM RATINGS / ELECTRICAL
CHARACTERISTICS
MIN BREAKDOWN VOLTAGE
TEST CURRENT
WORKING PEAK REVERSE VOLTAGE VRWM
MAXIMUM REVERSE CURRENT
MAXIMUM CLAMP VOLTAGE
MAXIMUM PEAK PULSE CURRENT
MAXIMUM TEMPERATURE COEFFICIENT
PEAK PULSE POWER
OPERATING TEMPERATURE
STORAGE TEMPERATURE
SYMBOL
Min V
dc
mAmps
dc
V
dc
I
R1
VC(max)@I
p,
tp=1ms
VALUE UNITS
29.7
40
25
1
47.9
10.4
0.095
500
-55 to
+175
-55 to
+175
Vdc
mAmps
dc
Vdc
uAmps dc
Volts(pk)
Amps(pk)
%/°C
Watts
°C
°C
I
p
V
BR
P
pp
T
o
T
o
NOTES:
PR = 3W (for 1,500W) peak pulse power devices at TA = +25°C
PR = 5W (for 1,500W) peak pulse power devices at TL = +75°C for L = 0.375 inch (9.53mm).
PPR = 1,500W at tp = 1ms

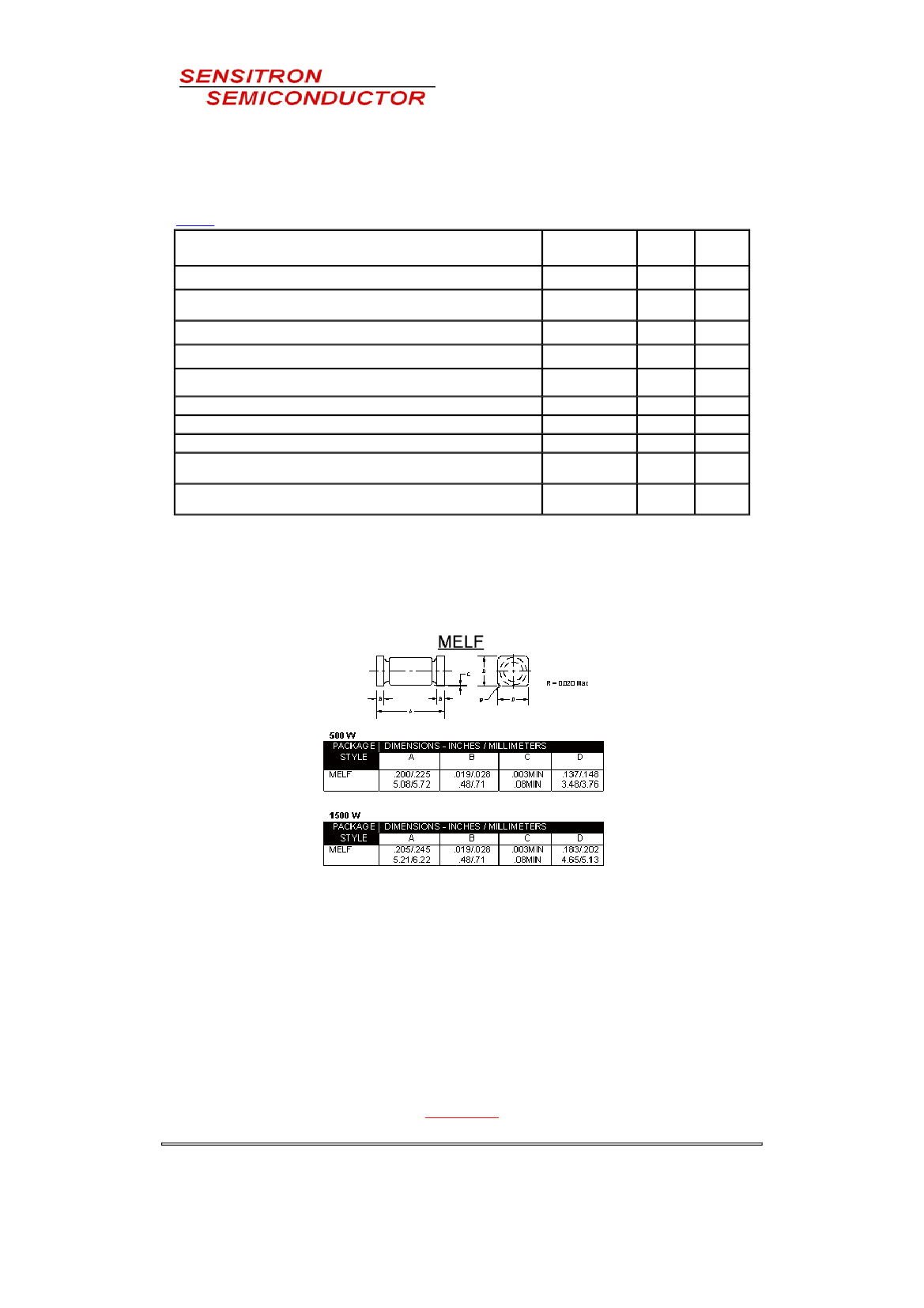

MECHANICAL DIMENSIONS: In Inches / mm
*This
drawing is for reference only.
Data and specifications subject to change without notice.
