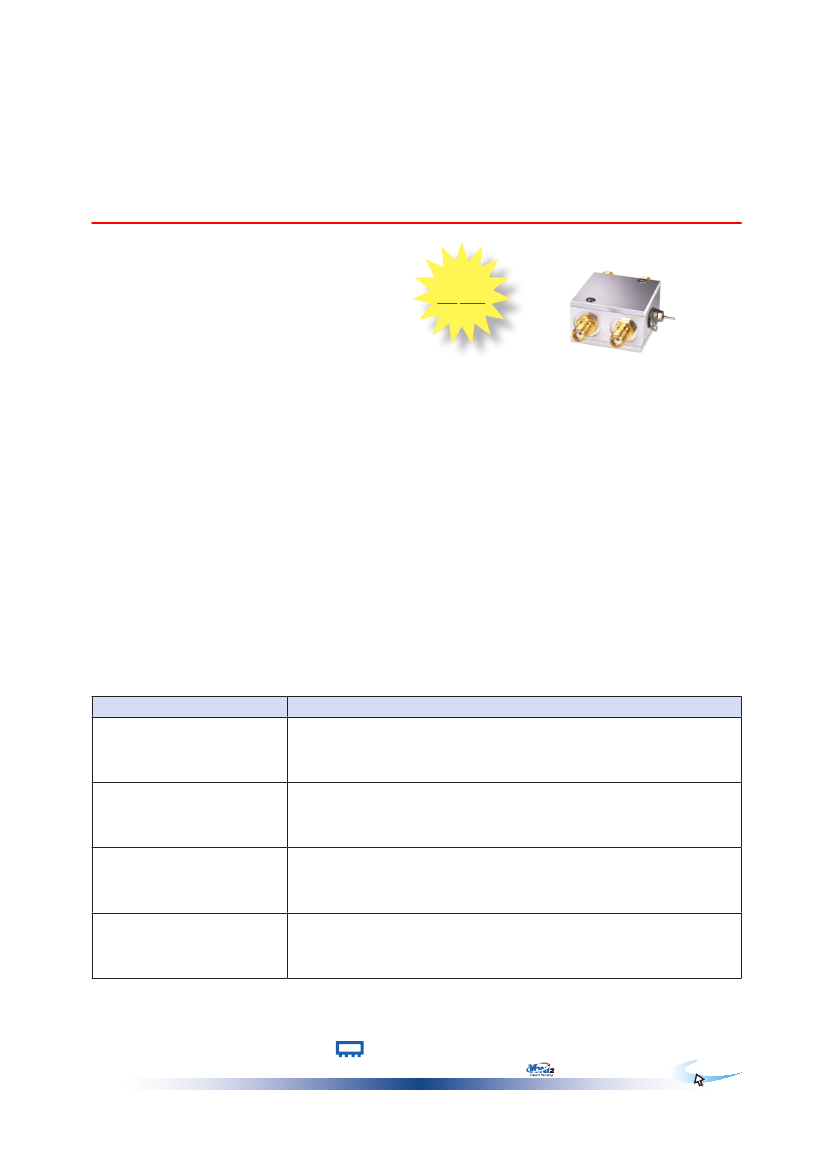

New Product Announcement!
Absorptive SPDT Solid State RF Switch
ZFSWA2-63DR+
The Big Deal
Click
here for
data sheet
• Wide bandwidth 500 to 6000 MH
z
• Very high isolation, 65 dB at 1GHz
Pricing:
$69.95
(QTY 1-9)
• Very fast switching, 35ns
• Rugged case with internal hermetically
sealed ceramic semi-conductor module
Product Overview
The ZFSWA2-63DR+ is a great general purpose SPDT solid state absorptive RF switch. With its broad
frequency range, fast 35 ns switching time and excellent RF performance, the ZFSWA2-63DR+ is an
excellent choice for many applications. In addition to it’s versatility within system block diagrams, the
ZFSWA2-63DR+ is designed for easy integration into your prototype design applications.
Key Features
Feature
Designed for any environment
Suitable for many environments and applications the ZFSWA2-63DR+ offers excellent performance
and value
-Operates from 3-5V
-Low control current 5 µA allows compatibility with a variety of driver circuits
-Internal Decoupling
-Fast 35 ns Switching time
-High speed testers
-Automated switching networks
-Wireless Infrastructure
-Military
-Wide bandwidth: 500 to 6000 MHz
-Low Insertion Loss: 1.4 dB Typ
-Low Supply current: 18 µA Typ
-High Isolation: 65 dB Typ @ 1 GHz
Advantages
The ZFSWA2-63DR+ is equipped with a rugged shielded case, a hermetically sealed internal device
with a wide operating temperature range (-55°C to 100°C)
Integrated CMOS Driver
Excellent for a Variety of Applications
From Bench to Integrated Systems
Excellent RF Performance
ISO 9001 ISO 14001 AS 9100
CERTIFIED
P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661
The Design Engineers Search Engine
IF/RF MICROWAVE COMPONENTS
Mini-Circuits
®
For detailed performance specs
& shopping online see web site
TM
Provides ACTUAL Data Instantly at
minicircuits.com
ZFSWA2-63DR+
090921
Notes: 1.
Performance and quality attributes and conditions not expressly stated in this specification sheet are intended to be excluded and do not form a part of this specification sheet.
2.
Electrical specifications
and performance data contained herein are based on Mini-Circuit’s applicable established test performance criteria and measurement instructions.
3.
The parts covered by this specification sheet are subject to
Mini-Circuits standard limited warranty and terms and conditions (collectively, “Standard Terms”); Purchasers of this part are entitled to the rights and benefits contained therein. For a full statement of the Standard
Terms and the exclusive rights and remedies thereunder, please visit Mini-Circuits’ website at www.minicircuits.com/MCLStore/terms.jsp.
