ZFSC-2-9G+ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> ZFSC-2-9G+

ZFSC-2-9G+: DescriptionPower Splitter/Combiner 2 Way-0 50ヘ 3500 to 9000 MHz; CategoryWireless rf/communication Radio frequency and microwave; File Size155KB，1 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

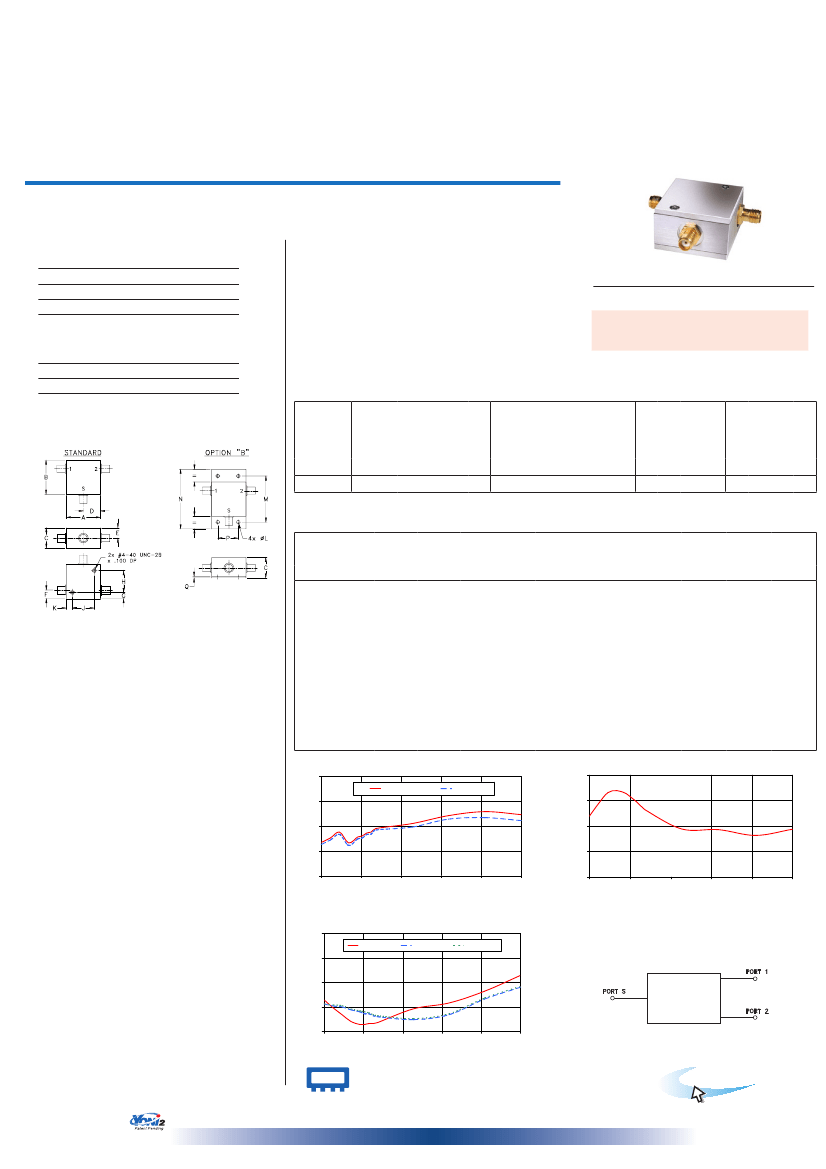

ZFSC-2-9G+ Overview

Power Splitter/Combiner 2 Way-0 50ヘ 3500 to 9000 MHz

ZFSC-2-9G+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	SMA, ISOLATION-MIN (DB):12
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	30 dBm
Maximum insertion loss	1.5 dB
Maximum operating frequency	9000 MHz
Minimum operating frequency	3500 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	COMBINER
Maximum voltage standing wave ratio	1.57

Preview

Download Datasheet

View All

Power Splitter/Combiner

2 Way-0°

Maximum Ratings

Operating Temperature

Storage Temperature

Power Input (as a splitter)

Internal Dissipation

-55°C to 100°C

1W max.

0.125W max.

Coaxial

ZFSC-2-9G+

50Ω

3500 to 9000 MHz

Features

• very wideband, 3500 to 9000 MHz

• low insertion loss, 0.5 dB typ.

• excellent amplitude unbalance, 0.1 dB typ.

• rugged shielded case

CASE STYLE: JJJ142

Connectors Model

Price

SMA

ZFSC-2-9G+

$59.95

BRACKET (OPTION "B")

$2.50

Qty.

(1-9)

(1+)

Coaxial Connections

SUM PORT

PORT 1

PORT 2

Applications

• instrumentation

• satellite communications

• defense communiations

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Suffix has been added in order to identify RoHS

Compliance. See our web site for RoHS Compliance

methodologies and qualifications.

Electrical Specifications

FREQ.

RANGE

(MHz)

-f

3500-9000

L = f

to 6 GHz

Outline Drawing

ISOLATION

(dB)

INSERTION LOSS (dB)

ABOVE 3.0 dB

Typ.

0.5

Max.

1.5

Typ.

0.6

Max.

1.2

PHASE

UNBALANCE

(Degrees)

Max. Max.

AMPLITUDE

UNBALANCE

(dB)

Max. Max.

0.3

0.5

Typ. Min. Typ. Min.

U = 6 GHz to f

Typical Performance Data

Frequency

(MHz)

Insertion Loss

(dB)

S-1

3500

3750

4000

4250

4500

4625

4750

4875

5000

6000

7000

8000

9000

3.17

3.26

3.38

3.16

3.28

3.30

3.36

3.38

3.45

3.55

3.71

3.79

3.73

S-2

3.13

3.22

3.33

3.11

3.24

3.26

3.33

3.34

3.42

3.48

3.64

3.67

3.61

0.06

0.07

0.05

0.07

0.06

0.08

0.15

0.13

0.19

0.22

21.90

24.38

26.50

26.90

26.31

25.61

24.88

24.01

23.18

19.39

19.26

18.13

19.34

1.29

1.26

1.27

1.52

1.57

1.58

1.64

1.72

1.78

1.96

2.22

2.53

2.54

1.32

1.24

1.17

1.10

1.07

1.08

1.09

1.23

1.29

1.41

1.57

ZFSC-2-9G+

ISOLATION

3500

Amplitude

Unbalance

(dB)

Isolation

(dB)

Phase

Unbalance

(deg.)

VSWR

Outline Dimensions (

inch

)

1.25

.75

.63

31.75 31.75 19.05 16.00

.800

20.32

.38

9.65

.32

8.13

.06

1.52

.23

.800

5.84 20.32

grams

70.0

.23 1.688

2.19

.750

5.84 42.88 55.63 19.05

1.28

1.26

1.25

1.22

1.20

1.18

1.16

1.15

1.12

1.17

1.33

1.45

1.28

1.27

1.26

1.23

1.21

1.20

1.19

1.17

1.16

1.13

1.18

1.34

1.46

ZFSC-2-9G+

INSERTION LOSS

4.5

INSERTION LOSS (dB)

S-1(dB)

S-2(dB)

3.5

3.0

2.5

3500

4600

5700

6800

7900

9000

ISOLATION (dB)

4.0

4600

5700

6800

7900

9000

FREQUENCY (MHz)

ZFSC-2-9G+

VSWR

2.00

#S-VSWR

#1-VSWR

#2-VSWR

1.75

VSWR

1.50

1.25

1.00

3500

electrical schematic

4600

5700

6800

7900

9000

FREQUENCY (MHz)

Mini-Circuits

minicircuits.com

REV. B

M108294

ZFSC-2-9G+

HY/TD/CP

081208

ISO 9001 ISO 14001

AS 9100

CERTIFIED

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661 For detailed performance specs & shopping online see Mini-Circuits web site

The Design Engineers Search Engine

Provides ACTUAL Data Instantly From MINI-CIRCUITS At:

www.minicircuits.com

IF/RF MICROWAVE COMPONENTS
