T727124534DN datasheet, PDF - EEWORLD Datasheet

T727124534DN: DescriptionSilicon Controlled Rectifier, 700A I(T)RMS, 700000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, CASE T72, 3 PIN; CategoryAnalog mixed-signal IC Trigger device; File Size1MB，5 Pages; ManufacturerPOWEREX; Websitehttp://www.pwrx.com/Home.aspx

Download Datasheet Parametric View All

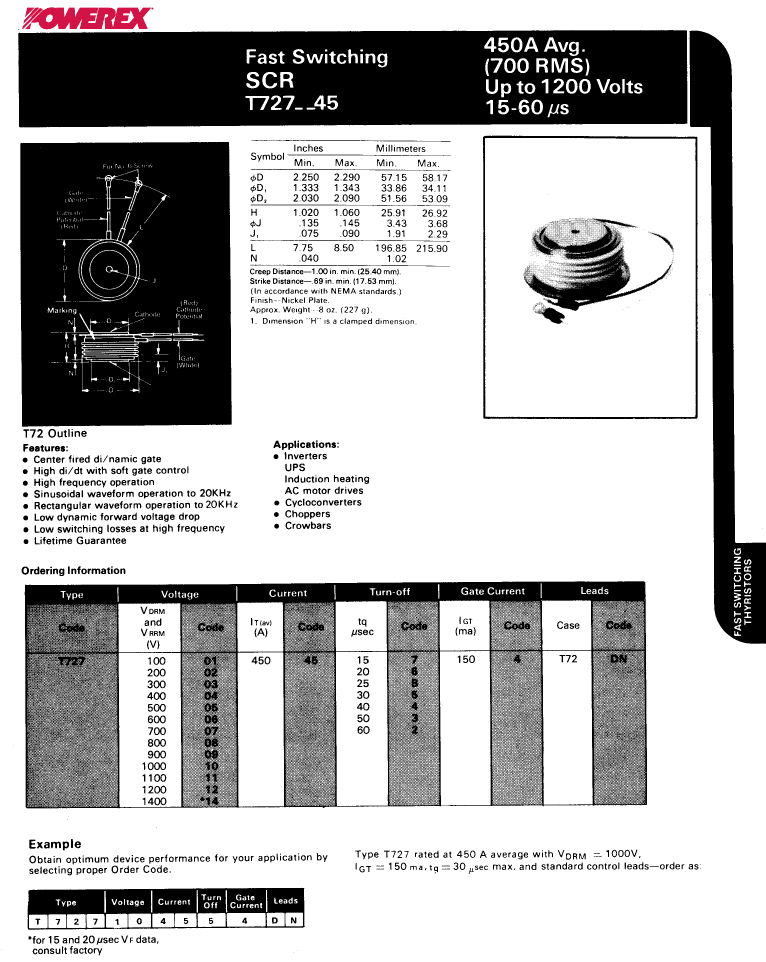

T727124534DN Overview

Silicon Controlled Rectifier, 700A I(T)RMS, 700000mA I(T), 1200V V(DRM), 1200V V(RRM), 1 Element, CASE T72, 3 PIN

Parameter Name	Attribute value
Maker	POWEREX
package instruction	DISK BUTTON, O-XXDB-X3
Contacts	3

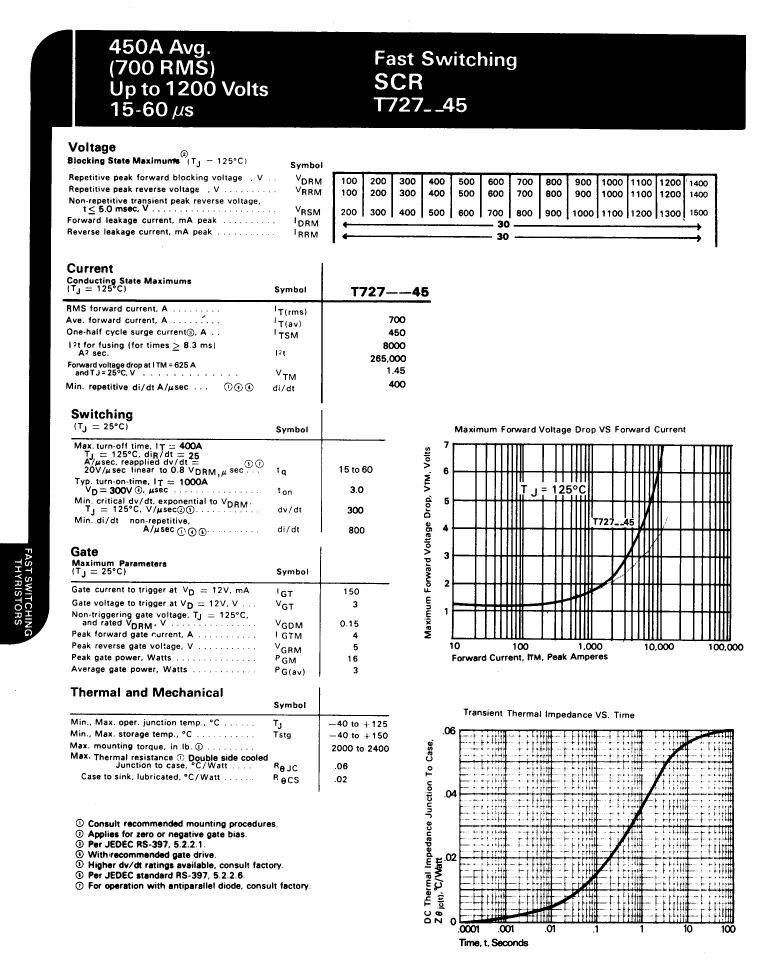

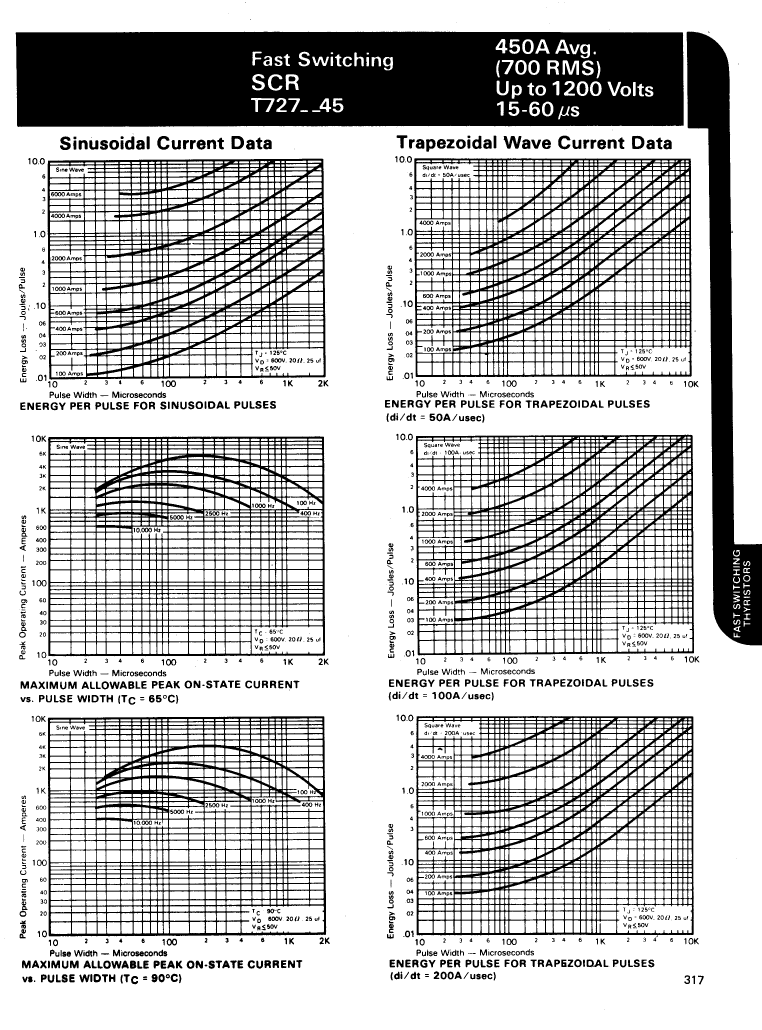

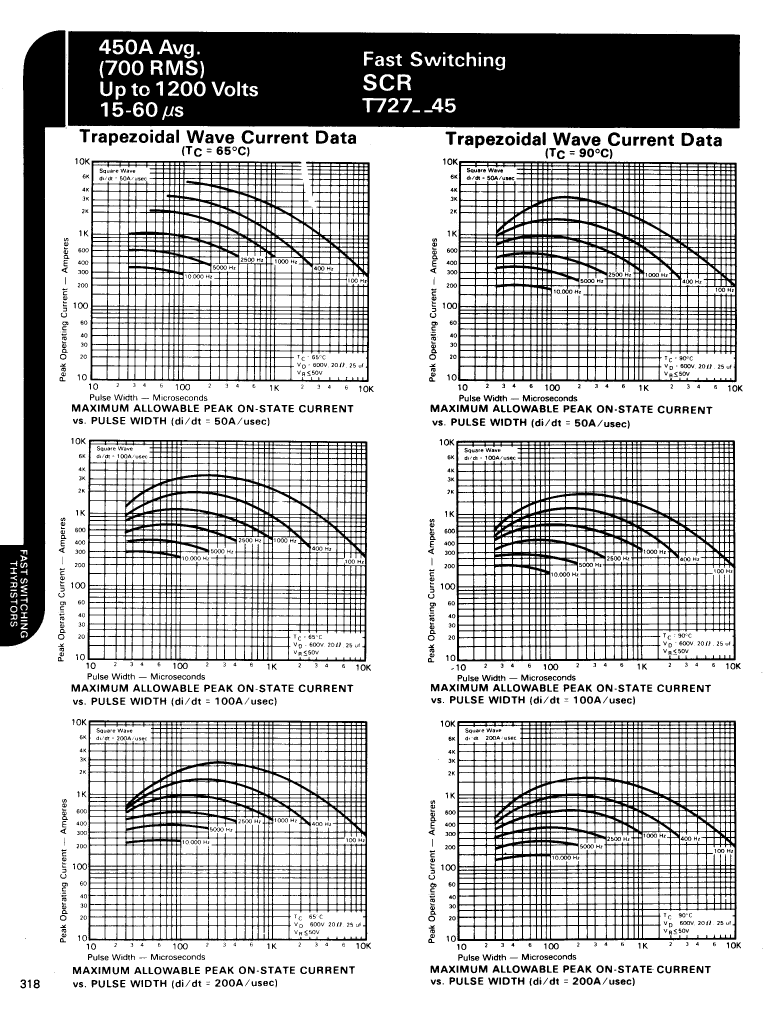

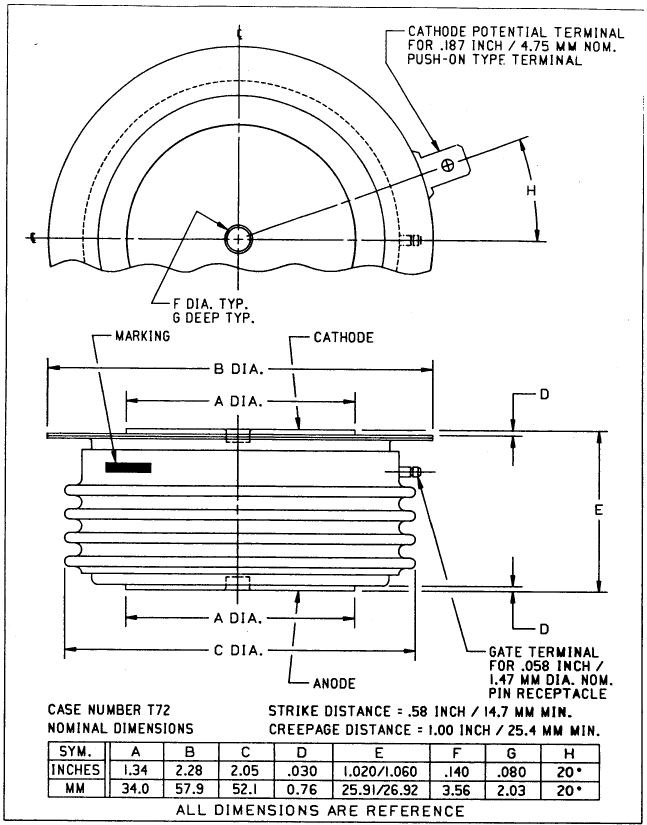

Manufacturer packaging code	CASE T72
Reach Compliance Code	unknown
Configuration	SINGLE
Critical rise rate of minimum off-state voltage	300 V/us
Maximum DC gate trigger current	150 mA
Maximum DC gate trigger voltage	3 V
JESD-30 code	O-XXDB-X3
Maximum leakage current	30 mA
On-state non-repetitive peak current	8000 A
Number of components	1
Number of terminals	3
Maximum on-state current	700000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	DISK BUTTON
Certification status	Not Qualified
Maximum rms on-state current	700 A
Off-state repetitive peak voltage	1200 V
Repeated peak reverse voltage	1200 V
surface mount	YES
Terminal surface	NICKEL
Terminal form	UNSPECIFIED
Terminal location	UNSPECIFIED
Trigger device type	SCR
Base Number Matches	1

173 Pavilion Lane, Youngwood, PA 15697 www.pwrx.com
