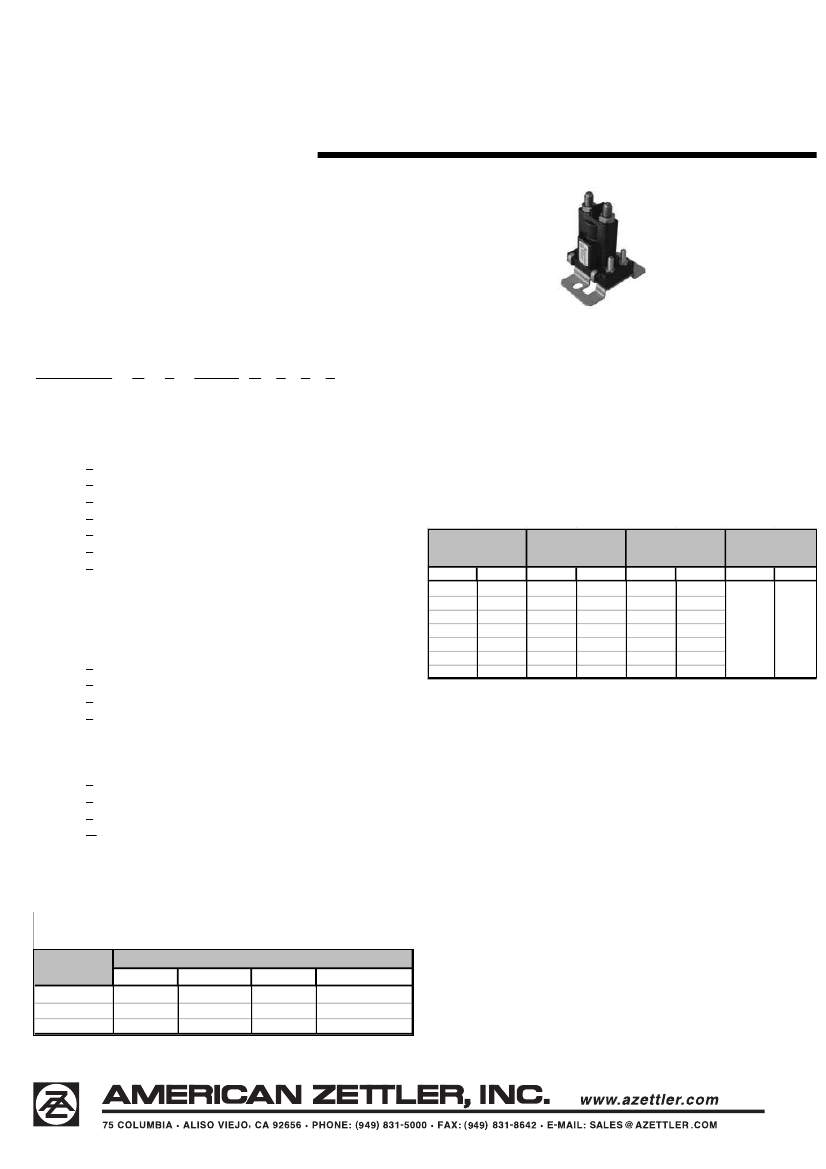

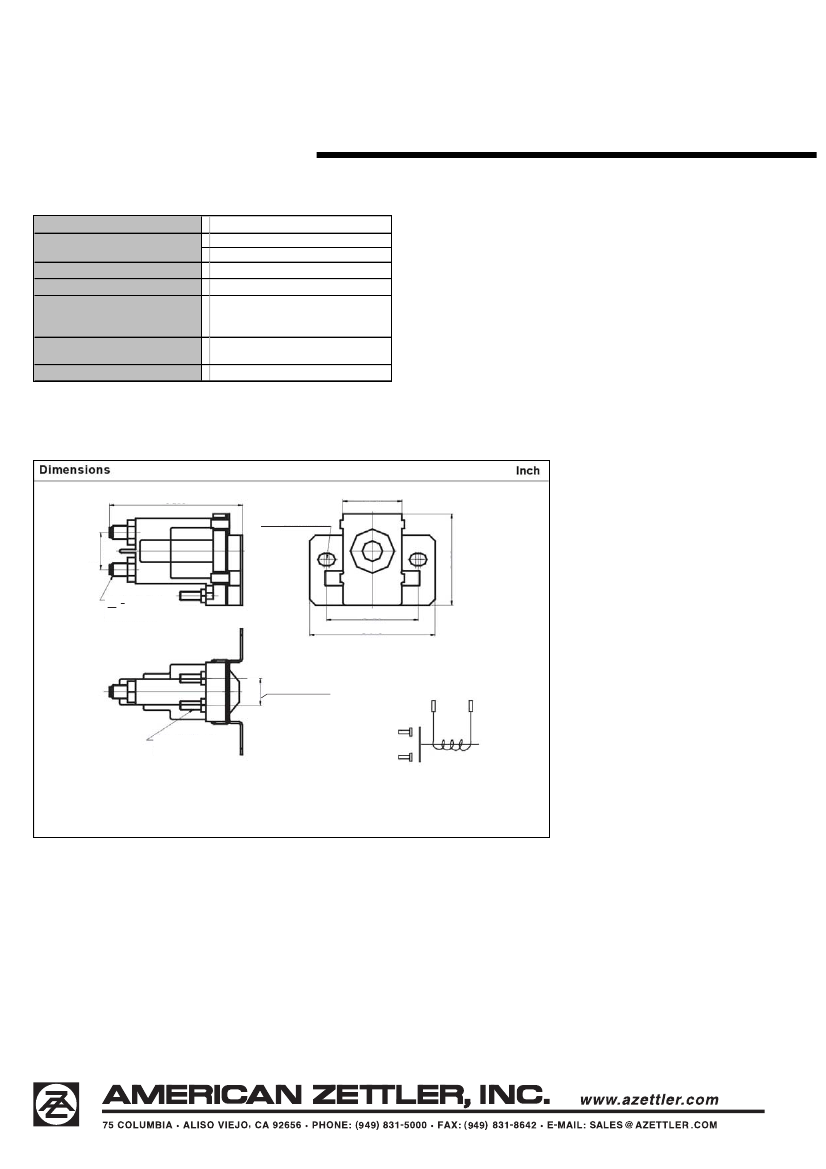

ZCS1-120

WATER RESISTANT SOLENOID

FEATURES

•

Water resistant

•

Capable of handling low and high current requirements

•

Versatile mounting and termination

ORDERING INFORMATION

ZCS1-120

DC6V C 1 1 1

5 6 7 8

1. Part number:

ZCS1-120

2. Contact arrangement:

A: 1A (SPNO)

3. Coil termination

(15in - lb torque spec.)

1. Isolated w/#10-32 terminal (0.22 min. length)

2: Grounded w/#10-32 terminal (0.22 min. length)

3: Isolated w/1/4” Q.C terminal

4: Grounded w/1/4” Q.C terminal

6: Grounded w/#8-32 tapered terminal

7: iSOLATED w/#10-32 terminal (0.45 min. length)

8: Grounded w/#10-32 terminal (0.45 min. length)

4. Coil Voltage:

6,12,14,15, 24, 36, 48

5. Coil Type:

C: Continuous

I: Intermittent

6. Contact Material and termination (55 in-lb torque spec.):

1: AgCdO with 5/16” -24 terminal (0.38” min. length)

3: Cu with 5/16” -24 terminal (0.38” min. length)

4: Cu with 1/4” -20 terminal (0.50” min length

5: AgCdO with 5/16” -24 terminal (0.50” min. length)

7. Mounting Bracket:

1: Standard

2: “L” shaped bracket

8. Factory Assigned Special's:

(where undefined contact factory)

1: Without hardware

2: Extra hardware loosely mounted to solenoid

5: Zinc plated mounting bracket

7: No hardware, zinc plated mounting bracket

COIL PARAMETERS

•

Termination; #8 -32 UNC 2A, #10-32 UNF-2A thread or 1/4” quick

connect

•

Connections:

1. Coil isolated (two terminals)

2. One coil lead grounded to bracket (one terminal)

•

Coil data:

Coil

Voltage (VDC)

Rated

Max

6.6

13.2

15.4

16.5

26.4

39.6

52.8

Coil

Resistance (ohm)

Int.

6.0

9.4

24.0

54.0

Cont.

4.0

16.0

26.0

23.0

64.0

160.0

256.0

Must-Operate

Voltage (VDC)

Int.

8.04

10.05

16.08

24.12

Cont.

4.5

9.0

10.5

11.3

18.0

27.0

26.0

Coil

Power (W)

Int.

Cont.

24.0

9.0

*Special coils available upon request

CONTACT DATA

•

Contact Arrangement: 1A (SPNO)

•

Contact Material: AgCd0, or Copper

•

Termination; 5/16” -24 UNF-2A thread or 1/4” -20 UNC-2A thread

Load Voltage

(VDC)

*Number of operations

Ratings

Cont. (A)

100

In-rush (A)

400

Elec. Life Contact Material

10000*

50,000*

25,000*

Copper

AgCdO

10/11/06
