ASMLP-1.000MHZ-L datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> ASMLP-1.000MHZ-L

ASMLP-1.000MHZ-L: DescriptionHCMOS Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT, J LEADED, PLASTIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size815KB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ASMLP-1.000MHZ-L Overview

HCMOS Output Clock Oscillator, 1MHz Nom, ROHS COMPLIANT, J LEADED, PLASTIC, SMD, 4 PIN

ASMLP-1.000MHZ-L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Abracon
Reach Compliance Code	compliant
Other features	TRISTATE; ENABLE/DISABLE FUCTION; BULK
maximum descent time	4 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Manufacturer's serial number	ASMLP
Installation features	SURFACE MOUNT
Nominal operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	15 pF
physical size	14.0mm x 8.95mm x 4.7mm
longest rise time	4 ns
Maximum supply voltage	3.63 V
Minimum supply voltage	2.97 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %
Base Number Matches	1

Preview

Download Datasheet

View All

3.3 V, HCMOS/ TTL, J LEADED, PLASTIC MOLDED

PROGRAMMABLE CLOCK OSCILLATOR

ASMLP SERIES

FEATURES:

• Industry standard J-Leaded terminals. • HCMOS output.

• Plastic molded SMD, Reflow capable. • 3.3Vdc operation.

• Extended temperature

• Low current consumption.

-40°C to +85°C option.

• Tri-state Enable/Disable.

RoHS

Compliant

14.0 x 8.95 x 4.7 mm

| | | | | | | | | | | | | | |

APPLICATIONS:

• Provide clock signals for microprocessors

and digital circuits.

• Communication equipment, AV and OA equipment

STANDARD SPECIFICATIONS:

PARAMETERS

ABRACON P/N

Frequency range:

Operating temperature:

Storage temperature:

Overall frequency stability:

Supply voltage (Vdd):

Input current:

Symmetry at 1/2VDD:

ASMLP Series

1.000MHz ~ 106.250MHz

-20° C to +70° C (see options)

- 55° C to + 125° C

± 100 ppm max. (see options)

3.3Vdc ± 10%

25 mA max.

45/55 % max.

4 ns max. @ 20% to 80% of waveform

15pF max.

VOH = 0.7*Vdd min.

VOL = 0.2*Vdd max.

"1" (VIH >= 0.7* Vdd) or open: Oscillation

"0" (VIL < 0.2* Vdd) : Hi Z

10 ms max.

20µA max.

± 250ps max. for F< 33MHz, ±100ps typ.

± 125ps max. for F>33MHz, ±75ps typ.

± 50ps max. for F< 33MHz, ± 30ps typ.

± 30ps max. for F>33MHz, ± 20ps typ.

Rise and fall time (Tr/Tf):

Output load:

Output voltage:

Tri-state function:

Start-up time:

Disabled current (Stand-by):

Jitter (Peak to Peak):

Jitter (RMS):

Aging:

±5ppm/first year

OPTIONS AND PART IDENTIFICATION

(Left blank if standard)

ASMLP-Frequency -

Packaging

Bulk

Blank

Tape and Reel

Temp. Range

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Frequency Stability

Over Operating Temp.

Blank

± 100 ppm

± 25 ppm*

± 50 ppm

(*) Contact ABRACON for availability.

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised: 08.10.09

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com

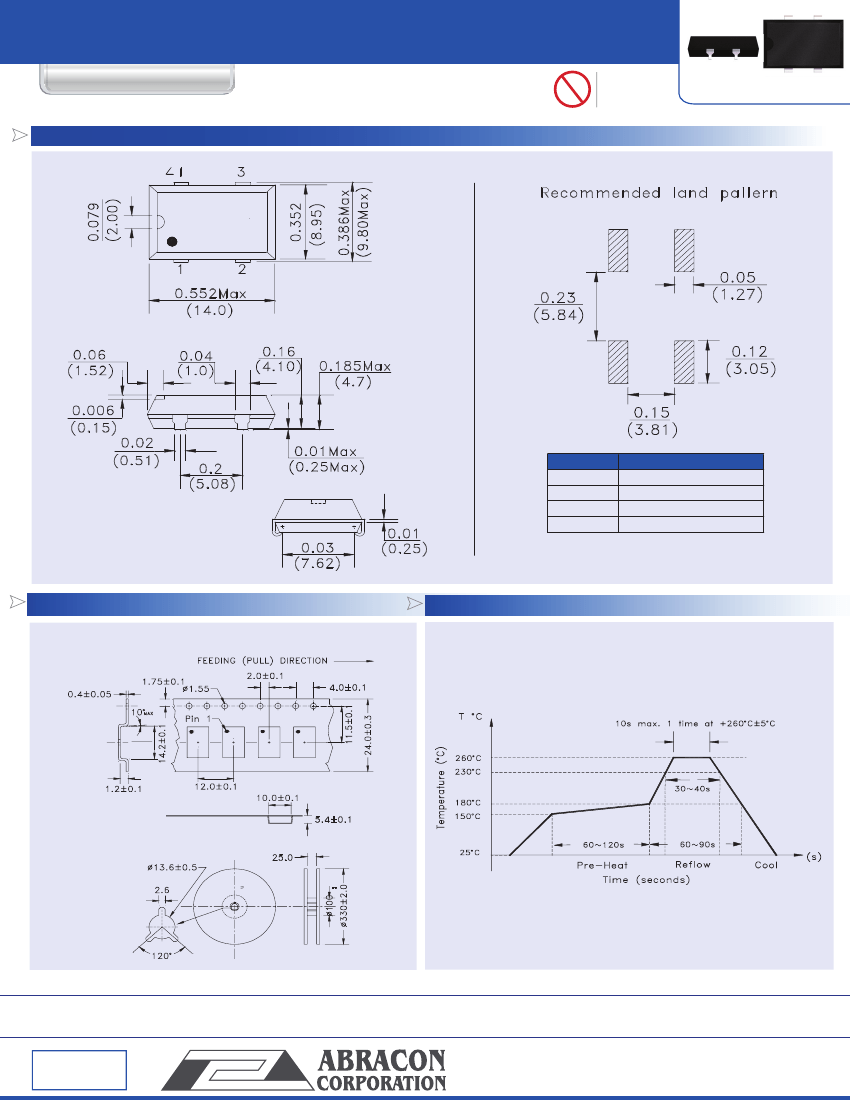

Visit www.abracon.com for Terms & Conditions of Sale
