Encapsulated DC-DC Converter
ZB15 SERIES
KEY FEATURES
Power Module for PCB Mountable
Low Cost but High Reliability
2:1 Input Range
Regulated Output
Low Ripple and Noise
Remote ON/OFF Control (Optional)
2 Years Product Warranty
15 Watts
ELECTRICAL SPECIFICATIONS
Model No.
Input Voltage (V.DC.)
Output Voltage (V.DC.)
Efficiency
Model No.
Input Voltage (V.DC.)
Output Voltage (V.DC.)
Efficiency
Model No.
Input Voltage (V.DC.)
Output Voltage (V.DC.)
Efficiency
ZB15-12-3.3S
12V (9-18V)
3.3V / 3000mA
77%
ZB15-24-3.3S
24V (18-36V)
3.3V / 3000mA
77%
ZB15-48-3.3S
48V (36-75V)
3.3V / 3000mA
79%
ZB15-12-5S
12V (9-18V)
5V / 3000mA
80%
ZB15-24-5S
24V (18-36V)
5V / 3000mA
82%
ZB15-48-5S
48V (36-75V)
5V / 3000mA
83%
ZB15-12-12S
12V (9-18V)
12V / 1250mA
82%
ZB15-24-12S
24V (18-36V)
12V / 1250mA
85%
ZB15-48-12S
48V (36-75V)
12V / 1250mA
86%
ZB15-12-15S
12V (9-18V)
15V / 1000mA
84%
ZB15-24-15S
24V (18-36V)
15V / 1000mA
86%
ZB15-48-15S
48V (36-75V)
15V / 1000mA
87%
ZB15-12-24S
12V (9-18V)
24V / 625mA
84%
ZB15-24-24S
24V (18-36V)
24V / 625mA
87%
ZB15-48-24S
48V (36-75V)
24V / 625mA
87%
Model No. ( Dual Output )
Input Voltage (V.DC.)
Output Voltage (V.DC.)
Efficiency
ZB15-12-5D
12V (9-18V)
±5V
/
±1500mA
78%
ZB15-12-12D
12V (9-18V)
±12
/
±625mA
79%
ZB15-12-15D
12V (9-18V)
±15
/
±500mA
79%
Model No. ( Dual Output )
Input Voltage (V.DC.)
Output Voltage (V.DC.)
Efficiency
Model No. ( Dual Output )
Input Voltage (V.DC.)
Output Voltage (V.DC.)
Efficiency
ZB15-24-5D
24V (18-36V)
±5V
/
±1500mA
78%
ZB15-48-5D
48V (36-75V)
±5V
/
±1500mA
78%
ZB15-24-12D
24V (18-36V)
±12
/
±625mA
79%
ZB15-48-12D
48V (36-75V)
±12
/
±625mA
79%
ZB15-24-15D
24V (18-36V)
±15
/
±500mA
79%
ZB15-48-15D
48V (36-75V)
±15
/
±500mA
79%
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-1-
VER :
A_3
update :
98.04.09
Encapsulated DC-DC Converter
ZB15 SERIES
15 Watts

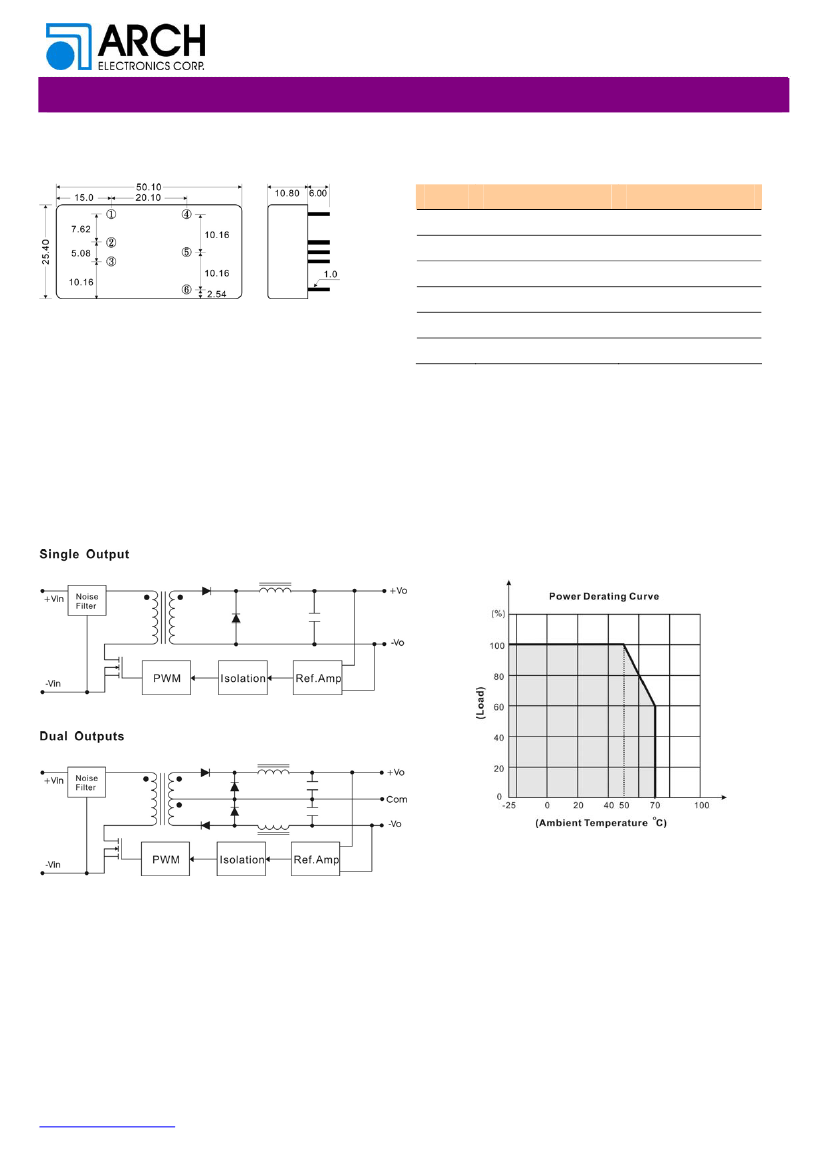

ZB15-12-3.3S
Model No.
( Single Output )
ZB15-24-3.3S
ZB15-48-3.3S
Max Output Wattage (W)
Input
Input Filter
Voltage (V.DC.)
Voltage Accuracy
Current (mA) max
Line Regulation (LL-HL) (typ.)
Output
Load Regulation (10-100%) (typ.)
Minimum Load
Ripple
Noise
Switching Frequency
Over Power Protection
Protection
Over Voltage Protection
Short Circuit Protection
Voltage
Isolation
Resistance
Capacitance
Operating Temperature
Storage Temperature
Case Temperature
Environment
Temperature Coefficient
Humidity
MTBF
Dimension (L x W x H)
Case Material
Physical
Weight
Cooling Method
9.9W
ZB15-12-5S
ZB15-24-5S
ZB15-48-5S
15W
ZB15-12-12S
ZB15-24-12S
ZB15-48-12S
15W
ZB15-12-15S
ZB15-24-15S
ZB15-48-15S
15W
15
1000
ZB15-12-24S
ZB15-24-24S
ZB15-48-24S
15W
24
625
π
type
3.3
5
12
±2%
3000
3000
1250
±0.5%
±1%
3%
3%
0%
<0.2% Vout +40mV max (Vp-p)
<0.5% Vout +50mV max (Vp-p)
300KHz
Works over 120% of rating and recovers automatically.
Zener diode clamp
Current limit, auto-recovery
1600 VDC.
0%
0%
10
8
ohms
1000 pF
-25°C…+70°C (with derating)
-55°C…+105°C
+100°C max.
±0.02%
Per°C
95% RH
>800,000 h @ 25°C (MIL-HDBK-217F)
1.97 x 1.0 x 0.425 Inches ( 50.1 x 25.4 x 10.8 mm ) Tolerance
±0.5
mm
Five-side shielded Aluminum with Non-Conductive base, Black Anodize
32 g
Free-air convection
ZB15-12-5D
Model No.
( Dual Output )
ZB15-24-5D
ZB15-48-5D
Max Output Wattage (W)
Input
Input Filter
Voltage (V.DC.)
Voltage Accuracy
Current (mA) max
Line Regulation (LL-HL) (typ.)
Output
Load Regulation (10-100%)(Balance Load)
Minimum Load
Ripple
Noise
Switching Frequency
Over Power Protection
Protection
Over Voltage Protection
Short Circuit Protection
Voltage
Isolation
Resistance
Capacitance
Operating Temperature
Storage Temperature
Case Temperature
Environment
Temperature Coefficient
Humidity
MTBF
Dimension (L x W x H)
Case Material
Physical
Weight
Cooling Method
15W
ZB15-12-12D
ZB15-24-12D
ZB15-48-12D
ZB15-12-15D
ZB15-24-15D
ZB15-48-15D
π
type
±5
±12
±2%
±1500
±625
±0.5%
±1%
3%
<0.2% Vout +40mV max (Vp-p)
<0.5% Vout +50mV max (Vp-p)
300KHz
Works over 120% of rating and recovers automatically.
Zener diode clamp
Current limit, auto-recovery
1600 VDC.
10
8
ohms
1000 pF
-25°C…+70°C (with derating)
-55°C…+105°C
+100°C max.
±0.02%
Per°C
95% RH
>800,000 h @ 25°C (MIL-HDBK-217F)
1.97 x 1.0 x 0.425 Inches ( 50.1 x 25.4 x 10.8 mm ) Tolerance
±0.5
mm
Five-side shielded Aluminum with Non-Conductive base, Black Anodize
32 g
Free-air convection
±15
±500
All specifications valid at nominal input voltage, full load and +25°C after warm-up time unless otherwise stated.
http://www.archcorp.com.tw
TEL: +886-2-26989508 FAX: +886-2-26981319
-2-
