5.0W Surface Mount Zener Diodes
Z5SMB5333B – Z5SMB5388B
5.0W Surface Mount Zener Diodes
Features
•
Complete Voltage Range 3.3 to 200V
•
High peak reverse power dissipation
•
High reliability
•
Low leakage current
•
RoHS Compliant
SMB
(DO-214AA)
Mechanical Data
Case:
Epoxy:
Lead:
Polarity:
Weight:
SMB (DO-214AA) molded plastic
Plastic package has UL flammability 94V-0
Lead formed for surface mount
Color band denotes cathode end
0.093 gram
Maximum Ratings
(T
Ambient
=25ºC unless noted otherwise)
Symbol
Description
DC Power dissipation
Value
5.0
Unit
W
Conditions
T
L
=75 °C (Note)
P
D
V
F
Max. Forward Voltage drop
Operating Junction and Storage
Temperature Range
1.2
V
I
F
=200mA
T
J,
T
STG
-55 to 150
°C
Note:
T
L
= Lead temperature at 5.0mm x 5.0mm (0.013mm thick) copper land areas
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060
Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415
Rev. A/DX 2007-09-30
Page 1 of 5
5.0W Surface Mount Zener Diodes
Z5SMB5333B – Z5SMB5388B
Electrical Characteristics
(T
Ambient
=25ºC unless noted otherwise)
Norminal Zener Voltage @ I
ZT
Part NO.
Marking
Code
Nom.
Z5SMB5333B
Z5SMB5334B
Z5SMB5335B
Z5SMB5336B
Z5SMB5337B
Z5SMB5338B
Z5SMB5339B
Z5SMB5340B
Z5SMB5341B
Z5SMB5342B
Z5SMB5343B
Z5SMB5344B
Z5SMB5345B
Z5SMB5346B
Z5SMB5347B
Z5SMB5348B
Z5SMB5349B
Z5SMB5350B
Z5SMB5351B
Z5SMB5352B
Z5SMB5353B
Z5SMB5354B
Z5SMB5355B
Z5SMB5356B
Z5SMB5357B
Z5SMB5358B
Z5SMB5359B
Z5SMB5360B
Z5SMB5361B
Z5SMB5362B
Z5SMB5363B
Z5SMB5364B
333B
334B
335B
336B
337B
338B
339B
340B
341B
342B
343B
344B
345B
346B
347B
348B
349B
350B
351B
352B
353B
354B
355B
356B
357B
358B
359B
360B
361B
362B
363B
364B
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.0
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
14
15
16
17
18
19
20
22
24
25
27
28
30
33
Max. Zener Impedance (Ω)
Max. Reverse
Leakage
Current I
R
@
V
R
V
Z
(V)
Min.
3.1
3.4
3.7
4.1
4.5
4.8
5.3
5.7
5.9
6.5
7.1
7.8
8.3
8.7
9.5
10.5
11.4
12.4
13.3
14.3
15.2
16.2
17.1
18.1
19.0
20.9
22.8
23.8
25.7
26.6
28.5
31.4
Max.
3.5
3.8
4.1
4.5
4.9
5.4
5.9
6.3
6.5
7.1
7.9
8.6
9.1
9.6
10.5
11.6
12.6
13.7
14.7
15.8
16.8
17.9
18.9
20.0
21.0
23.1
25.2
26.3
28.4
29.4
31.5
34.7
Max.
DC
Zener
Current
I
ZT
(mA)
380
350
320
290
260
240
220
200
200
175
175
150
150
150
125
125
100
100
100
75
75
70
65
65
65
50
50
50
50
50
40
40
Z
ZT
@
I
ZT
3.0
2.5
2.0
2.0
2.0
1.5
1.0
1.0
1.0
1.0
1.0
1.0
1.0
2.0
2.0
2.0
2.5
2.5
2.5
2.5
2.5
2.5
2.5
3.0
3.0
3.5
3.5
4.0
5.0
6.0
8.0
10
Z
ZK
@
I
zk
400
500
500
500
450
400
400
300
200
200
200
200
200
150
125
125
125
100
75
75
75
75
75
75
75
75
100
110
120
130
140
150
I
ZK
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
I
R
(μA)
300
150
50
10
5.0
1.0
1.0
1.0
1.0
10
10
10
10
7.5
5.0
5.0
2.0
1.0
1.0
1.0
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
V
R
(V) I
ZM
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
2.0
3.0
4.0
4.9
5.4
5.9
6.3
6.6
7.2
8.0
8.6
9.4
10.1
10.8
11.5
12.2
13.0
13.7
14.4
15.8
17.3
18.0
19.4
20.1
21.6
23.8
1440
1320
1220
1100
1010
930
856
790
765
700
630
580
545
520
475
430
395
365
340
315
295
280
265
250
237
216
198
190
176
170
158
144
Rev. A/DX 2007-09-30
www.taitroncomponents.com
Page 2 of 5
5.0W Surface Mount Zener Diodes
Z5SMB5333B – Z5SMB5388B
Norminal Zener Voltage @ I
ZT
Part NO.
Marking
Code
Nom.
Z5SMB5365B
Z5SMB5366B
Z5SMB5367B
Z5SMB5368B
Z5SMB5369B
Z5SMB5370B
Z5SMB5371B
Z5SMB5372B
Z5SMB5373B
Z5SMB5374B
Z5SMB5375B
Z5SMB5376B
Z5SMB5377B
Z5SMB5378B
Z5SMB5379B
Z5SMB5380B
Z5SMB5381B
Z5SMB5382B
Z5SMB5383B
Z5SMB5384B
Z5SMB5385B
Z5SMB5386B
Z5SMB5387B
Z5SMB5388B
365B
366B
367B
368B
369B
370B
371B
372B
373B
374B
375B
376B
377B
378B
379B
380B
381B
382B
383B
384B
385B
386B
387B
388B
36
39
43
47
51
56
60
62
68
75
82
87
91
100
110
120
130
140
150
160
170
180
190
200
Max. Reverse
Leakage
Current I
R
@
V
R
Max. Zener Impedance (Ω)
V
Z
(V)
Min.
34.2
37.1
40.9
44.7
48.5
53.2
57.0
58.9
64.6
71.3
77.9
82.7
86.5
95.0
104.5
114.0
123.5
133.0
142.5
152.0
161.5
171.0
180.5
190.0
Max.
37.8
41.0
45.2
49.4
53.6
58.8
63.0
65.1
71.4
78.8
86.1
91.4
95.6
105.0
115.5
126.0
136.5
147.0
157.5
168.0
178.5
189.0
199.5
210.0
Max.
DC
Zener
Current
I
ZT
(mA)
30
30
30
25
25
20
20
20
20
20
15
15
15
12
12
10
10
8.0
8.0
8.0
8.0
5.0
5.0
5.0
Z
ZT
@
I
ZT
11
14
20
25
27
35
40
42
44
45
65
75
75
90
125
170
190
230
330
350
380
430
450
480
Z
ZK
@
I
zk
160
170
190
210
230
280
350
400
500
620
720
760
760
800
1000
1150
1250
1500
1500
1650
1750
1750
1850
1850
I
ZK
(mA)
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
1.0
I
R
(μA)
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
V
R
(V) I
ZM
(mA)
25.9
28.1
31.0
33.8
36.7
40.3
43.0
44.6
49.0
54.0
59.0
63.0
65.5
72.0
79.2
86.4
93.2
101
108
115
122
130
137
144
132
122
110
100
93.0
86.0
79.0
76.0
70.0
63.0
58.0
54.5
52.5
47.5
43.0
39.5
36.6
34.0
31.6
29.4
28.0
26.4
25.0
23.6
Note:
Suffix “B” indicates
±5%
tolerance; suffix “A” indicates
±10%
tolerance.
Rev. A/DX 2007-09-30
www.taitroncomponents.com
Page 3 of 5
5.0W Surface Mount Zener Diodes
Z5SMB5333B – Z5SMB5388B

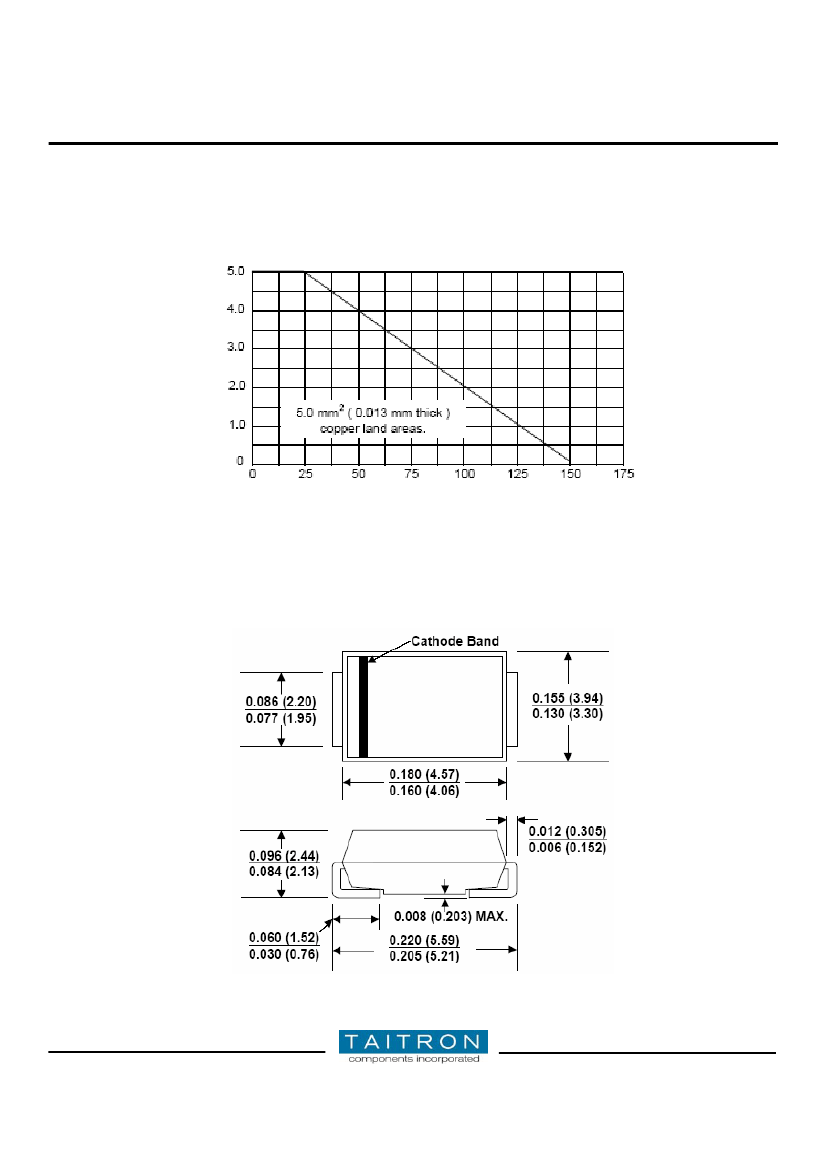

Typical Characteristics Curves
Fig.1- Power Temperature Derating Curve
P
D
, Maximum Dissipation (W)
T
L
, Lead Temperature (°C)
Dimensions in inch (mm)
SMB (DO-214AA)
Rev. A/DX 2007-09-30
www.taitroncomponents.com
Page 4 of 5
5.0W Surface Mount Zener Diodes
Z5SMB5333B – Z5SMB5388B
Marking Information:
