HD-8A datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> HD-8A

HD-8A: DescriptionRectifier Diode, 8 Element, 0.2A, Silicon; CategoryDiscrete semiconductor diode; File Size146KB，2 Pages; ManufacturerNichicon; Websitehttp://www.nichicon.co.jp

Download Datasheet Parametric Compare View All

HD-8A Overview

Rectifier Diode, 8 Element, 0.2A, Silicon

HD-8A Parametric

Parameter Name	Attribute value
Maker	Nichicon
package instruction	R-PSIP-T9
Reach Compliance Code	unknown
ECCN code	EAR99
Configuration	COMMON ANODE, 8 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	R-PSIP-T9
Maximum non-repetitive peak forward current	1 A
Number of components	8
Number of terminals	9
Maximum output current	0.2 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Maximum reverse current	1 µA
Maximum reverse recovery time	0.1 µs
surface mount	NO
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Base Number Matches	1

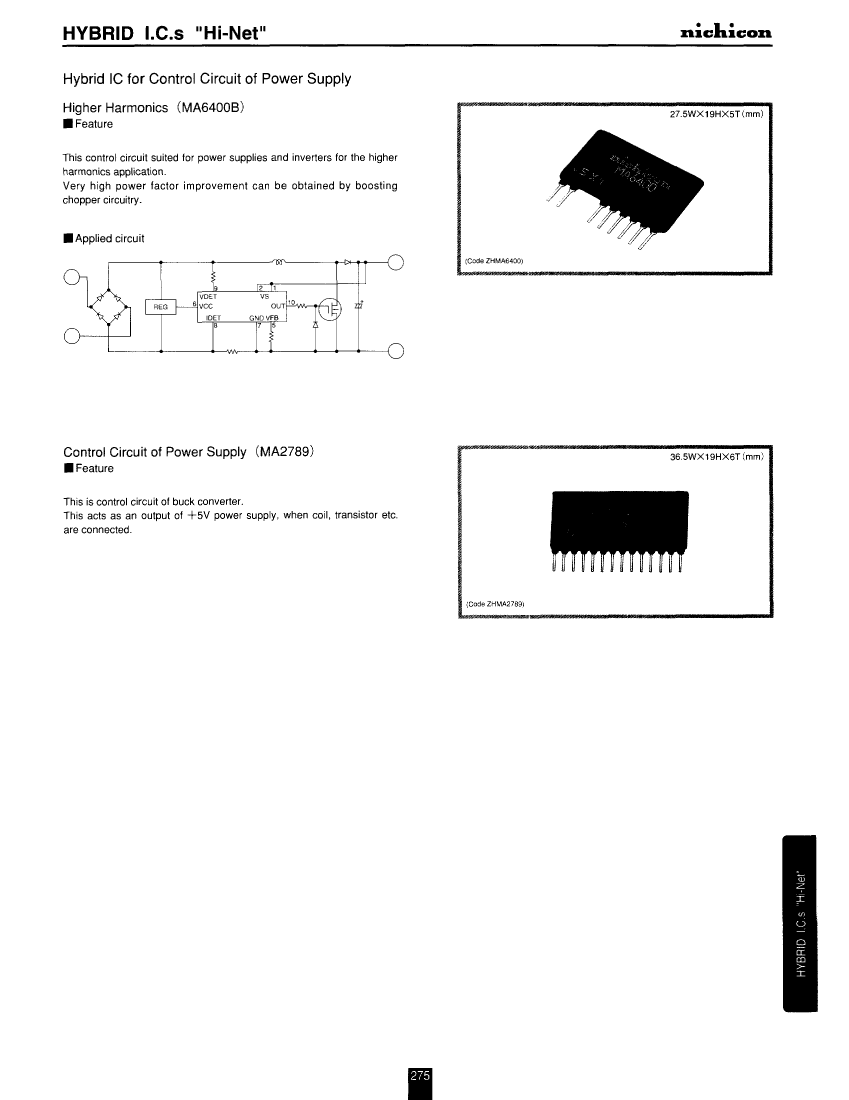

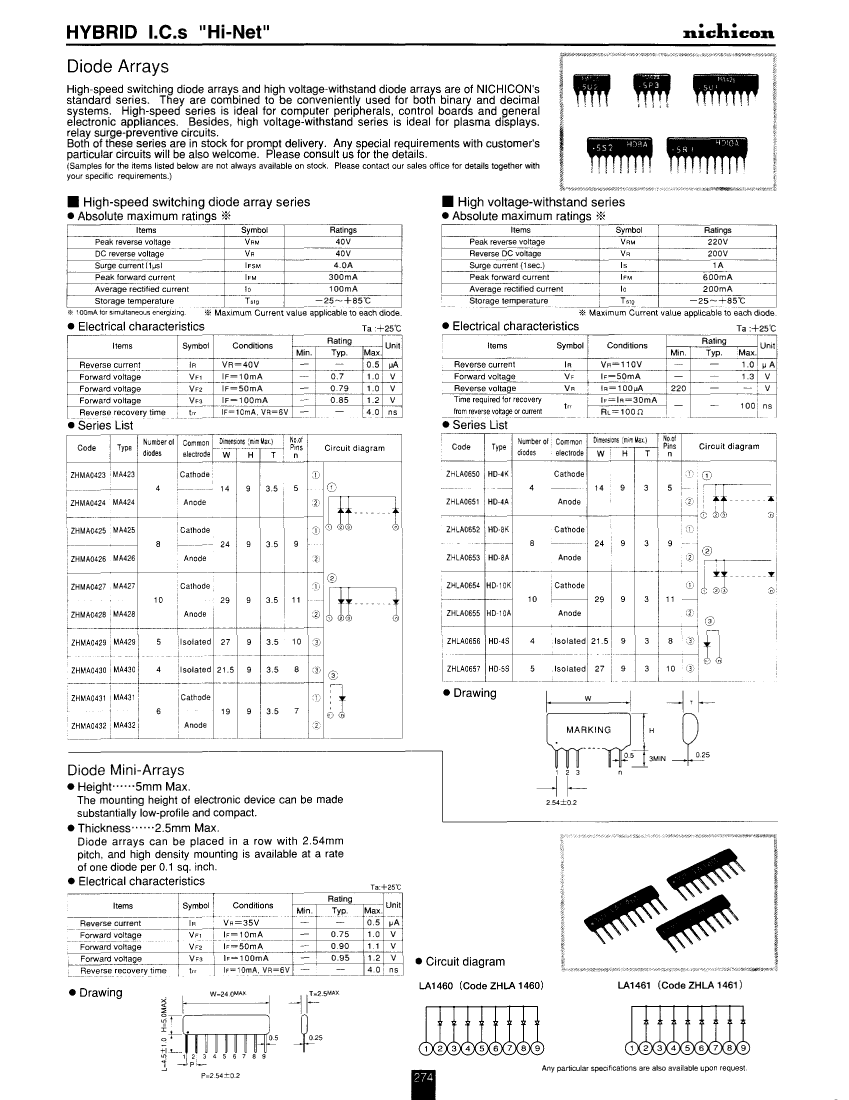

Preview

Download Datasheet

View All

HD-8A Related Products

	HD-8A	HD-8K	HD-10K	LA1460	HD-5S	HD-4A
Description	Rectifier Diode, 8 Element, 0.2A, Silicon	Rectifier Diode, 8 Element, 0.2A, Silicon	Rectifier Diode, 10 Element, 0.2A, Silicon	Rectifier Diode, 8 Element, Silicon	Rectifier Diode, 5 Element, 0.2A, Silicon	Rectifier Diode, 4 Element, 0.2A, 75V V(RRM), Silicon
package instruction	R-PSIP-T9	R-PSIP-T9	R-PSIP-T11	R-PSIP-T9	R-PSIP-T10	R-PSIP-T5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Configuration	COMMON ANODE, 8 ELEMENTS	COMMON CATHODE, 8 ELEMENTS	COMMON CATHODE, 10 ELEMENTS	COMMON ANODE, 8 ELEMENTS	SEPARATE, 5 ELEMENTS	COMMON ANODE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V	1.3 V	1.2 V	1.3 V	1.3 V
JESD-30 code	R-PSIP-T9	R-PSIP-T9	R-PSIP-T11	R-PSIP-T9	R-PSIP-T10	R-PSIP-T5
Number of components	8	8	10	8	5	4
Number of terminals	9	9	11	9	10	5
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse current	1 µA	1 µA	1 µA	0.5 µA	1 µA	1 µA
Maximum reverse recovery time	0.1 µs	0.1 µs	0.1 µs	0.004 µs	0.1 µs	0.1 µs
surface mount	NO	NO	NO	NO	NO	NO
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	Nichicon	-	-	Nichicon	Nichicon	Nichicon
Maximum non-repetitive peak forward current	1 A	1 A	1 A	-	1 A	1 A
Maximum output current	0.2 A	0.2 A	0.2 A	-	0.2 A	0.2 A
