2675S16TN0L datasheet, PDF - EEWORLD Datasheet

2675S16TN0L: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size127KB，2 Pages; ManufacturerLeoco USA Corp; Websitehttp://www.leoco.com.tw

Download Datasheet Parametric View All

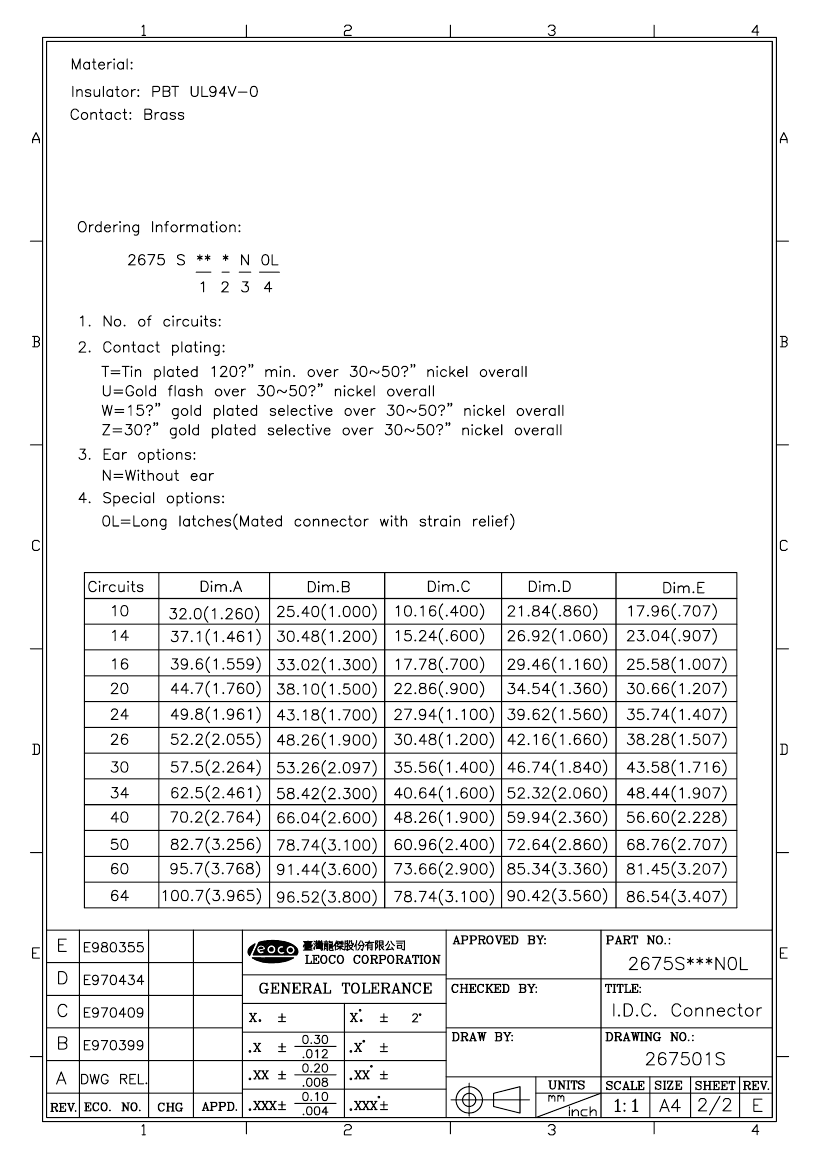

2675S16TN0L Overview

Board Connector, 16 Contact(s), 2 Row(s), Male, 0.1 inch Pitch, IDC Terminal, Latch, Receptacle

Parameter Name	Attribute value
Maker	Leoco USA Corp
Reach Compliance Code	unknown
Other features	NONE

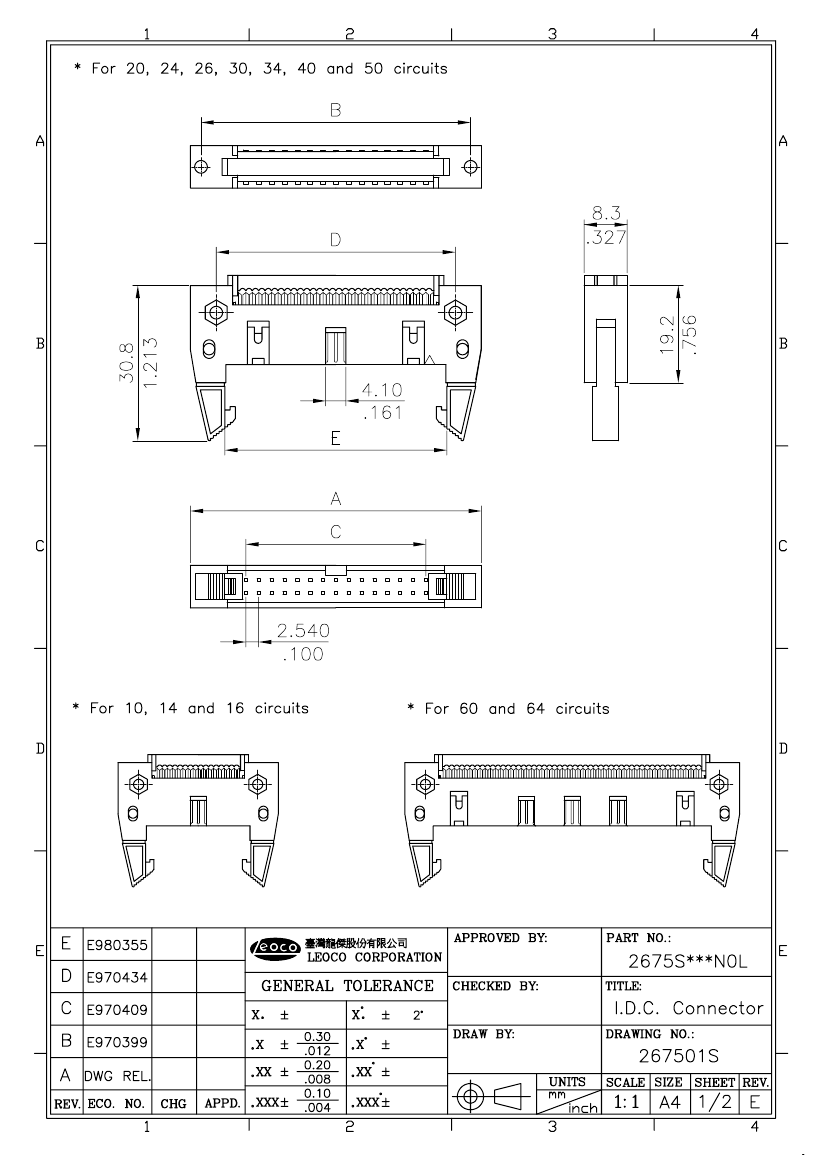

body width	0.327 inch
subject depth	0.756 inch
body length	1.559 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	SN ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Insulation resistance	1000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2675S
Plug contact pitch	0.1 inch
Installation option 1	LATCH
Installation option 2	LONG LATCH
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Plating thickness	120u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL, CSA
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	16
Maximum wire diameter	26 AWG
Minimum wire diameter	28 AWG
Base Number Matches	1
