ECEP2AP123FA

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 100V, 12000uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size180KB,6 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric View All

ECEP2AP123FA Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 100V, 12000uF, THROUGH HOLE MOUNT, CAN, ROHS COMPLIANT

ECEP2AP123FA Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerPanasonic
package instruction,
Reach Compliance Codeunknown
ECCN codeEAR99
capacitance12000 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
dielectric materialsALUMINUM (WET)
ESR28 mΩ
leakage current3.28634 mA
Manufacturer's serial numberT-UP
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package shapeCYLINDRICAL PACKAGE
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)100 V
ripple current8650 mA
surface mountNO
Delta tangent0.2
Terminal shapeSNAP-IN
Base Number Matches1

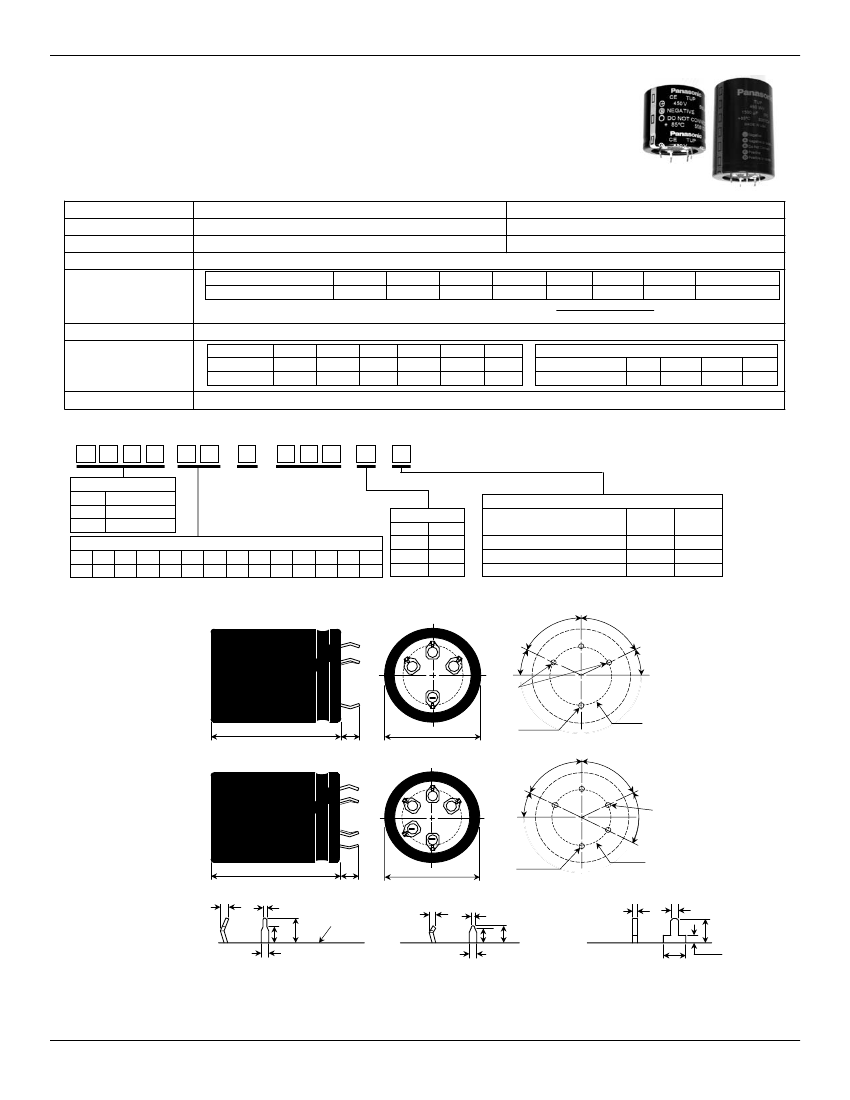

Panasonic Industrial Company
Aluminum Electrolytic Capacitors
T-UP Series
85°C, 3000 hours
4 or 5 terminal mounting provides stability and keyed polarity
Extended CV ratings
Can vent construction
Rated Working Voltage:
Operating Temperature:
Nominal Capacitance:
Capacitance Tolerance:
Dissipation Factor:
(120 Hz, +20°C)
Leakage Current:
Ripple Current Multipliers:
6 ~ 250 VDC
-40 ~ +85°C
200~270000µF
± 20%
Working Voltage [V]:
Max. D.F. (%):
6
50
25
40
35
35
50
30
63
25
80
20
00
20
60 ~ 500
5
RoHS
Compliant
350 ~ 500 VDC
-25 ~ +85°C
270~2700µF
For capacitance values > 33000µF, add the value of:
(rated cap. [µF] - 33000 )
000
3 CV (µA) max. after 5 minutes;
C = Capacitance in µF, V = WV
Frequency(Hz):
16~100WV:
160~450WV:
50
0.93
0.75
60
0.95
0.8
100~120
1.0
1.0
500
1.05
1.2
1k
1.08
1.25
10k
1.15
1.4
Ripple Current Ambient Temperature Factors**
Temperature (°C): 85°C
70°C
60°C
Multiplier: 1.0
1.3
1.4
45°C
1.5
Endurance:
3000 hours at +85°C with maximum specified ripple current (see page 4)
**Use of temperature ripple current multipliers may limit life to the hours specified for the maximum operating temperature.
Part Number System
E
C
E
C
P
Series
Code
Capacitance
Code
Diameter Code
Dia.
Code
35
E
40
F
50
H
RoHS compliant PVC sleeve and top
plate is standard.
Terminals
Prefix
No. of Pins
ECEC
4
ECEP
5
1C
16
1E
25
1V
35
1H
50
1J
63
Terminal Suffix Code
Standard Extended
Ratings
Ratings
Terminal Type
6.3mm Snap-in (Standard):
4.0mm Snap-in:
4.0mm Straight with Standoff:
A
4
E
X
5
Y
Voltage Code
1K 2A 2C 2D 2E 2V 2G 2W 2H
80 100 160 200 250 350 400 450 500
Dimensions in millimeters
4 Pin Mounting Style
60°
60°
+
(+)
30°
30°
Isolate
P.C. Pads
(-)
Circuit Board Mounting
Holes
Ø22.5±0.1
L
T
ØD
4 x Ø2.0±0.1
60°
60°
5 Pin Mounting Style
+
+
30°
(+)
(+)
Isolate P.C. Pad
(-)
(-)
L
T
ØD
5 x Ø2.0±0.1
60°
Circuit Board Mounting
Holes
Ø25.0±0.1
Pin Dimensions
2.0 max.
0.8
+0.2
-0.1
2.0 max.
4.0
1.5±0.2
Top of Capacitor Body
6.3±1.0
1.5±0.2
0.8
-0.1
3.5
4.0±0.5
+0.2
0.8
+0.2
-0.1
1.5
6.0±1
5.0
2.0 max.
T = 6.3mm Length Snap-in Terminal
Standard on 4 and 5 Pin Products
T = 4mm Length Snap-in Terminal
Available on 4 Pin Product only
T = 4mm Length Straight Standoff Pin Terminal
Available on 4 and 5 Pin Products
24
Design and specifications are subject to change without notice.
Contact the factory or your sales representative for technical specifications before purchase and/or use.
When safety concerns arise, please contact Panasonic immediately for technical consultation.
