AIMC-0805-R022-J-T datasheet, PDF

Datasheet> All Categories > Passive components> inductor> AIMC-0805-R022-J-T

AIMC-0805-R022-J-T: DescriptionGeneral Purpose Inductor, 0.022uH, 5%, 1 Element, Ceramic-Core, SMD, 0805, CHIP, 0805; CategoryPassive components inductor; File Size59KB，1 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

AIMC-0805-R022-J-T Overview

General Purpose Inductor, 0.022uH, 5%, 1 Element, Ceramic-Core, SMD, 0805, CHIP, 0805

AIMC-0805-R022-J-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Abracon
package instruction	0805
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	0805
structure	Chip
core material	CERAMIC
DC Resistance	0.5 Ω
Nominal inductance(L)	0.022 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	AIMC-0805
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	0.85 mm
Package length	2 mm
Package form	SMT
Package width	1.25 mm
method of packing	TR
Minimum quality factor (at nominal inductance)	13
Maximum rated current	0.3 A
self resonant frequency	1700 MHz
series	AIMC(0805)
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	100 MHz
Tolerance	5%
Base Number Matches	1

Preview

Download Datasheet

View All

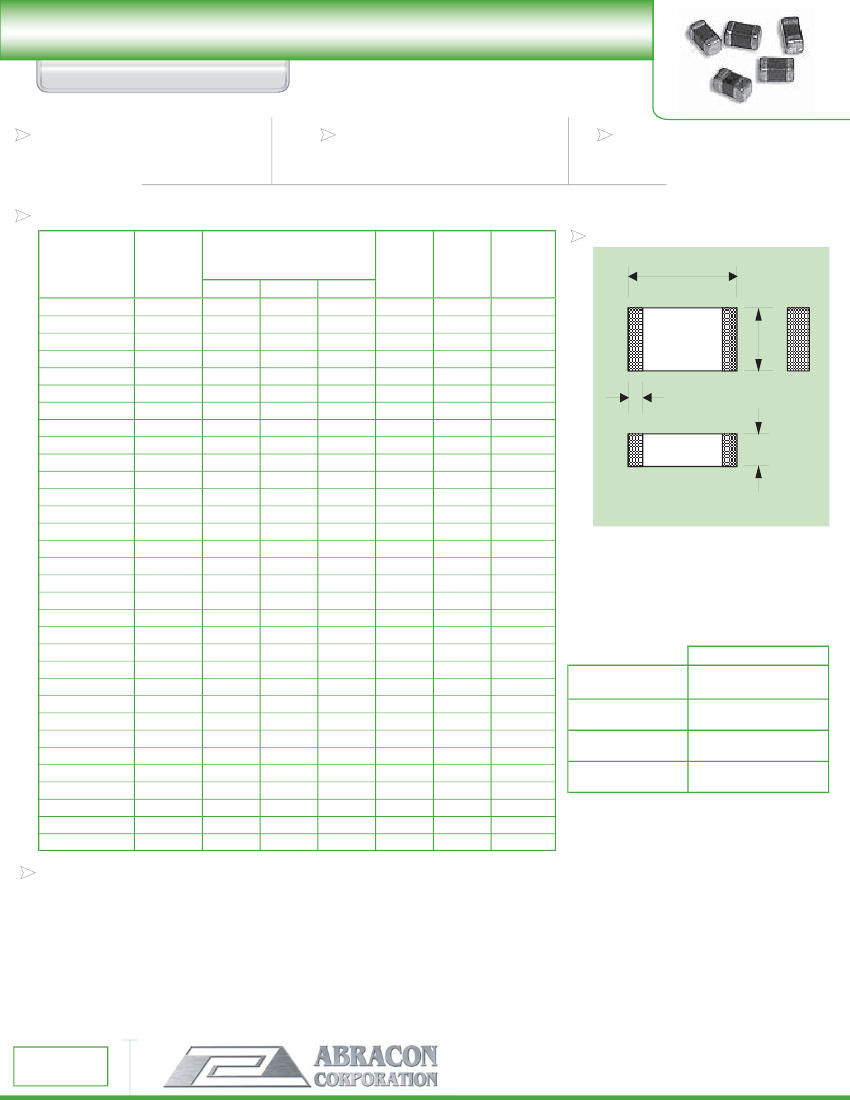

MULTILAYER CERAMIC CHIP INDUCTORS

AIMC-0805 SERIES

FEATURES:

• Ceramic base

• Excellent SRF & Q

STANDARD SPECIFICATIONS:

Part

Number

AIMC-0805

R0012S

R0015S

R0018S

R0022S

R0027S

R0033S

R0039S

R0047S

R0056K

R0068K

R0082K

R010J

R012J

R015J

R018J

R022J

R027J

R033J

R039J

R047J

R056J

R068J

R082J

R10J

R12J

R15J

R18J

R22J

R27J

R33J

R39J

R47J

L (nH)

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

100

120

150

180

220

270

330

390

470

100

(MHz)

Typical

800

SRF

(MHz)

Min

6000

5400

4500

4000

3650

3000

2500

2450

2000

1750

1700

1550

1350

1300

1200

1150

1000

850

600

500

400

350

300

250

200

| | | | | | | | | | | | | | |

OPTIONS:

• Tape & Reel is standard

• See SCD for options

APPLICATIONS:

• Digital Communication

• Wireless Equipment

Max

(

Ω

)

0.10

0.13

0.15

0.20

0.23

0.25

0.28

0.30

0.35

0.40

0.45

0.50

0.55

0.60

0.65

0.70

0.75

0.80

0.90

1.00

1.50

2.10

3.00

3.50

Max

(mA)

600

400

300

200

RATE

PHYSICAL CHARACTERISTICS:

1800

100

Dimension: inch/mm

Length (L)

Width (W)

Thickness (T)

(See below)

Termination (BW)

ACML-0805

0.079±0.012,-0.004

(2,00±0,30,-0,10)

0.049±0.008

(1,25±0,20)

0.033±0.012

(0,85±0,30)

0.020±0.012

(0,50±0,30)

THICKNESS:

R0015S~R0082K: T=0.023±0.008 (0,58±0,20)

R047J~R47J : T=0.033±0.012 (0,84±0,30)

R010J~R039J : T=0.039±0.012 (1,00±0,30)

TECHNICAL INFORMATION:

• Ordering Code: AIMC-0805-RXXX(Value)-(S)(J)(K)-T(T&R)

• L test at 100MHz except L≥120nH is tested at 50MHz

• Tolerance: S=±0.3nH, J=±5%, K=±10%

• Letter suffix indicates standard tolerance

• Operating Temperature: -40°C to +125°C

Note:

All specifications subject to change without notice

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

rev1.1-8/04

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
