D8080A-2 datasheet, PDF - EEWORLD Datasheet

D8080A-2: DescriptionMicroprocessor, 8-Bit, 2.63MHz, NMOS, CDIP40, CERDIP-40; CategoryThe embedded processor and controller Microcontrollers and processors; File Size359KB，10 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric View All

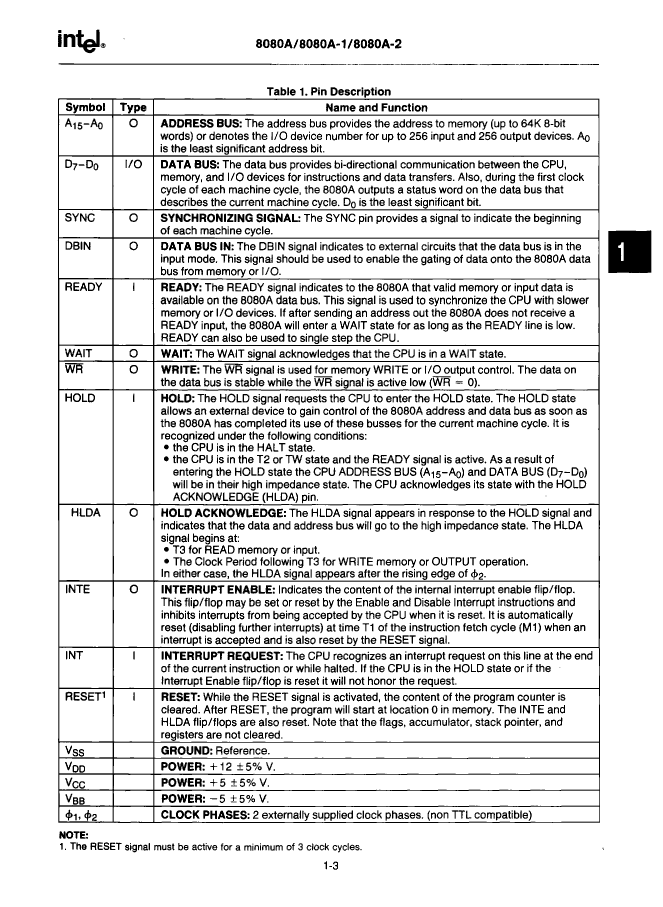

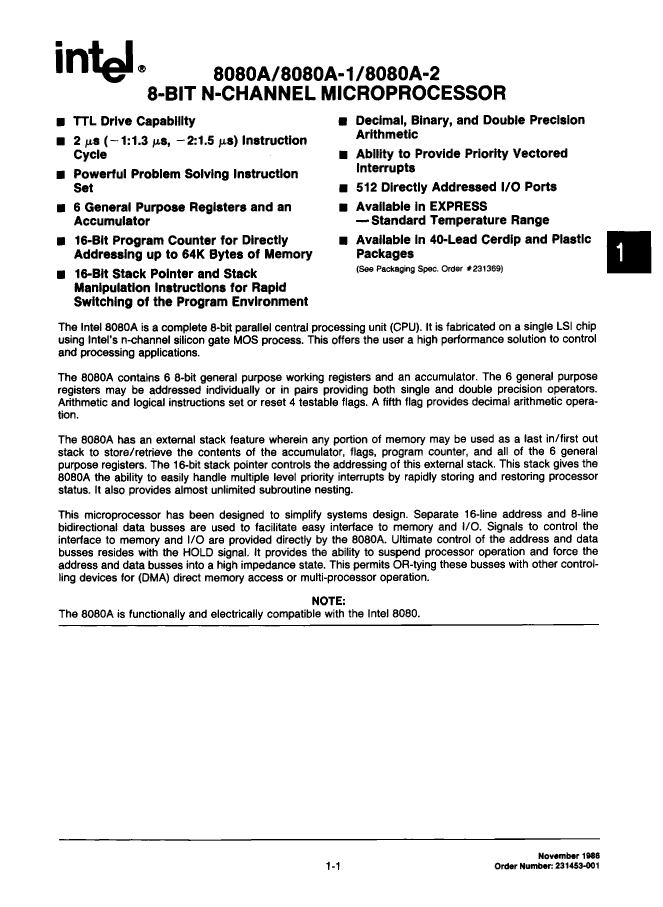

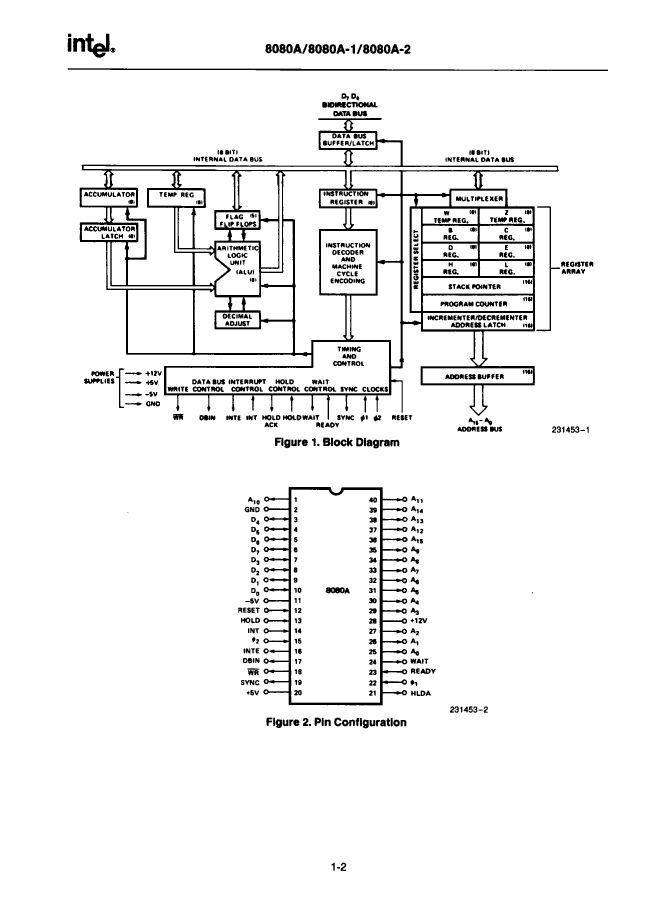

D8080A-2 Overview

Microprocessor, 8-Bit, 2.63MHz, NMOS, CDIP40, CERDIP-40

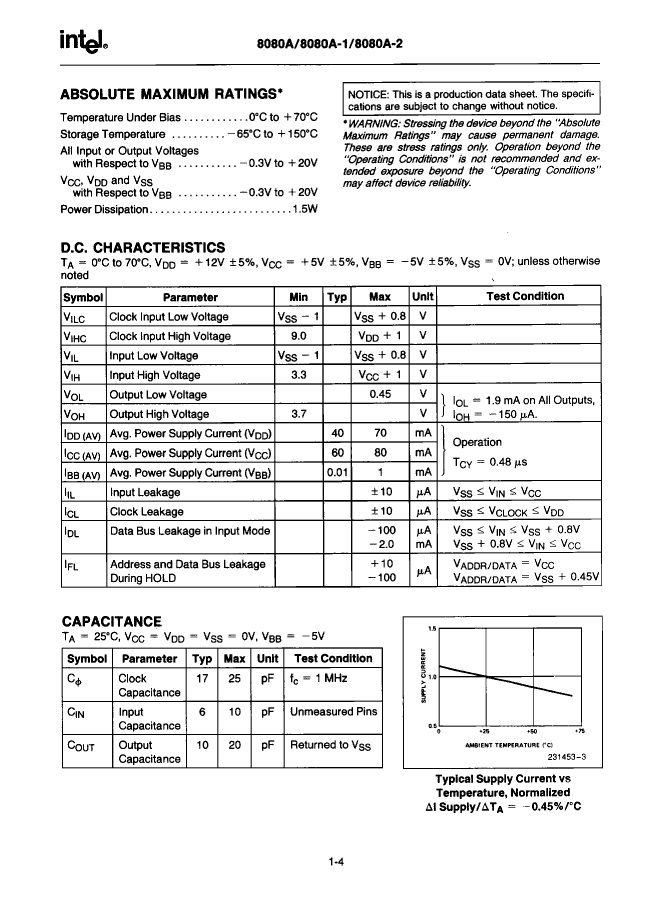

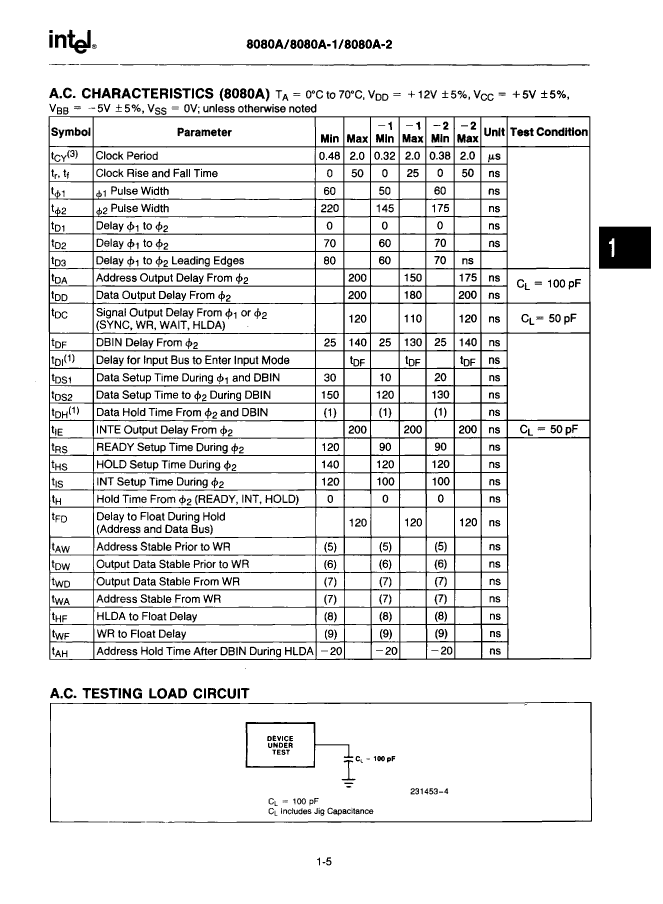

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	DIP
package instruction	DIP, DIP40,.6
Contacts	40
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	THIRD SUPPLY VOLTAGE 12+-5%
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	2.63 MHz
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	R-GDIP-T40
JESD-609 code	e0
length	52.325 mm
low power mode	NO
Negative supply voltage rating	-5 V
Number of DMA channels
Number of external interrupt devices	1
Number of serial I/Os
Number of terminals	40
On-chip data RAM width
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	+-5,12 V
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	5.72 mm
speed	2.63 MHz
Maximum slew rate	80 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	NMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR
Base Number Matches	1
